- 3-Source Agility: Switch instantly between wireless receiver and 2 HDMI inputs (e.g., live feed + backup media).
- 492ft Commercial Range: Reliable in crowded venues like stadium bars or concert halls.
- H.265 Efficiency: 30% bandwidth reduction vs. H.264 for stable 1080P@60FPS.
- Live-Ready Latency: <80ms delay for synchronous audio/video in live broadcasts.
- One-Touch Remote Control: Assign customized shortcuts for rapid source switching.
Mode
Plug Type
$179.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

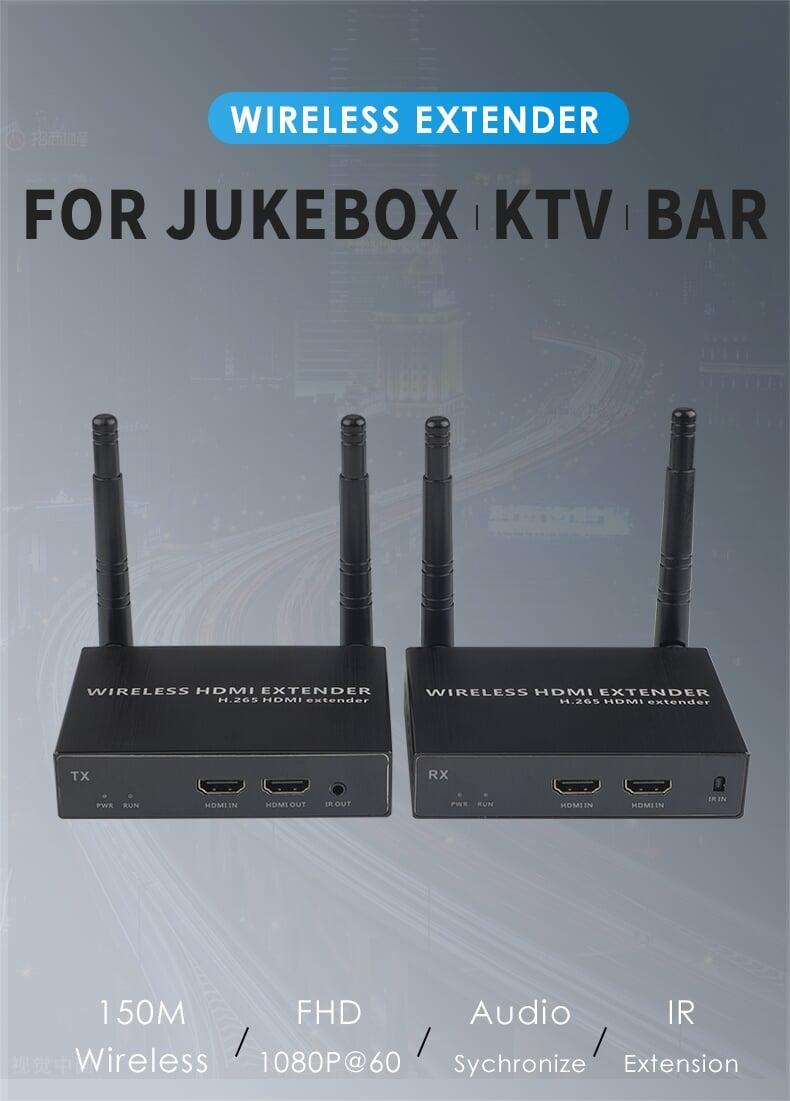

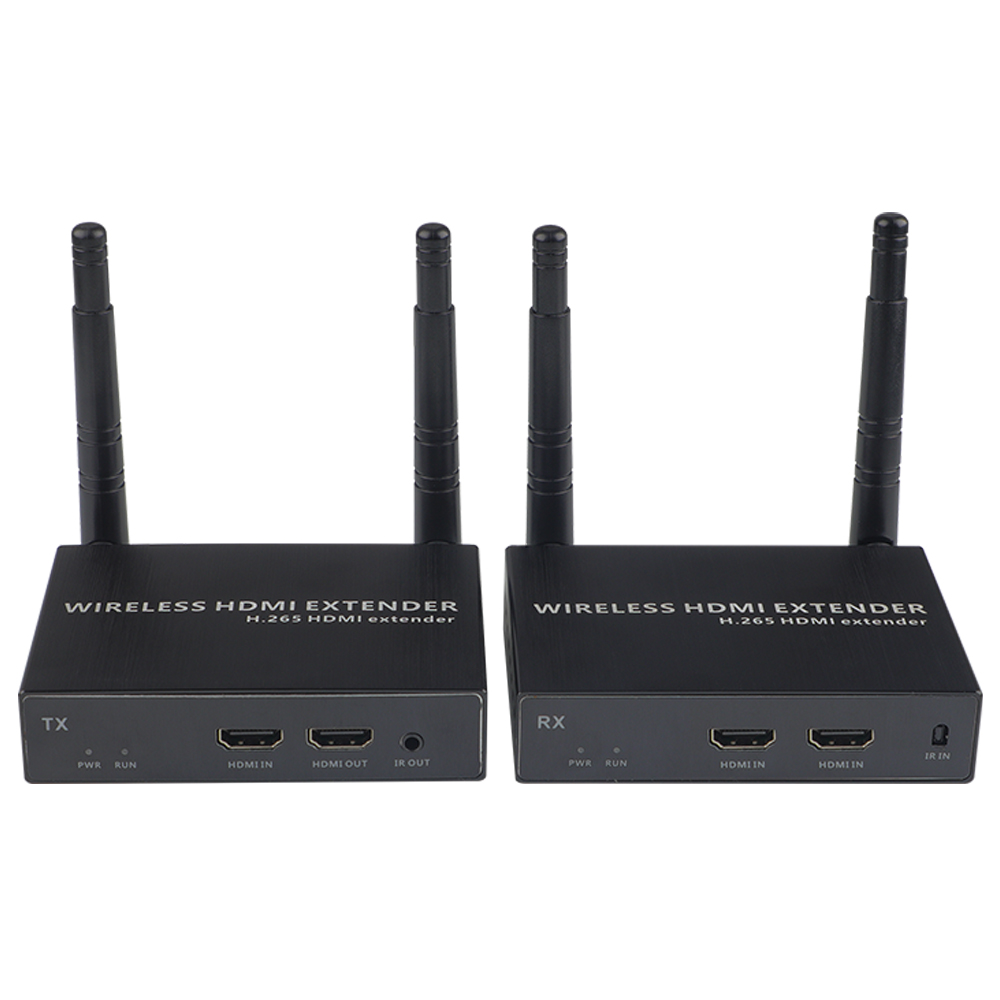

1080P 60FPS Wireless HDMI Extender Switcher 1*Transmitter+1*Receiver | 200M 1080P Extender Series

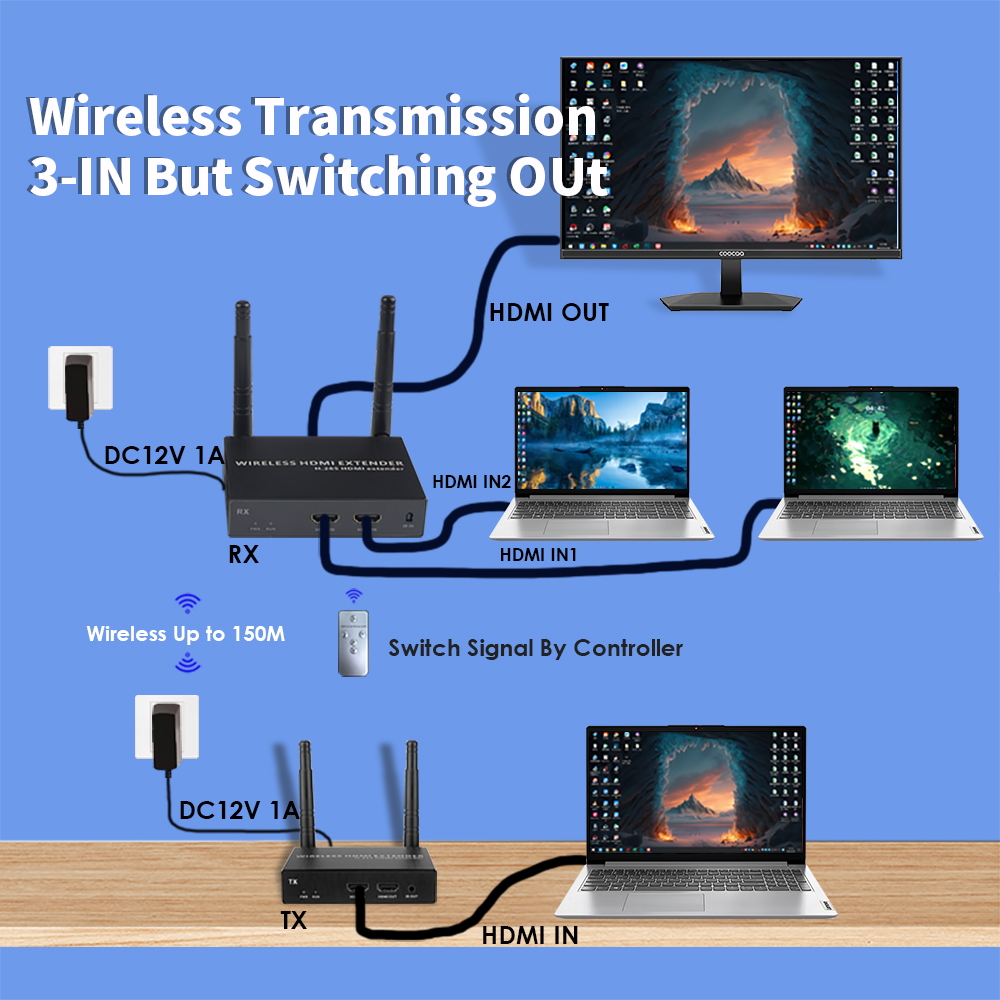

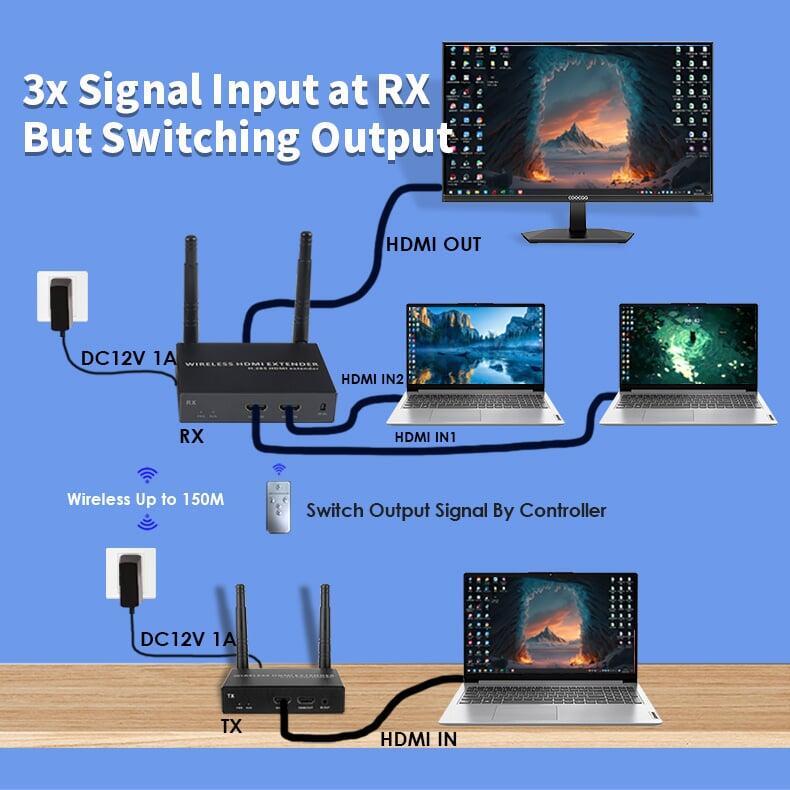

3x Signal Input But Switching Output at Receiver
There are three video signals on the receiver side, including one wireless receiving signal and two HDMI input signals. Through the remote control can easily switch the output signal source. The product is mainly used in bars, KTV, disc players and jukeboxes, providing convenient signal transmission and switching solutions for entertainment venues, making the audio-visual experience better and meeting various entertainment needs.

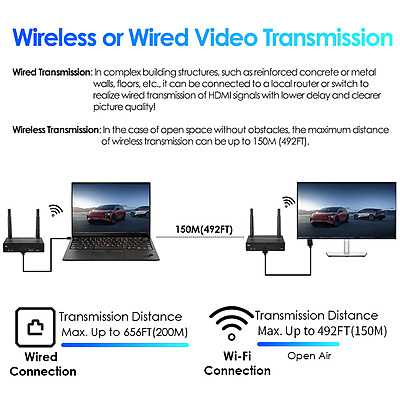

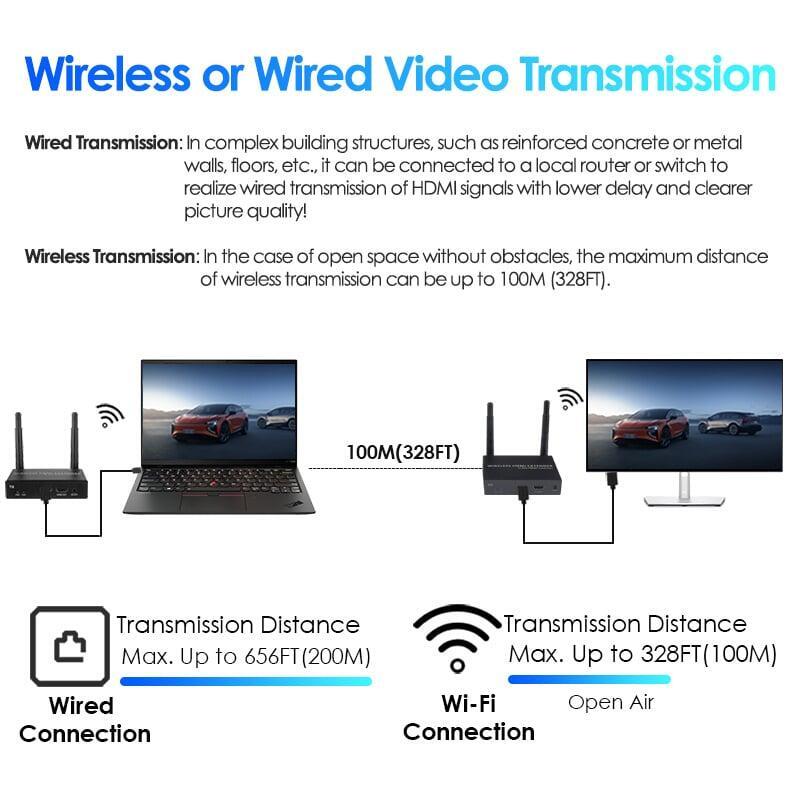

Can Be Transmitted Either Wired Or Wirelessly
In complex building structures where wired transmission is preferred for HDMI signals in order to reduce delay and maintain high picture quality, connecting devices such as TVs, monitors, or projectors to a local router or switch can be a viable solution. This setup allows for the distribution of HDMI signals over Ethernet cables, commonly known as HDMI over IP or HDMI over Ethernet.

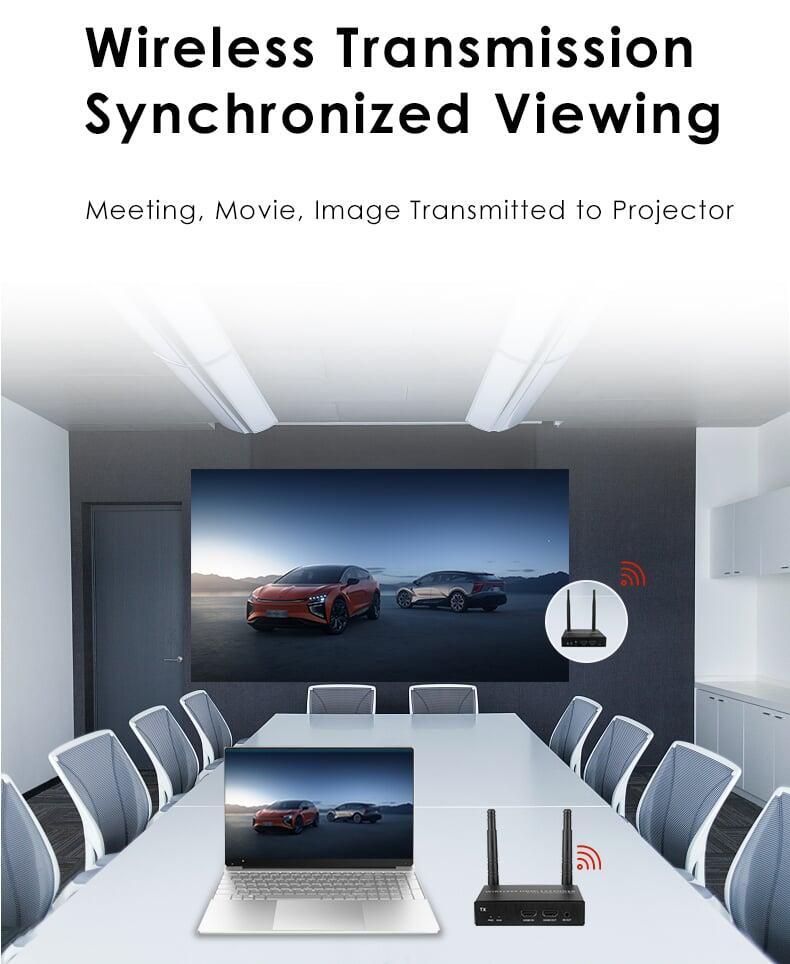

Wireless Transmission
Conferences, film screenings, streaming visuals directly to a projector for real-time viewing

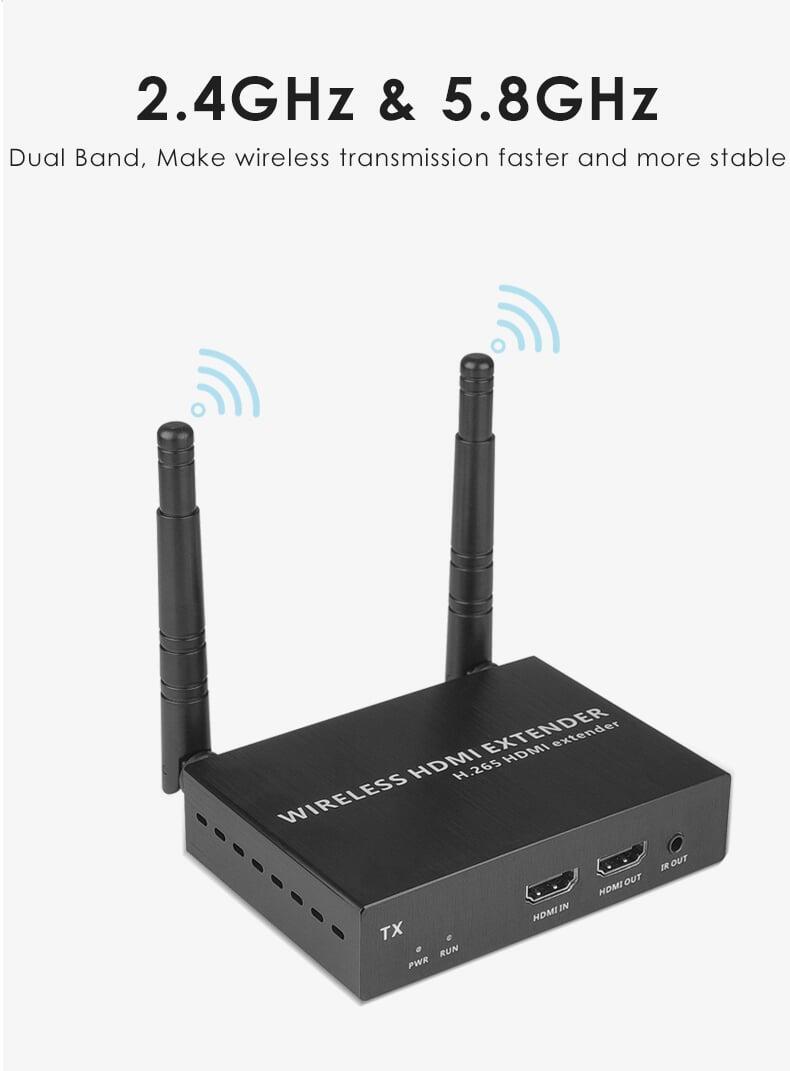

2.4GHz and 5.8GHz Dual-Band Antenna
Dual-band support along with dual 5DB antennas enhance the speed and stability of wireless transmissions.
Dual-Row Heat Dissipation for Seamless Operation
Secure efficient heat dissipation for equipment longevity while safeguarding against interference, leakage, and high temperatures.

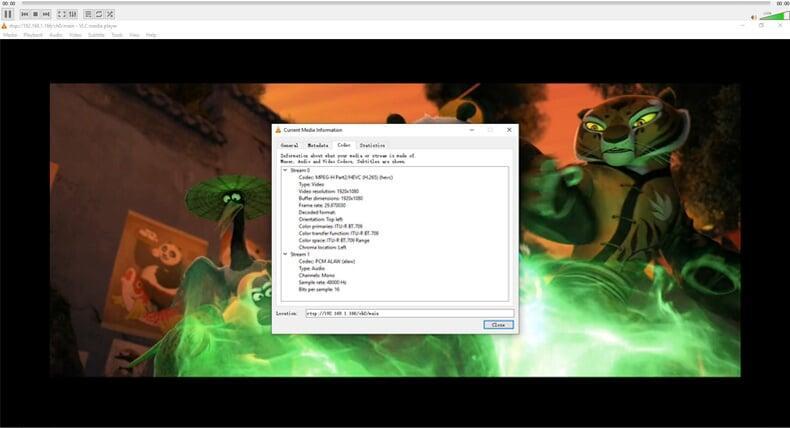

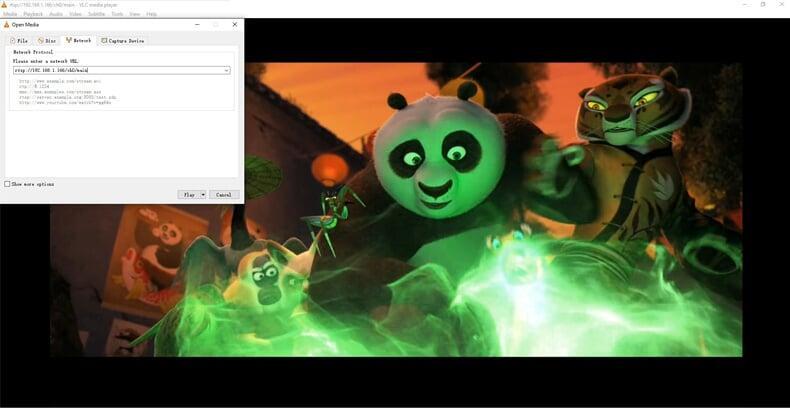

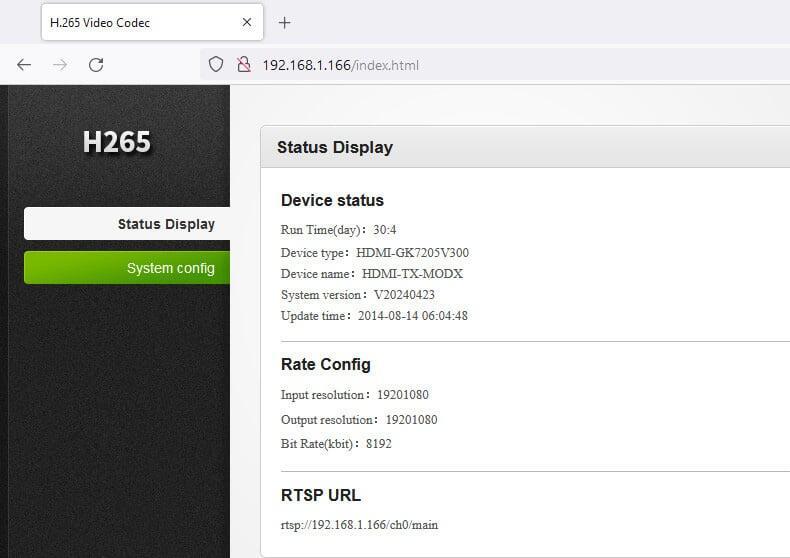

RTSP Protocol Available for Transmitter.
When working with devices that support the Real Time Streaming Protocol (RTSP), such as our HDMI transmitters (TX) designed for HDMI over IP solutions, you can often pull RTSP streams from these devices using media players like VLC.

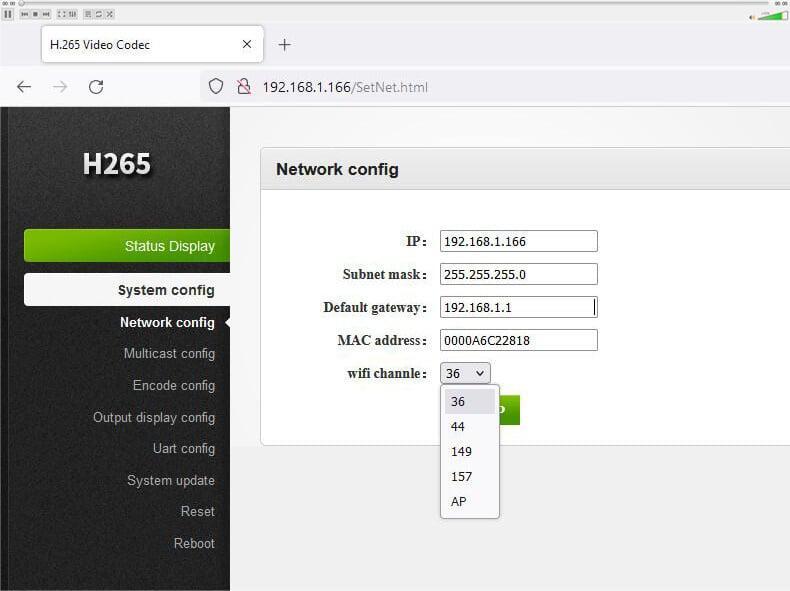

Configurable WiFi Channel of Transmitter(TX)
The ability to configure the WiFi channel of a TX (transmitter) device can be important for optimizing wireless signal performance in environments where multiple WiFi networks are present. By selecting an appropriate WiFi channel, you can reduce interference and improve signal reliability.
7x24H Work Uninierrupiedly
Operating continuously at an industrial level for security surveillance; stay secure with me

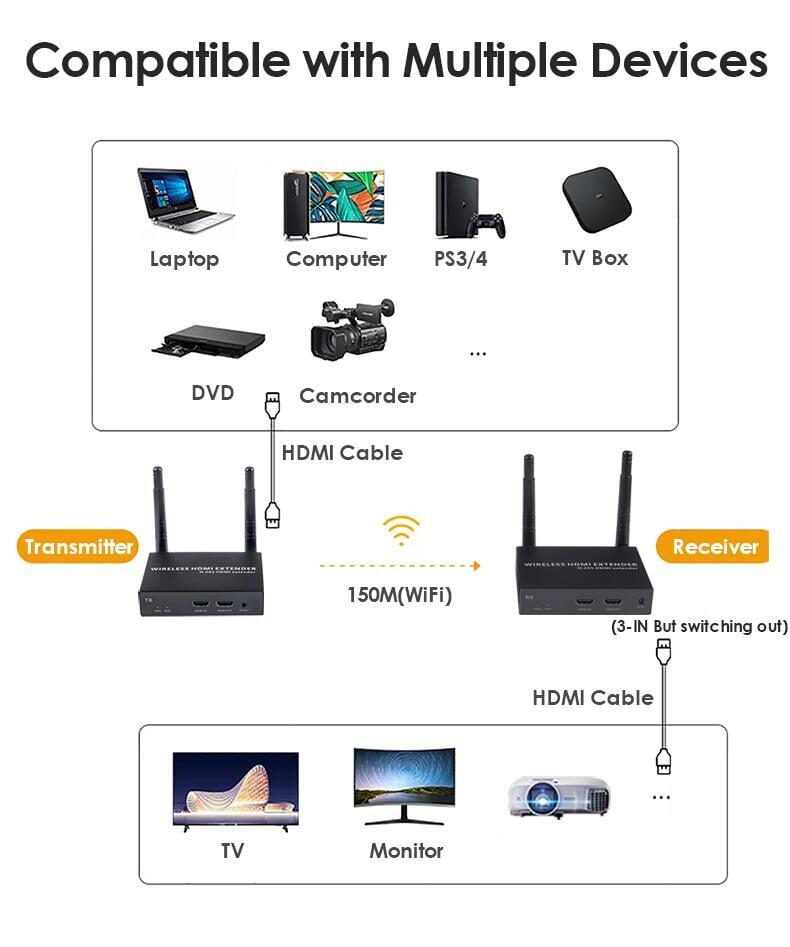

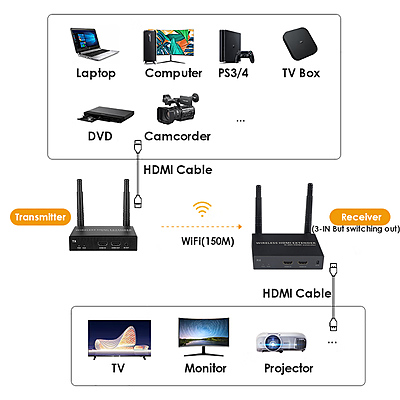

Compatible with Multiple Devices for Transmission and Display
Supports seamless transmission and display across multiple devices.

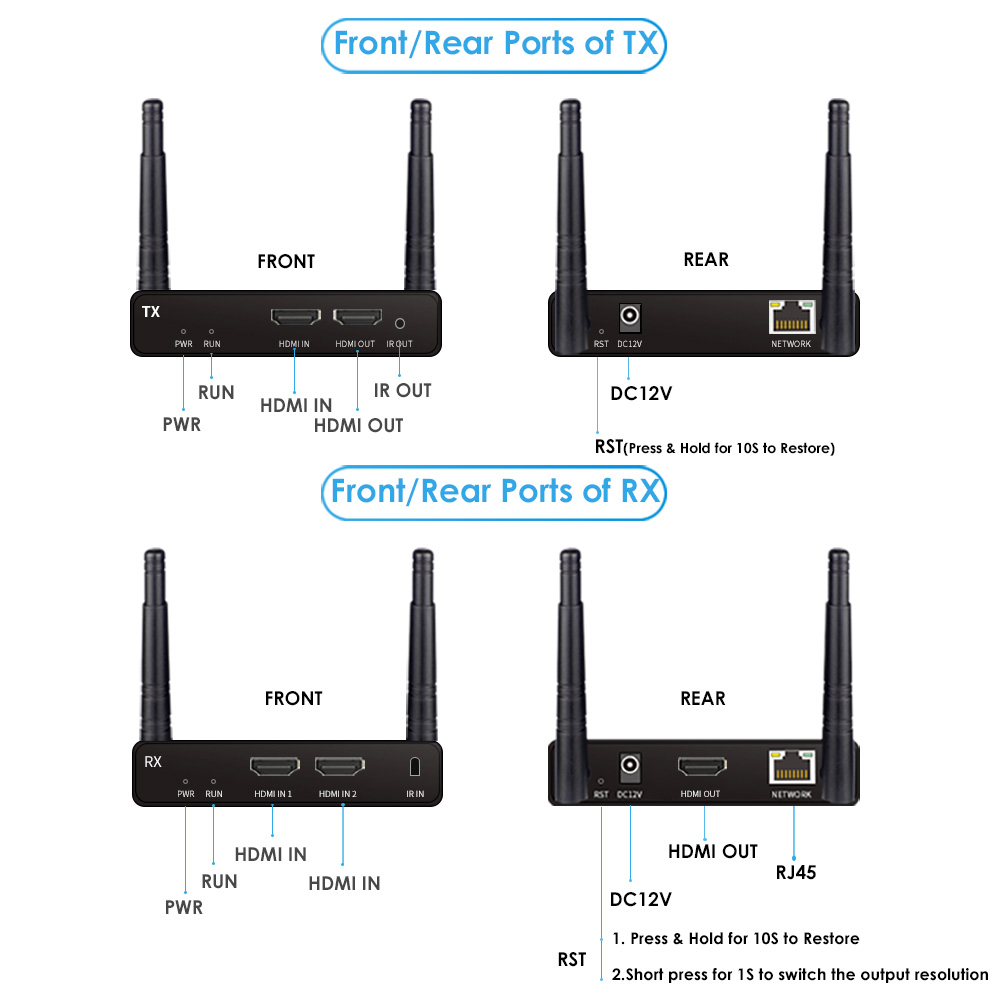

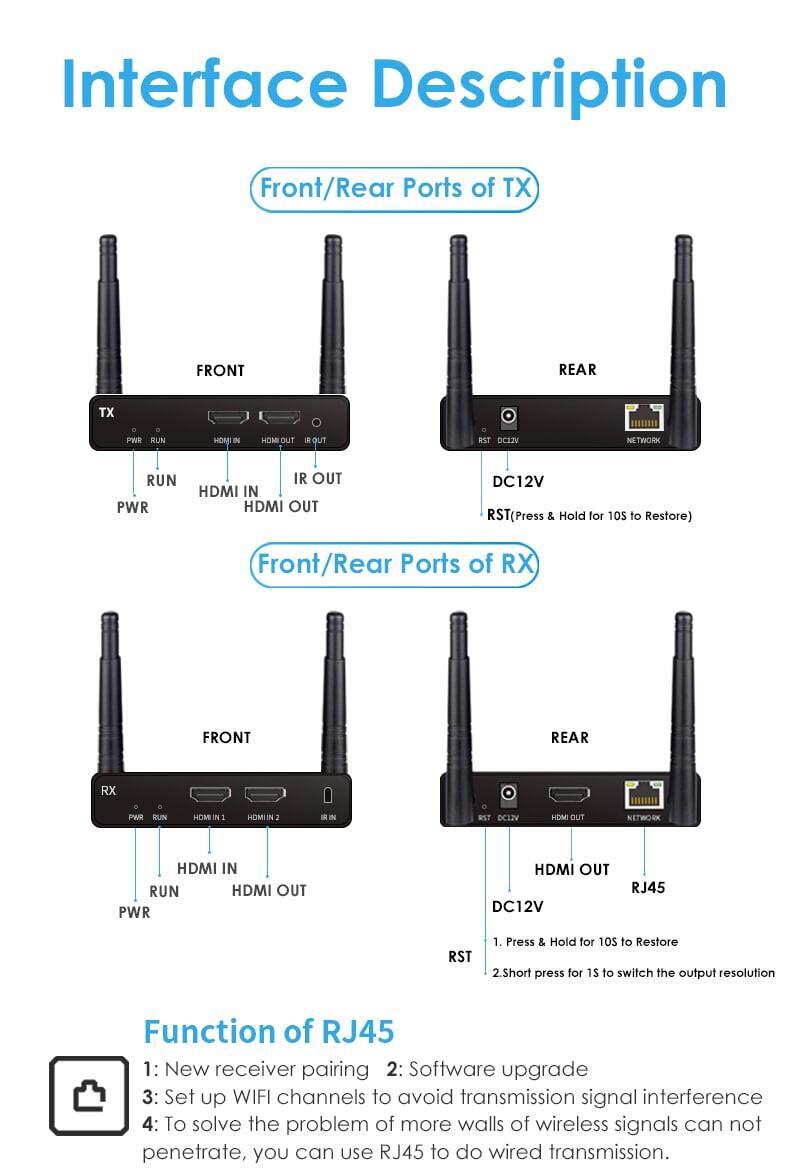

Rich Hardware Interfaces.
HDMI IN is the signal input, HDMI OUT is connected to the monitor or TV, connect the HDMI cable, and the image will appear about 40 seconds after powering on. The RUN indicator light will flash continuously to indicate that the image is being transmitted.
Specifications
Specifications
Product Series
- Product SeriesITS2ES Series
Connectors
- HDMI (1.4)2x HDMI Female(Transmitter), 3x HDMI Female(Receiver)
- RJ451x RJ45 Female(Transmitter/Receiver)
- IR Control1x 3.5mm IR Female(Transmitter), 1x Built-in IR Receiver
- Antenna2x External WiFi Antennas (Transmitter/Receiver)
- RST1x RST (Reset or press & hold it for 1 second to switch output resolution of RX)
- Power1x DC12V(Transmitter/Receiver)
Signal Input/Output
- Signal Input1x HDMI Input by Transmitter, 2x HDMI Input by Receiver, 1x IR Input by Receiver (Built-in)
- Signal Output1x HDMI Output by Transmitter & Receiver, 1x IR Output by Transmitter
- Max. Transmission DistanceWireless: Up to 492ft (150M) under open air Wired: Up to 656ft (200M) via switch
- Switching OutputAvailable for Receiver ONLY by Remote Controller
Mode
- 1-to-More ModeMax. 4x Receivers
- Sets At SiteMax. 2 sets at the same site, or else it might cause channel jam.
Video
- Video EncodingH.265
- Video ResolutionsUp to 1920x1080P@60fps, 1080i Not Recommended
Network
- Default IP192.168.1.166 (Transmitter), 192.168.1.167 (Receiver)
- RTSP ProtocolOnly Availalble for Transmitter
- RTSP URLrtsp://192.168.1.166/ch0/main
WiFi
- FrequencyDual Band, 2.4GHz | 5.8GHz
- ChannelConfigurable for Transmitter Only
Power
- Input VoltageAC110V-220V, 50/60HZ
- Consumption≤4.0W(Transmitter/Receiver)
Physical
- Unit Dimension111 x 79 x 25 mm(4.37 x 3.11 x 0.98 in.)
- Package Dimension194 x 116 x 116 mm(7.64 x 4.57 x 4.57 in.)
- Unit weight(1x unit)189 g (0.42 lb, 6.67 oz.)
- Gross weight(1x TX, 1x RX)670 g(1.5 lb, 23.63 oz.)
- HousingAluminum alloy
- ColorBlack
Operating Environment
- Operation Temperature-15℃ ~ 55℃ (5°F ~ 131°F)
- Storage Temperature-40℃~ 60℃ (-40°F ~ 140°F)
- Humidity(Non-Condensing)0-95%
