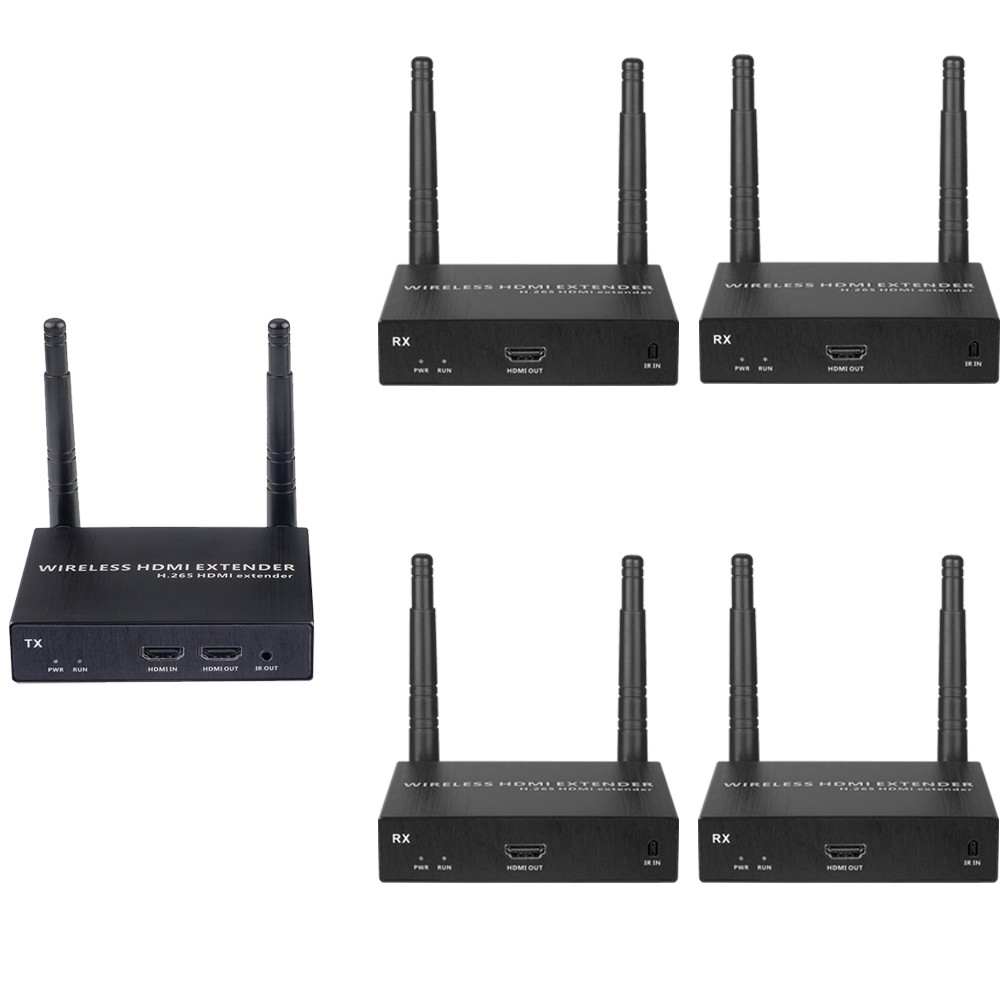

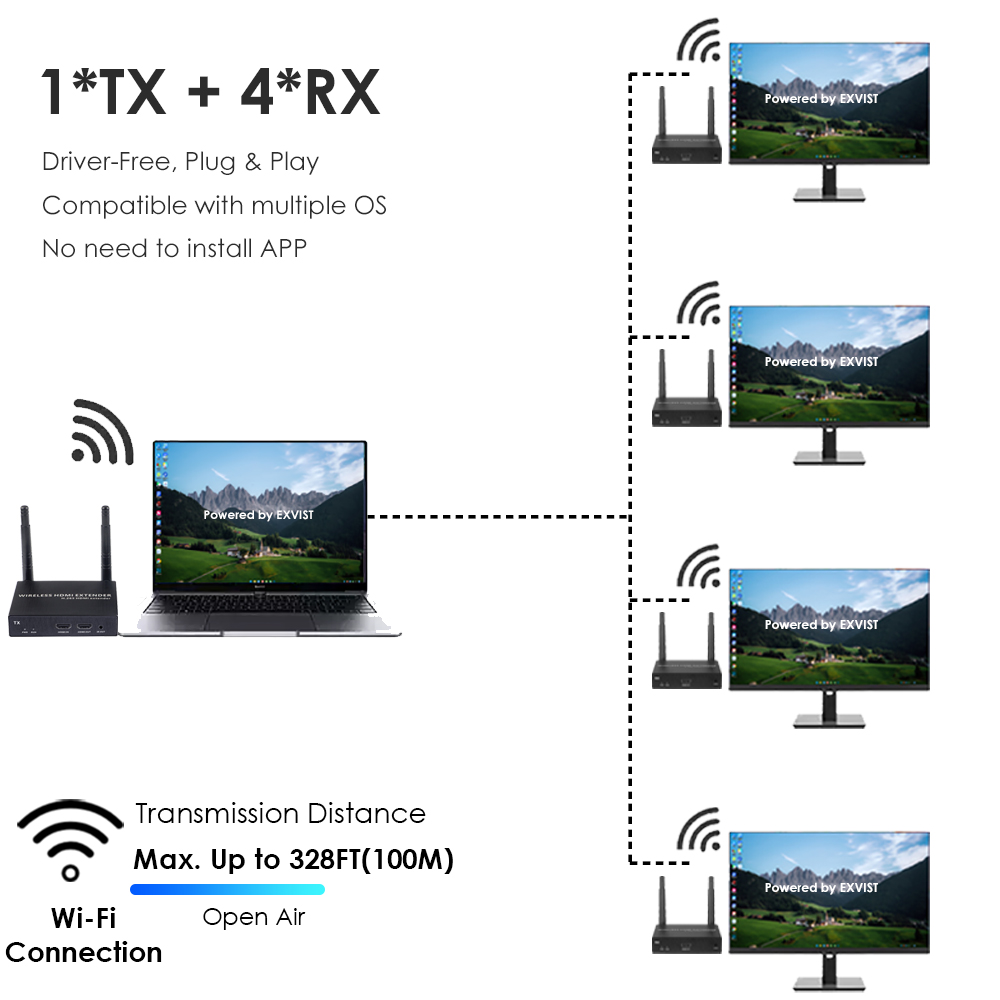

1-to-4 Multi-Screen Support: Ideal for classrooms, small events, or immersive home setups.
328ft Stable Coverage: Perfect for mid-sized rooms or outdoor patios.
Lag-Free Performance: <90ms latency for gaming, fitness classes, or live demos.
Dual-Mode Connectivity: Wi-Fi flexibility or interference-resistant RJ45.
10-Second Pairing: Sync transmitter/receiver with one Ethernet cable.
RTSP/VLC Ready: Stream directly to broadcasting software.
Redeem K66FU3IZ7A51 to save 30%!
Mode
Plug Type
$149.57 - $389.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

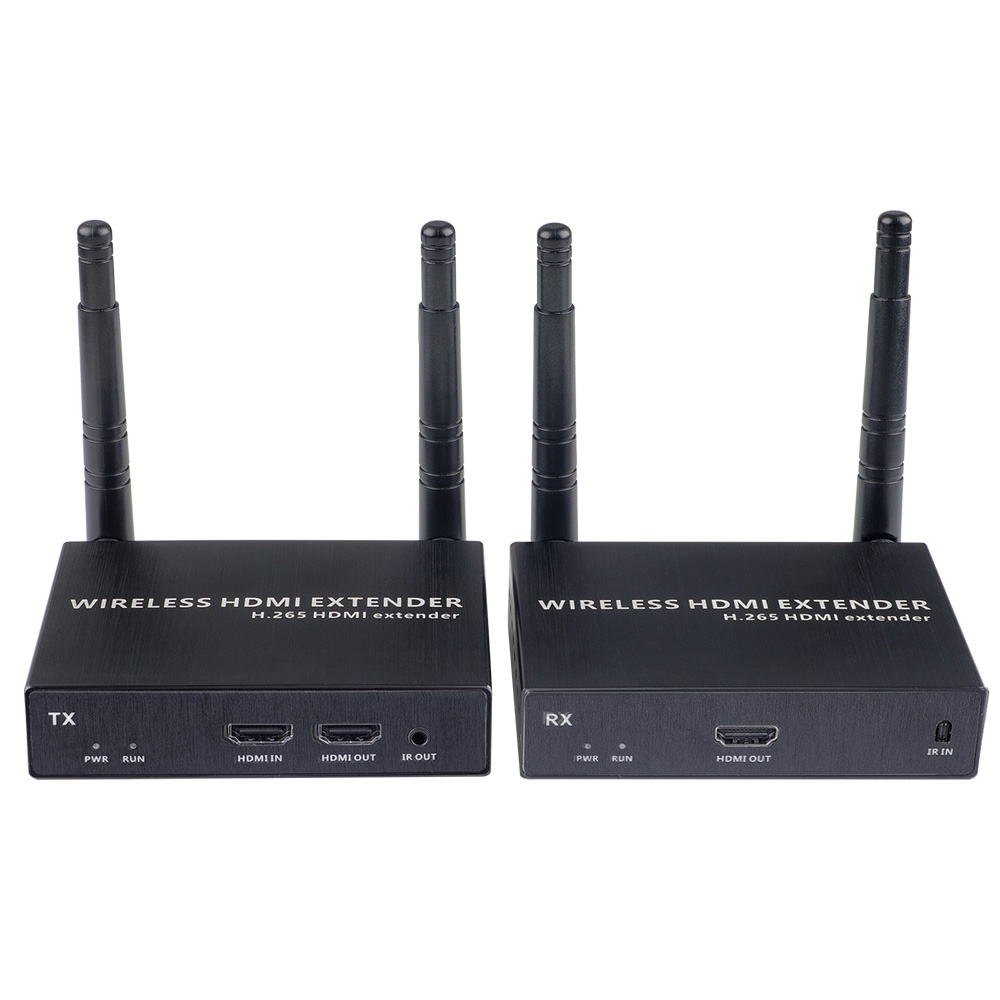

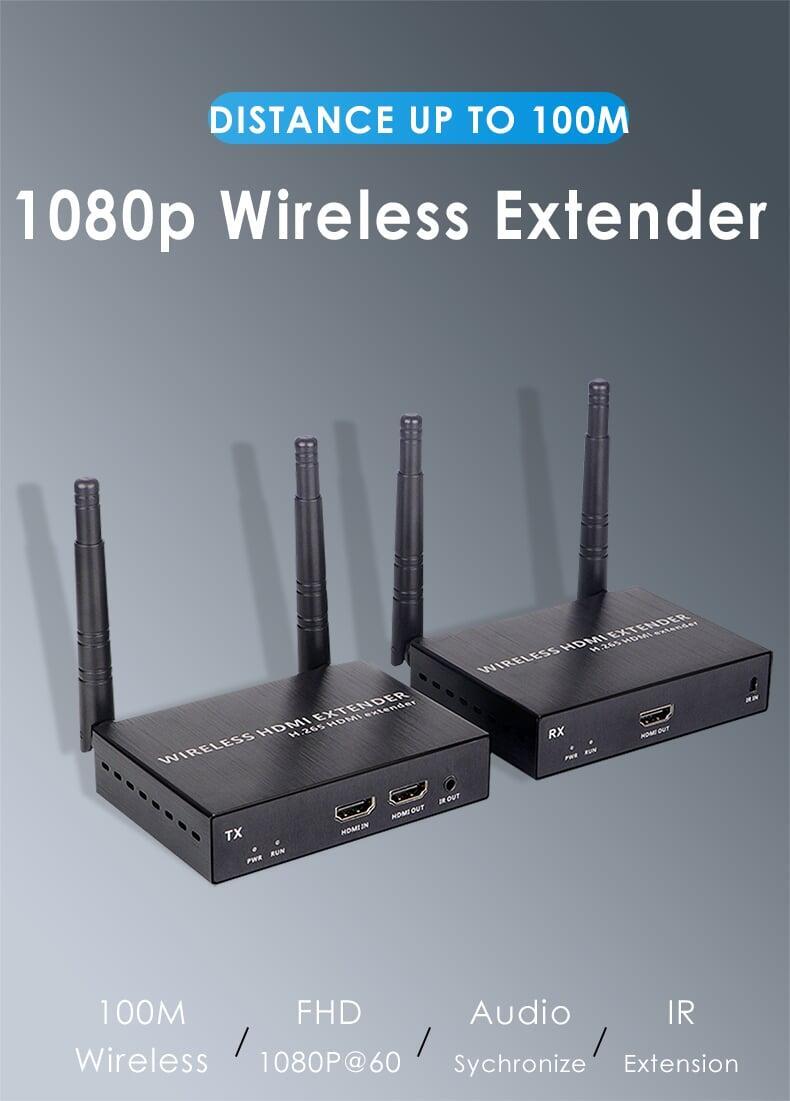

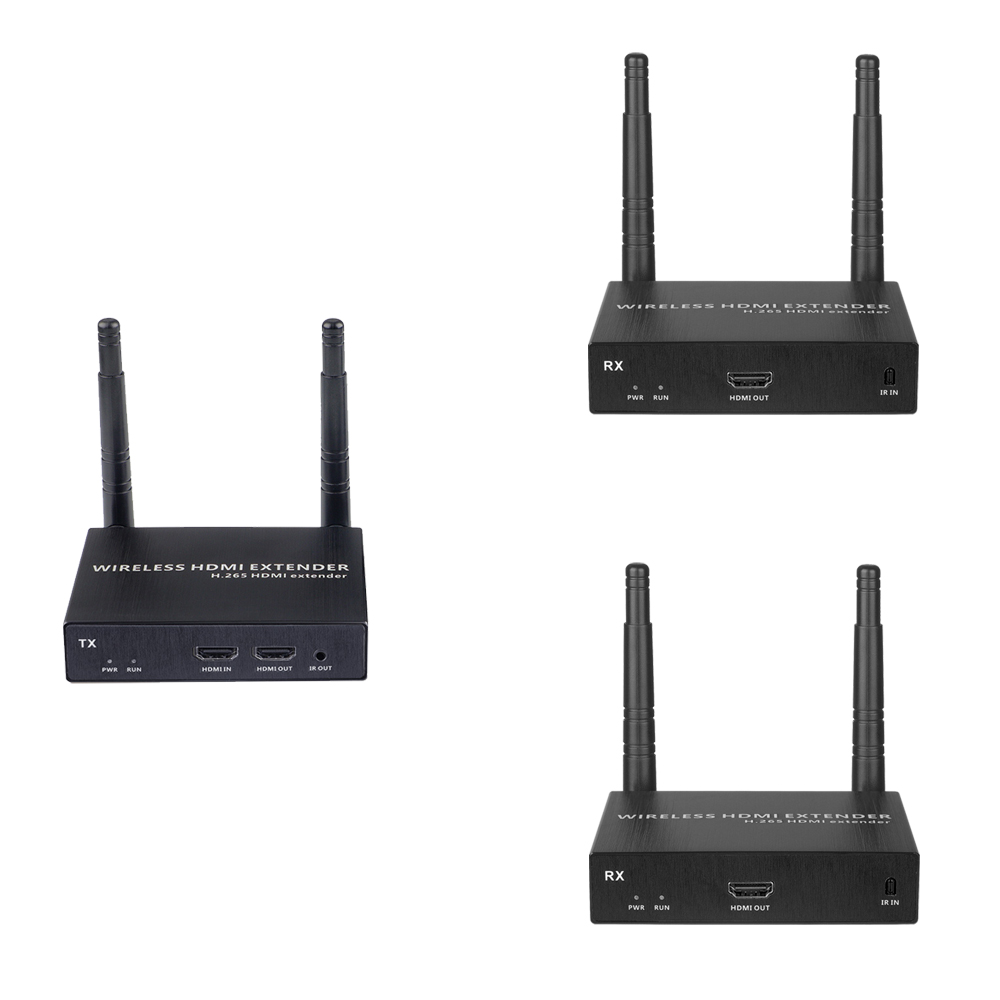

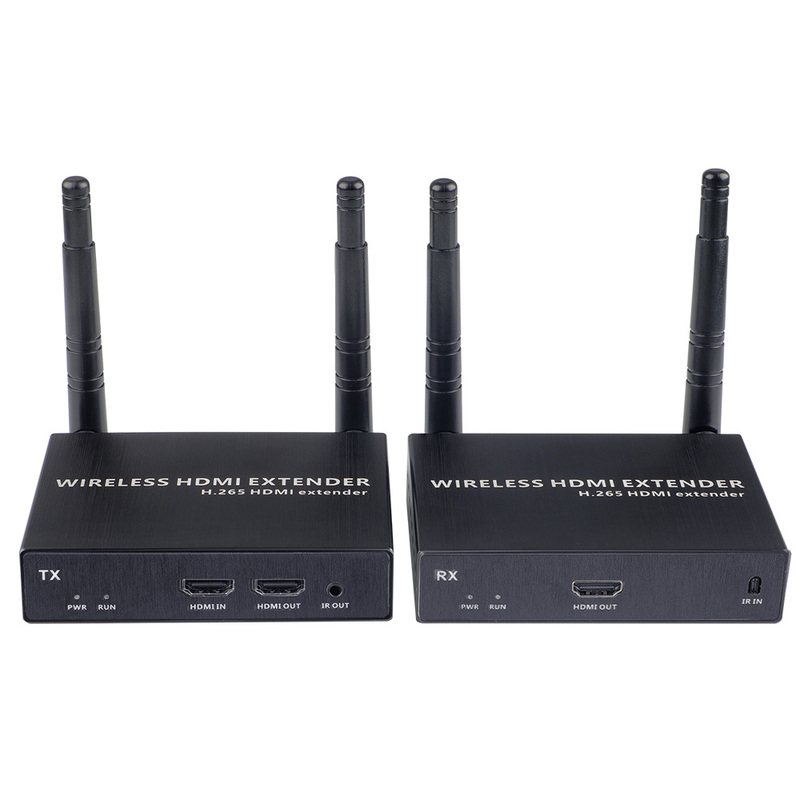

1080P 60FPS Wireless HDMI Extender 1*Transmitter+1*Receiver | 100M 1080P Extender Series

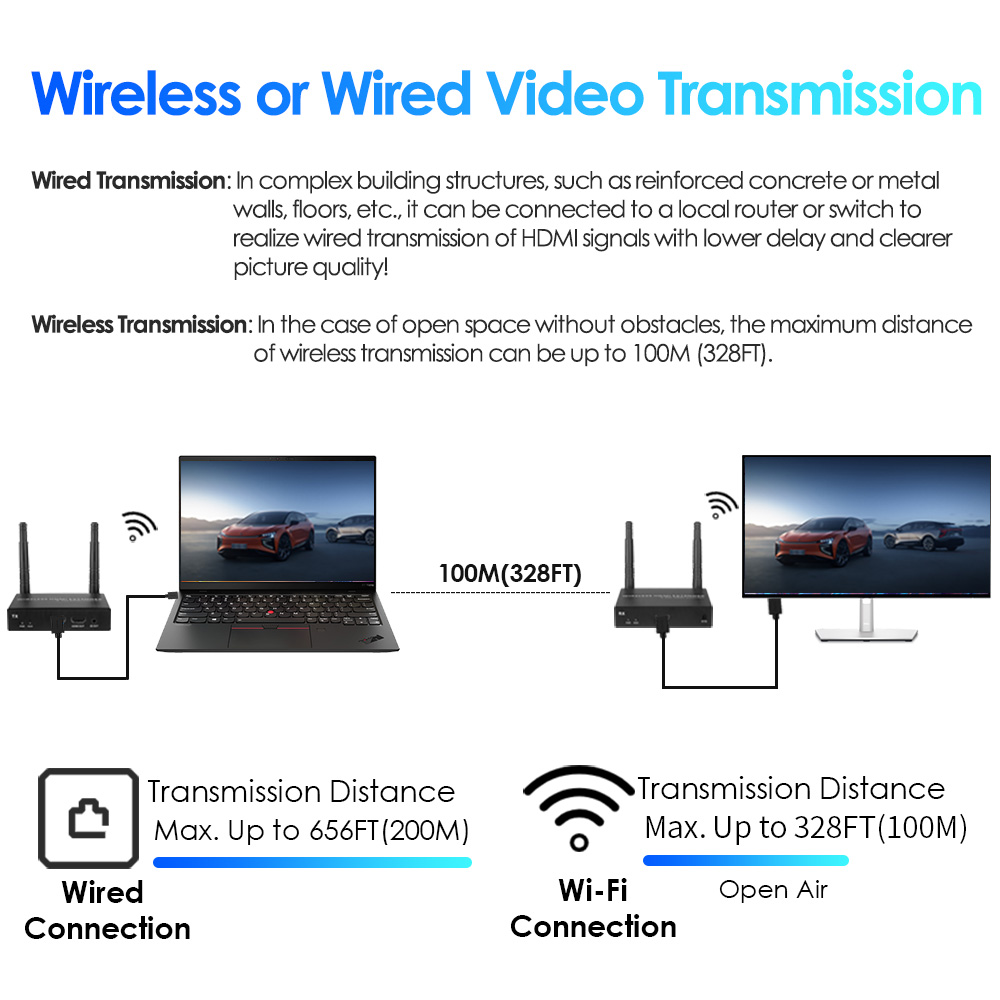

Can Be Transmitted Either Wired Or Wirelessly
In complex building structures where wired transmission is preferred for HDMI signals in order to reduce delay and maintain high picture quality, connecting devices such as TVs, monitors, or projectors to a local router or switch can be a viable solution. This setup allows for the distribution of HDMI signals over Ethernet cables, commonly known as HDMI over IP or HDMI over Ethernet.

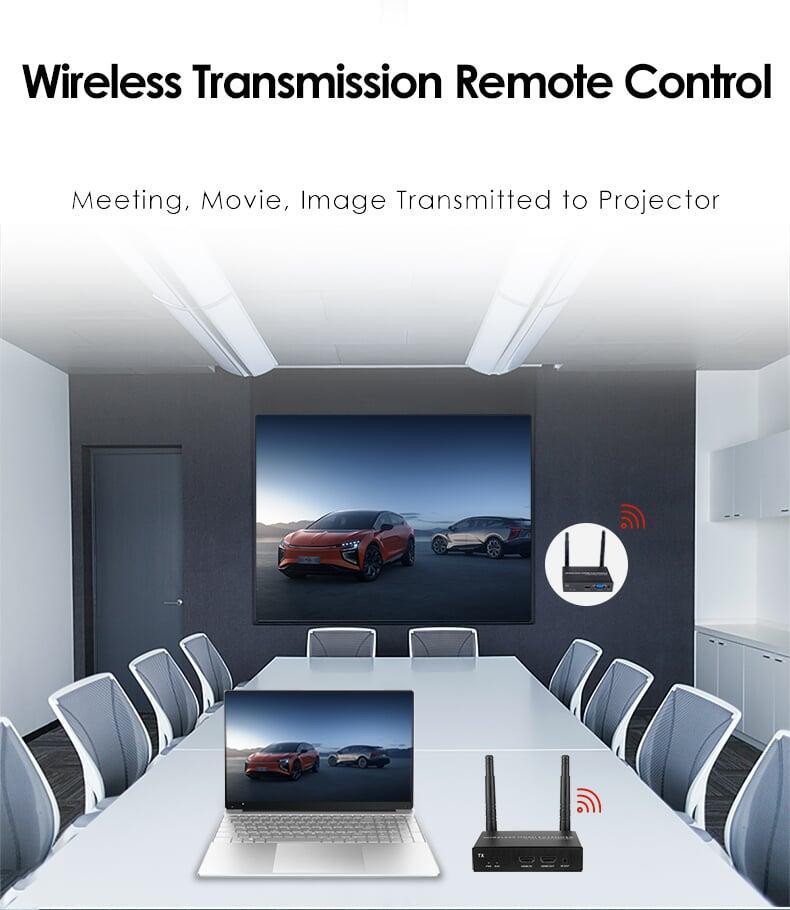

Wireless Transmission
Conferences, film screenings, streaming visuals directly to a projector for real-time viewing

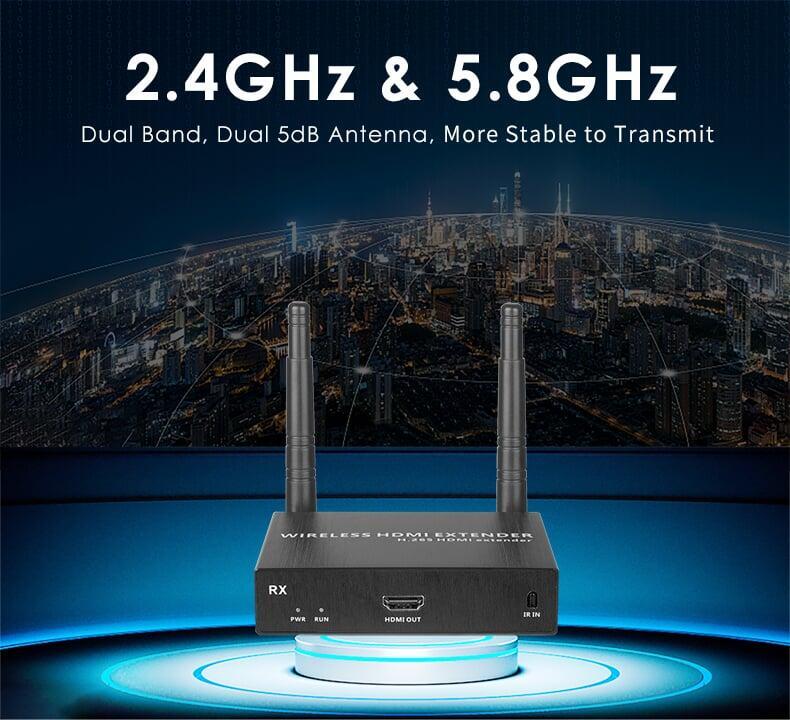

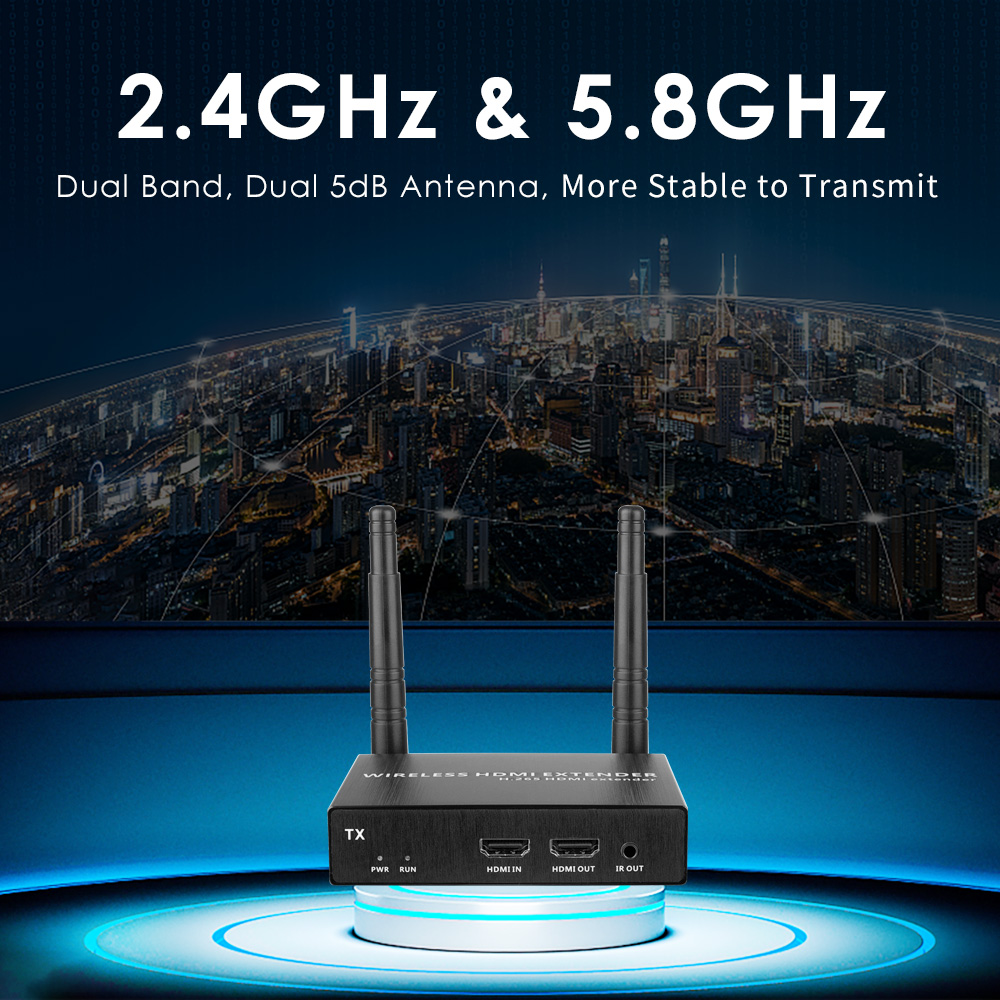

2.4GHz and 5.8GHz Dual-Band Antenna
Dual-band support along with dual 5DB antennas enhance the speed and stability of wireless transmissions.
Stereo Audio Synchronization
Ensuring synchronized stereo audio for an immersive and cohesive listening experience.

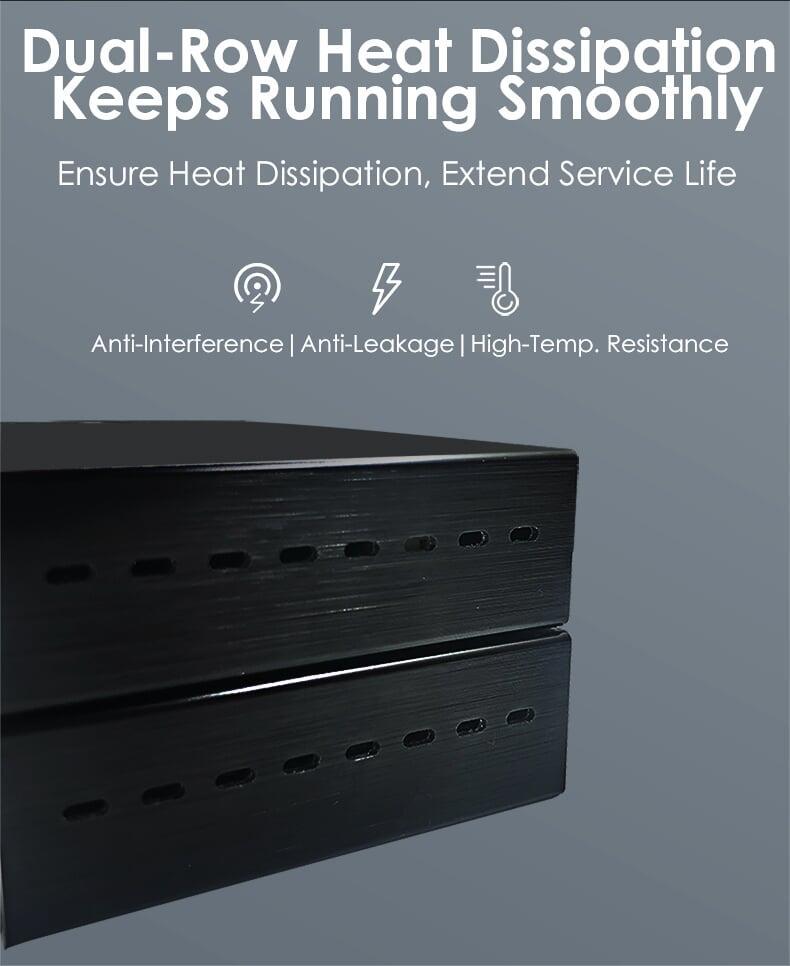

Dual-Row Heat Dissipation for Seamless Operation
Secure efficient heat dissipation for equipment longevity while safeguarding against interference, leakage, and high temperatures.

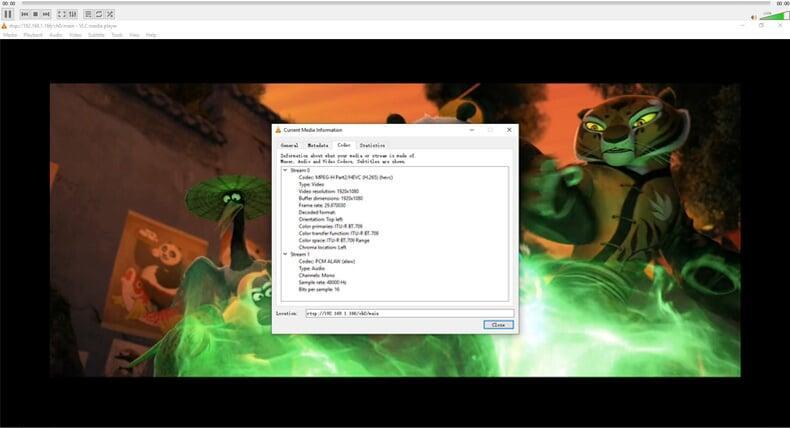

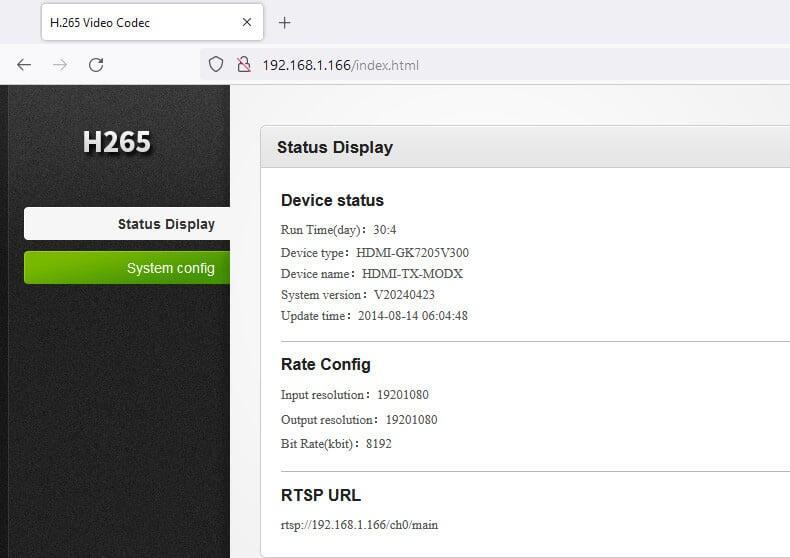

RTSP Protocol Available for Transmitter.
When working with devices that support the Real Time Streaming Protocol (RTSP), such as our HDMI transmitters (TX) designed for HDMI over IP solutions, you can often pull RTSP streams from these devices using media players like VLC.

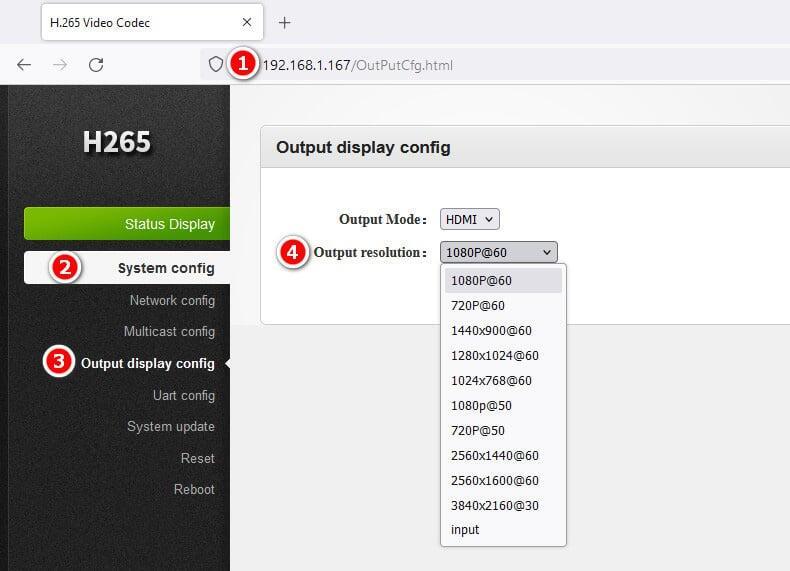

Configurable Output Resolution of RX
Effortlessly modify the output resolution of the RX device in situations where the monitor is unable to detect any HDMI signal originating from the RX source, ensuring seamless configuration adjustments.
7x24H Work Uninierrupiedly
Operating continuously at an industrial level for security surveillance; stay secure with me

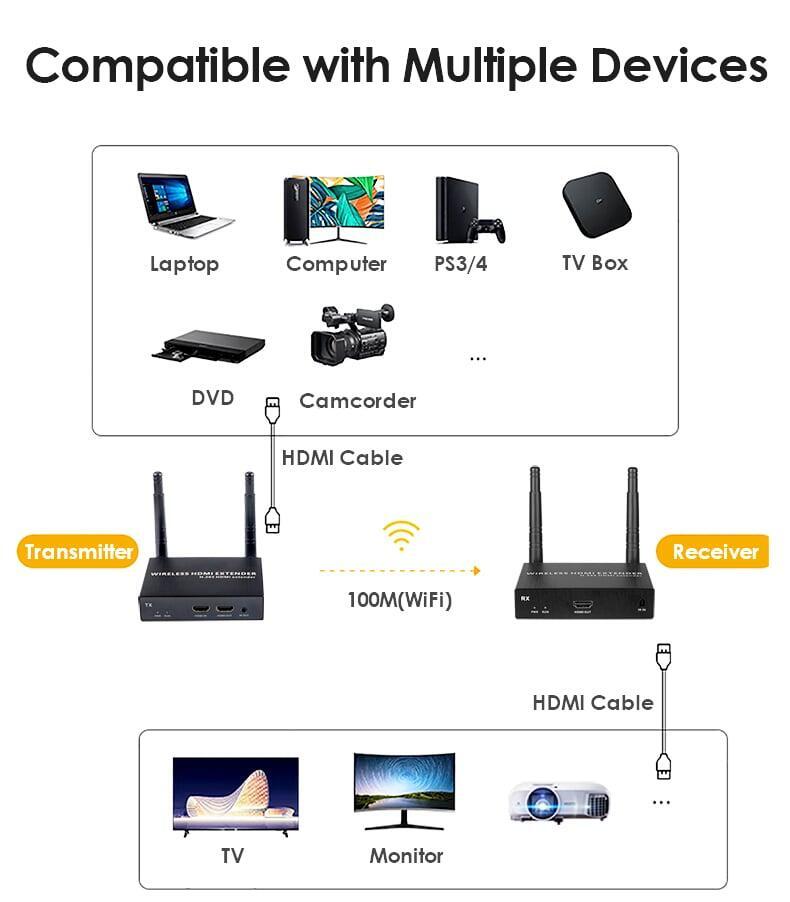

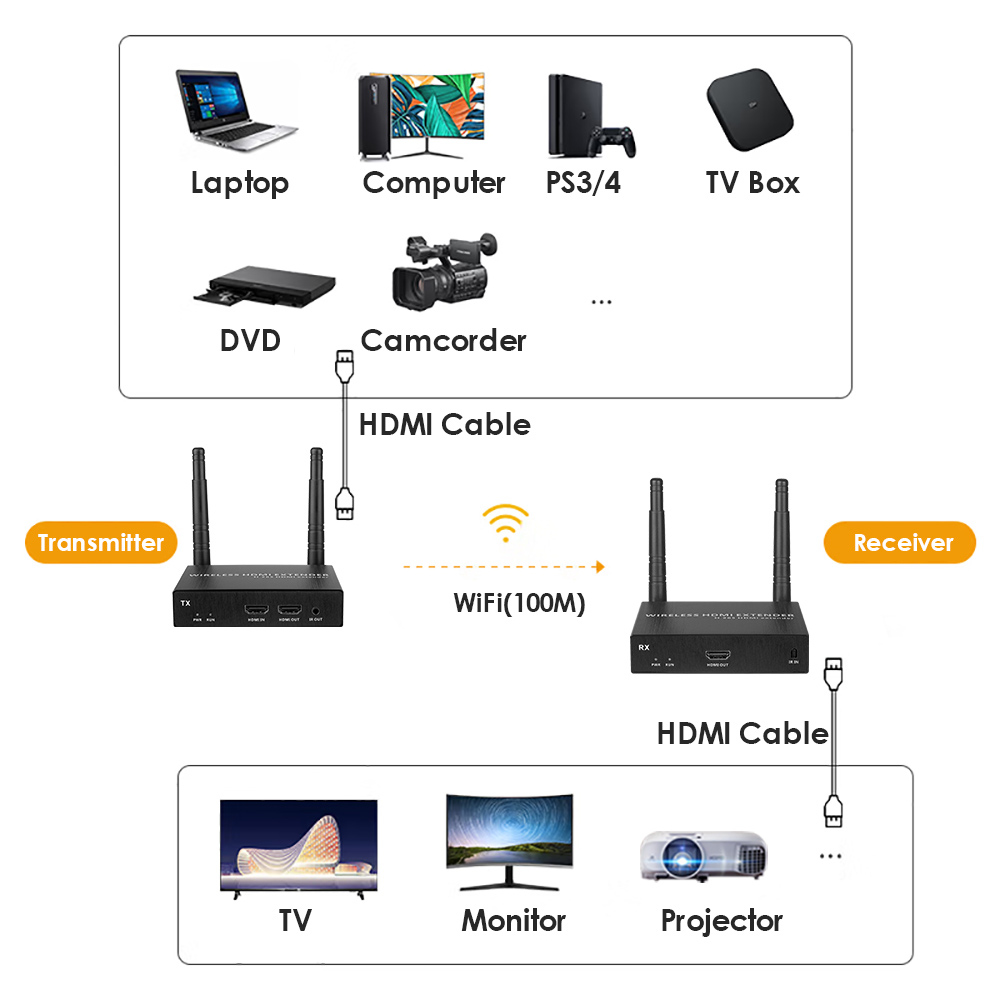

Compatible with Multiple Devices for Transmission and Display
Supports seamless transmission and display across multiple devices.

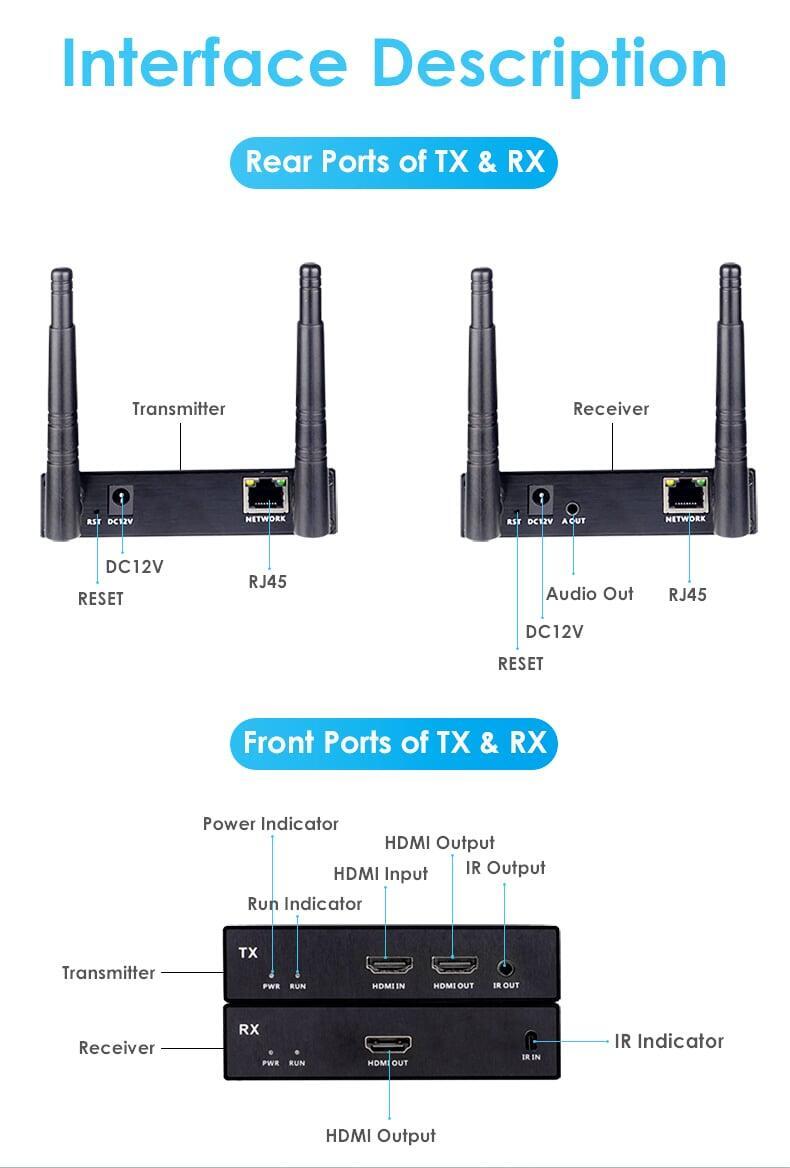

Rich Hardware Interfaces.
HDMI IN is the signal input, HDMI OUT is connected to the monitor or TV, connect the HDMI cable, and the image will appear about 40 seconds after powering on. The RUN indicator light will flash continuously to indicate that the image is being transmitted.
Specifications
Specifications
Product Series
- Product SeriesITS2EB Series
Connectors
- HDMI (1.4)2x HDMI Female(Transmitter), 1x HDMI Female(Receiver)
- RJ451x RJ45 Female(Transmitter/Receiver)
- IR Control1x 3.5mm IR Female(Transmitter), 1x Built-in IR Receiver
- Antenna2x External WiFi Antennas (Transmitter/Receiver)
- RST1x RST (Reset or press & hold it for 1 second to switch output resolution of RX)
- Power1x DC12V(Transmitter/Receiver)
Signal Input/Output
- Signal Input1x HDMI Input by Transmitter, 1x IR Input by Receiver (Built-in)
- Signal Output1x HDMI Output by Transmitter & Receiver, 1x IR Output by Transmitter
- Max. Transmission DistanceWireless: Up to 328ft (100M) under open air, Wired: Up to 656ft (200M) via switch
- Switching OutputNOT Supported
Mode

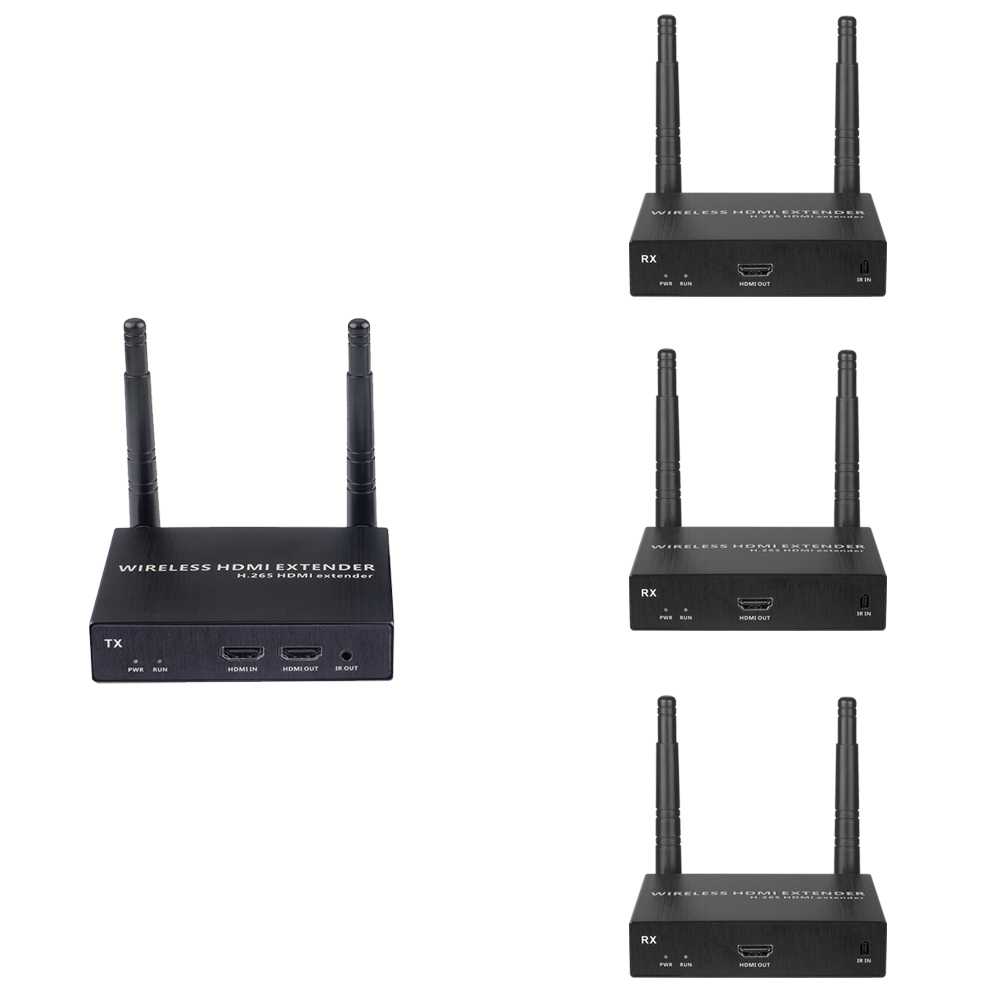

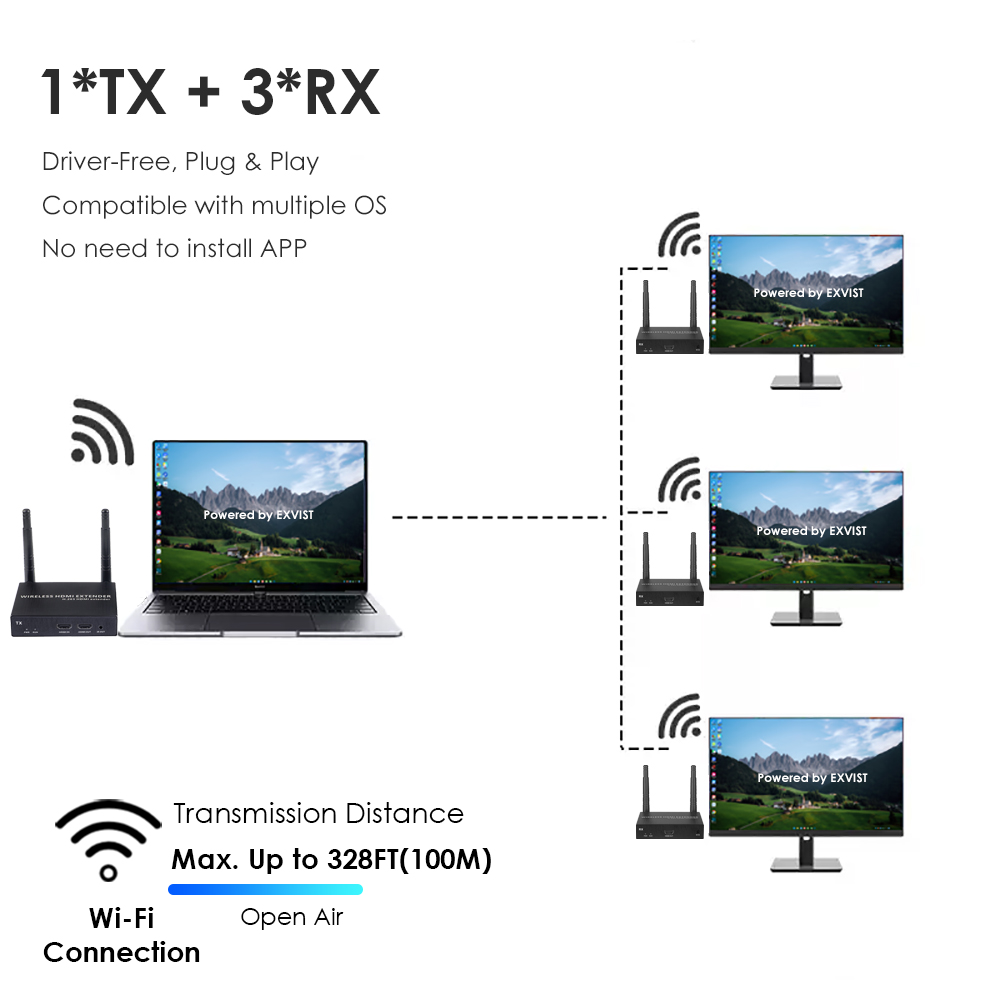

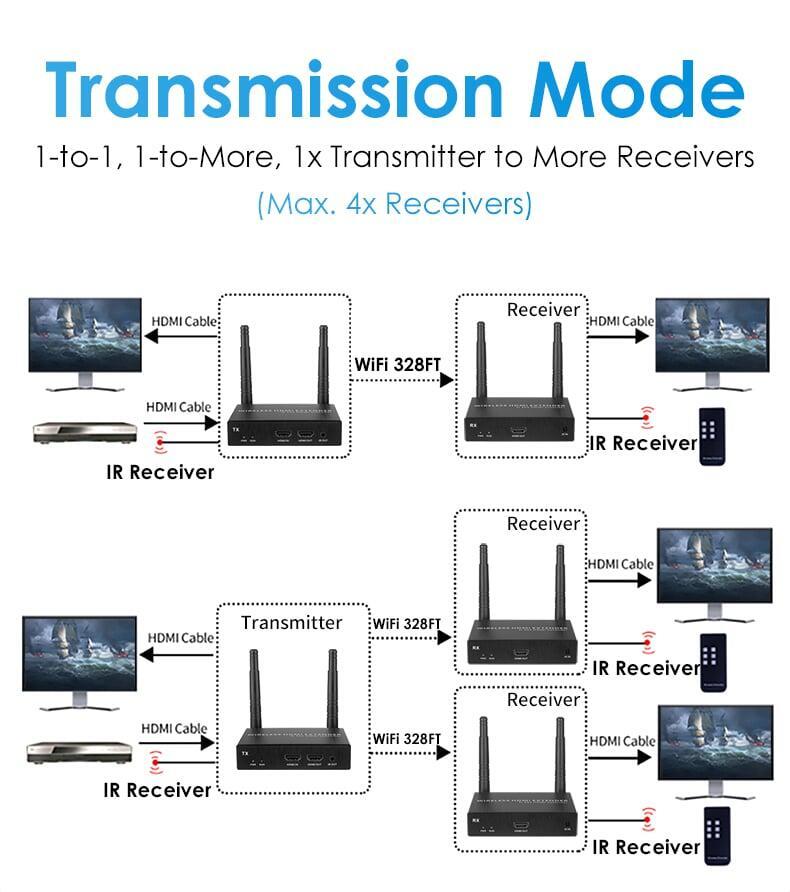

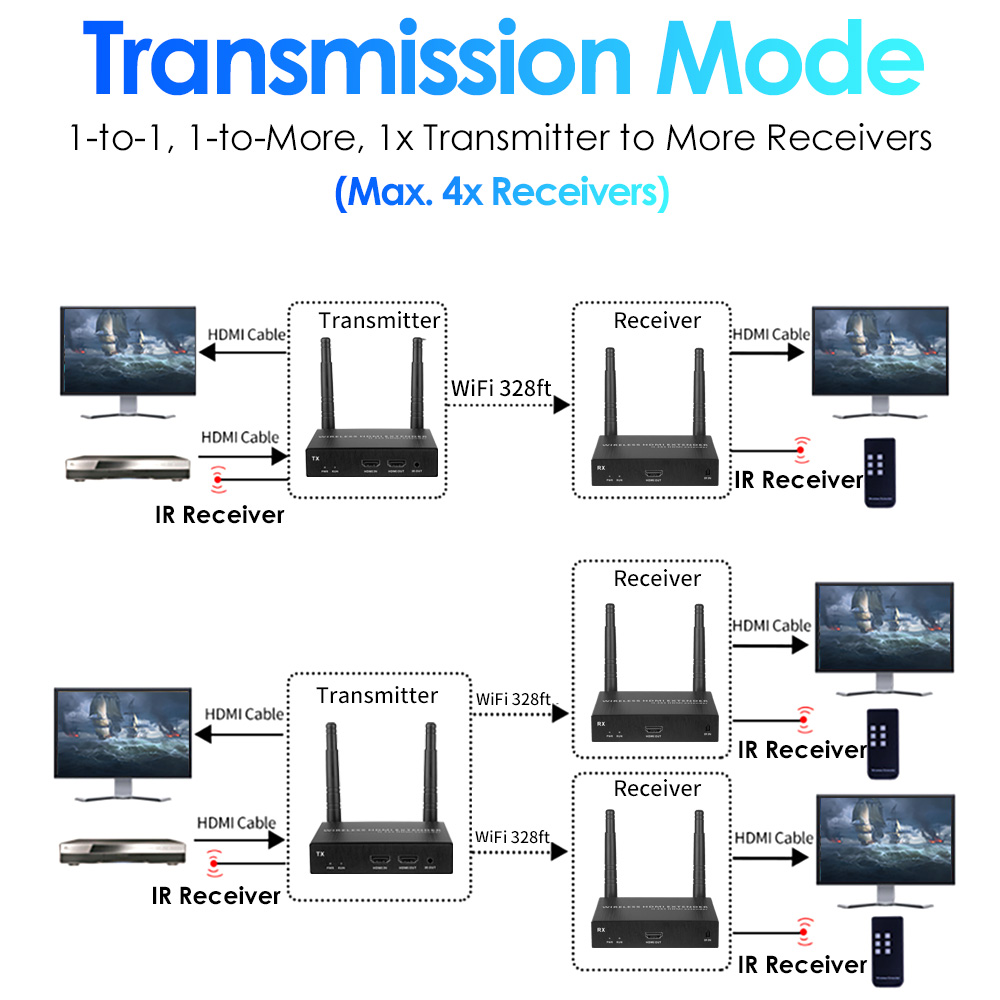

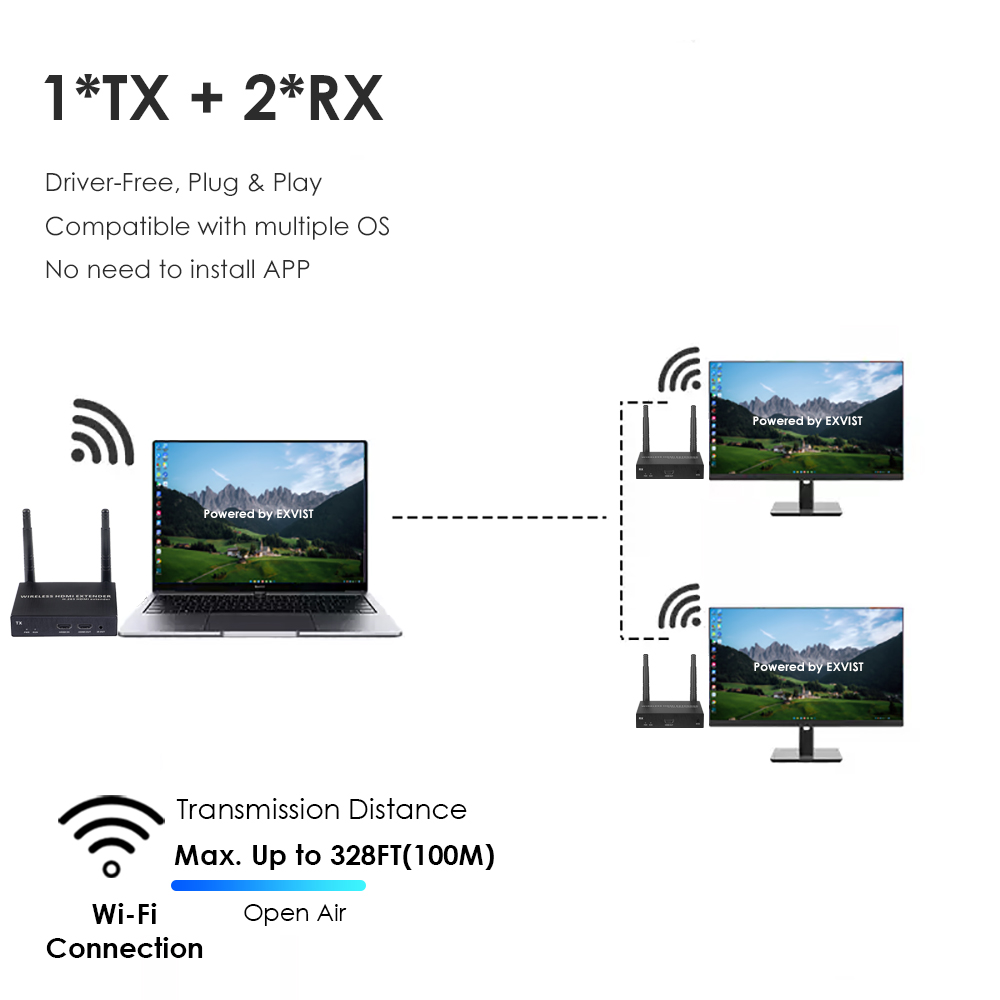

- 1-to-More ModeMax. 4x Receivers
- Sets At SiteMax. 2 sets at the same site, or else it might cause channel jam.
Video
- Video EncodingH.265
- Video ResolutionsUp to 1920x1080P@60fps, 1080i Not Recommended
Network
- Default IP192.168.1.166 (Transmitter), 192.168.1.167 (Receiver)
- RTSP ProtocolOnly Availalble for Transmitter
- RTSP URLrtsp://192.168.1.166/ch0/main
WiFi
- FrequencyDual Band, 2.4GHz | 5.8GHz
- ChannelConfigurable for transmitter only, but not recommended because it might shorten the transmission distance.
Power
- Input VoltageAC110V-220V, 50/60HZ
- Consumption≤4.0W(Transmitter/Receiver)
Physical
- Unit Dimension111 x 79 x 25 mm(4.37 x 3.11 x 0.98 in.)
- Package Dimension194 x 116 x 116 mm(7.64 x 4.57 x 4.57 in.)
- Unit weight(1x unit)189 g (0.42 lb, 6.67 oz.)
- Gross weight(1x TX, 1x RX)670 g(1.5 lb, 23.63 oz.)
- HousingAluminum alloy
- ColorBlack
Operating Environment
- Operation Temperature-15℃ ~ 55℃ (5°F ~ 131°F)
- Storage Temperature-40℃~ 60℃ (-40°F ~ 140°F)
- Humidity(Non-Condensing)0-95%
