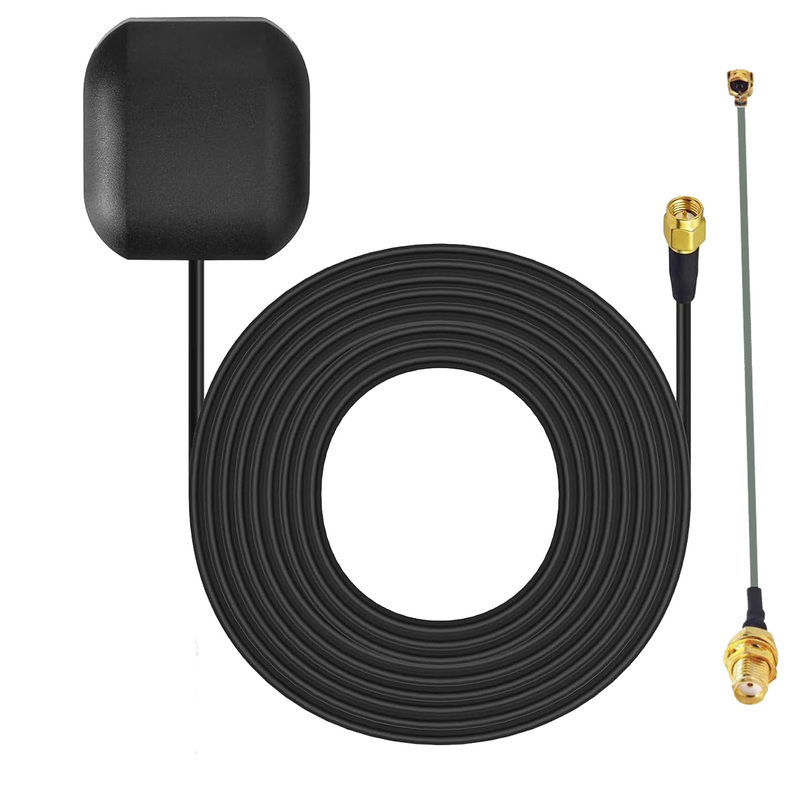

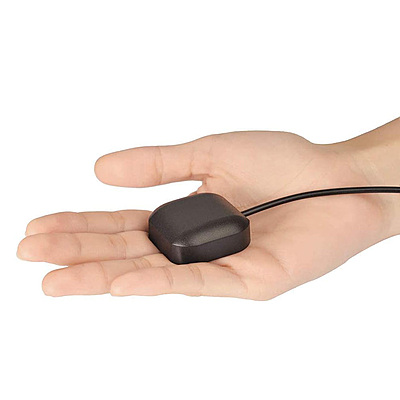

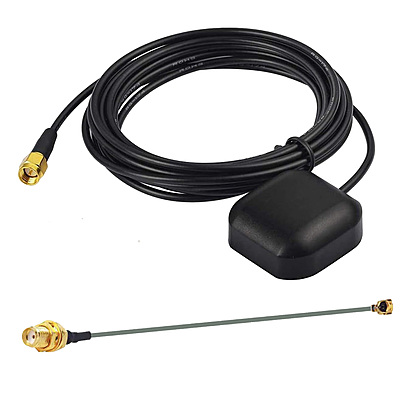

Waterproof Active GPS Antenna: Adhesive+Magnetic Mount w/ 3m SMA Male Cable & 15cm Pigtail for Trackers, IoT, 4G Routers (-40°C~65°C)

GPS Antenna Characteristics

• Frequency Range
  1575.42 ± 4 MHz
• Antenna Gain
  3.0 dBi
• Coverage Angle
  360° horizontal
• VSWR
  1.5 maximum
• Polarization
  Right Hand Circular Polarization (RHCP)
• Impedance
  50 Ω
• Axis Ratio
  ≤ 5 dB
• 10dB Bandwidth
  ± 10 MHz

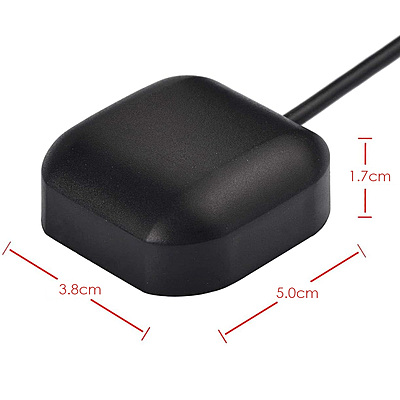

• Dimensions
  50×48×17 mm(1.97x1.89x0.67 in)

Low Noise Amplifier (LNA) Characteristics

• Frequency Range
  1575 ± 5 MHz
• Gain
  28 ± 2 dB
• Passband Ripple
  Less than 1 dB @ 1575.42M ± 1.023MHz
• 1dB Compression Point
  More than -15 dBm output
• Noise Figure
  1.8 dB typical
• Out-of-band Suppression
  More than 35 dBc @ 100 MHz offset
• Output VSWR
  ≤ 2:1
• Output Impedance
  50 Ω
• Operating Voltage
  3.0 - 5.0 VDC
• Current Consumption
  ≤ 10 mA

Cable & Connector Specifications

• Main Cable Type
  RG174 (3 meters standard)

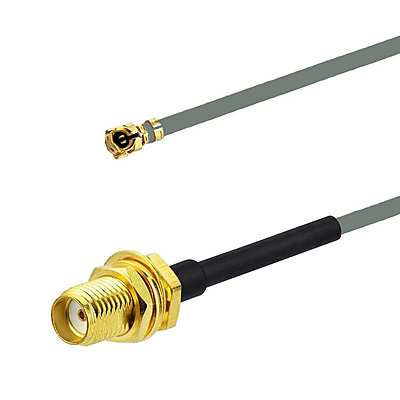

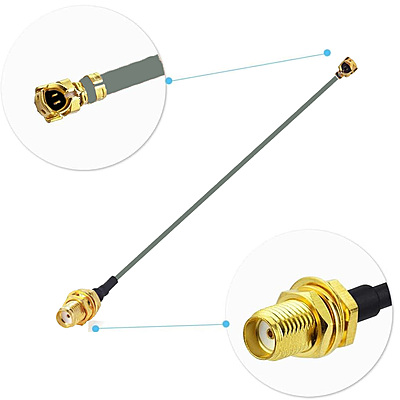

• Pigtail Cable(SMA to IPEX)
  15cm/6 inch
• Connector
  SMA Male (standard)
• Waterproof Rating
  IP67 (100% waterproof)

Environmental Specifications

• Operating Temperature
  -40℃ to +65℃(-40℉ to +149℉)
• Storage Temperature
  -50℃ to +85℃(-58℉ to +185℉
• Operating Humidity
  40% to 95% RH

Mechanical Specifications

• Antenna Type
  Active ceramic patch antenna
• Mounting Options
  Magnetic base + Adhesive mounting
• Housing Material
  ABS plastic (weather resistant)
• Waterproof Rating
  IP67
• Color
  Black (standard)
