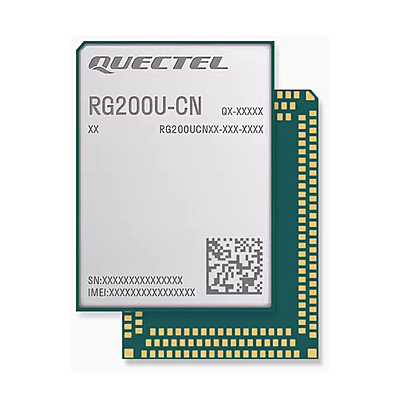

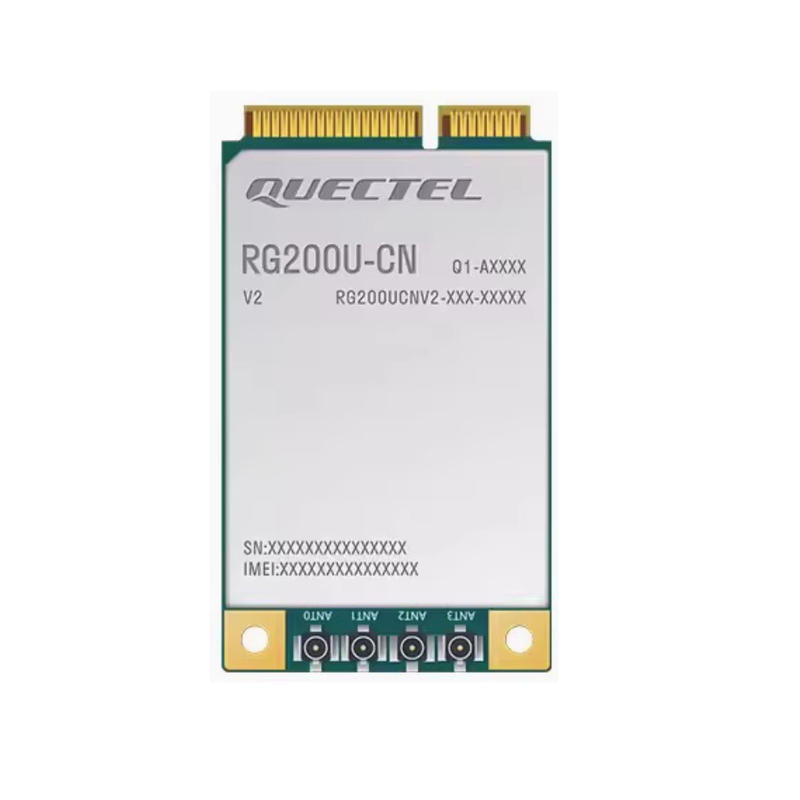

Quectel RG200U-CN Series 5G NR Module | Mini PCIe & LGA | Industrial IoT Cellular Modem for EMEA/APAC

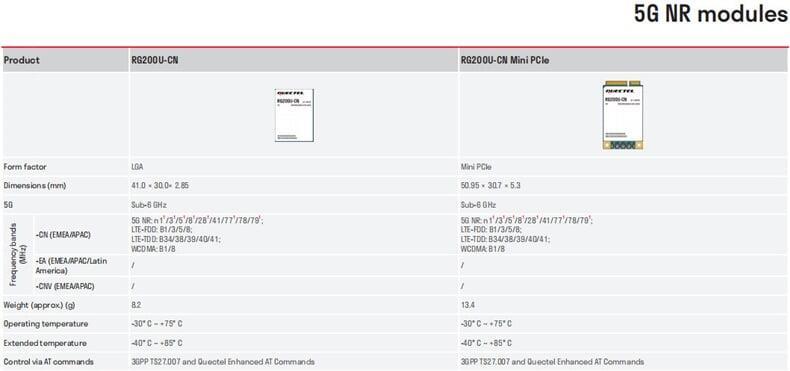

General

• Product Model
  RG200U-CN
• Form factor
  Mini PCIe | LGA
• Dimensions (mm)
  50.95×30.7×5.3(Mini PCIe) | 41.0×30.0×2.85(LGA)
• 5G
  Sub-6 GHz
• Frequency Bands(MHz)
  5G NR: n1/3/5/8/28/41/77/78/79; LTE-FDD: B1/3/5/8; LTE-TDD: B34/38/39/40/41; WCDMA: B1/8
• Weight (approx.) (g)
  13.4(Mini PCIe) | 8.2(LGA)
• Operating temperature
  -30° C ~ +75° C
• Extended temperature
  -40° C ~ +85° C
• Control via AT commands
  3GPP TS27.007 and Quectel Enhanced AT Commands

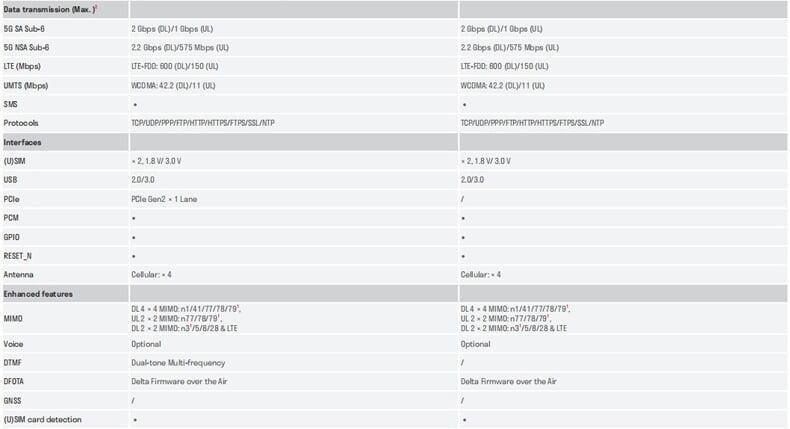

Data transmission (Max. )

• 5G SA Sub-6
  2 Gbps (DL)/1 Gbps (UL)
• 5G NSA Sub-6
  2.2 Gbps (DL)/575 Mbps (UL)
• LTE (Mbps)
  LTE-FDD: 600 (DL)/150 (UL)
• UMTS (Mbps)
  WCDMA: 42.2 (DL)/11 (UL)
• SMS
  ●
• Protocols
  TCP/UDP/PPP/FTP/HTTP/HTTPS/FTPS/SSL/NTP

Interfaces

• (U)SIM
  × 2, 1.8 V/ 3.0 V
• USB
  2.0/3.0
• PCIe
  / (Mini PCIe) | PCIe Gen2 × 1 Lane(LGA)
• PCM
  ●
• GPIO
  ●
• RESET_N
  ●
• Antenna
  Cellular: × 4

Enhanced features

• MIMO
  DL4×4 MIMO: n1/41/77/78/79; UL2×2 MIMO: n77/78/79; DL2×2 MIMO: n3/5/8/28<E
• Voice
  Optional
• DTMF
  / (Mini PCIe) | Dual-tone Multi-frequency(LGA)
• DFOTA
  Delta Firmware over the Air
• GNSS
  /
• (U)SIM card detection
  ●

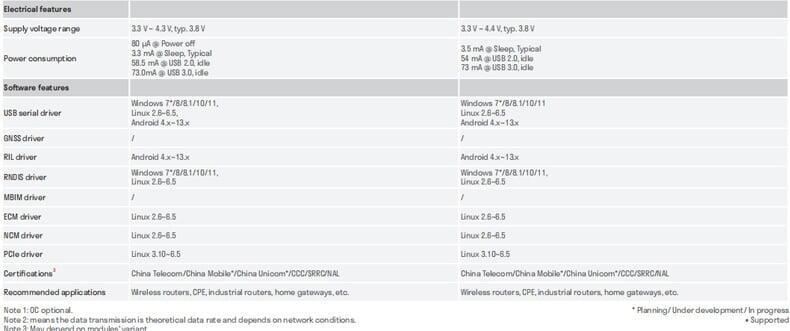

Electrical features

• Supply voltage range
  3.3 V ~ 4.3 V, typ. 3.8 V
• Power consumption
  80 μA @ Power off; 3.3 mA @ Sleep, Typical; 58.5 mA @ USB 2.0, idle; 73.0mA @ USB 3.0, idle

Software features

• USB serial driver
  Windows 7*/8/8.1/10/11, Linux 2.6~6.5, Android 4.x~13.x
• GNSS driver
  /
• RIL driver
  Android 4.x~13.x
• RNDIS driver
  Windows 7*/8/8.1/10/11, Linux 2.6~6.5
• MBIM driver
  /
• ECM driver
  Linux 2.6~6.5
• NCM driver
  Linux 2.6~6.5
• PCIe driver
  Linux 3.10~6.5
• Certifications
  China Telecom/China Mobile*/China Unicom*/CCC/SRRC/NAL
• Recommended applications
  Wireless routers, CPE, industrial routers, home gateways, etc.
