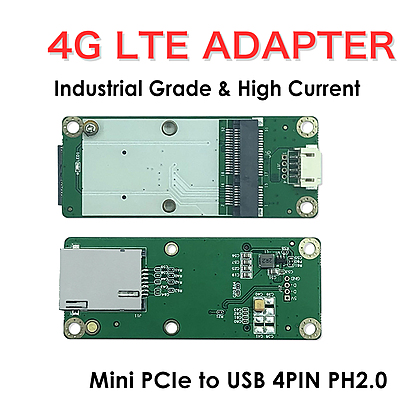

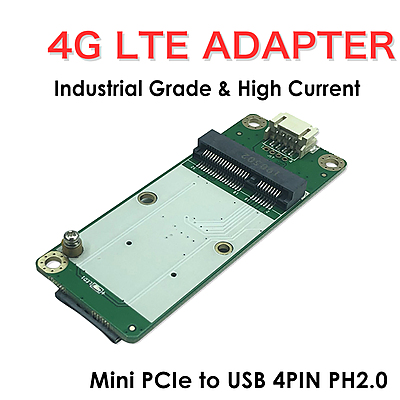

Mini PCIe to USB Adapter (4PIN PH2.0): Designed for embedded systems and custom integration.
Built-in SIM Card Slot: Supports global LTE network access for 3G/4G modules.
Industrial Reliability: Compact and durable for long-term M2M/IoT use.
Broad Module Compatibility: Works with Quectel EC25, EC20, and other WWAN cards.
Ideal for Low-Power Applications: Optimized for routers, CCTV, and SBCs like Raspberry Pi.
Redeem RVFGV2MJF2XJ to save 10%!
$10.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

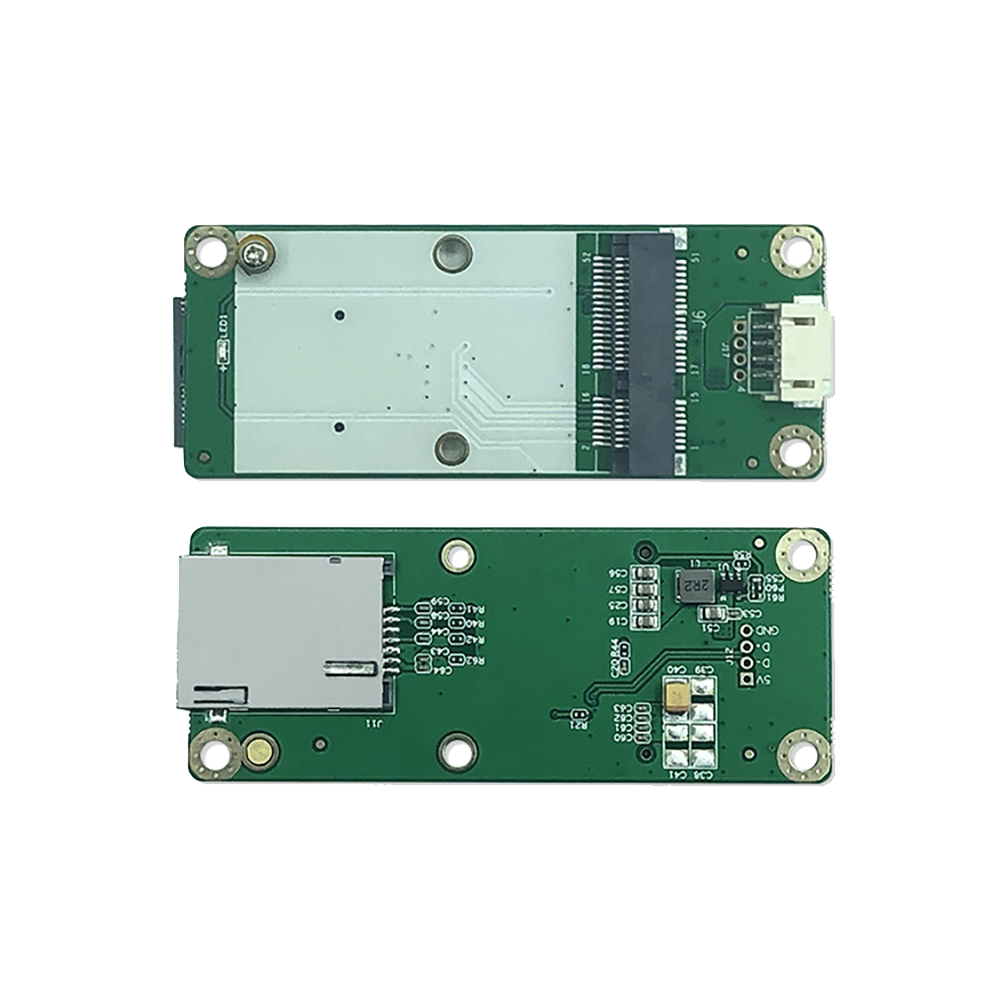

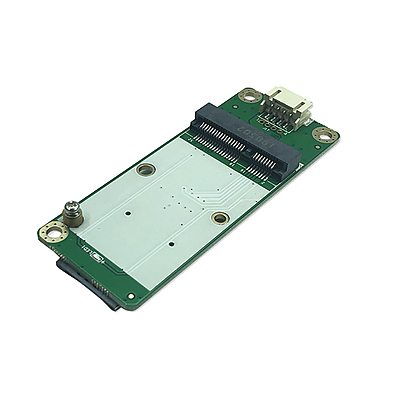

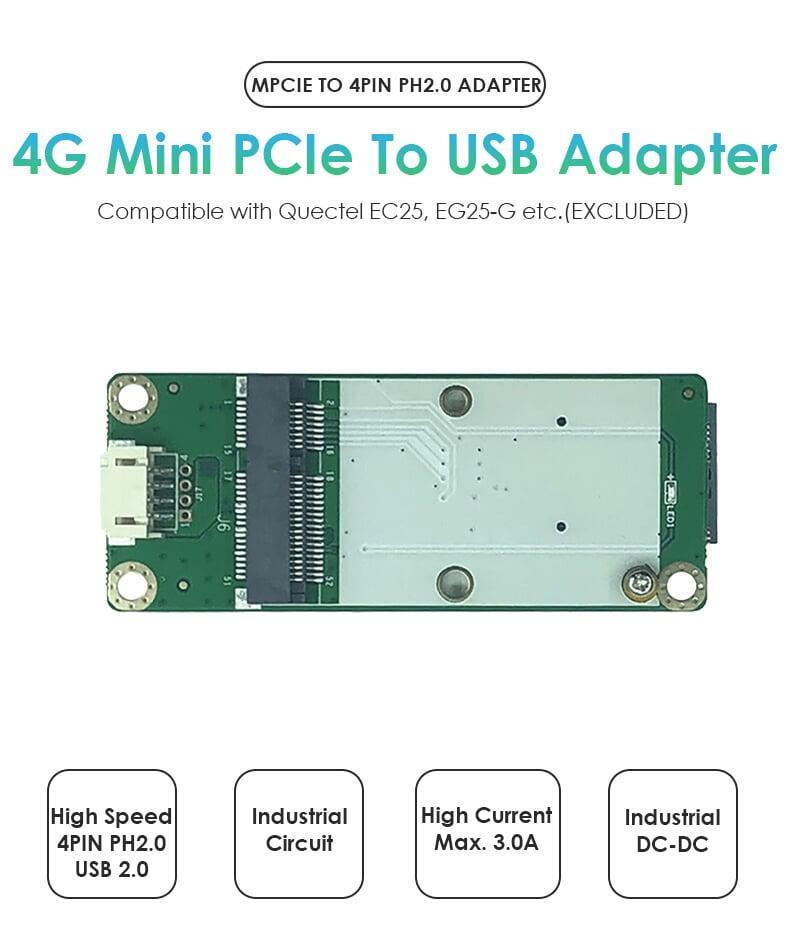

4G LTE Mini PCIe to USB 2.0 Adapter with SIM Slot
Multiple OS Supported

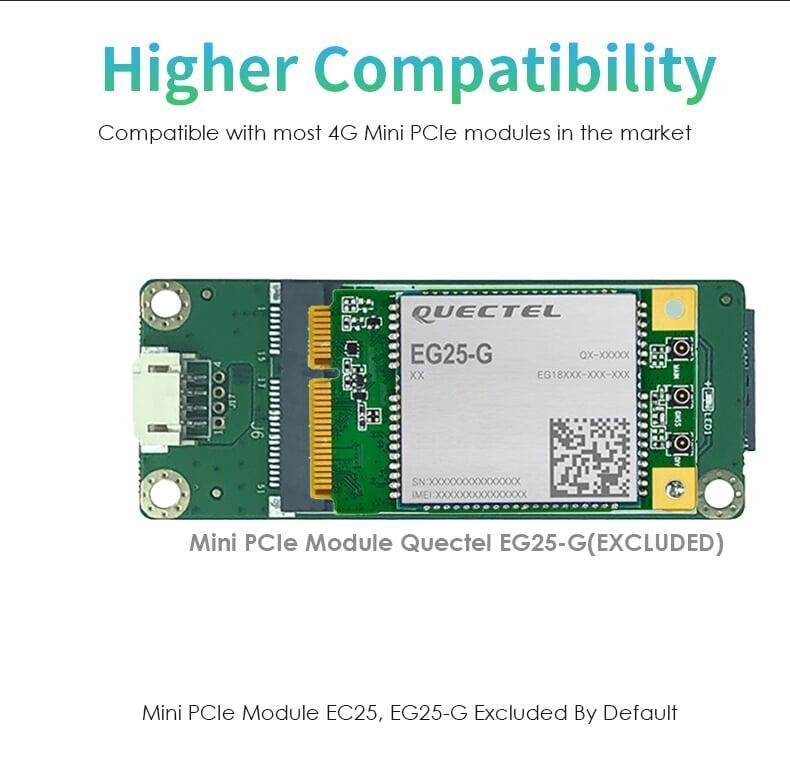

Higher Compatibility

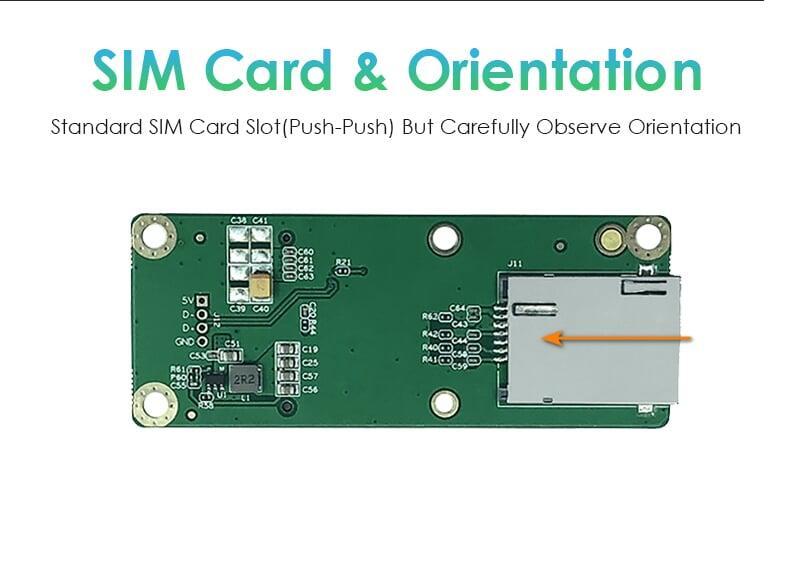

SIM Card & Orientation
Multiple Interfaces
Rapid Deployment of IOT

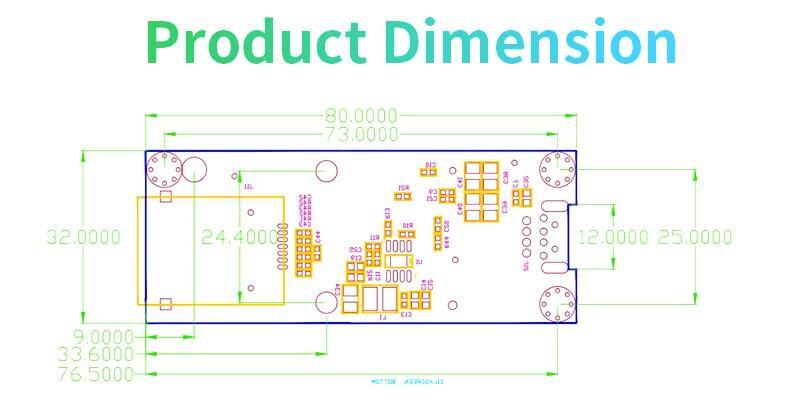

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 4G LTE Mini PCIe to 4PIN PH2.0 Adapter
- Part NumberP2U52V014PIN
- LTE ModuleCompatible with 4G Mini PCIe Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module

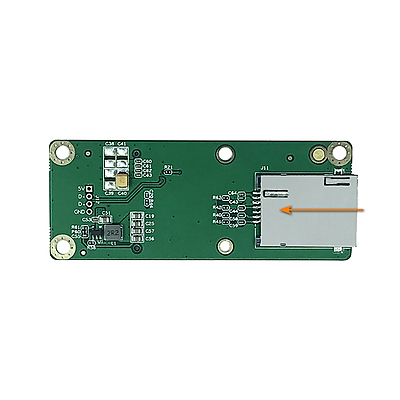

- SIM SlotStandard SIM Slot, Push Type, Hot-Plugging Unavailable
- Working Voltage3.6V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]
- Unit Dimension80x32x0.5mm[3.15x1.26x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
