Mini HDMI Network Decoder | Decodes RTSP to HDMI | RTMP Output to YouTube/Facebook | 1080P H.265

Product Model

• Product Model
  ON-DMI-16DM

Video Input/Output

• Video Input Interfaces
  Network Stream Input
• Max. Input Resolution
  1080P@60FPS
• Supported Input Resolutions
  3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
• Video Output Interfaces
  Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Mini HDMI Output
• Output Resolution
  1080P@60FPS

Network Stream Input

• Supported Protocols
  RTSP(H.264/H.265), RTMP, TS, HLS, SQ(Private Protocol for Encoder, Decoder, IP Cameras from EXVIST)
• Max Concurrent Streams
  1ch 4K@30FPS Decoding Input or 1ch 1080P@60FPS Decoding Input
• Compatible Devices
  EXVIST Encoders/IPC, Hikvision IPC, AXIS IPC P3365, Dahua IPC, RaySharp NVRs and IPC, TVT IPC, UNV IPC, Reolink IPC, TP-LINK IPC like the C520WS, and other ONVIF-compliant Devices.
• Compatibility Note
  While compatible with most ONVIF-conformant devices, successful decoding of RTSP streams from different brands isn't guaranteed. In case of failure, further debugging and integration may be needed.

Audio Input/Output

• Audio Input Interfaces
  Network Stream Embedded or 3.5mm TRS Line-In(2PIN PH1.25)
• Audio Sampling Rate
  8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
• Audio Input Volume
  0~100, Adjustable for 3.5mm TRS Line-In ONLY
• Audio Output Interfaces
  Network Audio Stream, Local Audio Output(Mini HDMI)
• Audio Output Volume
  0~100, Adjustable for Intercom ONLY

Audio Encoding

• Supported Audio Codecs
  AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
• Audio Encoding Channels
  1
• Audio Bitrate Range
  32K/64K/128K/256K
• Audio Channels Supported
  Stereo/Mono

Video Stream

• Concurrent Stream Count
  6x RTSP Streams

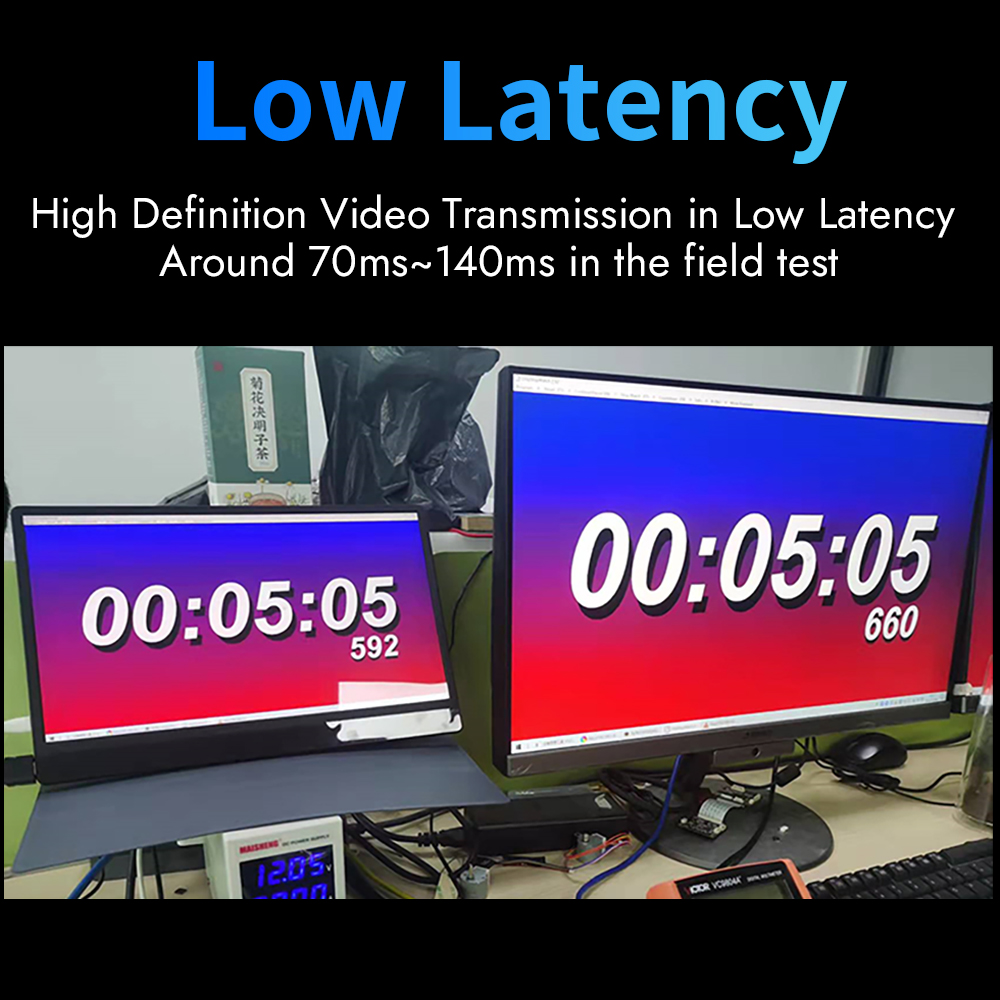

• Stream Latency
  70~140ms(PC-To-Encoder+Decoder HDMI Output)
• Stream Types Supported
  Live Streaming, Multicast Streaming
• TS (Main Stream)
  http://192.168.1.120:80/ts/1_0
• TS (Sub Stream)
  http://192.168.1.120:80/ts/1_1
• HLS (Main Stream)
  http://192.168.1.120/hls/1_0.m3u8
• HLS (Sub Stream)
  http://192.168.1.120/hls/1_1.m3u8
• RTSP (Main Stream)
  rtsp://192.168.1.120:554/live/1_0
• RTSP (Sub Stream)
  rtsp://192.168.1.120:554/live/1_1
• UDP
  udp://@224.1.2.3:10000

Protocols & Networking

• Networking Protocols
  TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
• Streaming Protocols
  RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP
• ONVIF Protocol
  Compatible
• HK/DH Protocol
  Compatible
• Security Features
  RTSP Authentication, ONVIF Authentication

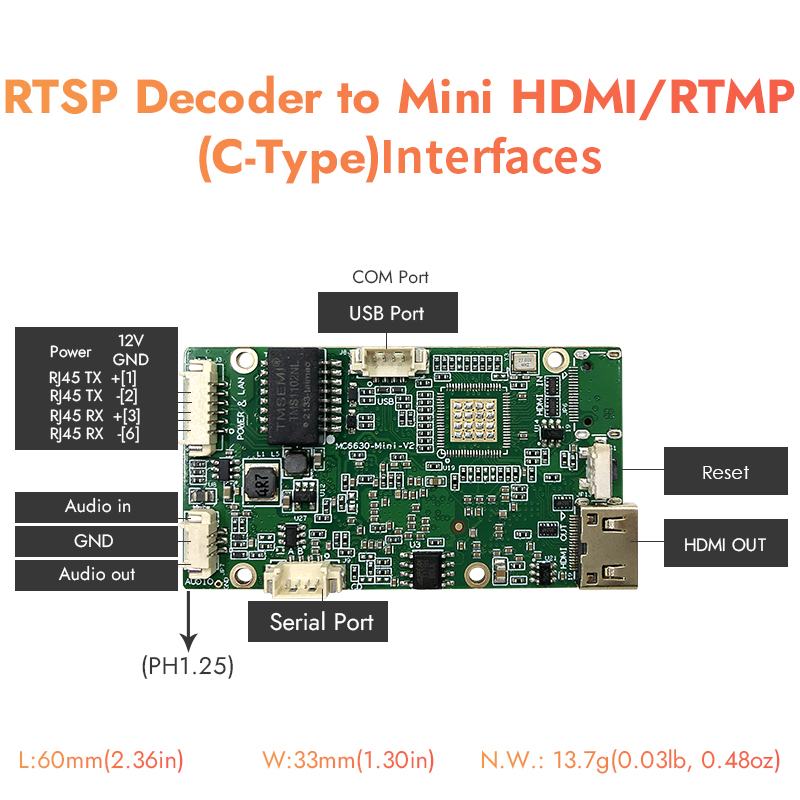

Interface

• Physical Input Interfaces
  1x 3.5mm TRS Line-In(2PIN PH1.25)
• Physical Output Interfaces
  1x Mini HDMI1.4, 1x Network Port(6PIN PH1.25)
• Network Interface
  1ch RJ45 10M/100M Self Adaptive Ethernet Port
• Reset/Record
  1ch Reset(Press it for more than 5 seconds to reset)
• Screen Type
  N/A

General

• Default Credentials
  User: admin; Password: 12345
• Default Static IP
  192.168.1.120
• Power Supply
  DC12 1A or Higher
• Power Consumption
  ≤3w
• Operating Temperature
  -10°C~+55°C[14°F~131°F]
• Operating Humidity
  ≤95%
• Unit Dimension
  60mm x 35mm x 8mm[2.36in x 1.38in x 0.31in]
• Package Dimension
  130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in]
• Net Weight
  12g[0.03lb, 0.42oz]
• Gross Weight
  100g[0.22lb, 3.53oz]
