H.265 4K WiFi HDMI Encoder w/Loopout & Dual USB | Compatible with ONVIF/Hikvision, RTMP/RTSP Streaming

Product Model

• Model
  ON-DMI-52BW (Max. 60FPS)

Video Input/Output

• Video Input Interfaces
  HDMI1.4
• Max. Input Resolution
  2160P@30FPS, 1080P@60FPS
• Supported Input Resolutions
  3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
• Unsupported Input Resolutions
  1366x768, 1080i
• Output Interfaces
  Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(USB2.0), HDMI Loopout
• Loopout Resolution
  1080P By Default, Configurable
• Max. Loopout Resolution
  2160P@30FPS

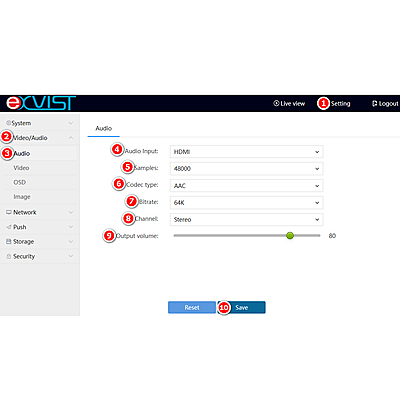

Audio Input/Output

• Audio Input Interfaces
  HDMI Embedded or 3.5mm TRRS Line-I/O
• Audio Sampling Rate
  8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
• Audio Input Volume
  0~100, Adjustable for 3.5mm TRRS Line-I/O ONLY
• Audio Output Interfaces
  Network Audio Stream, Local Audio Output(HDMI), 3.5mm TRRS Line-I/O
• Audio Output Volume
  0~100, Adjustable for 3.5mm TRRS Line-I/O ONLY

Video Encoding

• Supported Video Standards
  H.264/AVC, H.265/HEVC
• Video Encoding Channels
  1
• Main Stream
  3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
• Sub Stream
  720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
• Max. Encoding Resolution
  2160P@30FPS, 1080P@60FPS
• Bitrate Control Mode
  Constant Bitrate(CBR)/Variable Bitrate(VBR)
• Framerate
  Up to 25/30FPS or 50/60FPS, Determined by System Mode
• GOP
  5–200 frames (Min Key Interval: 5)
• Bitrate
  64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
• OSD Overlay
  Date&Time, Text, Picture(JPG, PNG)

Audio Encoding

• Supported Audio Codecs
  AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
• Audio Encoding Channels
  1
• Audio Bitrate Range
  32K/64K/128K/256K
• Audio Channels Supported
  Stereo/Mono

Video Stream

• Concurrent Stream Count
  6x RTSP Streams
• Stream Types Supported
  Live Streaming, Multicast Streaming
• Stream Latency
  70~140ms(PC-To-Encoder+Decoder HDMI Output)
• TS (Main Stream)
  http://192.168.1.120:80/ts/1_0
• TS (Sub Stream)
  http://192.168.1.120:80/ts/1_1
• HLS (Main Stream)
  http://192.168.1.120/hls/1_0.m3u8
• HLS (Sub Stream)
  http://192.168.1.120/hls/1_1.m3u8
• RTSP (Main Stream)
  rtsp://192.168.1.120:554/live/1_0
• RTSP (Sub Stream)
  rtsp://192.168.1.120:554/live/1_1
• UDP
  udp://@224.1.2.3:10000

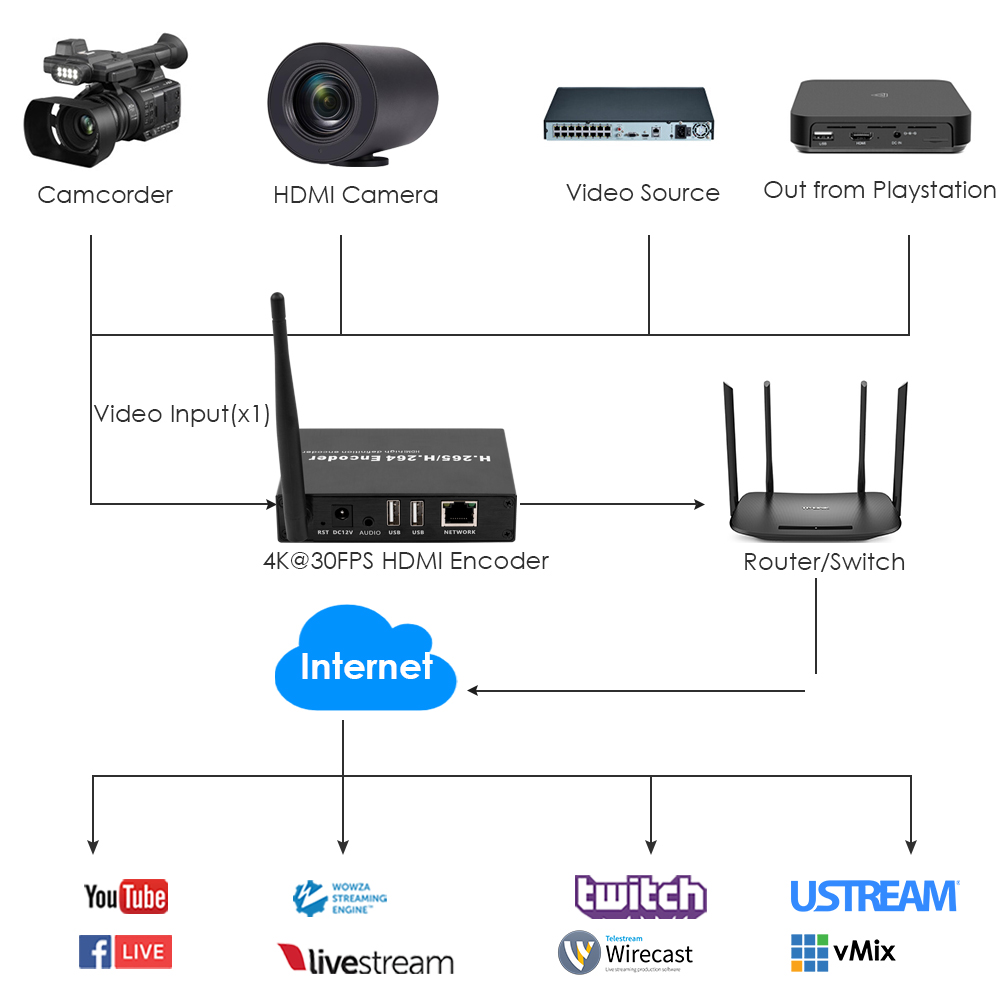

Protocols & Networking

• Networking Protocols
  TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
• Streaming Protocols

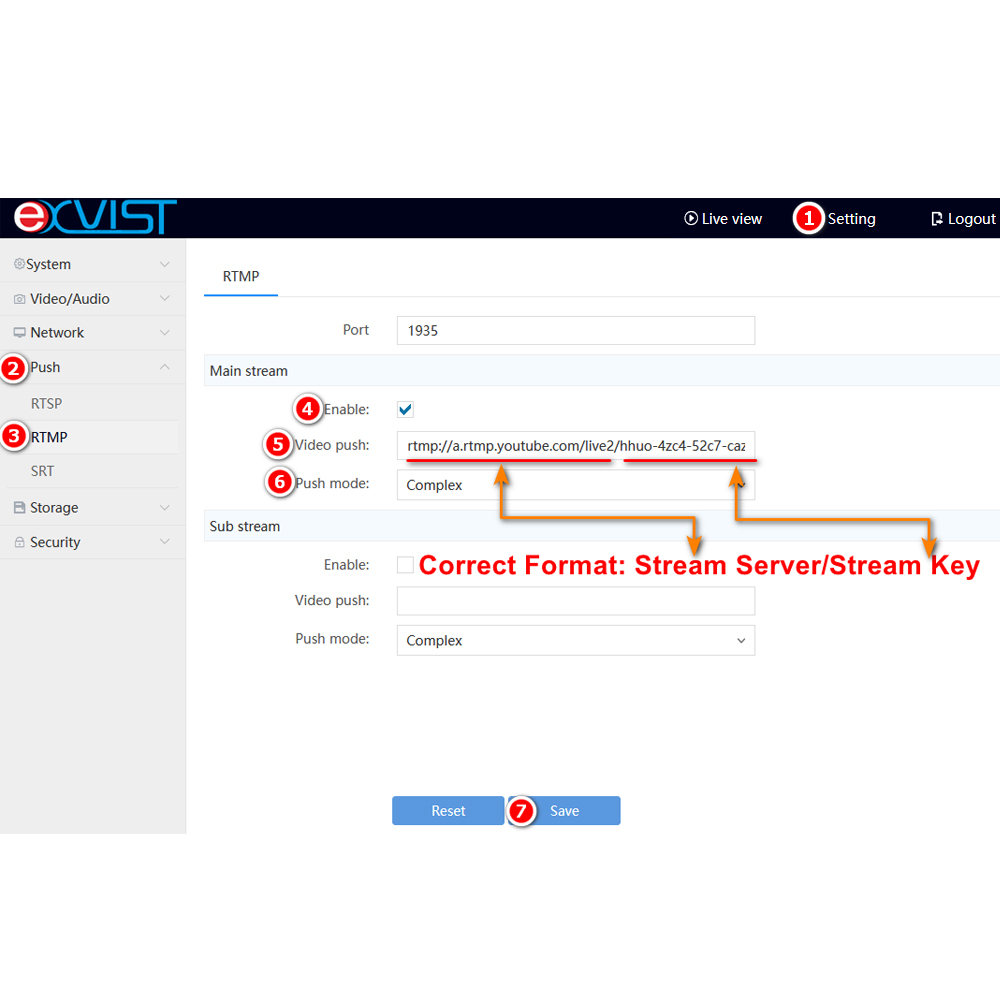

  RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP
• ONVIF Protocol
  Compatible
• HK/DH Protocol
  Compatible
• Security Features
  RTSP Authentication, ONVIF Authentication

Interface

• Physical Input Interfaces
  1x HDMI1.4, 1x 3.5mm TRRS Line-I/O(ONLY ONE)
• Physical Output Interfaces
  1x HDMI1.4, 1x 3.5mm TRRS Line-I/O(ONLY ONE), 1x Network Port(10/100M)
• Network Interface
  1ch RJ45 10M/100M Self Adaptive Ethernet Port
• Local Recording
  2ch USB2.0 for Local Recording, Max. 128GB
• Reset/Record
  1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
• Screen Type
  N/A

General

• Default Credentials
  User: admin; Password: 12345
• Default Static IP
  192.168.1.120
• Operating Temperature
  -10°C~+55°C[14°F~131°F]
• Operating Humidity
  ≤95%(Non-Condensing)
• Power Supply
  DC12V 1A or Higher
• Power Consumption
  ≤3W
• Unit Dimension
  109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
• Package Dimension
  172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
• Net Weight
  156g[0.34lb, 5.5oz]
• Gross Weight
  378g[0.83lb, 13.33oz]
