Overview

• Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
• Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.

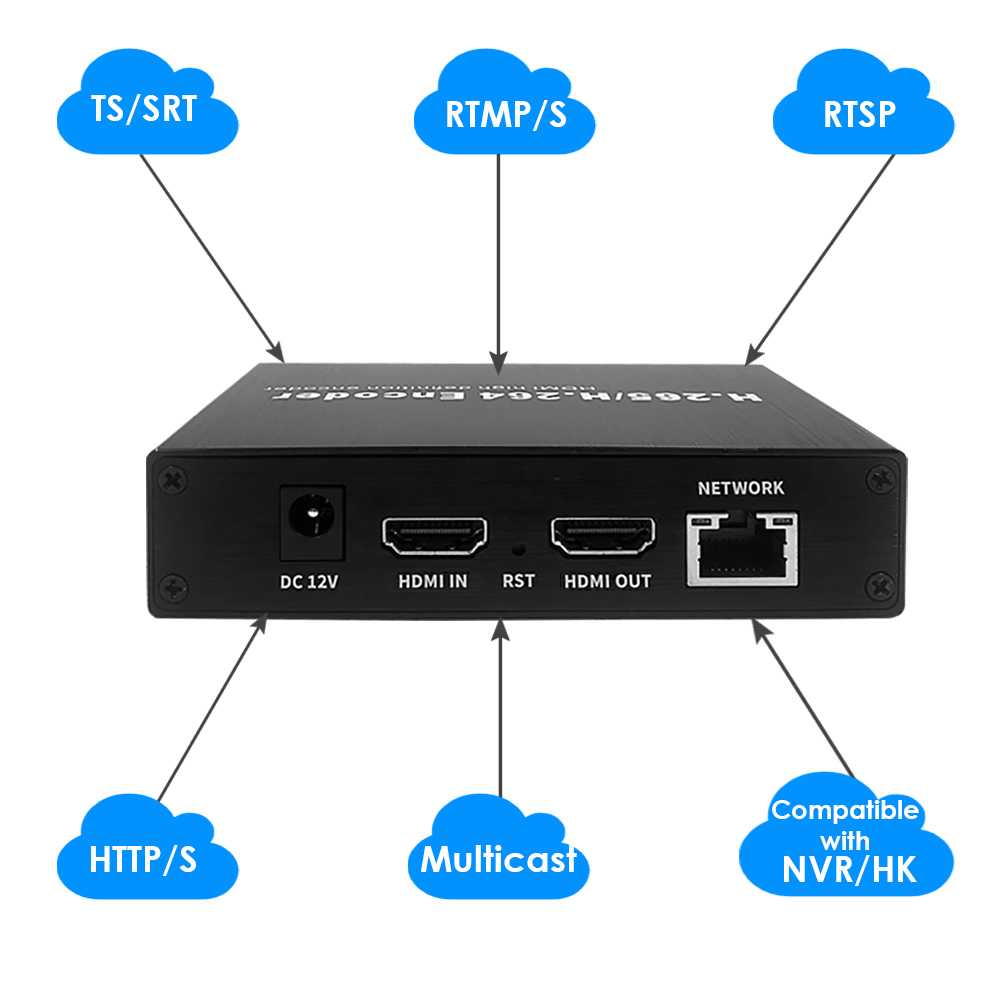

• Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
• Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
• Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 256G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.

Specification

Quick Start

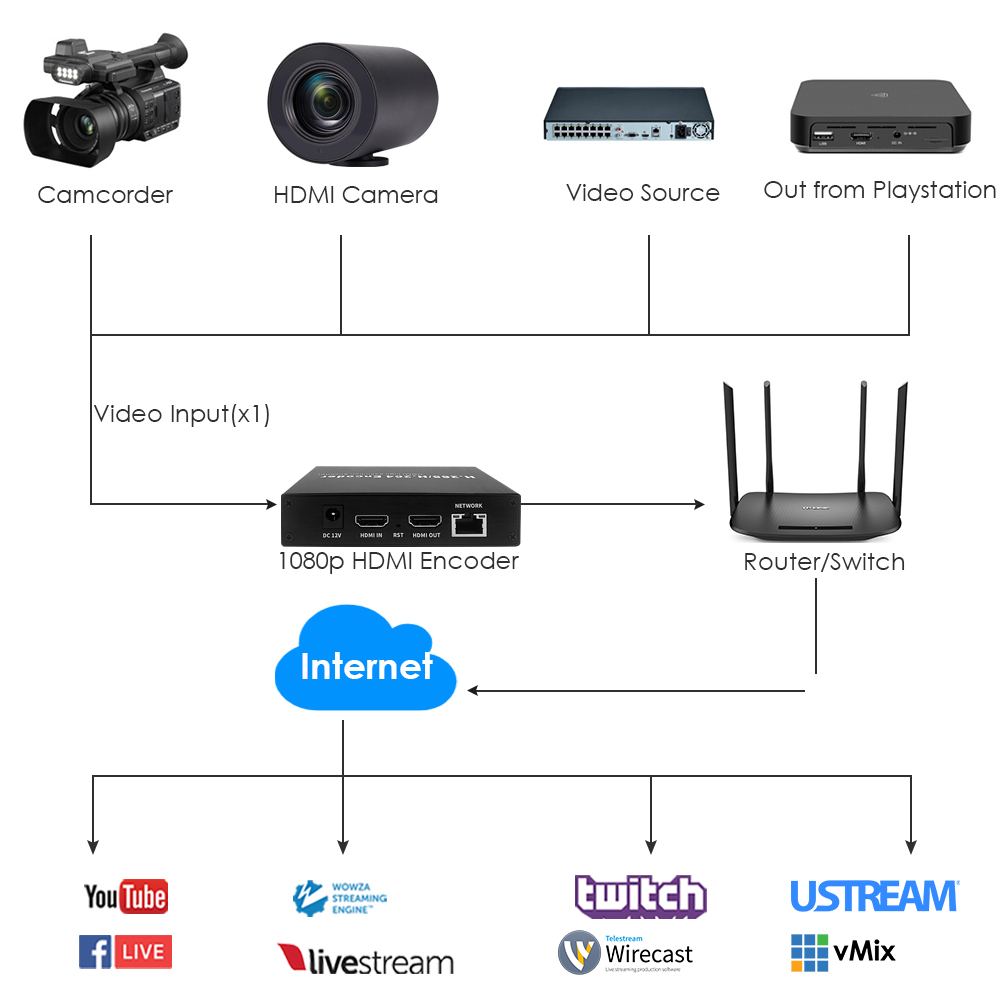

Connection Diagram

Power on encoder and connect it to router via ethernet cable

Download & Run

Download EncDevice Tool

Go to Technical Support->Select Encoder->Download EncDevice Tool->Select corresponding version to download

Run Device Manager

• Open the file folder of EncDevice;
• Double click "EncDeviceTool.exe" and then it will work

Configure IP

Configure IP via Device Manager

• Open the file folder of EncDevice
• Double click "EncDeviceTool.exe" and then it will work
• Click "Refresh" -->Enter username and password at the right bottom side;
• Select the device-->Enter Start IP & IP Gateway-->Click "Modify"

• NOTE: It's necessary to modify IP address first if the device and your PC are not on the same network segment even if it’s connected to the same router, or else it might be failed to access the device from Chrome directly. Currently it's only available to do it manually.

Access Encoder

Access Encoder from a Browser

• Start a browser like IE, Chrome, Firefox (Chrome Recommended);
• Enter the IP address you configured above via Device Manager;
• Enter username (admin) and password (12345 by default);

• Click “Login” and the Preview page opens in your browser

• Tips: Generally it's recommended to access the encoder from Chrome.

Configure Video

Configure Parameters of Video

• Go to Setting-->Video/Audio-->Video
• Key Interval set as 10(Reference Value)
• Bitrate set as 500(Reference Value)

• Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

Configure RTMP

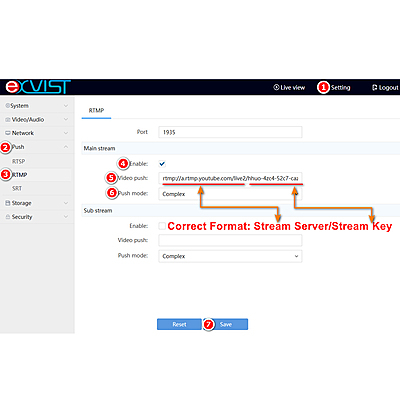

Configure PUSH URL of RTMP

• Go to Setting-->Push-->RTMP-->Check the checkbox of Enable
• Enter Push URL: copy Stream URL and Stream Key from YouTube Studio into column of Push URL below

• Go back to YouTube Studio after setting RTMP PUSH URL to check whether it's on live or not.

Model Comparison

Download Firmware

How can we access the page of download firmware?

NOTES: As a registered user, you will be able to access and download firmware, submit tickets for technical support, and leave comments or questions regarding any issues you may encounter.

How can we determine which firmware version we should download?
