- SD Card Backup: Local storage for redundancy during network outages.
- H.265 Efficiency: Reduce bandwidth by 50% vs. H.264 for crisp 1080P streams.

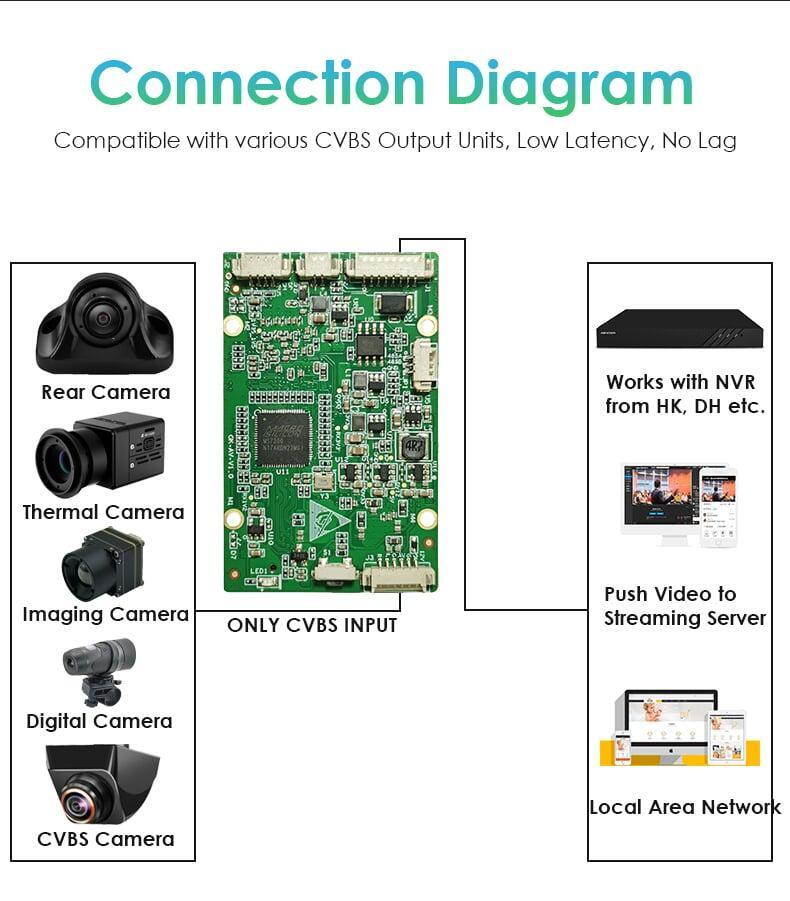

- Analog-to-Digital Conversion: Digitize CVBS feeds for RTMP/RTSP/ONVIF workflows.
- Thermal Camera Ready: Process thermal imaging data for industrial/security use.
- Hardware Reset: Quick troubleshooting without software tools.
$146.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

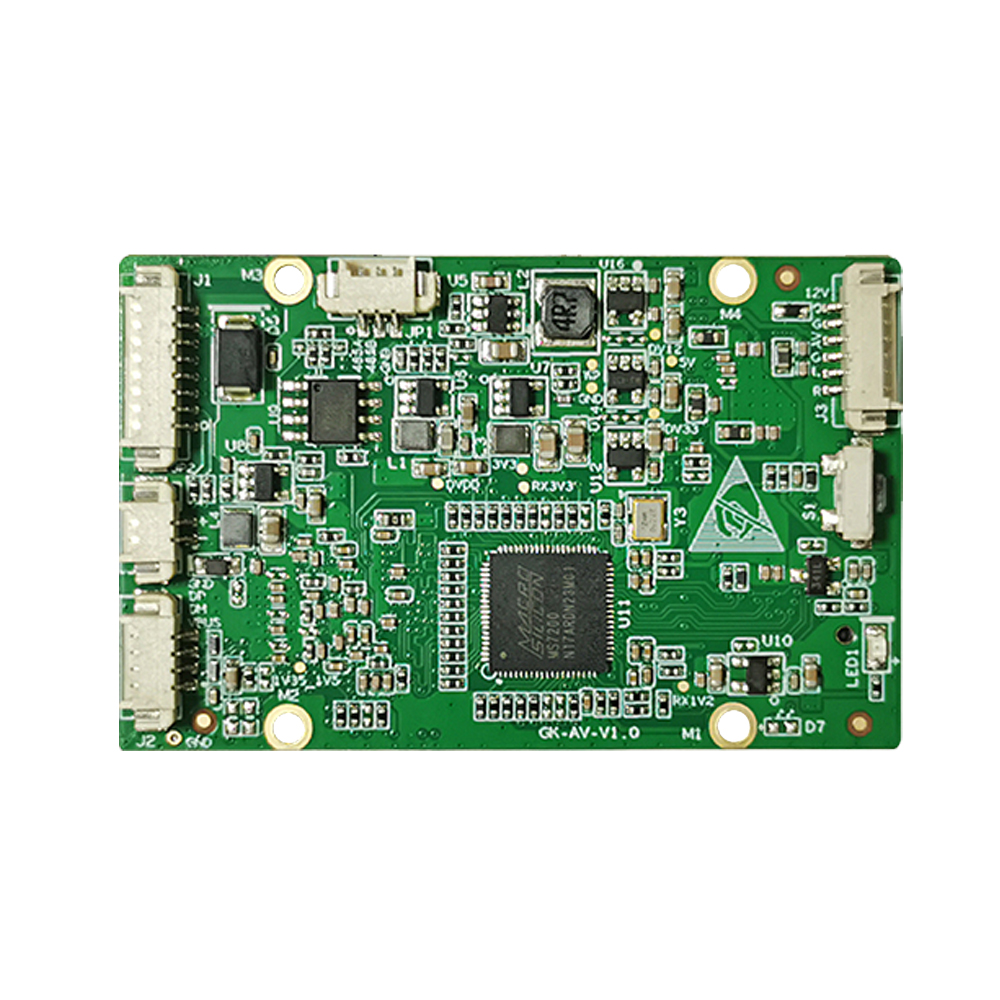

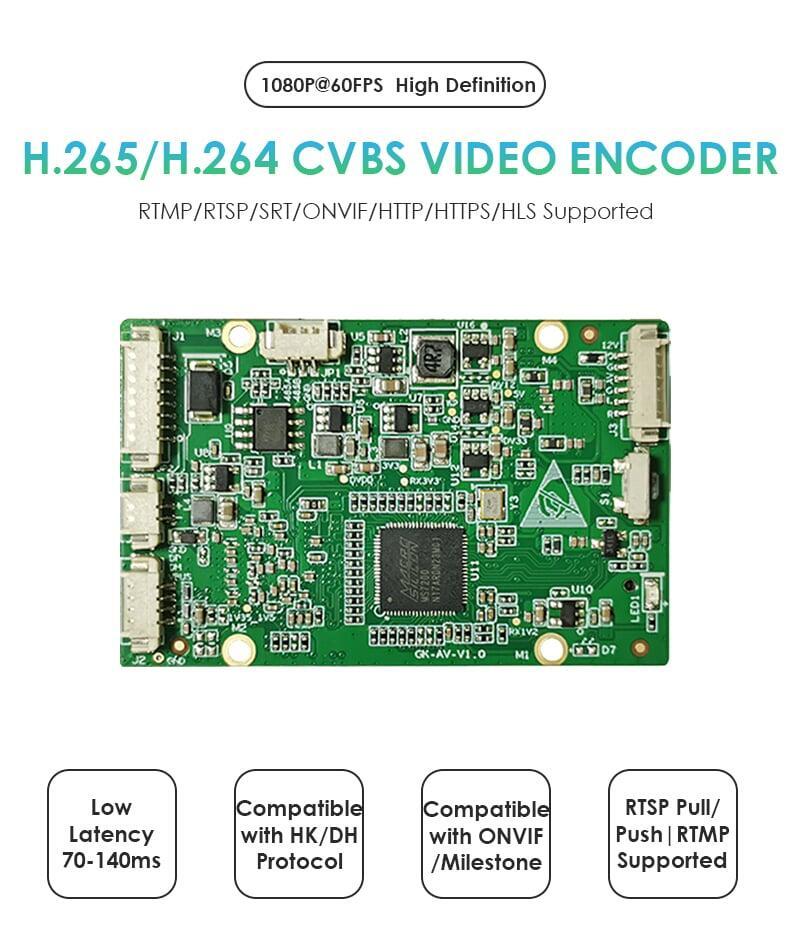

1080P Mini CVBS Encoder w/SD Card Slot for Recording | GK72 Encoder Series

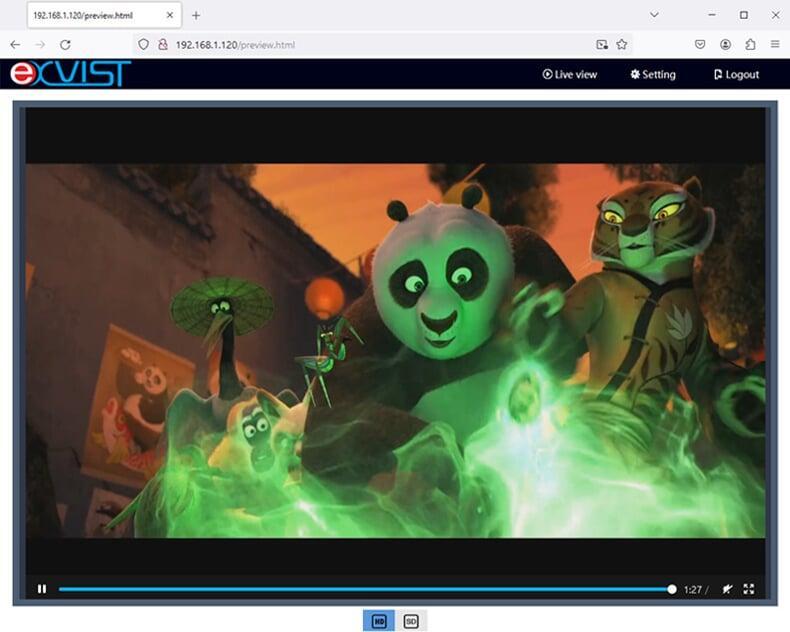

H.265 Preview
EXVIST's CVBS encoder specifically supports H.265 Preview, offering enhanced video compression capabilities for improved efficiency and quality in previewing content.

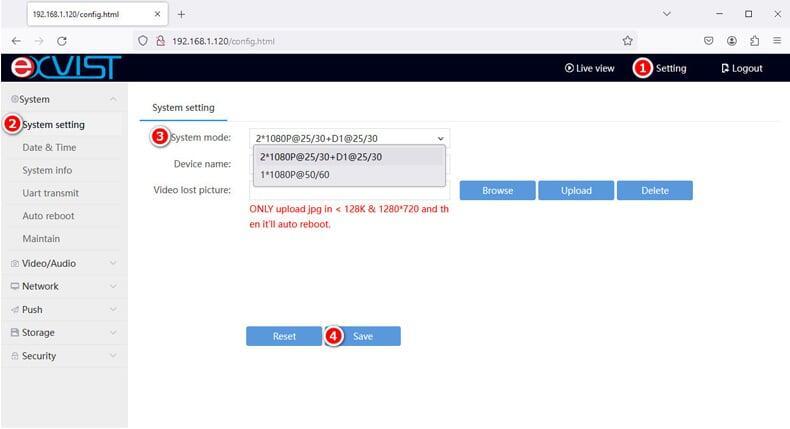

System Mode Switchable
You can achieve smooth video streaming at 50/60fps by adjusting the system mode of the encoder to optimize the frame rate for a higher quality viewing experience.

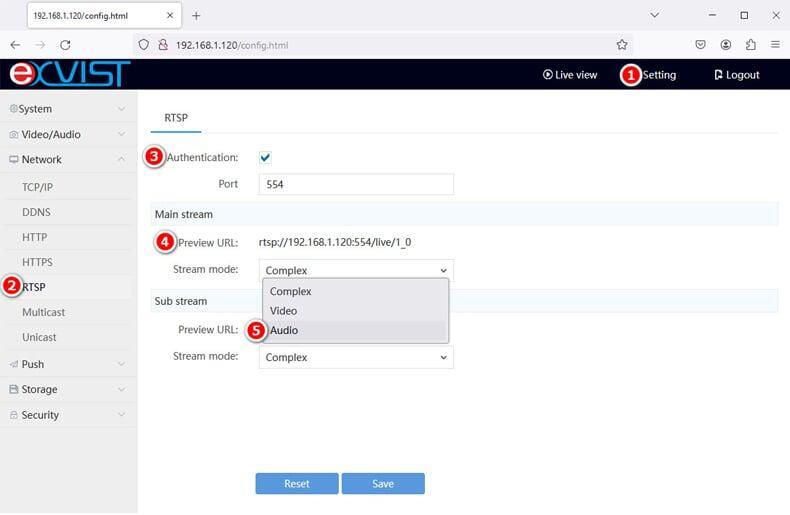

Audio Encoder
Transforming the device into an audio encoder is simple – just select the audio stream exclusively to focus on capturing and encoding audio content.

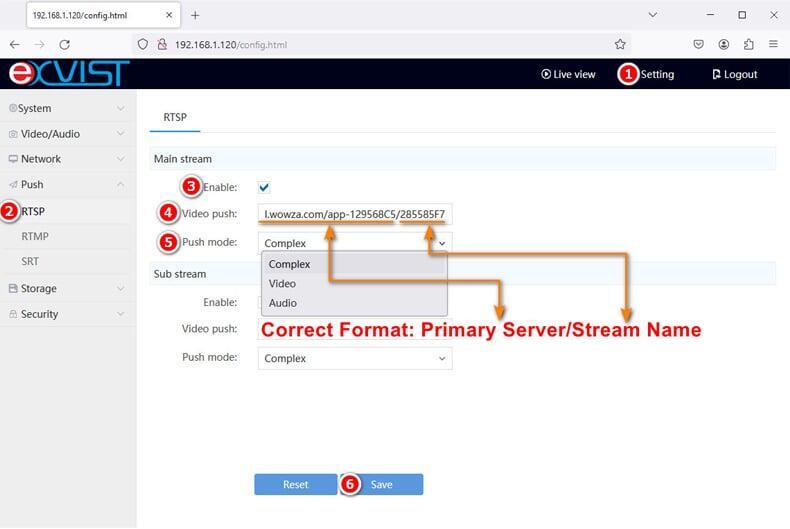

RTSP Push to Wowza Video
This encoder not only supports pulling RTSP streams to Wowza Streaming Engine but also allows for pushing RTSP streams to Wowza Video, providing versatile options for streaming video content.

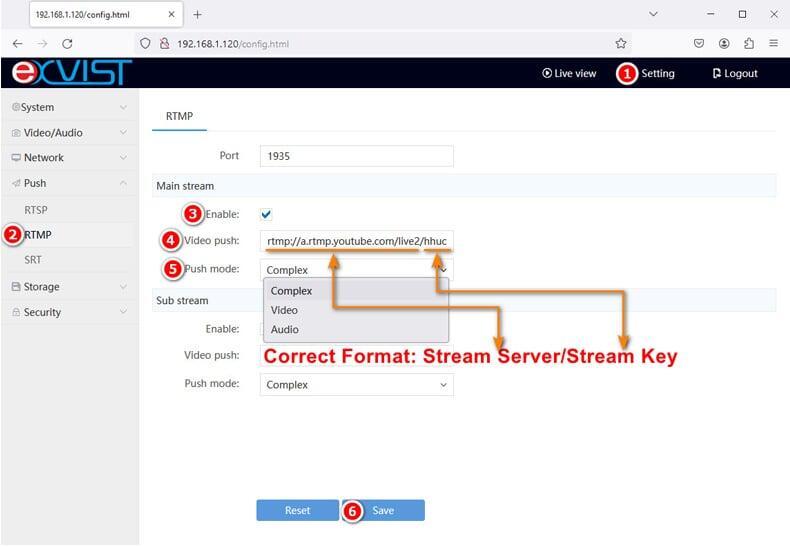

RTMP Push to YouTube etc
Effortlessly stream video to platforms like YouTube and Facebook by leveraging the standard RTMP protocol for seamless integration and broadcasting.

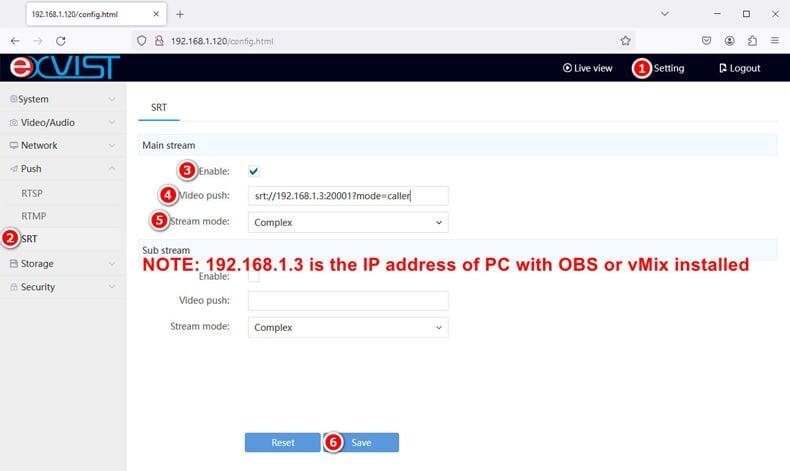

SRT Caller Mode
By following the steps to activate the caller mode within your local area network, you can easily enable the SRT protocol for seamless transmission.

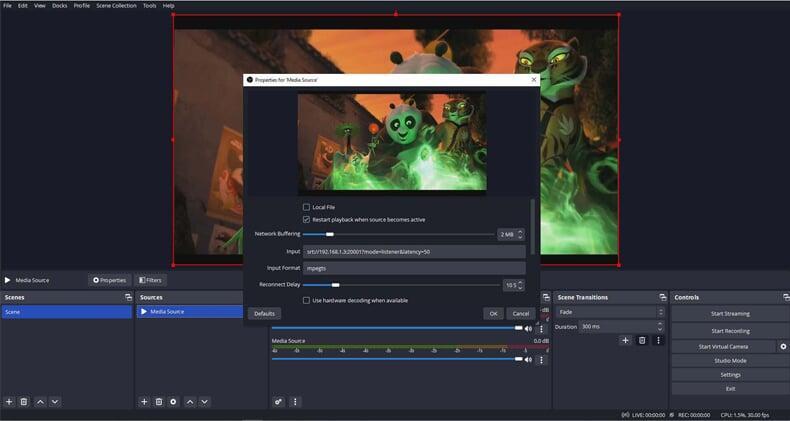

Get Stream into OBS via SRT Caller Mode
Simply paste the correct format in the SRT URL column, and you'll be able to view the video feed in OBS.

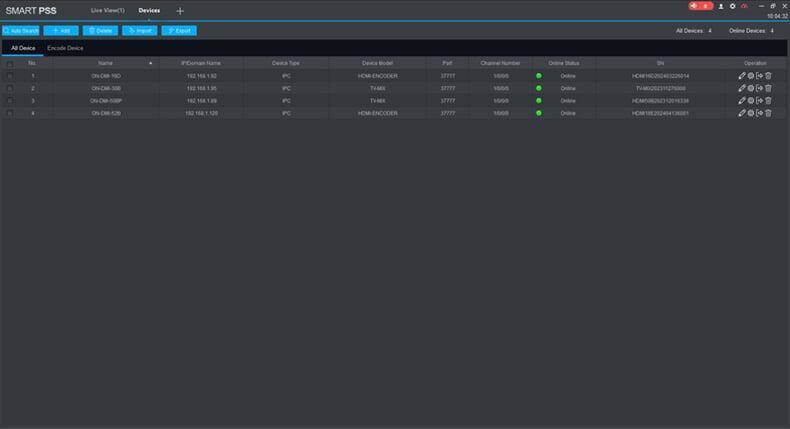

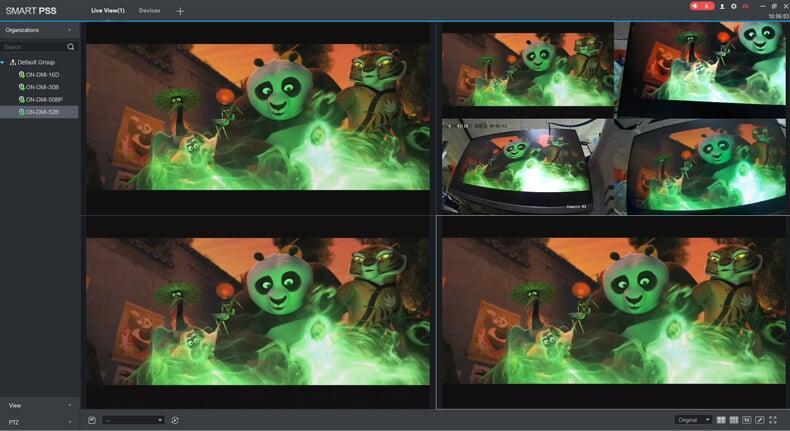

Connect to SmartPSS
This video encoder is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within SmartPSS, offering a user-friendly experience for surveillance system operations.

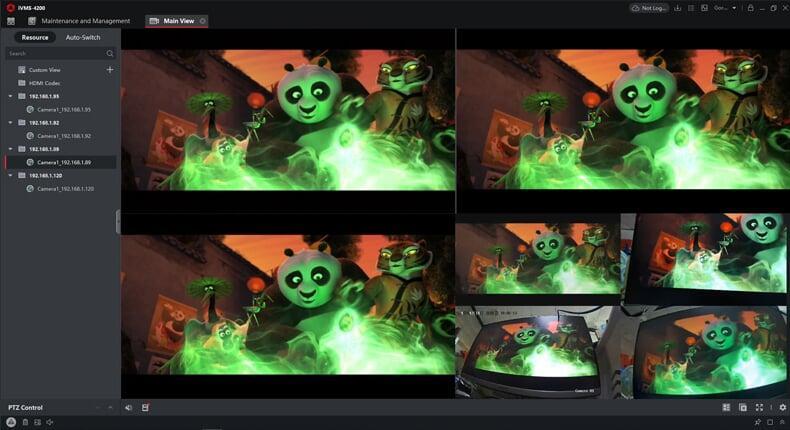

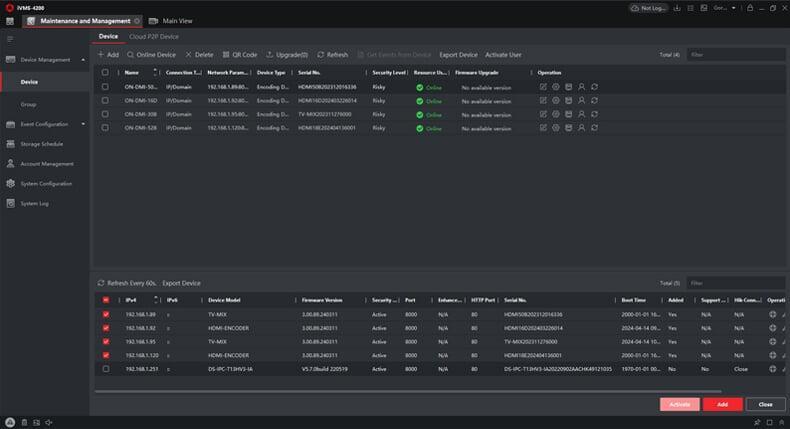

Connect to iVMS-4200.
Additionally, if you prefer not to use SmartPSS, this encoder is a suitable choice for iVMS-4200, offering compatibility with the HK protocol for optimal functionality within that software.

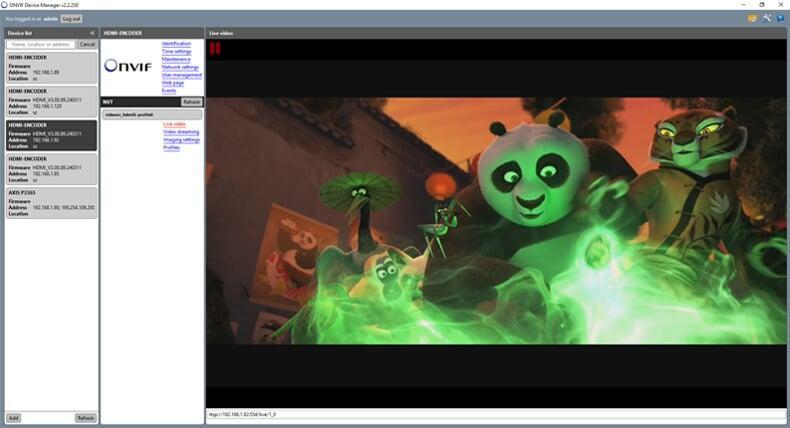

Compatible with ONVIF
Effortlessly access live video feed in the ONVIF Device Manager as this encoder is compatible with ONVIF standards.
Specifications
Specifications
Product Model
- Product ModelON-BNC-16EM (Max. 60FPS)
Video Input/Output
- Video Input InterfacesCVBS
- Max. Input Resolution1080P@60FPS
- Supported Input Resolutions1920x1080, 1600x1200, 1440x1052, 1440x900, 1360*768, 1280x1024, 1280x800, 1280x768, 1280x720, 704x576, 640x480, 640x352, 352x288, 320x240
- Unsupported Input Resolutions1366x768, 1080i
- Output InterfacesNetwork Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(Micro SD Card)
- Loopout ResolutionN/A
- Max. Loopout ResolutionN/A
Audio Input/Output
- Audio Input Interfaces3.5mm TRS Line-In(2PIN PH1.25)
- Audio Sampling Rate8kHZ(NVR)/16kHz/32kHz/44.1kHz/48kHZ
- Audio Input Volume0~100, Adjustable for 3.5mm TRS Line-IN ONLY
- Audio Output InterfacesNetwork Audio Stream
- Audio Output Volume0~100, Adjustable for Intercom ONLY
Video Encoding
- Supported Video StandardsH.264/AVC, H.265/HEVC
- Video Encoding Channels1
- Main Stream1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
- Sub Stream720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
- Max. Encoding Resolution1080P@60FPS
- Bitrate Control ModeConstant Bitrate(CBR)/Variable Bitrate(VBR)
- FramerateUp to 25/30fps or 50/60fps, Determined by System Mode
- GOP5–200 frames (Min Key Interval: 5)
- Bitrate64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
- OSD OverlayDate&Time, Text, Picture(JPG, PNG)
Audio Encoding
- Supported Audio CodecsAAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
- Audio Encoding Channels1
- Audio Bitrate Range32K/64K/128K/256K
- Audio Channels SupportedStereo/Mono
Video Stream
- Concurrent Stream Count6x RTSP Streams

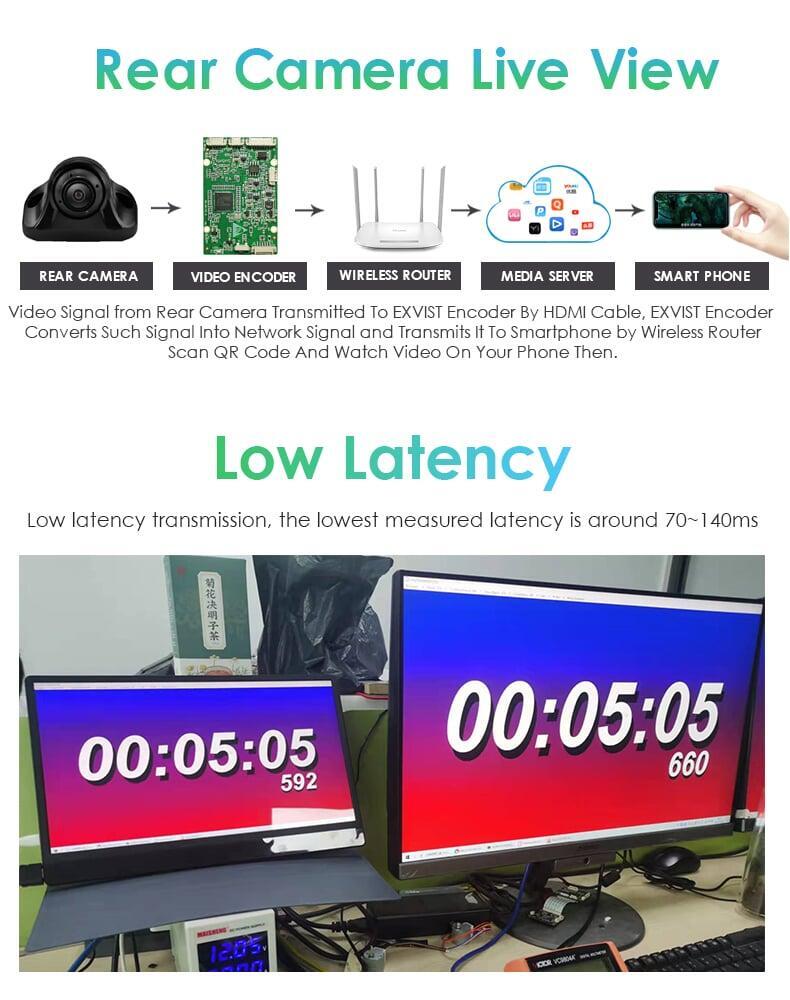

- Stream Latency70~140ms(PC-TO-Encoder+Decoder HDMI Output)
- Stream Types SupportedLive Streaming, Multicast Streaming
- TS (Main Stream)http://192.168.1.120:80/ts/1_0
- TS (Sub Stream)http://192.168.1.120:80/ts/1_1
- HLS (Main Stream)http://192.168.1.120/hls/1_0.m3u8
- HLS (Sub Stream)http://192.168.1.120/hls/1_1.m3u8
- RTSP (Main Stream)rtsp://192.168.1.120:554/live/1_0
- RTSP (Sub Stream)rtsp://192.168.1.120:554/live/1_1
- UDPudp://@224.1.2.3:10000
Protocols & Networking
- Networking ProtocolsTCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP

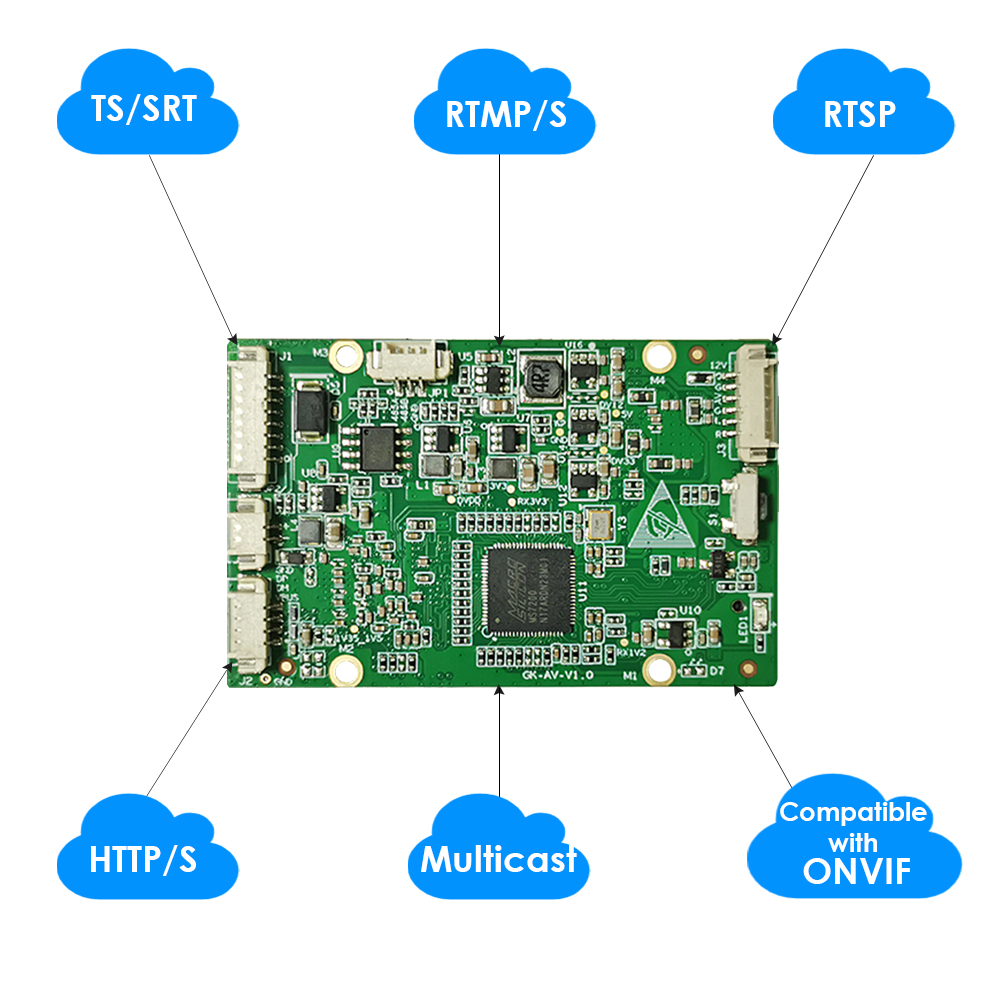

- Streaming ProtocolsRTSP Pull, RTSP Push, RTMP, RTMPS, SRT, HLS, TS, UDP
- ONVIF ProtocolCompatible
- HK/DH ProtocolCompatible
- Security FeaturesRTSP Authentication, ONVIF Authentication
Interface

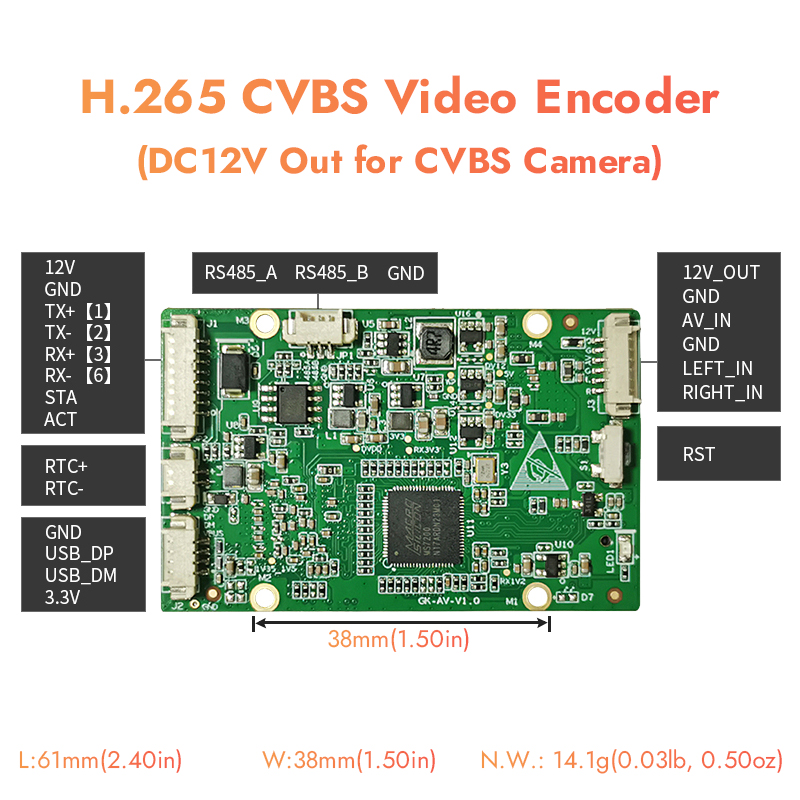

- Physical Input Interfaces1x CVBS Input, 1x 3.5mm TRS Line-in(2PIN PH1.25)
- Physical Output Interfaces1x Network Port(10/100M)
- Network Interface1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Local Recording1ch Built-in Micro SD slot for Local Recording, Max. 128GB
- Reset/Record1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
- Screen TypeN/A
General
- Default CredentialsUser: admin; Password: 12345
- Default Static IP192.168.1.120
- Power SupplyDC12V 1A or Higher
- Power Consumption≤3W
- Operating Temperature-10°C~+55°C[14°F~131°F]
- Operating Humidity≤95%(Non-Condensing)
- CertificationsCE, FCC, RoHS
- Unit Dimension61mm x 33mm x 8mm[2.40in x 1.50in x 0.31in]
- Package Dimension172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
- Net Weight12g[0.03lb, 0.42oz]
- Gross Weight100g[0.22lb, 3.53oz]
