H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
4 reviews
$146.57
$156.57
H.265 1080P HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
4 reviews
  • Buy 1 Get 20% OFF
Model
Plug Type
Quantity
ADD TO CART
BUY NOW

Checkout Security with

Description

AMAZON US   AMAZON UK   AMAZON DE   AMAZON FR   AMAZON IT   AMAZON ES   AMAZON NL   AMAZON SE   AMAZON PL   AMAZON TR   AMAZON JP   AMAZON SA

Advantages

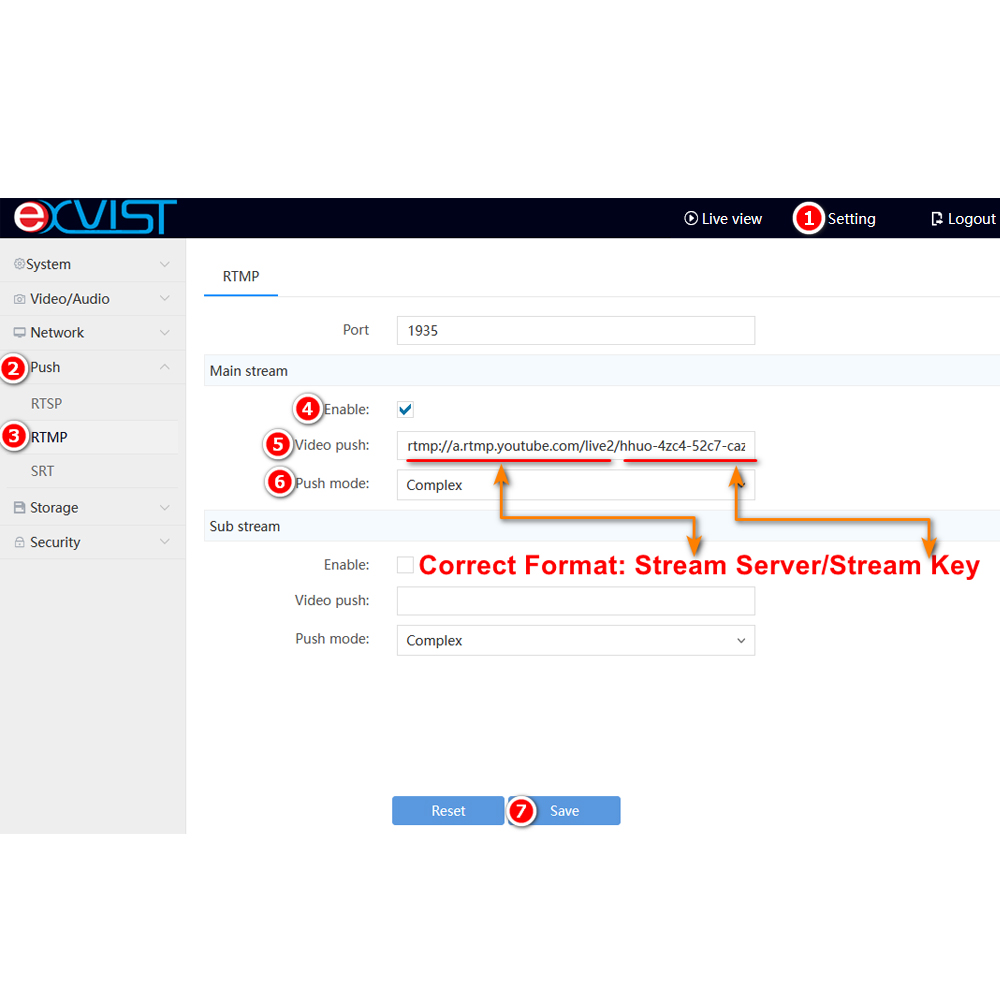

  • Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
  • Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.
  • Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.

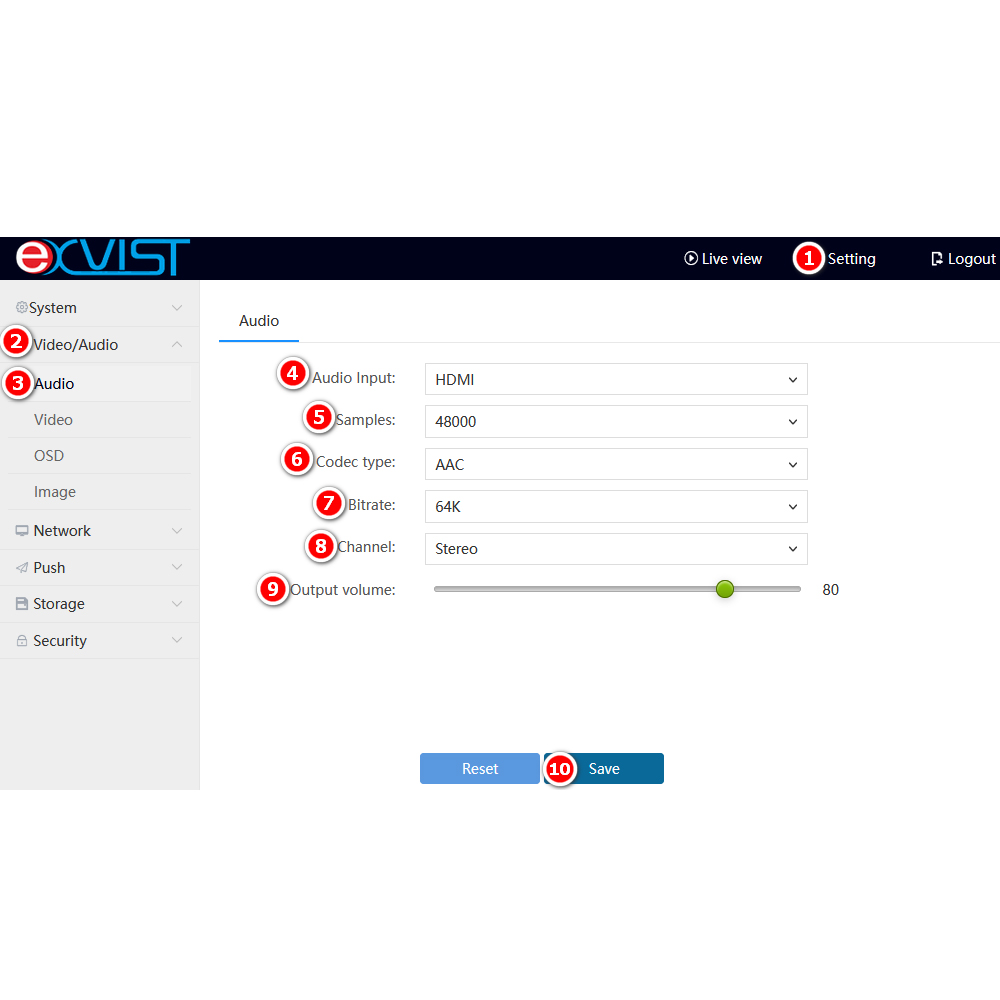

  • Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
  • Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 256G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.

Specification

SOC Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
Model: ON-DMI-16E (Max. 50FPS) or ON-DNI-16E (NDI Version)
Video/Audio Encoding Video Encoding: H.265/H.264
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K or 8000Hz(NVR)
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Adjustable)
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Adjustable)
Main Stream: 1920*1080、1600*900、1440*1050、1440*900、1360*768、1280*1024、1280*720
Sub Stream: 704*576、640*480、640*352、352*288、320*240
Mobile Stream: 720*576、720*540、720*480、720*404、704*576、640*480、640*360、352*288、320*240
Video Stream TS (Main Stream): http://192.168.1.120:80/ts/0
TS (Sub Stream): http://192.168.1.120:80/ts/1
RTSP (Main Stream): rtsp://192.168.1.120:554/live/0
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1
UDP: udp://@224.1.2.3:10000
Protocols TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、RTMP、SRT、TS、UDP、ONVIF

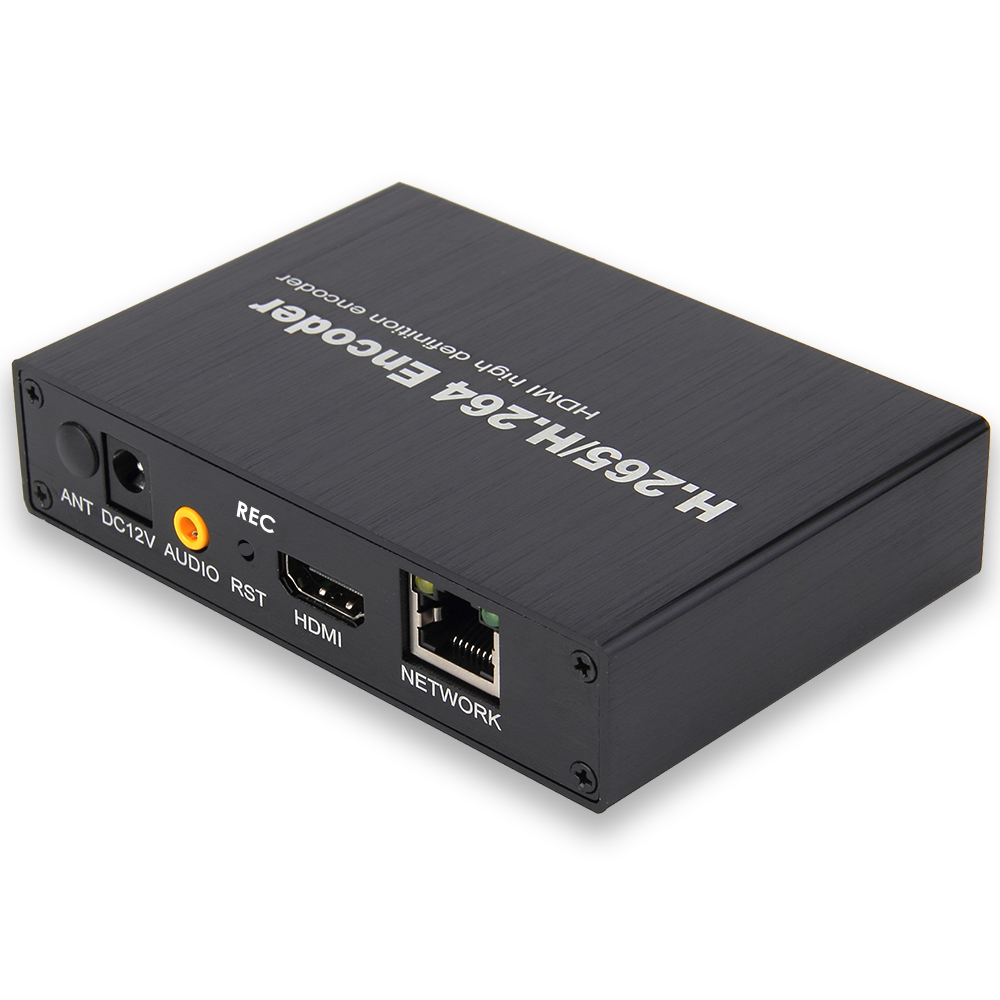

Interface Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
HDMI: 1ch HDMI Input
Audio: 1ch 3.5mm Line-in Port
Power: 1ch DC12V Power Input
Reset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)
Others Operating Temperature: -10℃~+55℃[14°F~131°F]
Operating Humidity: ≤95%(Non-Condensing)
Power Supply: DC12V 1A or Higher
Power Consumption: ≤3W
Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in]
Net Weight: 186g[0.41lb, 6.56oz]
Gross Weight: 385g[0.85lb, 13.58oz]
Application
IPTV/Hotel TV System
Digital Signage/Video Conference
Online Live Streaming Broadcast or Server
Teaching/Campus Broadcast/Telemedicine
Multimedia Stitching Display
NVR/Recording System
Package Includes
1x HDMI Video Encoder or NDI HDMI Video Encoder
1x DC12V 1A Power Adapter
1x HDMI Cable(1M)
1x Ethernet Cable(1M)
1x Live Broadcasting Quick Guide
