    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.
    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.

    H.265 HDMI Video Encoder w/PCIe for Drone FPV IPTV Satellite Modulator to Live Broadcasting to YouTube Facebook Wowza Ustream etc.

    OEM/ODM Services Available.
    $136.57 USD $0.00 USD
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    Model
    ON-DMI-16EC
    Plug Type
    EU Plug
    US Plug
    AU Plug
    UK Plug

    Overview

    • Power Modes - This HDMI video encoder can be powered not only by DC12V 1A via 2PIN PH2.5 connector but also by PCIe which might be easier for integration into systems.
    • Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
    • Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.

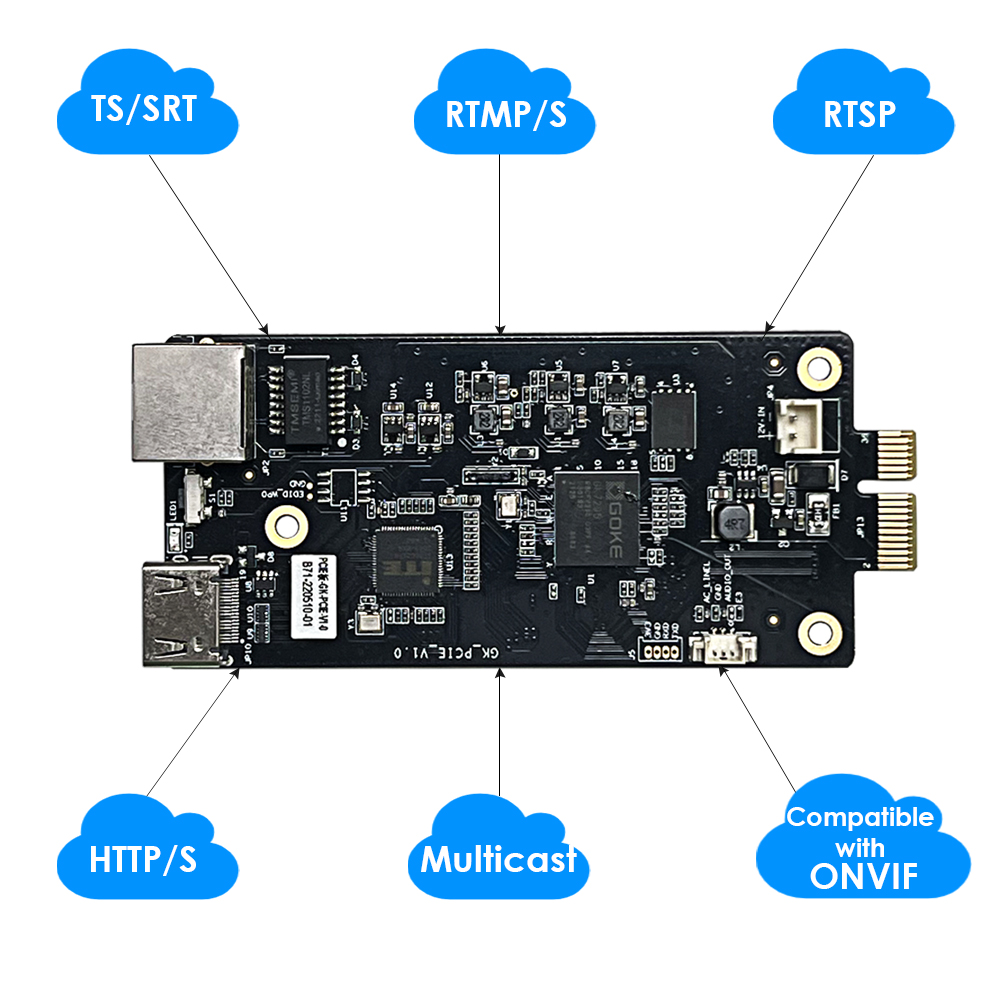

    • Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
    • Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.

    Specification

    SOC
    Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
    ON-DMI-16EC (Max. 50FPS)
    Video/Audio Encoding Video Encoding: H.265/H.264

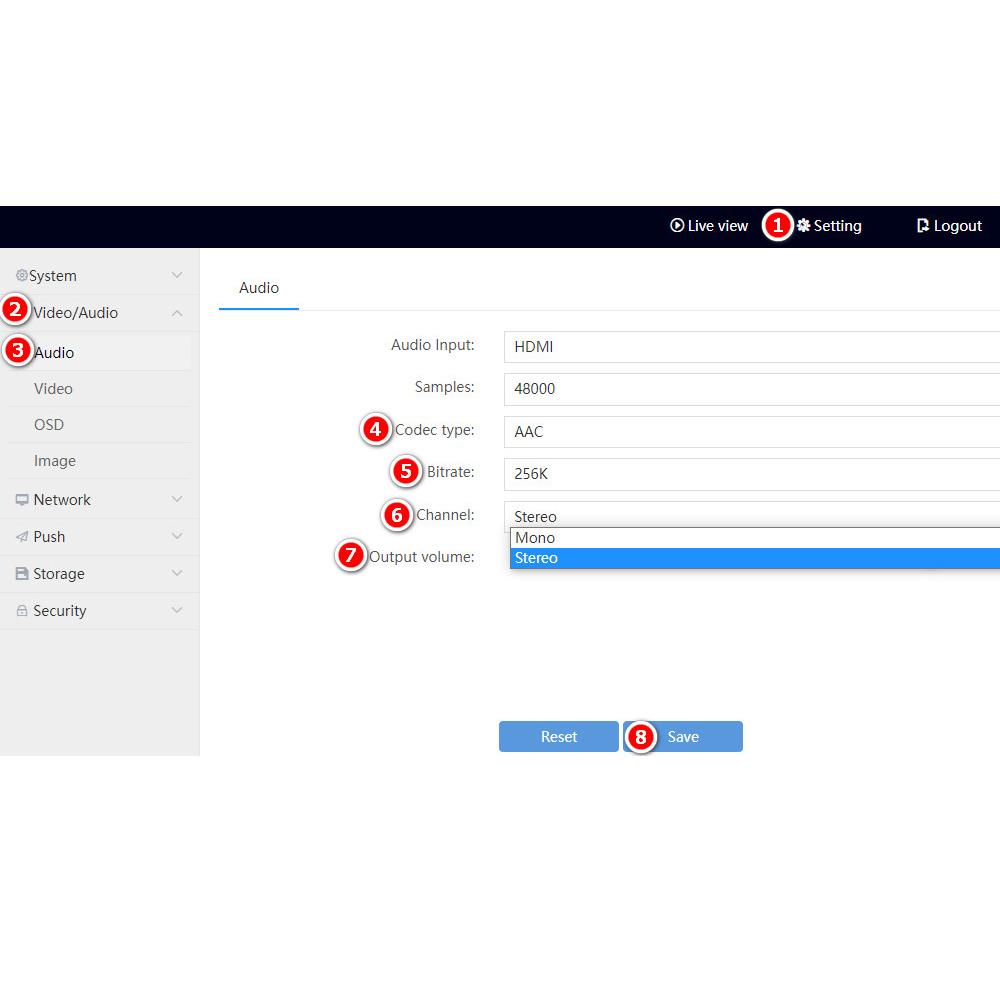

    Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
    Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
    Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Adjustable)
    Main Stream: 1920*1080、1600*900、1440*1050、1440*900、1360*768、1280*1024、1280*720
    Sub Stream: 704*576、640*480、640*352、352*288、320*240
    Video Stream
    TS (Main Stream): http://192.168.1.120:80/ts/0
    TS (Sub Stream): http://192.168.1.120:80/ts/1
    HLS (Main Stream): http://192.168.1.120/hls/0.m3u8
    HLS (Sub Stream): http://192.168.1.120/hls/1.m3u8
    RTSP (Main Stream): rtsp://192.168.1.120:554/live/0
    RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1
    UDP: udp://@224.1.2.3:10000
    Protocols TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、HTTPS、RTP、RTSP、RTMP、RTMP、SRT、TS、UDP、ONVIF

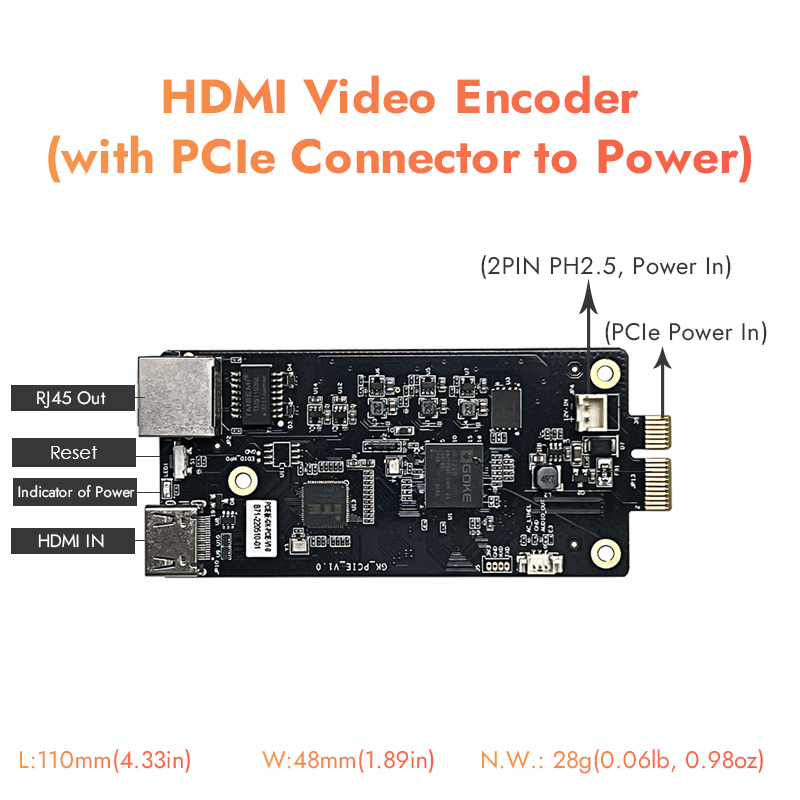

    Interface Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
    HDMI: 1ch HDMI Video Input
    Audio: 1ch HDMI Audio Input
    Power: 1ch DC12V Power Input(2PIN, PH2.5) or 1ch PCIe Power Input
    Reset: 1ch Reset (Press it for more than 5 seconds)
    Others







    Operating Temperature: -10℃~+55℃[14°F~131°F]
    Operating Humidity: ≤95%(Non-Condensing)
    Power Supply: DC12V 1A or Higher
    Power Consumption: ≤3W
    Unit Dimension: 110mm x 48mm x 19mm[4.33in x 1.89in x 0.75in]
    Package Dimension: 130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in]
    Net Weight: 28g[0.06lb, 0.98oz]
    Gross Weight: 100g[0.22lb, 3.53oz]
    Application
    IPTV Satellite Modulator/Hotel TV System
    CCTV Camera/Camcorder
    UAV Image Transmission/DLSR Camera
    Drone/DV/FPV/Medical Equipment
    Digital Signage/Video Conference
    Online Live Streaming Broadcast or Server
    Teaching/Campus Broadcast/Telemedicine
    Multimedia Stitching Display
    NVR/Recording System

    Package Include

    HDMI Video Encoder
    1x HDMI Cable(1M)
    1x Ethernet Cable(1M)
    1x Live Broadcasting Quick Guide

    Quick Start

    Connection Diagram

    Power on encoder and connect it to router via ethernet cable

    Download & Run

    Download EncDevice Tool

    Go to Technical Support->Select Encoder->Download EncDevice Tool->Select corresponding version to download

    Run Device Manager

    • Open the file folder of EncDevice;
    • Double click "EncDeviceTool.exe" and then it will work

    Configure IP

    Configure IP via Device Manager

    • Open the file folder of EncDevice
    • Double click "EncDeviceTool.exe" and then it will work
    • Click "Refresh" -->Enter username and password at the right bottom side;
    • Select the device-->Enter Start IP & IP Gateway-->Click "Modify"

    • NOTE: It's necessary to modify IP address first if the device and your PC are not on the same network segment even if it’s connected to the same router, or else it might be failed to access the device from Chrome directly. Currently it's only available to do it manually.

    Access Encoder

    Access Encoder from a Browser

    • Start a browser like IE, Chrome, Firefox (Chrome Recommended);
    • Enter the IP address you configured above via Device Manager;
    • Enter username (admin) and password (12345 by default);

    • Click “Login” and the Preview page opens in your browser

    • Tips: Generally it's recommended to access the encoder from Chrome.

    Configure Video

    Configure Parameters of Video

    • Go to Setting-->Video/Audio-->Video
    • Key Interval set as 10(Reference Value)
    • Bitrate set as 500(Reference Value)

    • Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

    Configure RTMP

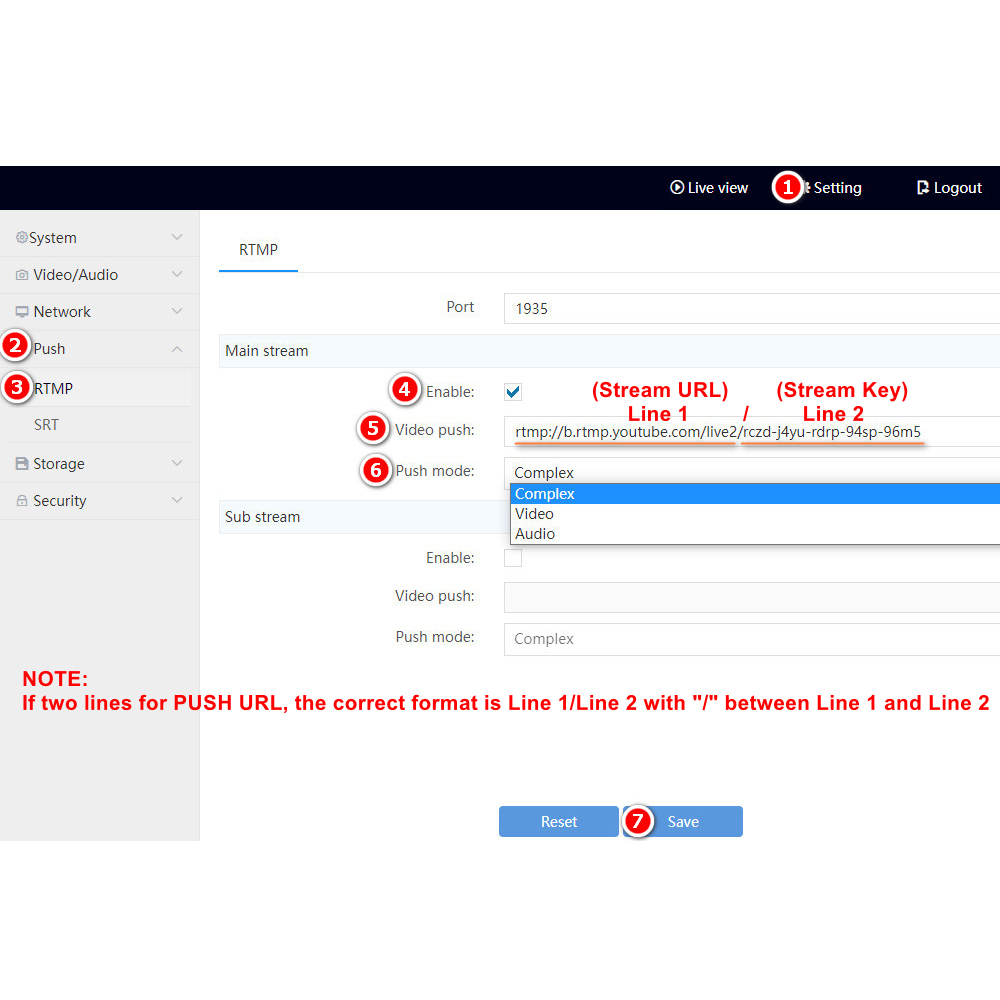

    Configure PUSH URL of RTMP

    • Go to Setting-->Push-->RTMP-->Check the checkbox of Enable
    • Enter Push URL: copy Stream URL and Stream Key from YouTube Studio into column of Push URL below

    • Go back to YouTube Studio after setting RTMP PUSH URL to check whether it's on live or not.
