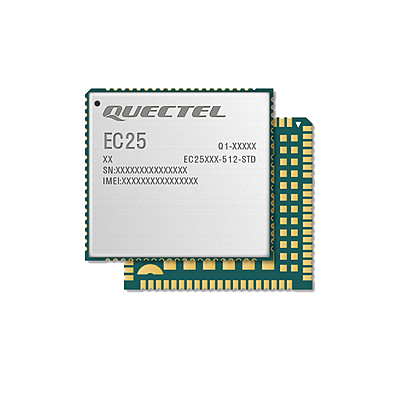

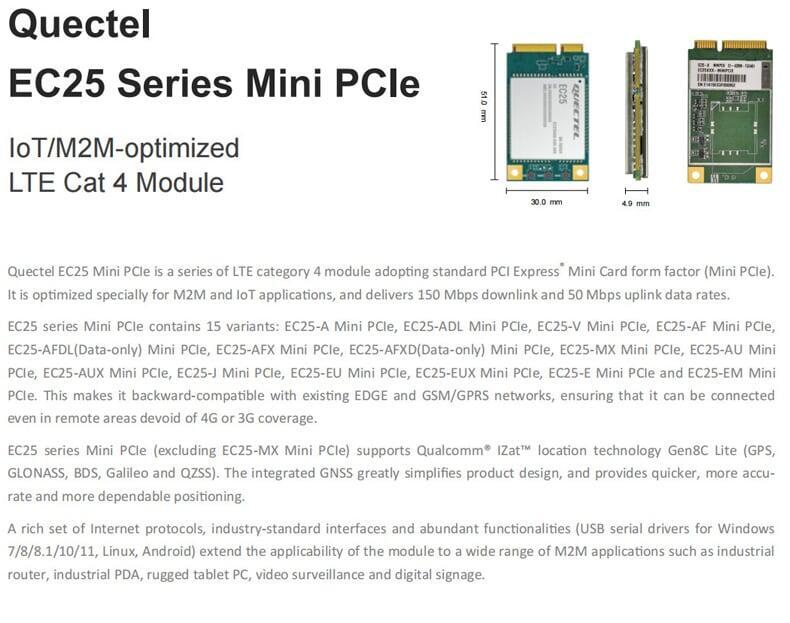

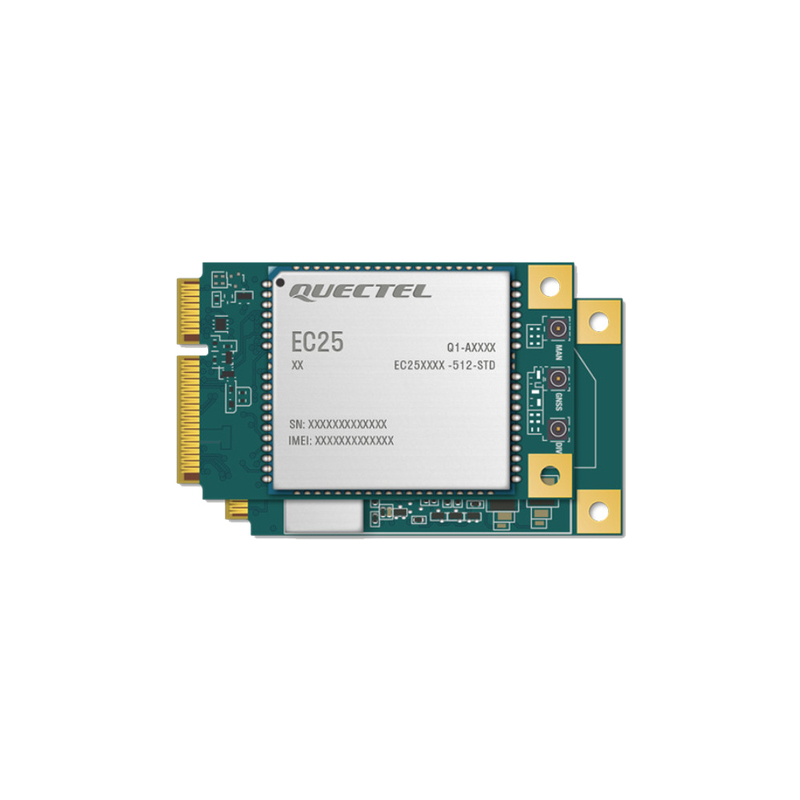

Quectel EC25 Series Mini PCIe & LCC 4G LTE Cat 4 Modules | Industrial IoT/M2M Cellular Modems

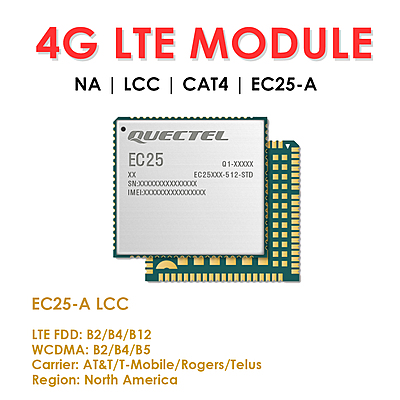

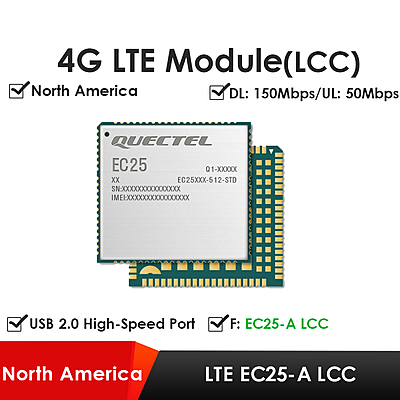

EC25-A LCC

• Region
  North America
• LTE-FDD
  B2/B4/B12
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: AT&T/T-Mobile; Canada: Rogers/Telus

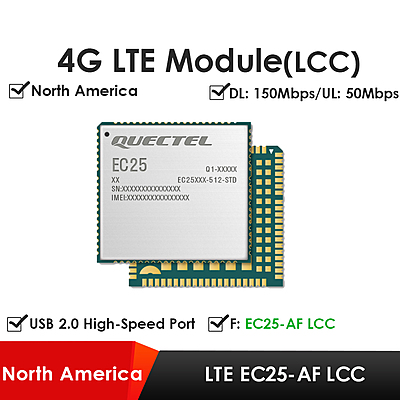

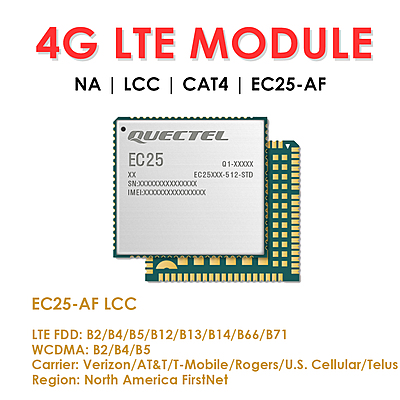

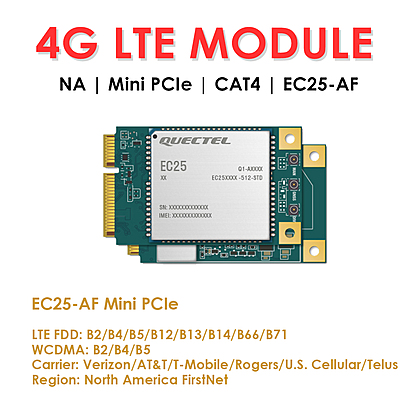

EC25-AF LCC

• Region
  North America
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon/AT&T(FirstNet)/T-Mobile; Canada: Rogers/Telus

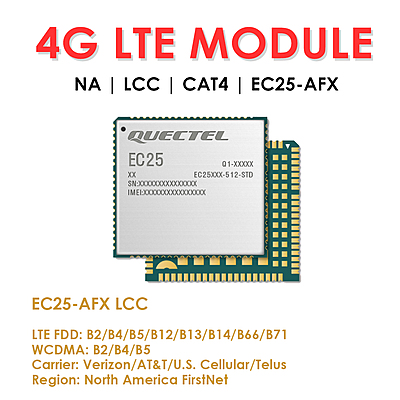

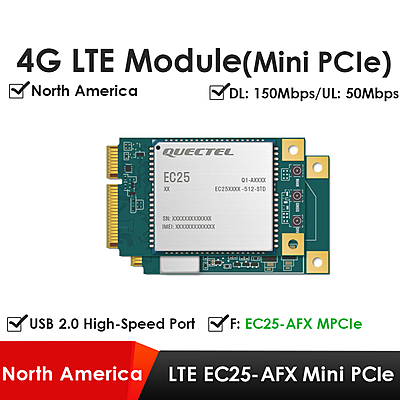

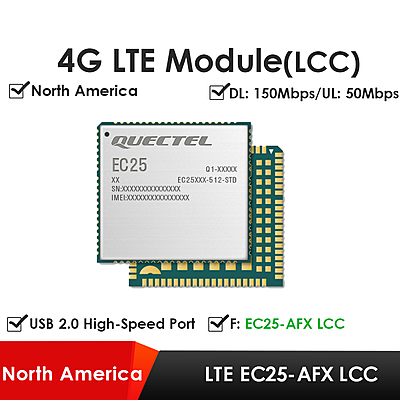

EC25-AFX LCC

• Region
  North America
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/B71
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon/AT&T (FirstNet)*

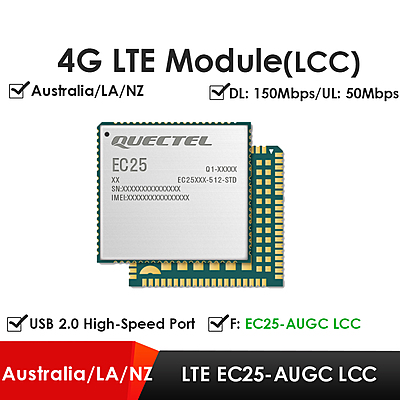

EC25-AU LCC

• Region
  Latin America/Australia/New Zealand
• LTE-FDD
  B1/B2①/B3/B4/B5/B7/B8/B28
• LTE-TDD
  B40
• WCDMA
  B1/B2/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Australia: Telstra

EC25-AUX LCC

• Region
  Latin America/Australia/New Zealand
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/
• LTE-TDD
  B40
• WCDMA
  B1/B2/B4/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  /

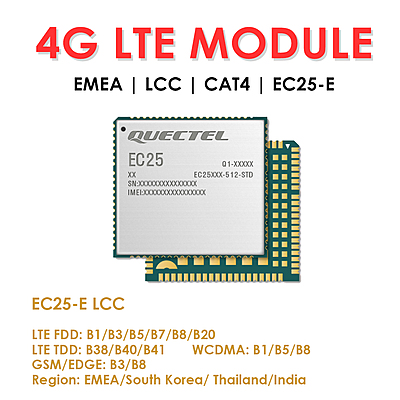

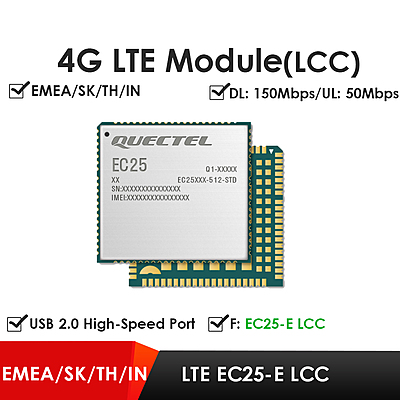

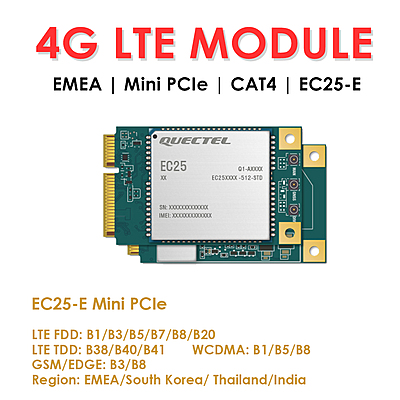

EC25-E LCC

• Region
  EMEA/South Korea/Thailand/India
• LTE-FDD
  B1/B3/B5/B7/B8/B20
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B5/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Global: Vodafone; Europe: Deutsche Telekom/Telefónica; South Korea: SKT/KT*/LGU+*

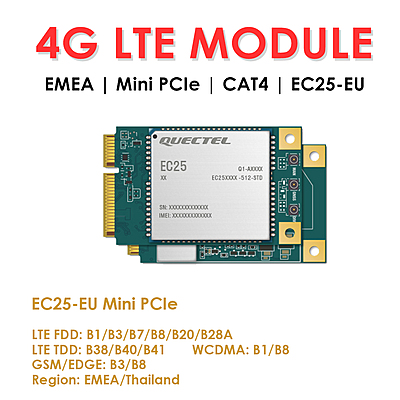

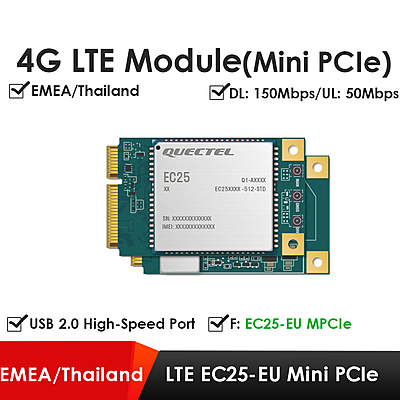

EC25-EU LCC

• Region
  EMEA/Thailand
• LTE-FDD
  B1/B3/B7/B8/B20/B28A
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Europe: Deutsche Telekom/British Telecom

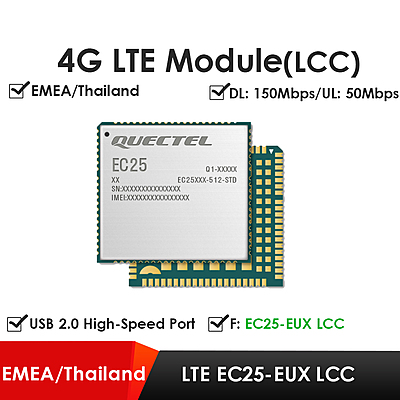

EC25-EUX LCC

• Region
  EMEA/Thailand
• LTE-FDD
  B1/B3/B7/B8/B20/B28A
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  /

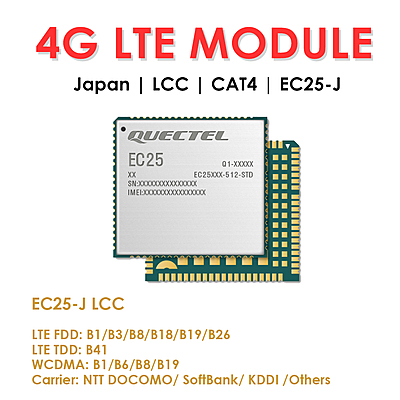

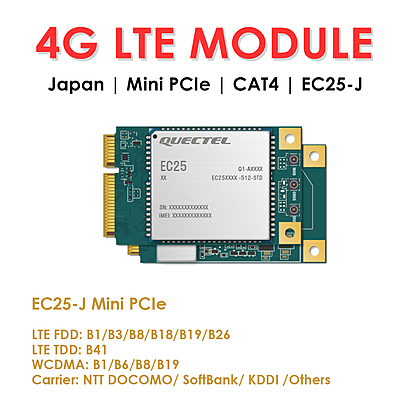

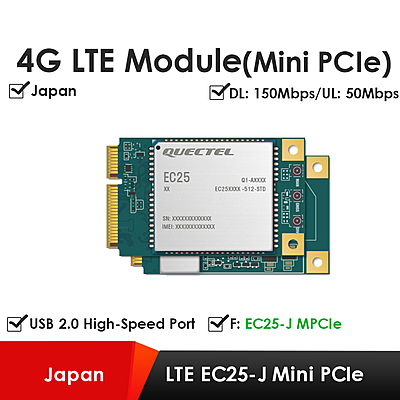

EC25-J LCC

• Region
  Japan
• LTE-FDD
  B1/B3/B8/B18/B19/B26
• LTE-TDD
  B41
• WCDMA
  B1/B6/B8/B19
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Japan: NTT DOCOMO/SoftBank/KDDI

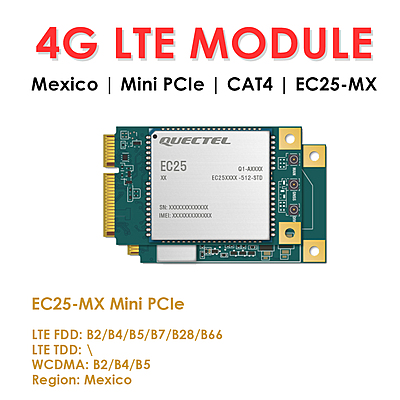

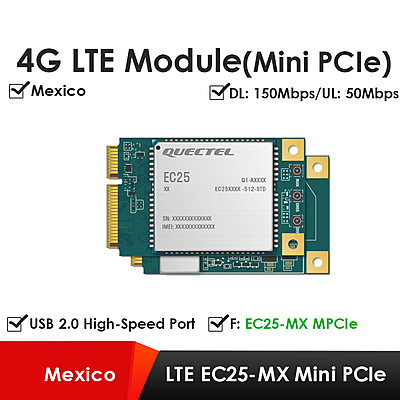

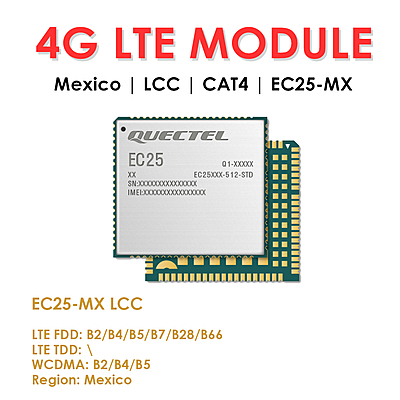

EC25-MX LCC

• Region
  Mexico
• LTE-FDD
  /
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  /
• Carrier
  /

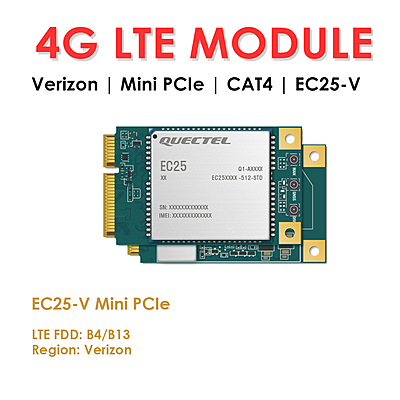

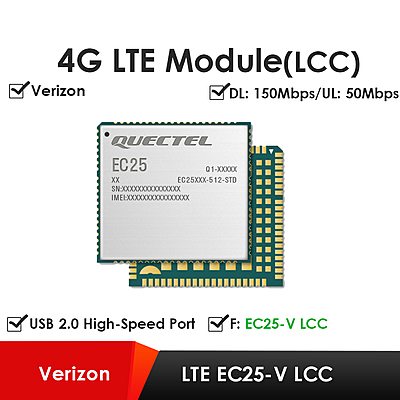

EC25-V LCC

• Region
  America Verizon
• LTE-FDD
  B4/B13
• LTE-TDD
  /
• WCDMA
  /
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon
