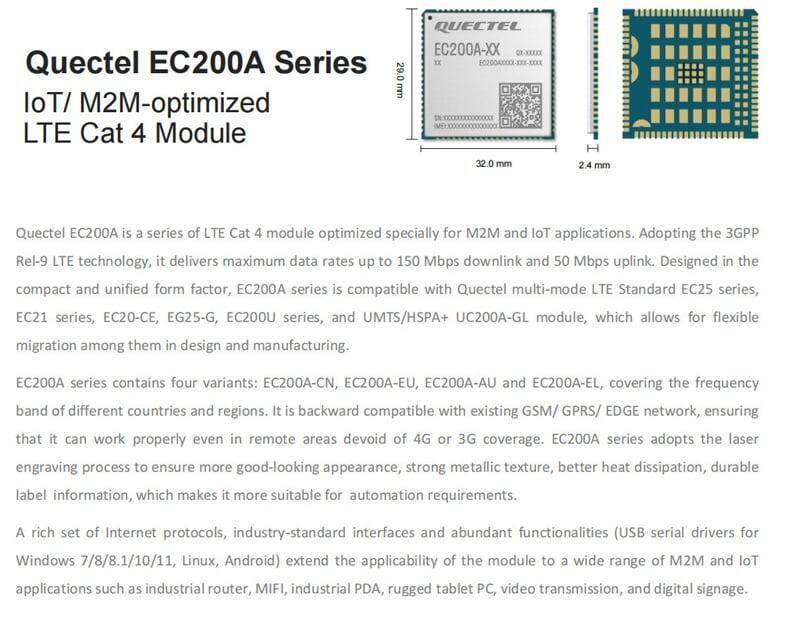

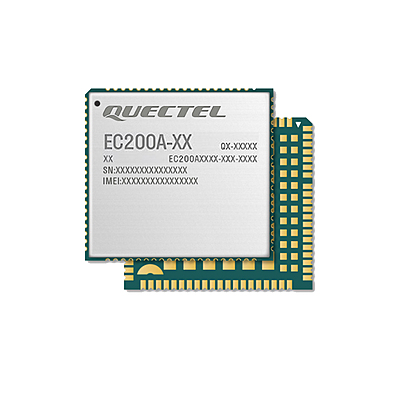

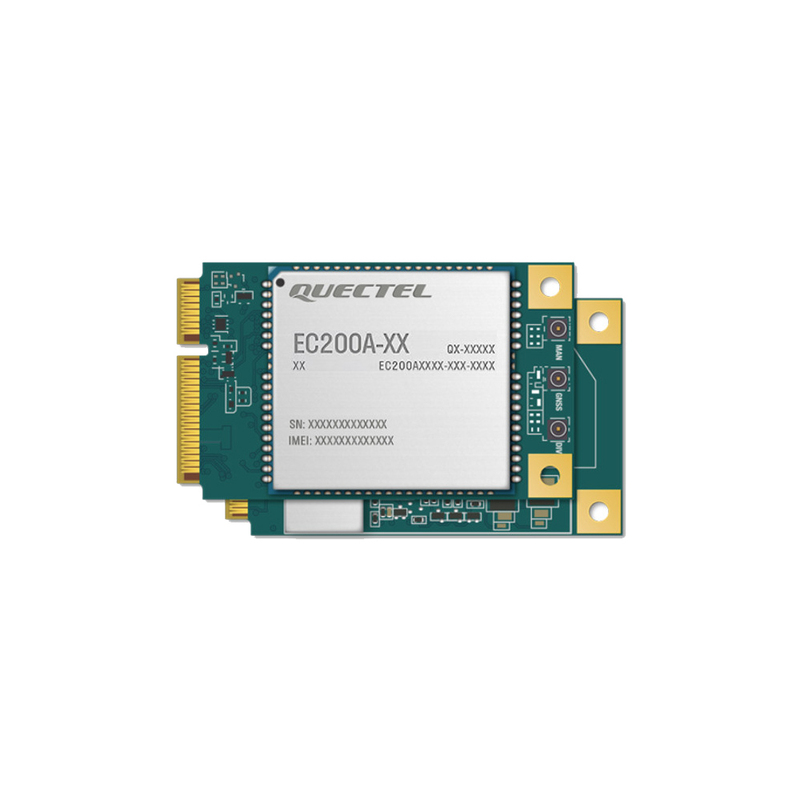

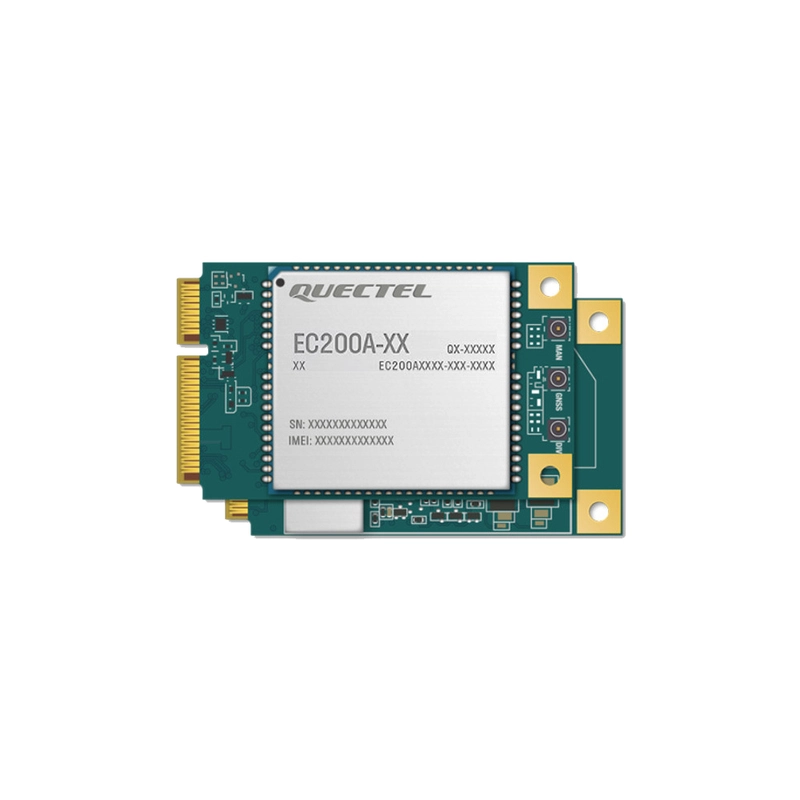

Quectel EC200A Series 4G LTE Cat 4 Modules | Mini PCIe & LCC | Industrial IoT/M2M Cellular Modems

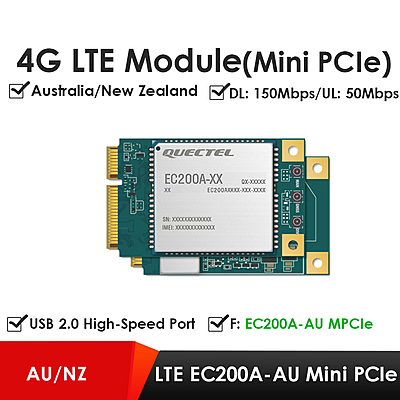

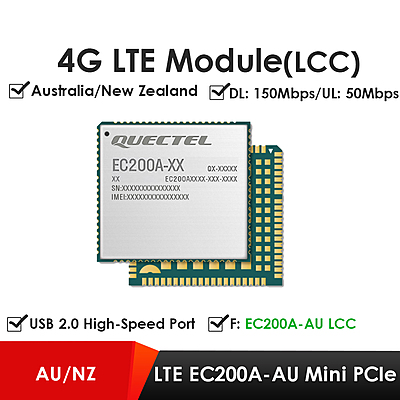

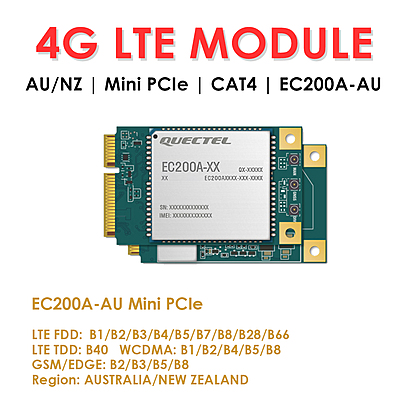

EC200A-AU

• Region
  Australia, New Zealand, Latin America
• LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B28/B66
• LTE-TDD
  B40
• WCDMA
  B1/B2/B4/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  /
• Carrier
  /

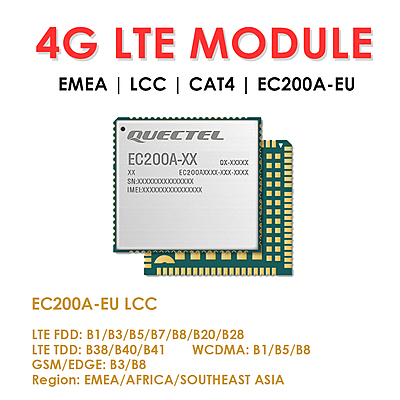

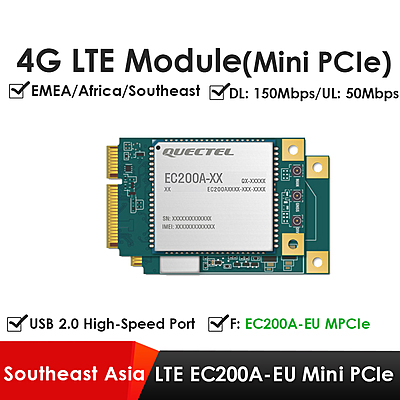

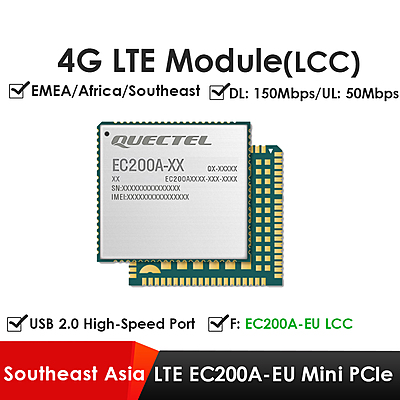

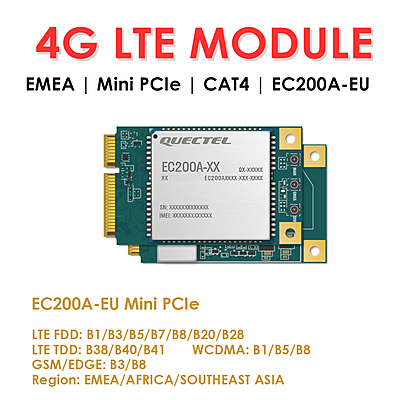

EC200A-EU

• Region
  EMEA, Southeast Asia
• LTE-FDD
  B1/B3/B5/B7/B8/B20/B28
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B5/B8
• GSM/EDGE
  B3/B8
• GNSS
  /
• Carrier
  /

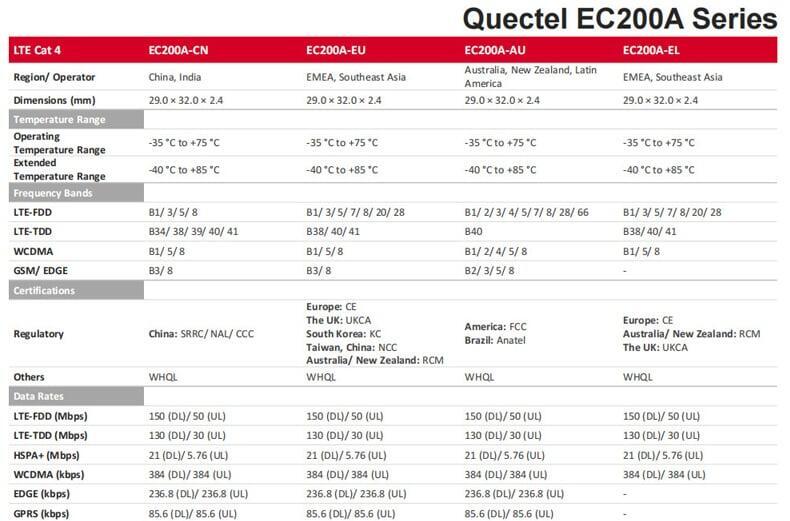

LTE Cat 4

• Dimensions(mm)
  29.0 × 32.0 × 2.4 (EC200A); 30.0 × 51.0 × 4.9 (EC200A Mini PCIe);
• Weight
  4.3 (EC200A); 9.7 (EC200A Mini PCIe);

Temperature Ranges

• Operating temperature
  -35°C ~ +75°C
• Extended temperature
  -40°C ~ +85°C (EC200A); -40°C ~ +80°C (EC200A Mini PCIe)

Electrical features

• Supply voltage range
  3.4 V ~ 4.5 V, typ. 3.8 V (EC200A); 3.0 V ~ 3.6 V, typ. 3.3 V (EC200A Mini PCIe)
• Power consumption
  11 μA @Power off mode/1.1 mA @LTE sleep mode (PF=256), Typ/18 mA @Idle mode (EC200A); 19 μA @Power off mode, Typ/27.6 mA @LTE sleep mode (EC200A Mini PCIe);
• Certifications
  Regulatory Certification: CCC/SRRC/NAL/CE/UKCA/RCM/KC/NCC/FCC/Anatal

Data transmission (Max. )

• LTE data rates (Mbps)
  LTE-FDD: 150 (DL)/50 (UL); LTE-TDD: 130 (DL)/30 (UL)
• DC-HSPA+ data rates (Mbps)
  21 (DL)/5.76 (UL)
• WCDMA data rates (Kbps)
  384 (DL)/384 (UL)
• EDGE data rates (Kbps)
  236.8 (DL)/236.8 (UL)
• GPRS data rates (Kbps)
  85.6 (DL)/85.6 (UL)
• SMS
  ●
• CSD
  ●
• Protocols
  TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HTTPS/FTPS/SSL/ FILE/MQTT/MMS/SMTP/SMTPS

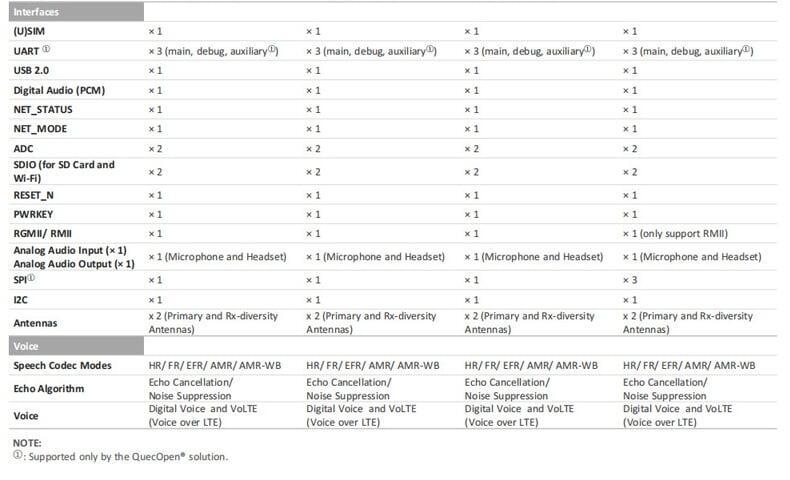

Interfaces

• (U)SIM
  ×1
• UART
  ×2 (EC200A); ×1 (EC200A Mini PCIe)
• USB
  ×1
• l2C
  ×1
• Audio digital (PCM)
  ×1
• SDIO
  ×2
• ADC
  ×2, 12bits(EC200A)
• Antenna
  ×1 Main, ×1 Rx-diversity (optional), ×1 GNSS (optional)

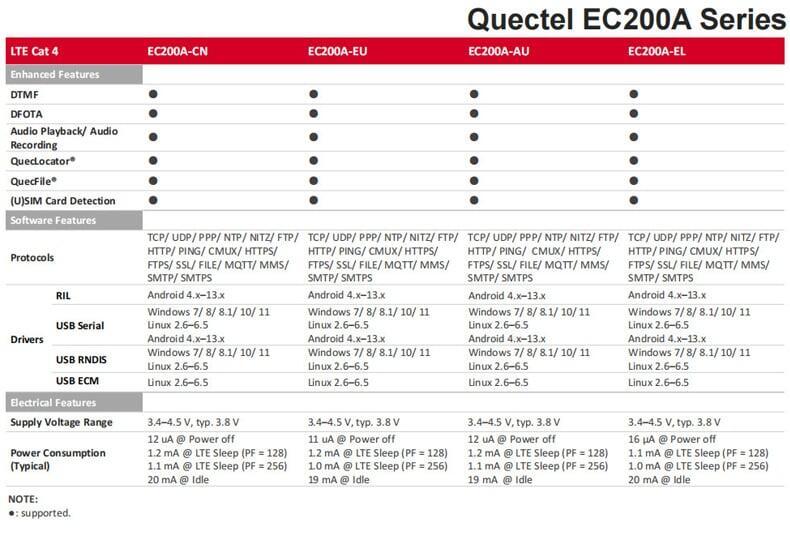

Enhanced features

• GNSS
  Optional
• Wi-Fi scan
  /
• BlueTooth
  /
• Digital audio
  ●
• VoLTE
  ●
• DTMF
  ●
• DFOTA
  ●
• Audio playback/Audio recording
  ●
• QuecFile
  ●
• USB serial driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7, Android 4.x~13.x
• GNSS driver
  Android 4.x~13.x
• RIL driver
  Android 4.x~13.x
• RNDIS driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7
• ECM driver
  Linux 2.6~6.7
• (U)SIM card detection
  ●
• Firmware update
  Via USB/DFOTA
