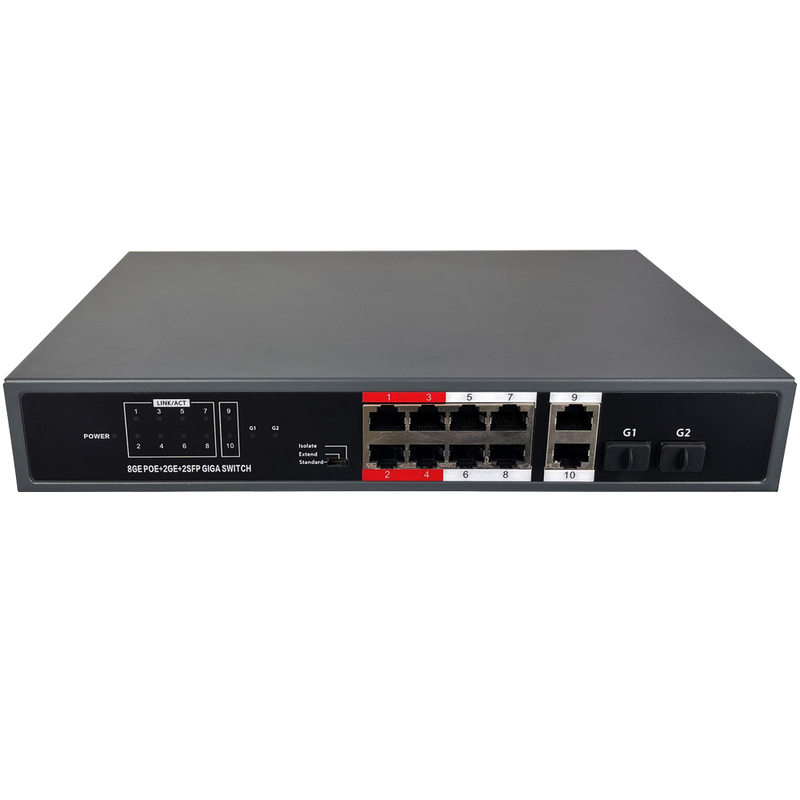

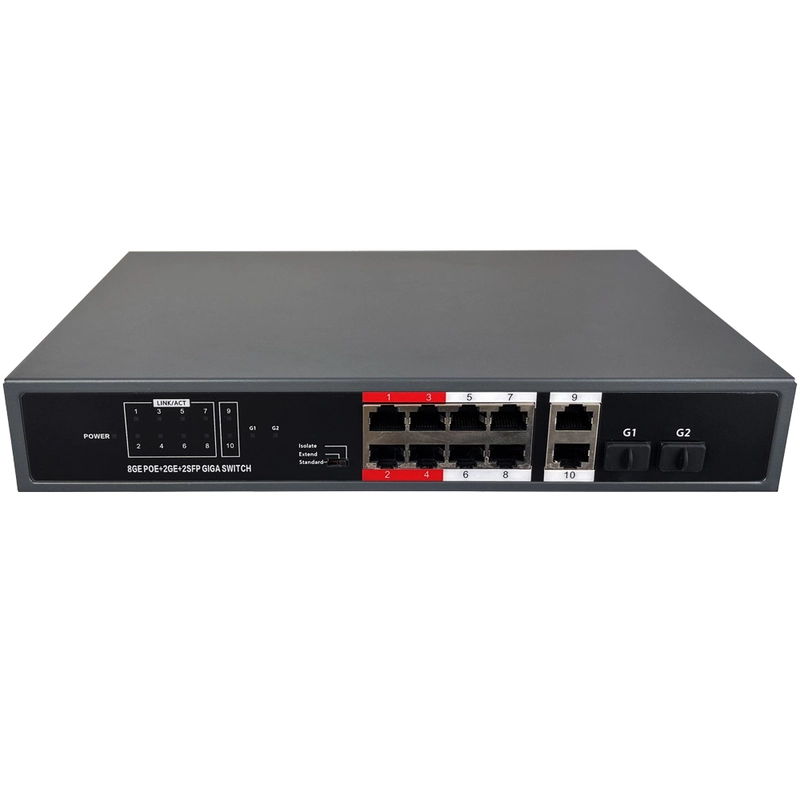

8-Port Gigabit PoE+ Switch with 2 SFP Slots | 150W Budget | 30W per Port | DIN Rail Mount | Non-Managed

Product Overview

• Product Type
  10x Non-Managed Gigabit POE Fiber Switch
• Product Model
  ON-PFS-10G2F

Technology

• Standards
  IEEE 802.3 10Tx Ethernet; IEEE 802.3u 100Tx Fast Ethernet; IEEE 802.3ab 1000Tx Gigabit Ethernet; IEEE 802.3af/at Power over Ethernet; IEEE 802.3z 1000BASE-X Gigabit Ethernet
• Processing Type
  Store and Forward
• Flow Control
  IEEE 802.3x back pressure flow control

Switch Properties

• Switch Architecture
  Back-Plane (Switching Fabric): 24.0Gbps
• Packet Forwarding Rate
  17.856 Mpps
• Packet Buffer
  4.1Mbits
• Jumbo Frame
  9.2 Kbytes
• MAC Table Size
  8K

Port Interface

• Ethernet Port
  10*10/100/1000Tx (PSE: 30W/Port), Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
• SFP Port
  2x SFP slots

Mechanical Characteristics

• Housing Metal
  IP30 protection
• Unit Weight
  1.5kg (3.31 lbs, 52.91 oz)
• Shipping Weight
  1.9kg (4.19 lbs, 67.02 oz)
• Unit Dimensions
  270 × 181 × 44 mm (10.63 × 7.13 × 1.73 in)
• Package Dimensions
  340 × 300 × 90 mm (13.39 × 11.81 × 3.54 in)
• Mounting Options
  DIN-rail mounting(Excluded), Wall mounting(Excluded)

Power Requirement

• Rated Input Voltage
  100Vac~240Vac/47Hz~63Hz
• Input Voltage Range
  90Vac~264Vac
• Fuse Current
  5A/250V
• System Power Consumption(Idle)
  Less than 3W(Idle)
• System Power Consumption(Full Load)
  Less than 150W(Full Load)
• Power Pinout
  Pairs 1/2/4/5 (+), Pairs 3/6/7/8 (-)
• Max PoE Power Budget
  135W
• PoE Power Output
  30W max. per PoE port

Environmental Specifications

• Operating Temperature
  -10°C to 50°C (14°F to 122°F)
• Storage Temperature
  -10°C to 50°C (14°F to 122°F)
• Operating Humidity
  10% to 95% RH (non-condensing)

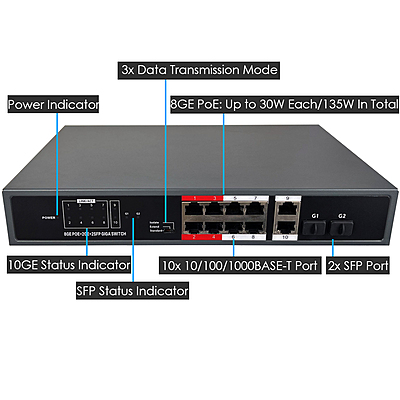

Power Status Indicator

• Illuminated Green (Steady)
  Indicates that the switch has passed all internal power-on self-tests and is functioning correctly.
• Off
  Indicates a lack of power input or a critical fault in the power supply unit.

SFP Port Status Indicator Light

• Steady Green Illumination
  Indicates that the link is successfully established at the physical layer.
• Blinking Green
  Indicates that the port is actively processing (receiving or transmitting) data packets.
• No Illumination
  Indicates that no link is detected. The SFP module may be absent, faulty, or the cable may be disconnected.

Ethernet Port Status Indicator (10/100/1000BASE-T)

• Steady Green
  Indicates a successful physical layer connection (Link Up) at the negotiated speed (10, 100, or 1000 Mbps).
• Flashing Green
  Indicates active data transmission or reception on this port.
• Off
  Indicates that no link is established. The cable may be unplugged, the connected device may be off, or there may be a fault.
