- 5MP UltraHD Image Sensor: Provides sharp and clear visuals

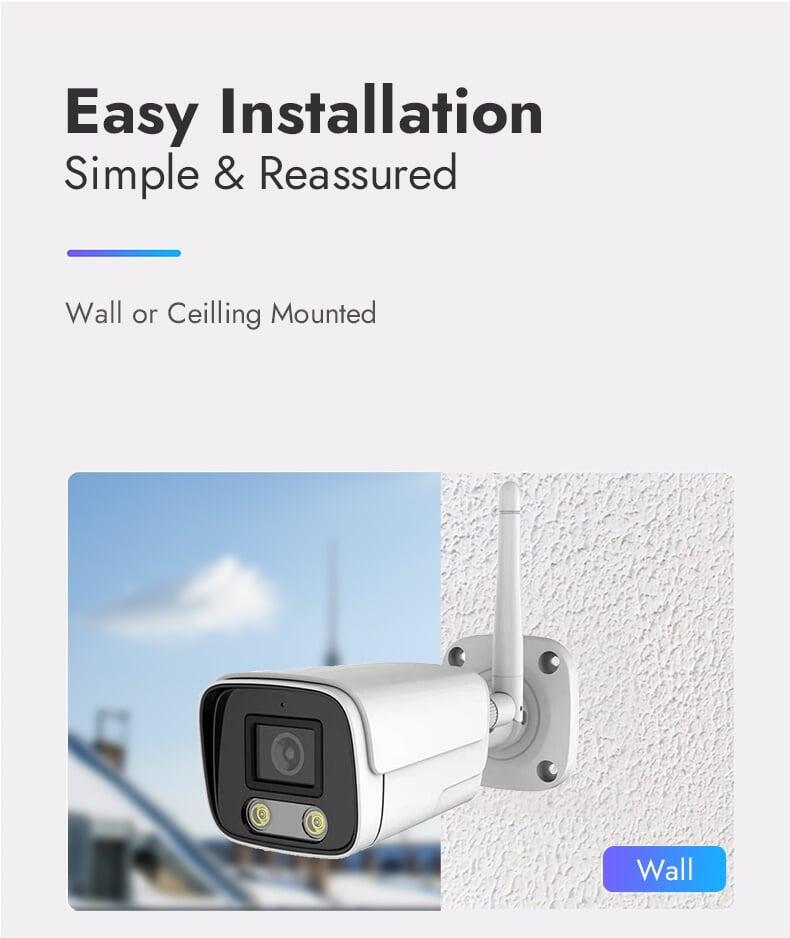

- Wireless WiFi Connectivity: Easy to install with no cabling
- Dual Light Illumination: Infrared + white light for all-day use
- RTMP Live Broadcast: Stream directly to YouTube or Facebook
- ONVIF & Hikvision-Compatible: Seamless integration with NVRs

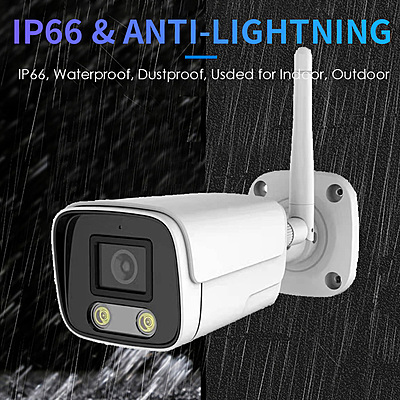

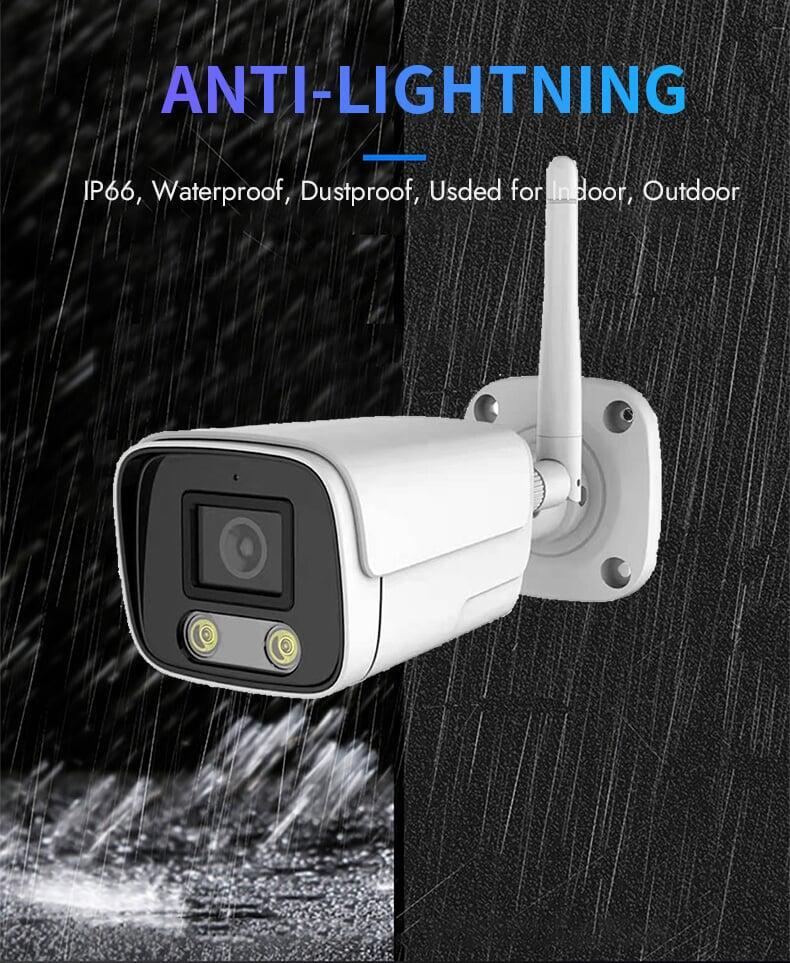

- Weatherproof IP66 Design: Engineered for outdoor conditions
LED
Lens
Plug Type
$86.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

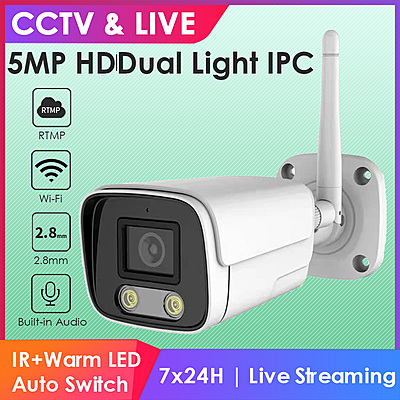

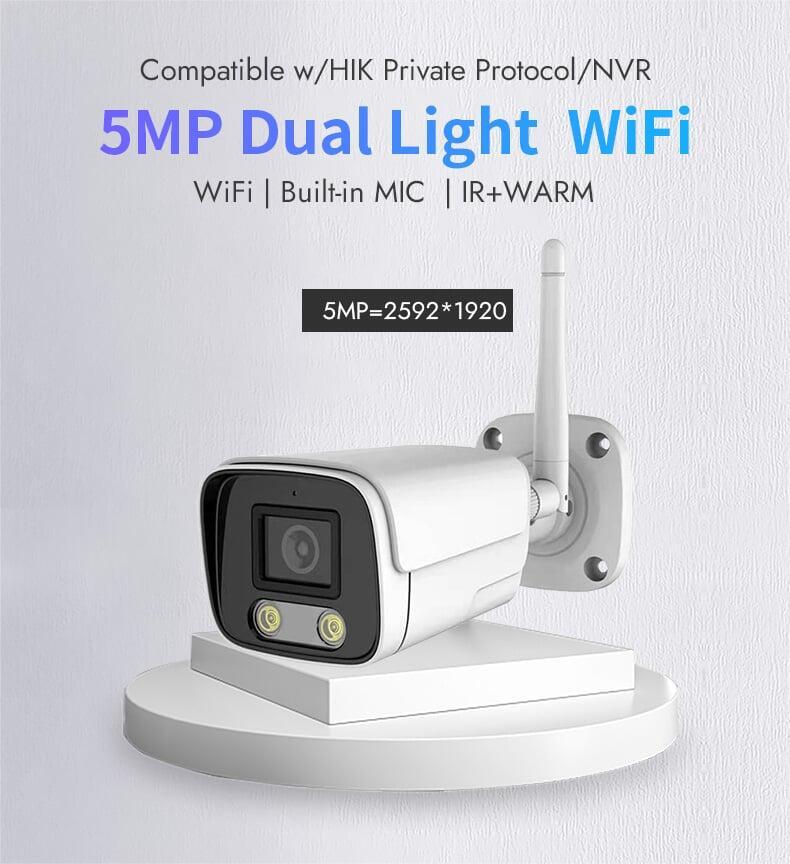

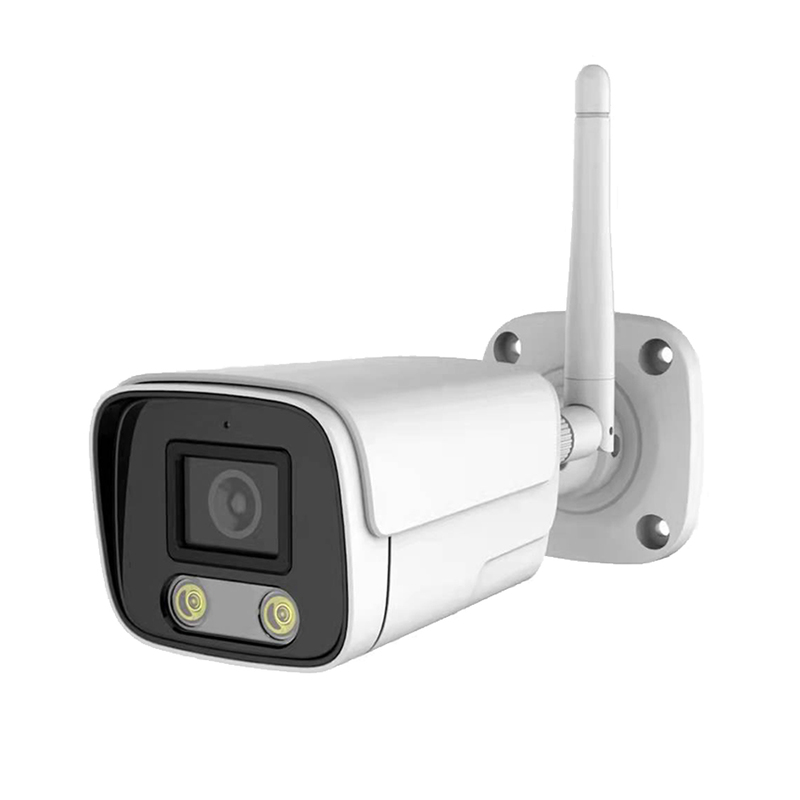

5MP Wireless Bullet IP Camera with Dual Light

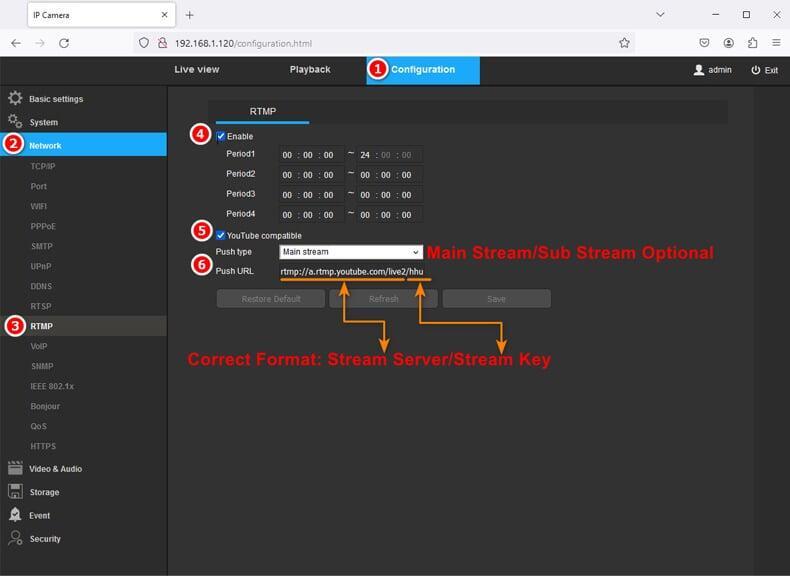

RTMP IP Camera
RTMP camera support pushing live video streams to platforms like YouTube and Facebook. To do this, you typically need to enable AAC audio encoding and paste the RTMP URL into the appropriate field (Main Stream or Sub Stream) in the camera settings.

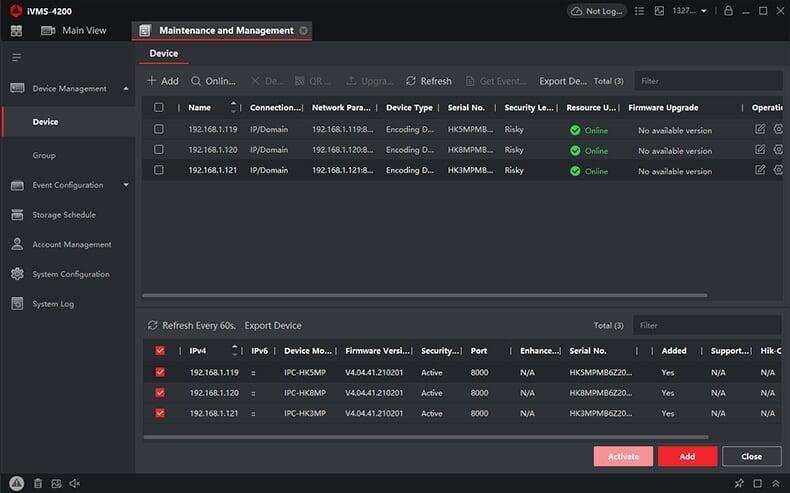

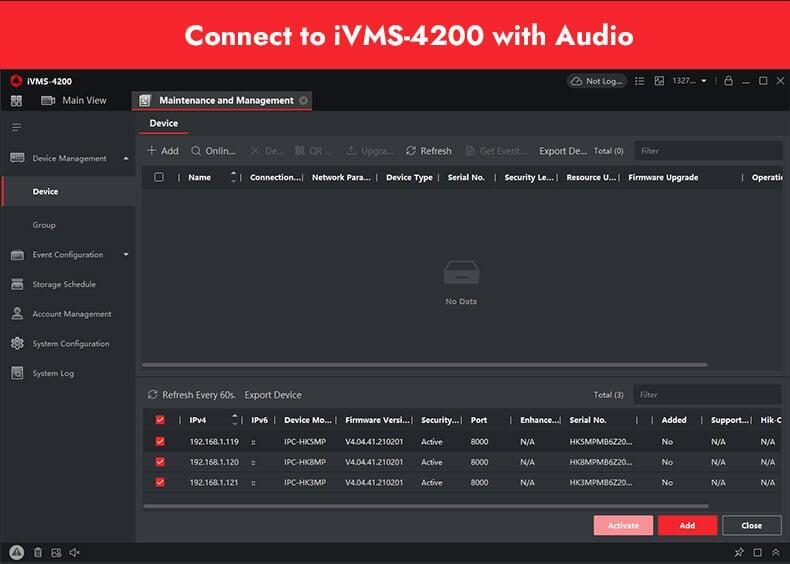

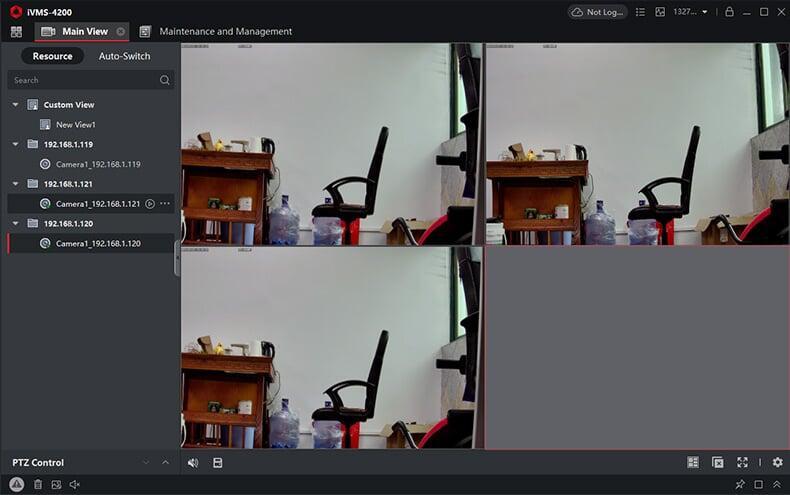

Connect to iVMS-4200
This video camera is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within iVMS-4200, offering a user-friendly experience for surveillance system operations.

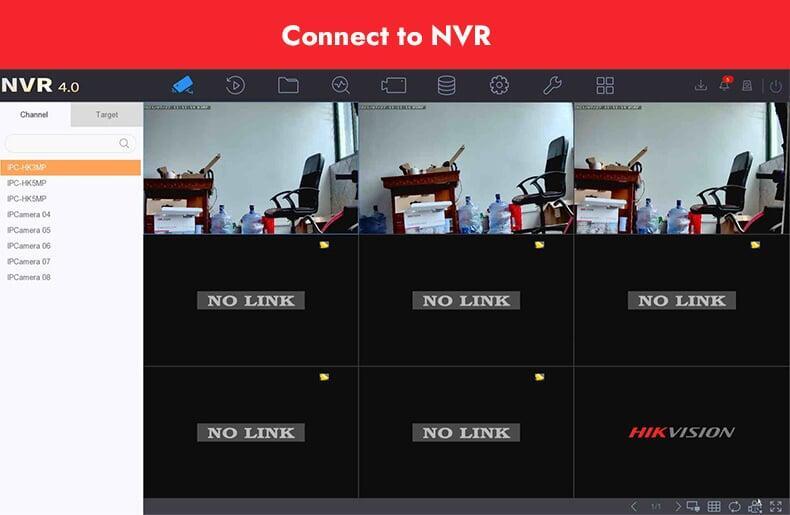

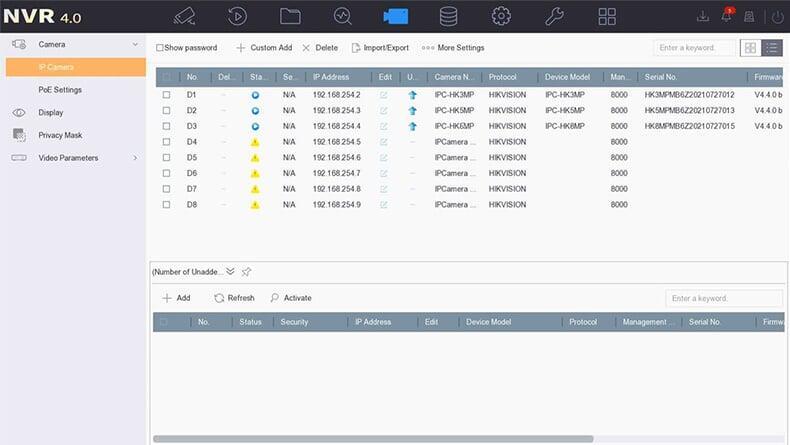

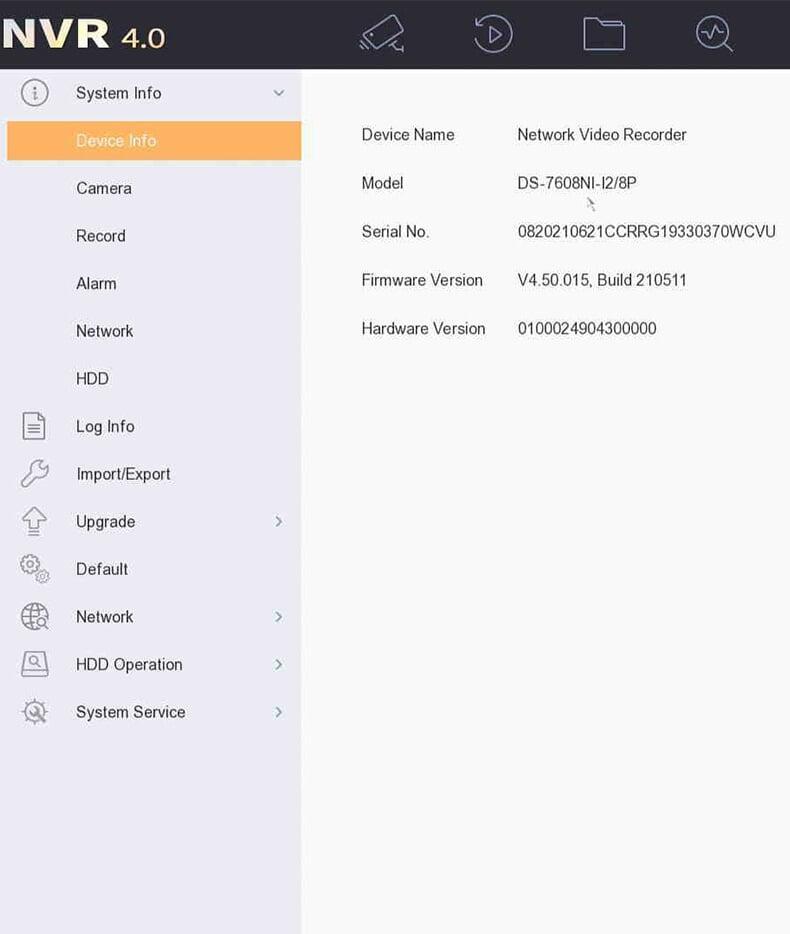

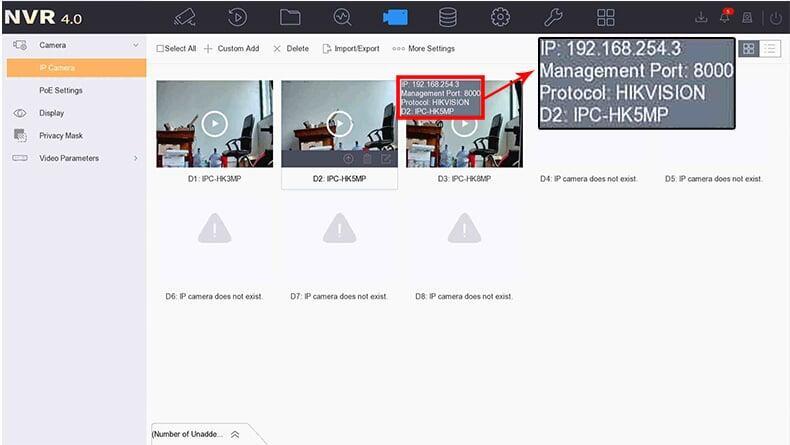

Connect to HIK NVR

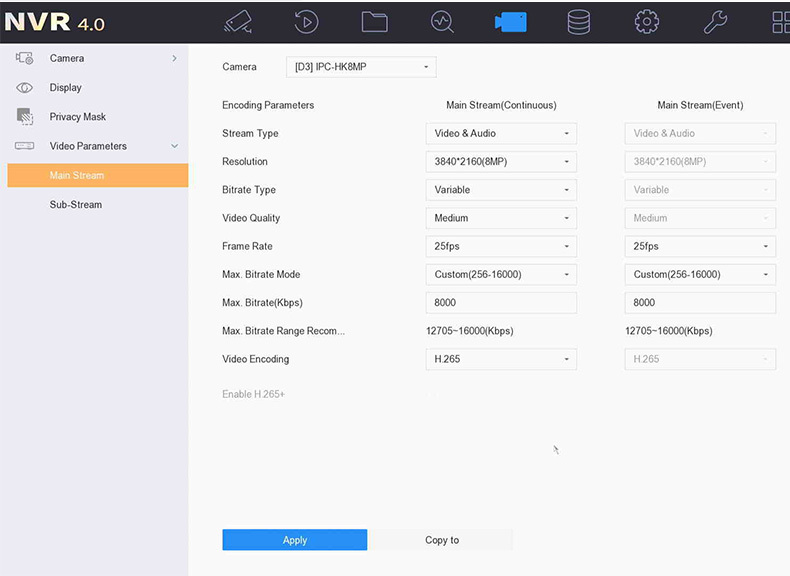

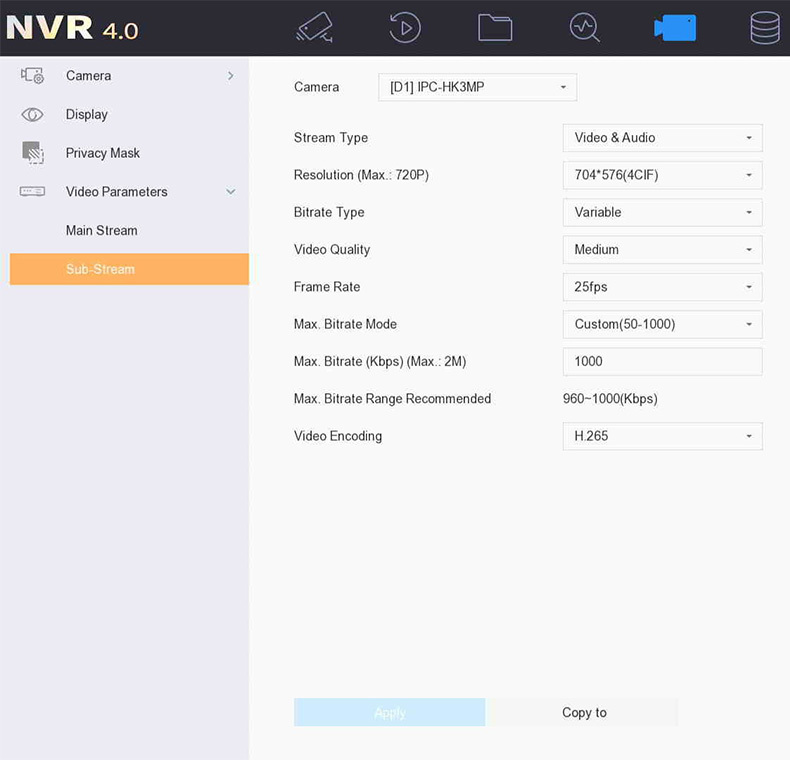

Successfully establish connectivity with your HIK NVR, employ the HIK protocol for seamless operation, and enable H.265 recording to enhance video compression and storage capabilities for your surveillance system.
Specifications
Specifications
Product Model
- Product ModelZSC5WSH16F
Camera
- Image Sensor1/2.8" Progressive Scan CMOS Sensor
- Effective Pixels2560x1920
- ModeIR+WARM LED: IR ON when no human is detected, Warm Light ON when human is detected, Automatically removable infrared-cut

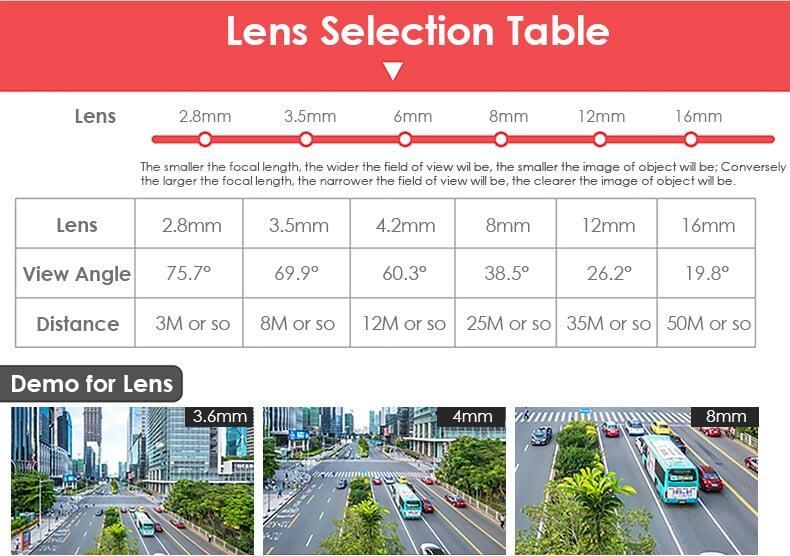

- Lens2.8mm/3.6mm/6mm Optional
- DNR3D Digital Noise Reduction
- WDRYes, 80dB
- Electric ShutterAdaptive, 1/2s-1/1,000s
Video & Audio Encoding
- Video EncodingH.264/AVC, H.265/HEVC
- Audio EncodingAAC/G.711U/G.711A
- Audio Sampling RateUp to 16K
- Bit RateCBR & VBR; 256kbps~8Mbps [Configurable]
- Frame Rate50Hz: 1-25fps; 60Hz: 1-30fps [Configurable]
- Max. Framerate1920P@30FPS
- Main Stream2592x1920, 2592x1440, 2304x1296, 1920x1080, 1280x960, 1280x720
- Sub Stream704x576, 640x480, 640x360, 352x288
Video Stream
- Concurrent Stream Count6x RTSP Streams
- Stream Types SupportedLive Streaming
- RTSP (Main Stream)rtsp://192.168.1.120:554/live/1_0
- RTSP (Sub Stream)rtsp://192.168.1.120:554/live/1_1
Protocols & Networking
- Networking ProtocolsIPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
- Streaming ProtocolsCGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
- ONVIF ProtocolCompatible
- HK/DH ProtocolCompatible
- Security FeaturesRTSP Authentication
Interface
- Network Interface1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Audio InterfaceBuilt-in Audio BY DEFAULT or 3.5mm TRS Audio Line-in Port
- Hardware ResetBuilt-in Hardware Reset Button In the Pigtail Cable
General
- Default CredentialsUser: admin; Password: 12345
- Default Static IP192.168.1.120
- Power SupplyDC12 1A or Higher
- Power Consumption≤5w
- Operating Temperature-30°C~60°C (-22°F~140°F)
- Operating Humidity≤95%
- Unit Dimension18.5cm x 7.7cm x 7cm[7.28in x 3.03in x 2.76in]
- Package Dimension19.5cm x 10.5cm x 10cm[7.68in x 4.13in x 3.94in]
- Net Weight397g [0.88lb, 14.00oz]
- Gross Weight480g [1.06lb, 16.93oz]
