M.2 (NGFF) to USB 3.0 Interface: Easily connect 5G modules to a USB port for high-speed data access.
Drawer-Style SIM Card Slot: Secure, user-friendly SIM access for mobile connectivity.

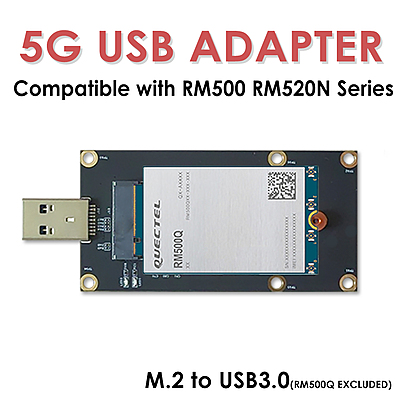

Wide Module Compatibility: Compatible with Quectel RM500Q, RM520N, Fibocom FM160, and other 5G M.2 modules.
Redeem GIXHLTY68CF1 to save 20%!
$26.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

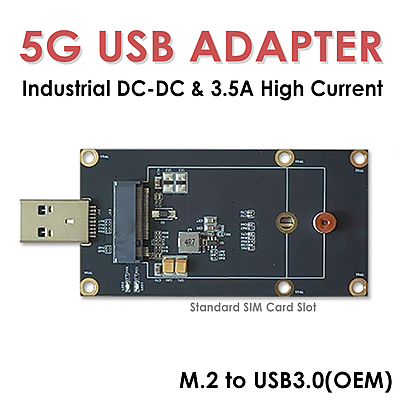

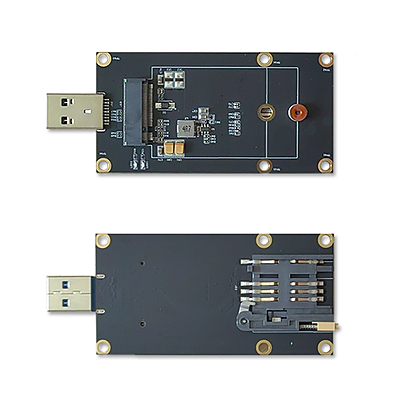

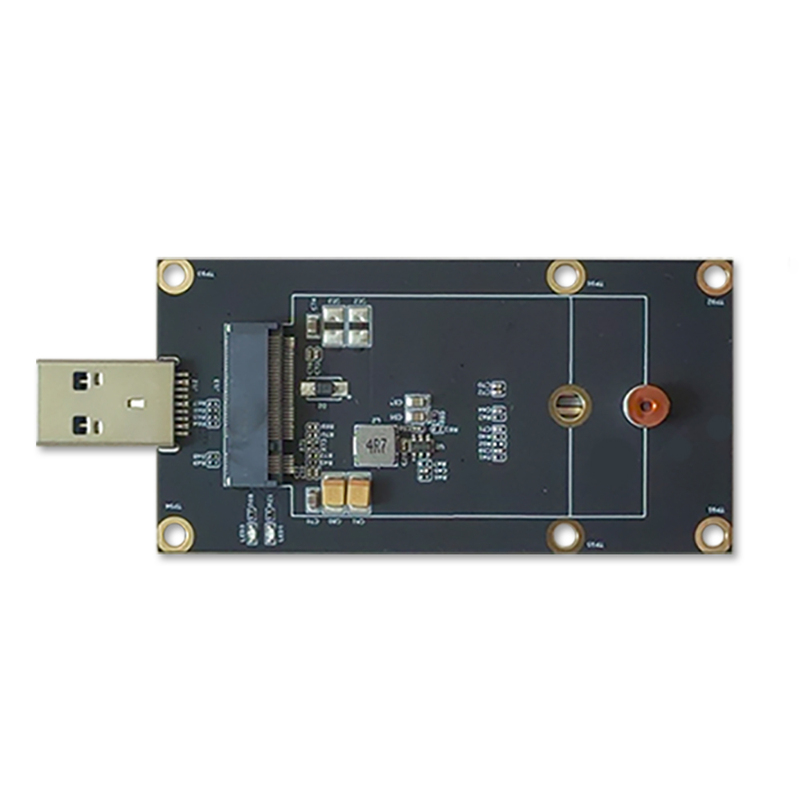

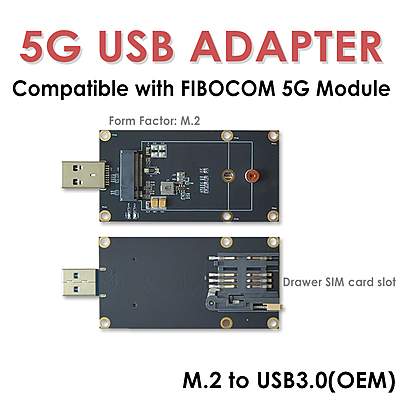

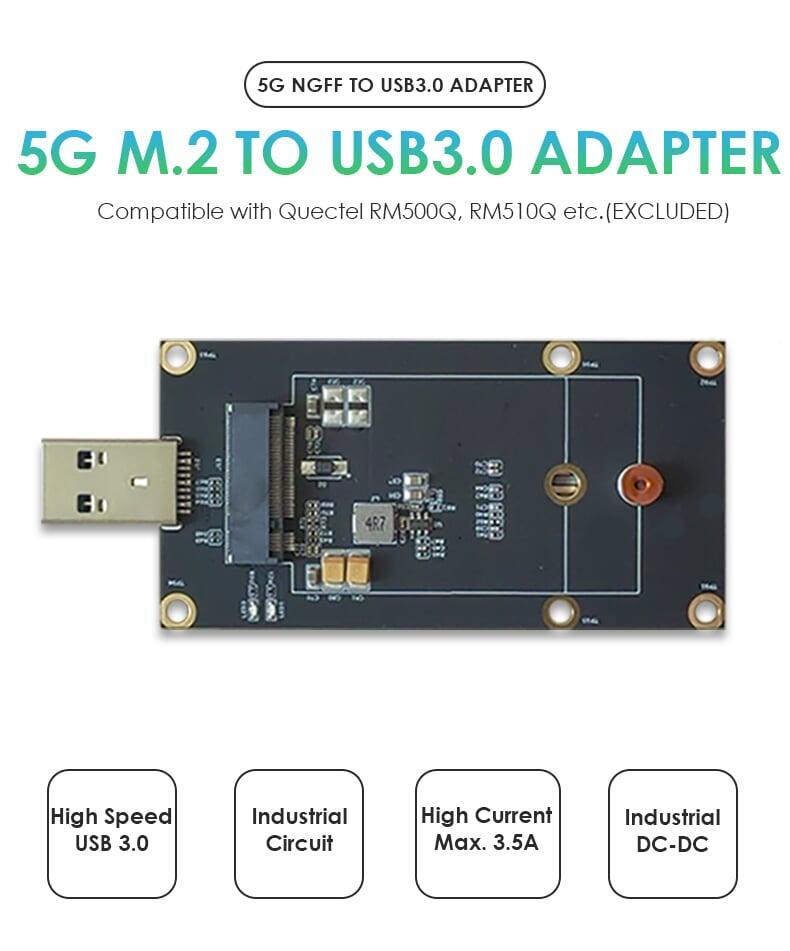

5G LTE USB Adapter M.2 (NGFF) to USB3.0 Dongle with Drawer SIM Card Slot
Multiple OS Supported

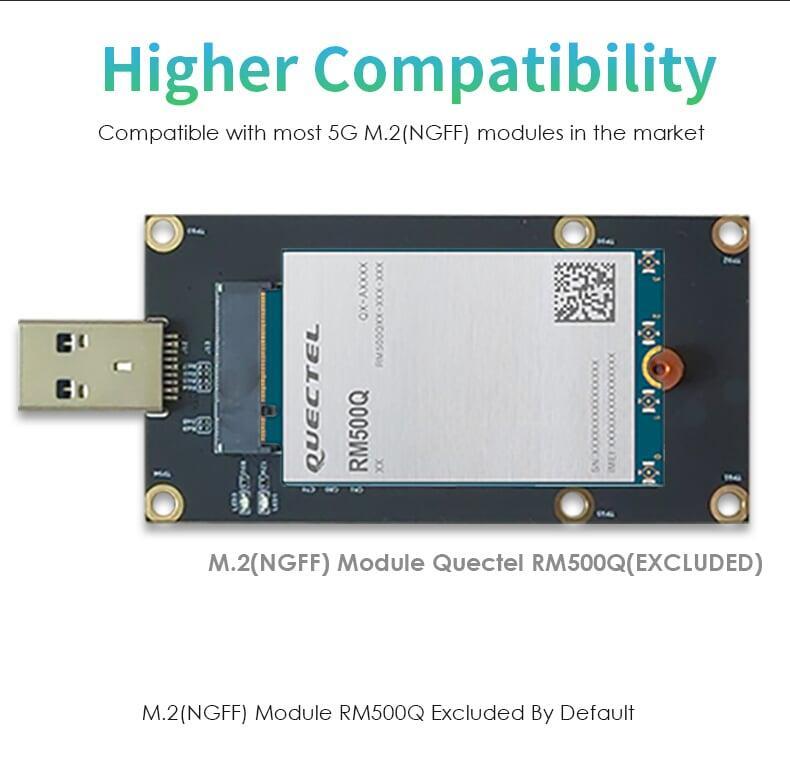

Higher Compatibility

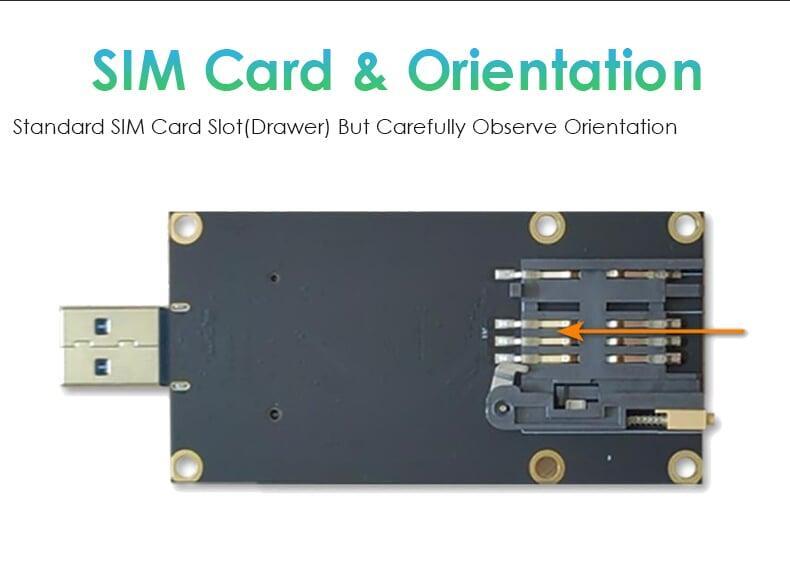

SIM Card & Orientation

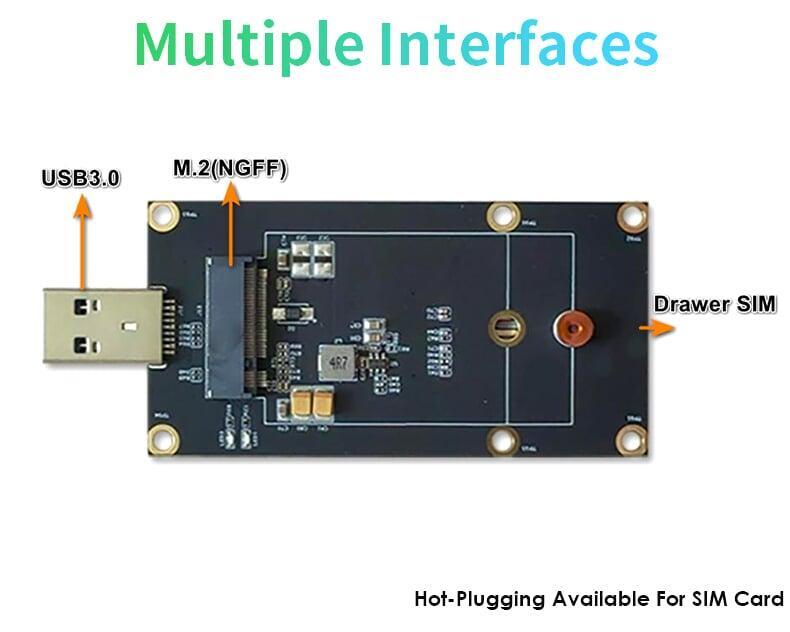

Multiple Interface
Rapid Deployment of IOT

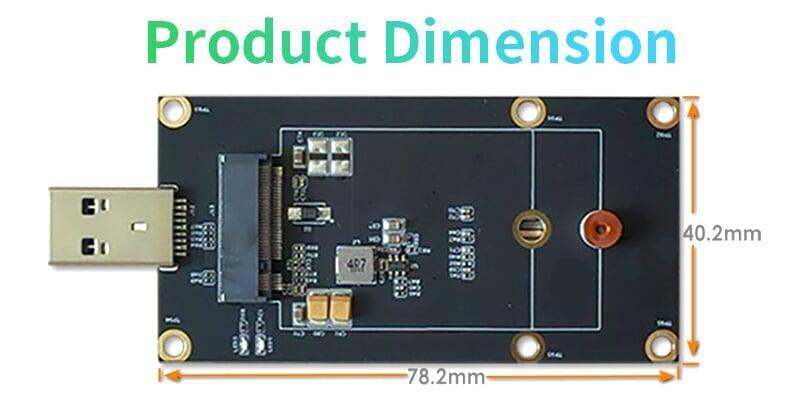

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 5G M.2(NGFF) to USB3.0 Adapter
- Part Number5GM2S
- LTE ModuleCompatible with M.2 Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB3.0, USB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module
- SIM SlotStandard SIM Slot, Drawer Type, Hot-Plugging Unavailable
- Working Voltage3.7V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]

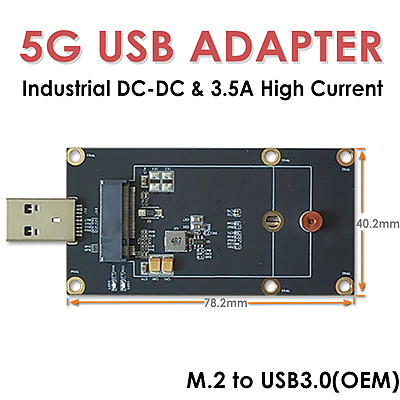

- Unit Dimension78.2x40.2x0.5mm[3.08x1.58x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
