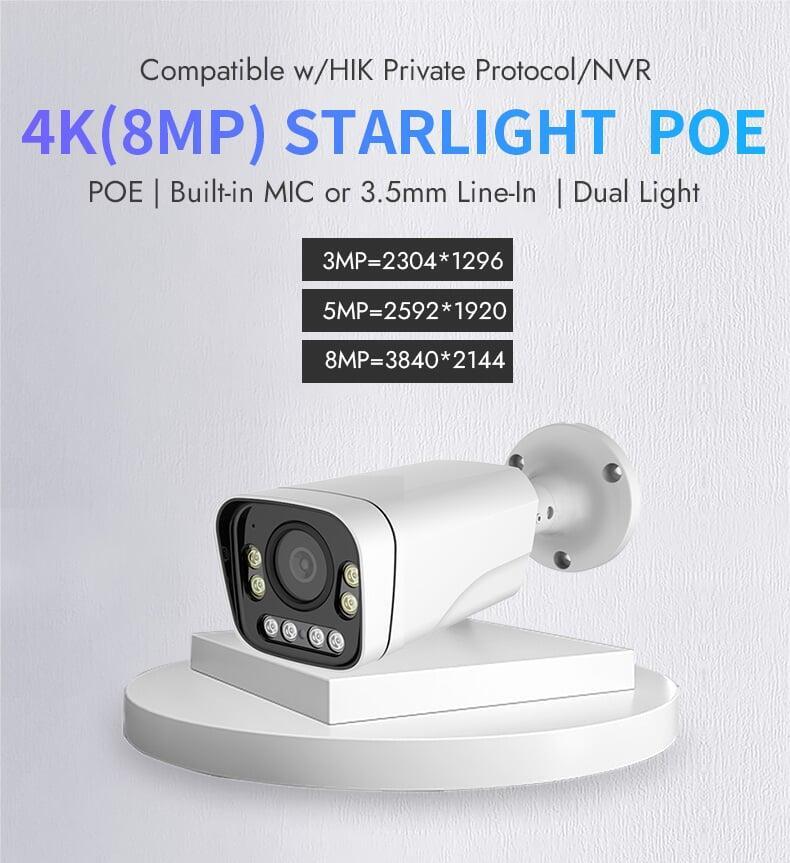

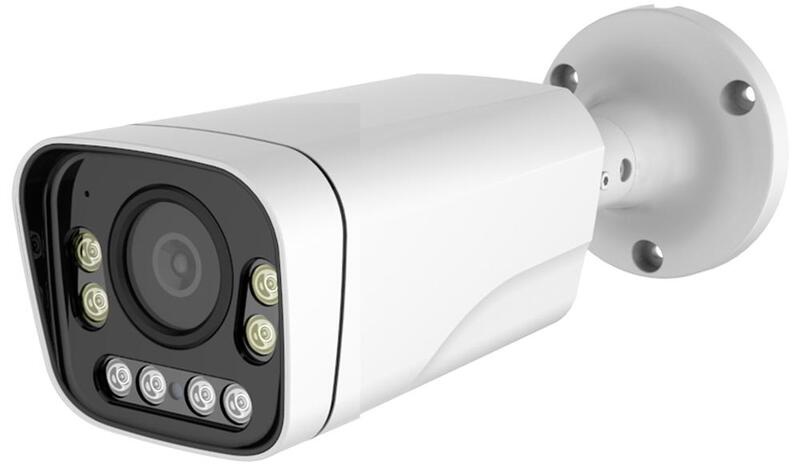

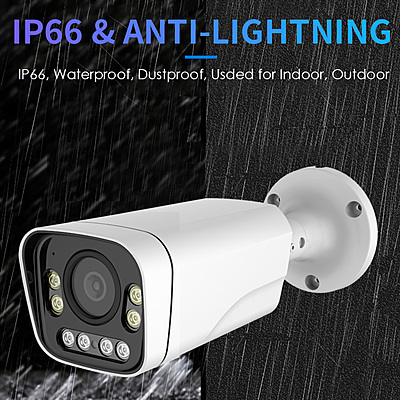

    4K Optical Zoom IP Camera, 5X Varifocal 8MP Outdoor POE Camera Bullet, 2.7mm~13.5mm, IP66, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.

    Save 7%
    $12957
    $13957
    Buy 1 get 20% OFF
    Buy 1 get 20% OFF
    Shop more
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    LED
    IR+WARM LED
    IR LED
    Lens
    2.7-13.5mm
    Plug Type
    EU Plug
    US Plug
    AU Plug
    UK Plug

    Checkout Security with

    AMAZON US   AMAZON CA   AMAZON UK   AMAZON DE   AMAZON FR   AMAZON IT   AMAZON ES   AMAZON NL   AMAZON SE   AMAZON PL   AMAZON TR   AMAZON JP   AMAZON SA

    Overview

    • Multiple Broadcasting - Suitable for pushing video stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses. Audio might not be so good when streaming live video to YouTube.
    • Multiple Applications - Applicable not only for basic CCTV surveillance, but also for live broadcasting like video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. Full color at night with warm light.
    • Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray, Dyndns), HTTP, RTSP, RTMP, VoIP, SNMP, IEEE802.1X, ONVIF, Multicast and other protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
    • Multiple Languages - English, Traditional Chinese, Simplified Chinese, Russian, Germany, Japanese are available(It might vary from different firmware versions). It can automatically match the system language of user's PC which is much easier for you.
    • Cross Browsers - Real cross browers are supported like IE, Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly via brower, set audio as AAC, set the bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.

    Specification

    Basics Default User: admin; Password: 12345; IP: 192.168.120(DHCP);
    Model ZSD8PNH16A(Dual Light) | ZSD8PSH16A (Smart IR)
    Sensor 1/2.8" Progressive Scan CMOS Sensor
    Mode IR ON when no human is detected, Warm Light ON when human is detected, Automatically removable infrared-cut filter

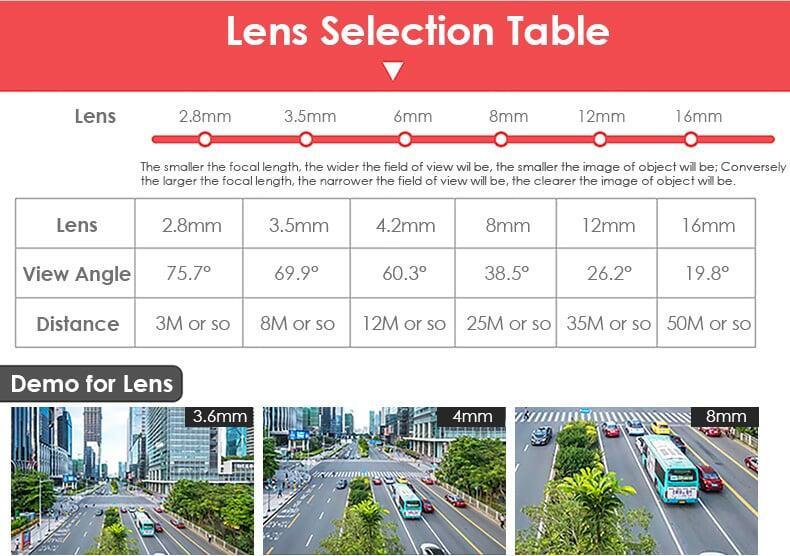

    Lens 2.7-13.5mm (Auto Focus)
    WDR 80dB
    Electric Shutter Adaptive, 1/2s-1/1,000s
    Video & Audio Encoding Video Encoding H.265/H.264 Video Encoding
    Audio Encoding AAC/G.711U/G.711A Audio Encoding; Audio Sampling up to 16K
    Bit Rate CBR & VBR; 256kbps~8Mbps [Adjustable]
    Frame Rate 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]
    Main Sream 3840*2160, 3072*2048, 2592*1944, 2592*1520, 2304*1296, 1920*1080, 1280*720
    Sub Stream 704*576, 640*360, 640*480, 352*288
    RTSP(Main Stream) rtsp://192.168.1.120:554/Iive/0
    RTSP(Sub Stream) rtsp://192.168.1.120:554/Iive/1
    Protocol Network Protocol IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
    Video Protocol CGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
    Wireless Protocol Not Available by Default
    Interfaces Network Interface 1ch RJ45 10M/100M Self Adaptive Ethernet Port
    Audio Interface Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port

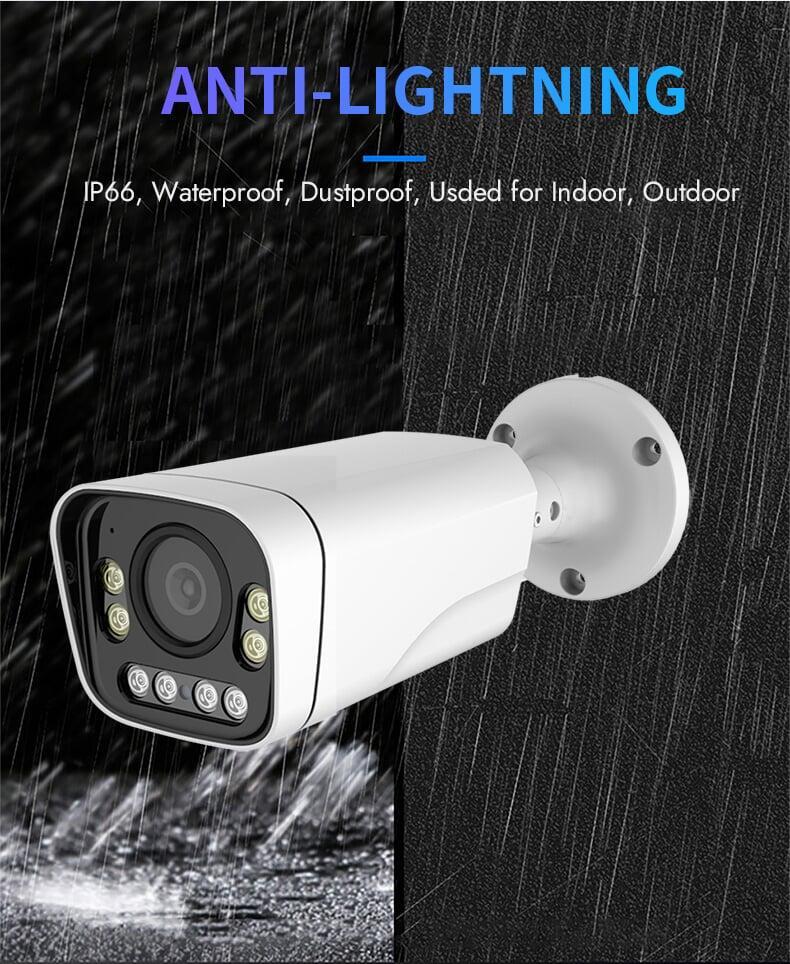

    Others Working Environment Temparature:-30°C~60°C (-22°F~140°F); Humidity: ≤95% (Non-Condensing)
    Power Input Powered by Standard PoE Switch or DC12V 1A or Higher (Not Included by Default)
    Power Consumption ≤5W
    Unit Dimension 20cm x 10cm x 8cm[7.87in x 3.94in x 3.15in]
    Package Dimension 23cm x 13cm x 13cm[9.06in x 5.12in x 5.12in]
    Net Weight 709g [1.56lb, 25.01oz]
    Gross Weight 1050g [2.31lb, 37.04oz]
    Package Contents
    • 1x 4K 8.0MP Dual Light or IR 5X Auto Focus PoE Waterproof Bullet Live Streaming IP Camera
    • 1x Easy-to-Install Bracket
    • 1x Matched Power Adapter DC12 2A
    • 1x Attached Accessories
    NOTE
    • Audio might not be so good when streaming live video to YouTube.

    Quick Start

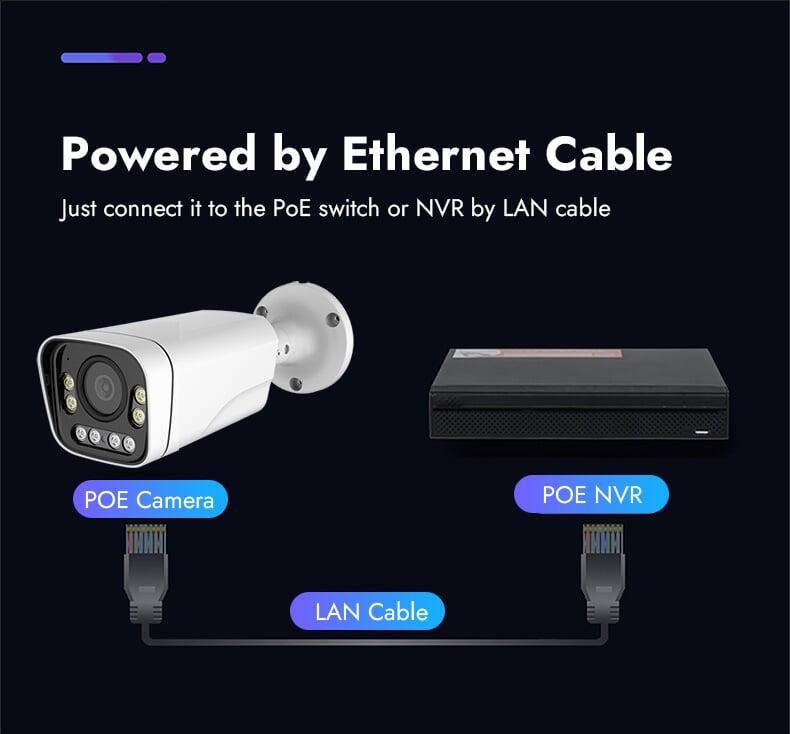

    Connection Diagram

    Power on IP Camera and connect it to router via ethernet cable.

    • Tips: At the very beginning, it's strongly recommended to follow this instructions to connect the camera, especially for network segment issues.

    Download & Install

    Download IPCManager

    Go to Technical Support->Select IP Camera->Download IPCManager->Select corresponding version to download

    Install IPCManager

    Follow below steps to install IPCManager:

    • Right click the application and run as administrator;
    • Select the corresponding language from the drop-down list (English, Polish, Russian, Japanese, German, Simplified Chinese, Traditional Chinese are available for Windows. Only English for MAC version.)
    • Click Next-->Next-->Install

    Download ActiveX

    Go to Technical Support->Select IP Camera->Download IPCManager->Select corresponding version to download

    Install ActiveX

    Install ActiveX after downloading with administrator and restart your PC.

    Configure IP

    Configure IP via IPCManager

    • Run IPCManager (If you already installed it)
    • Enter username & password (admin & 12345 by default)
    • Select the encoder you would like to set
    • Click checkbox of DHCP-->Modification-->Close-->Refresh

    • NOTE: please ensure the IP camera and your PC are on the same network segment if it’s connected to the same router. That’s why it’s recommended to use DHCP to obtain IP address to make it for sure.

    Access Encoder

    Access Encoder from a Browser

    • Start a browser like IE, Chrome, Firefox (Chrome Recommended);
    • Enter the IP address you configured above via IPCManager;
    • Enter username (admin) and password (12345 by default);

    • Click “Login” and the Preview page opens in your browser

    • Tips: Generally it's recommended to access the IP Camera from Chrome.

    Adjust Focus

    Adjust Focus(If Available)

    • 1 means Zoom Out: long press until you think it ok.
    • 2 means Zoom In: long press until you think it ok.
    • 3 means Reset: reset to default focus if you wrongly zoom in/out.

    • Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

    Configure Audio

    Configure Parameters of Audio

    • Go to Configuration-->Video & Audio-->Audio-->Audio
    • Click checkbox to “Enable audio”; Audio codec format set as “AAC”;
    • Sampling rate set as “16000” or higher;
    • Input volume set as “39” or so(Reference Value: users can log into GUI and set sampling rate as 24000 or higher if better voice quality is required because the default sampling rate here is 8000.)

    • Tips: Sampling Rate at most 16000 for 8MP IP Camera.

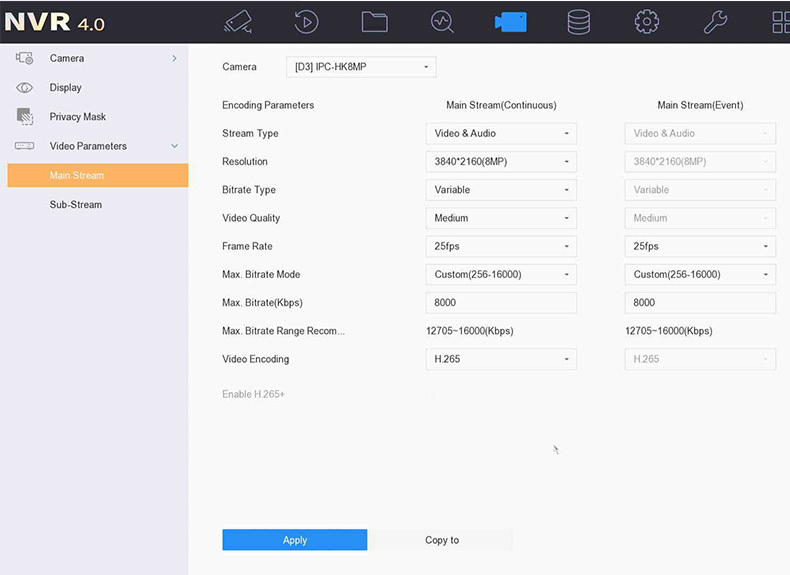

    Configure Video

    Configure Parameters of Video

    • Go to Configuration-->Video & Audio-->Video-->Video
    • Bit rate set as 500(Reference Value: users can set higher bit rate to remove mosaic but it should be matched to your network bandwidth because of uplink bandwidth used.)
    • Key interval set as 10(Reference Value: users can set lower key interval to get better image quality.)

    • Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

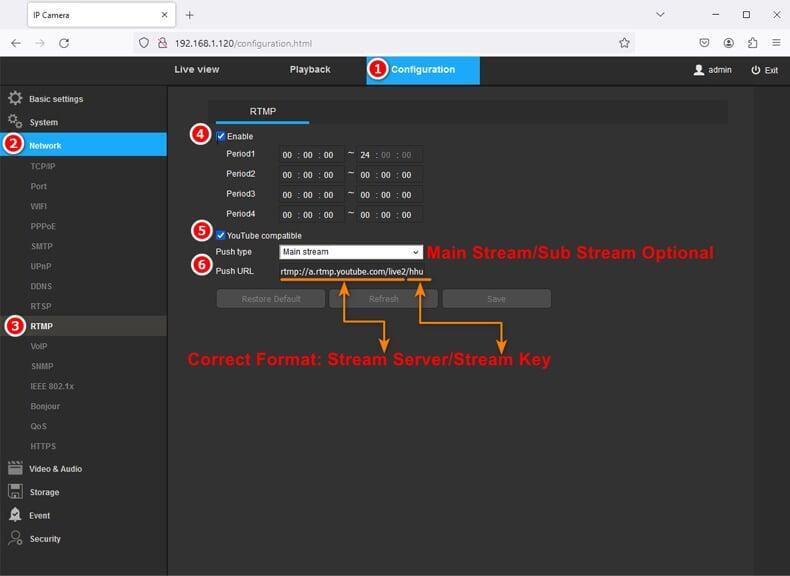

    Configure RTMP

    Configure PUSH URL of RTMP

    • Go to Configuration-->Network-->RTMP-->RTMP-->Enable(True)
    • Enter Push URL: copy Stream URL and Stream Key from YouTube Studio into column of Push URL below

    • Go back to YouTube Studio after setting RTMP PUSH URL to check whether it's on live or not.
