4K Ultra HD (8MP): Delivers sharp and detailed video quality

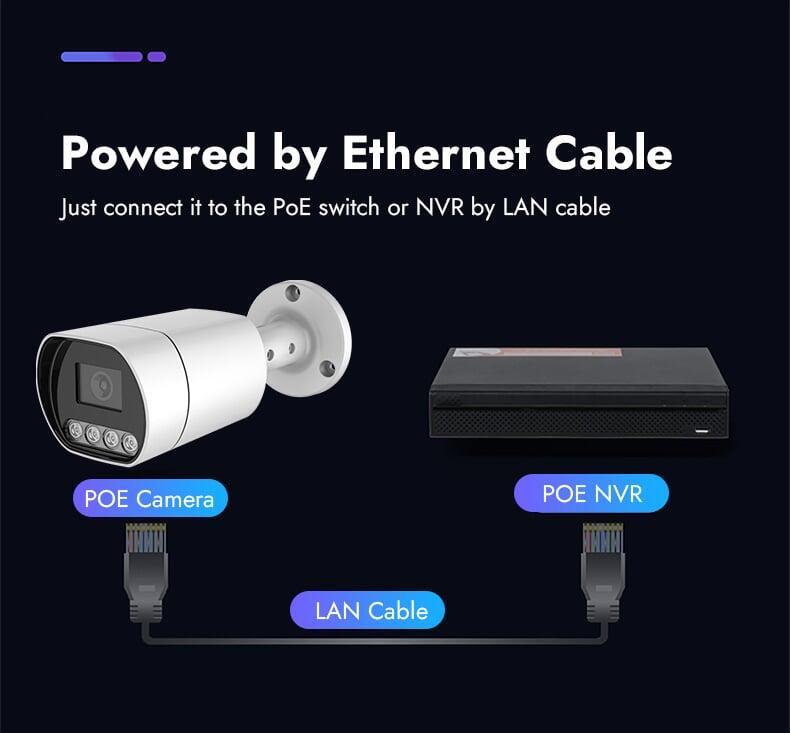

PoE Powered: Simplifies installation with a single Ethernet cable
Smart IR Night Vision: Clear black-and-white imaging even in complete darkness
2.8mm Wide-Angle Lens: Ideal for full-area surveillance coverage
RTMP Live Streaming: Broadcast directly to YouTube, Facebook, etc.
Built-in Microphone: Captures synchronized audio with video
Hikvision Compatible: Seamless integration with ONVIF & Hikvision NVRs

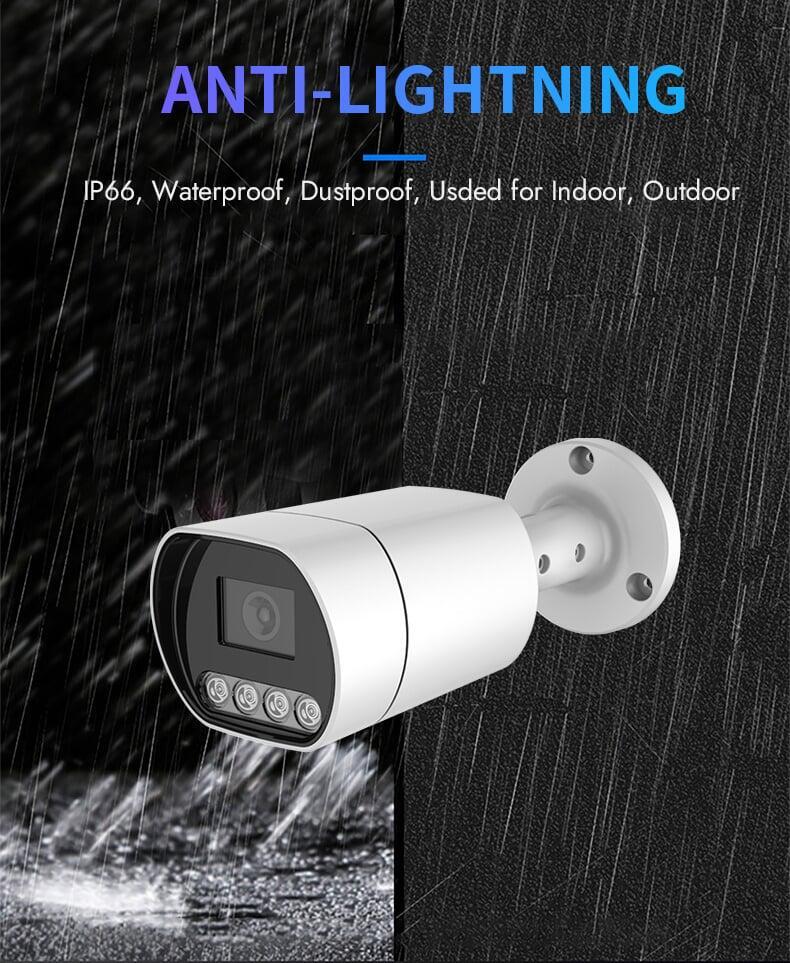

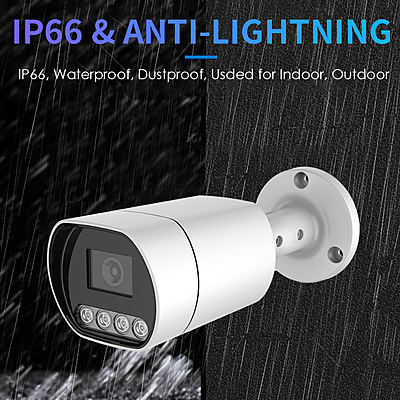

Weatherproof IP66: Durable design for both indoor and outdoor deployment
Redeem YGU91WLCHS5J to save 30%!
LED
Lens
Plug Type
$96.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

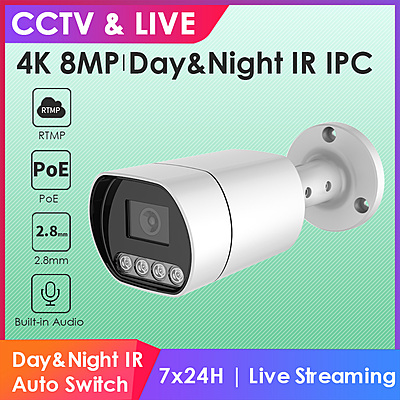

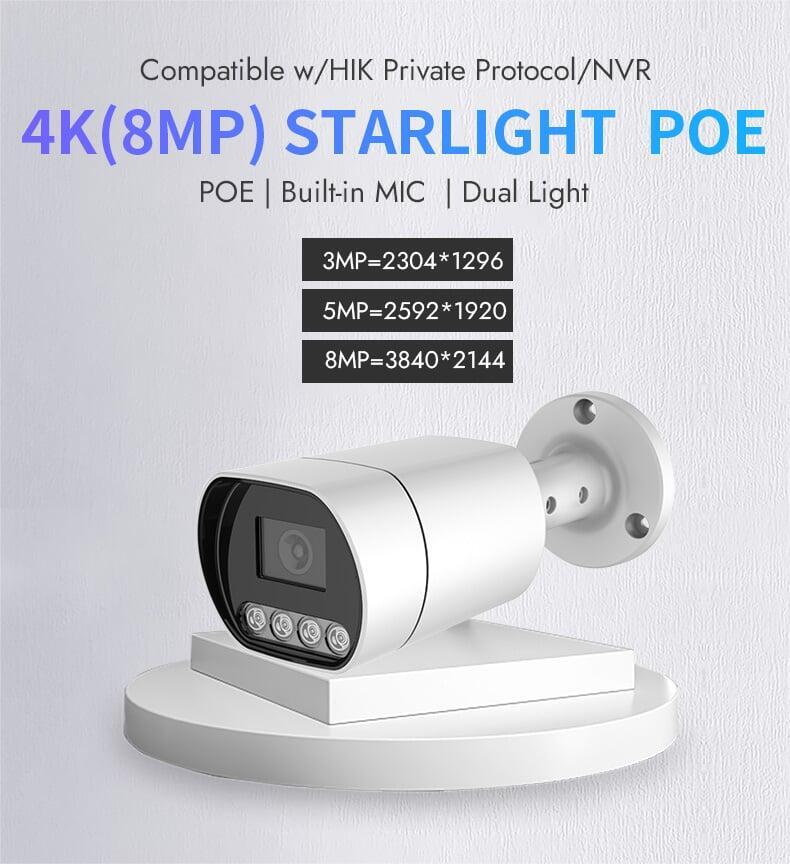

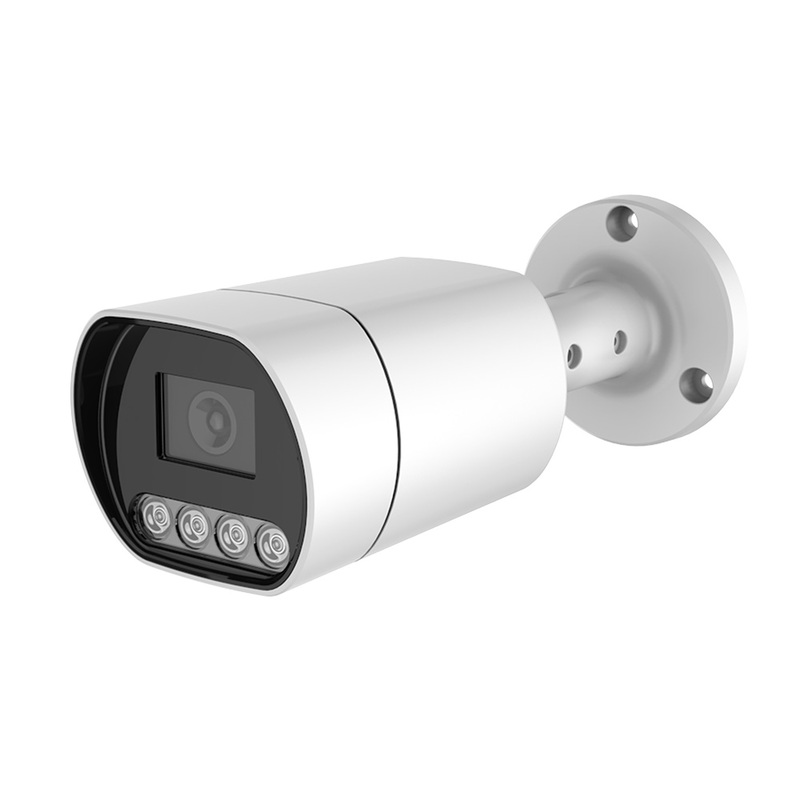

4K 8MP Smart IR PoE Bullet IP Camera – Ultra HD Live Streaming Cam

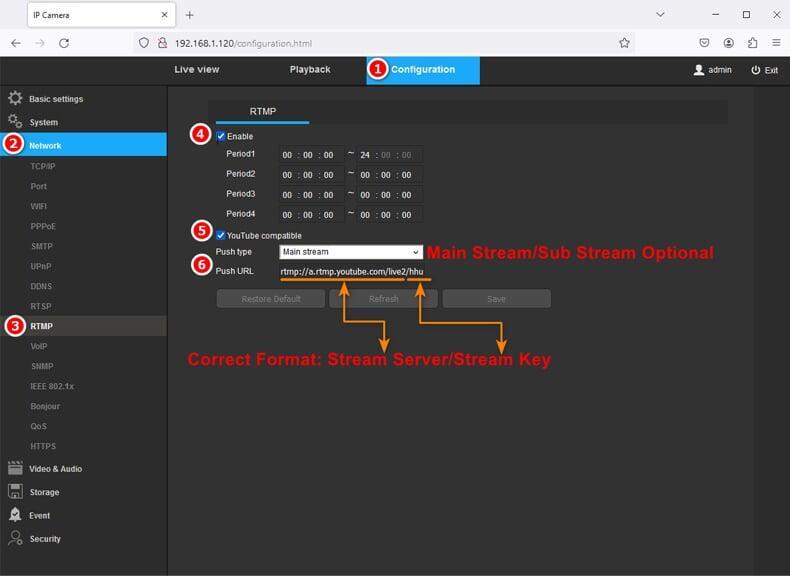

RTMP IP Camera
RTMP camera support pushing live video streams to platforms like YouTube and Facebook. To do this, you typically need to enable AAC audio encoding and paste the RTMP URL into the appropriate field (Main Stream or Sub Stream) in the camera settings.

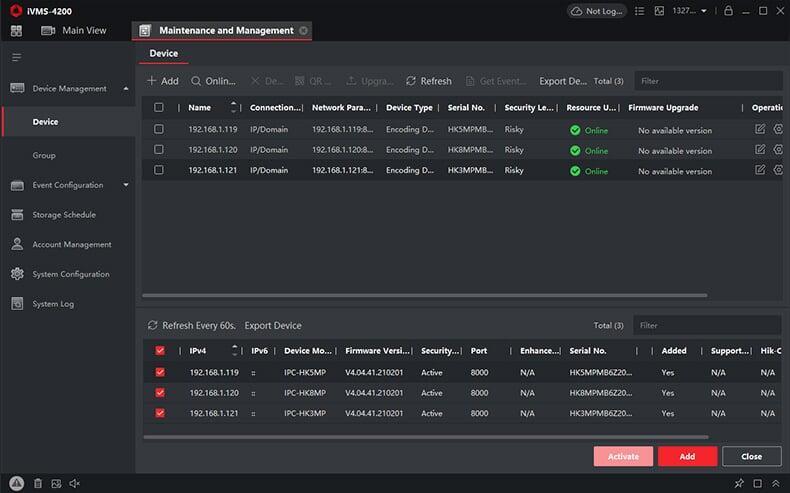

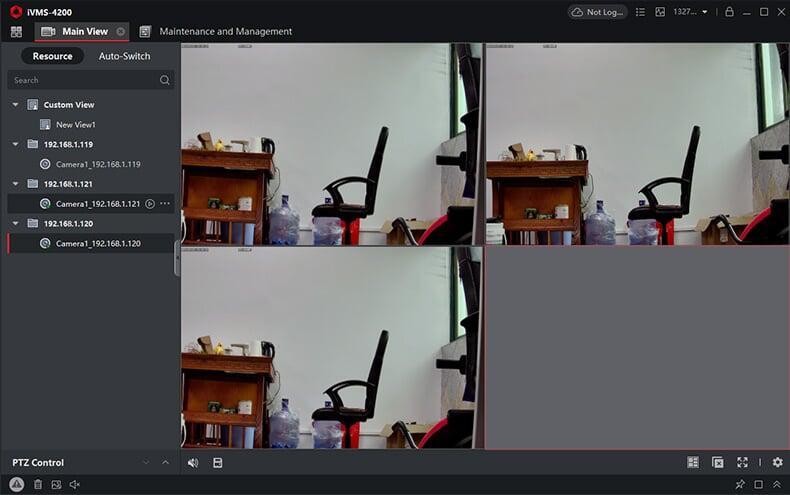

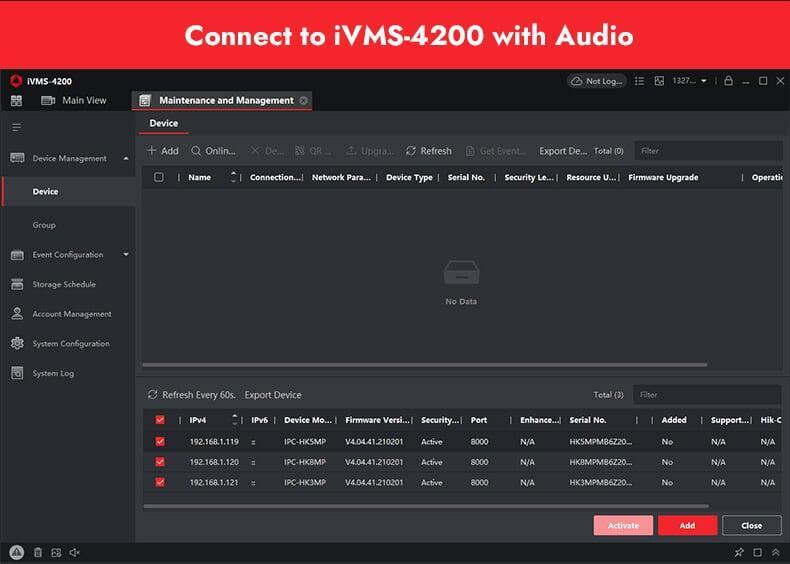

Connect to iVMS-4200.
This video camera is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within iVMS-4200, offering a user-friendly experience for surveillance system operations.

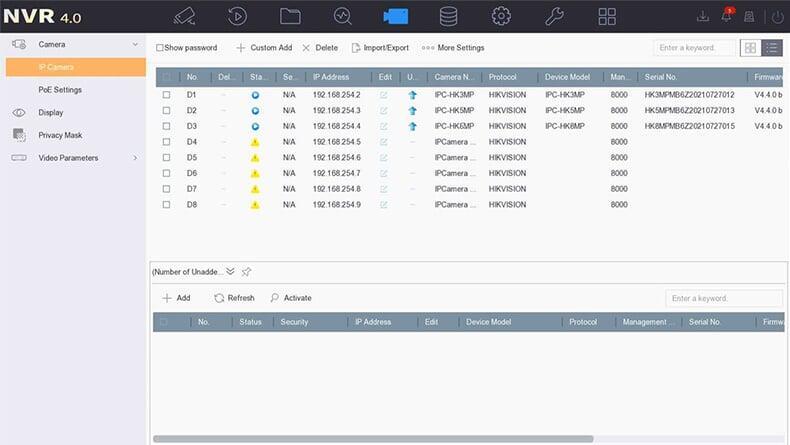

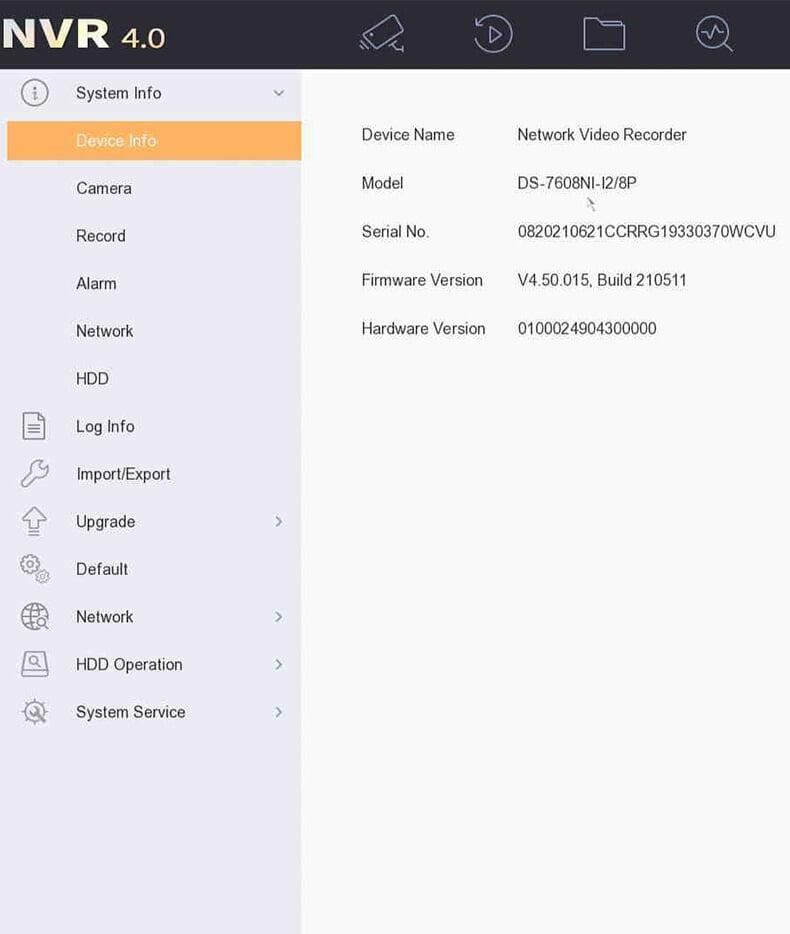

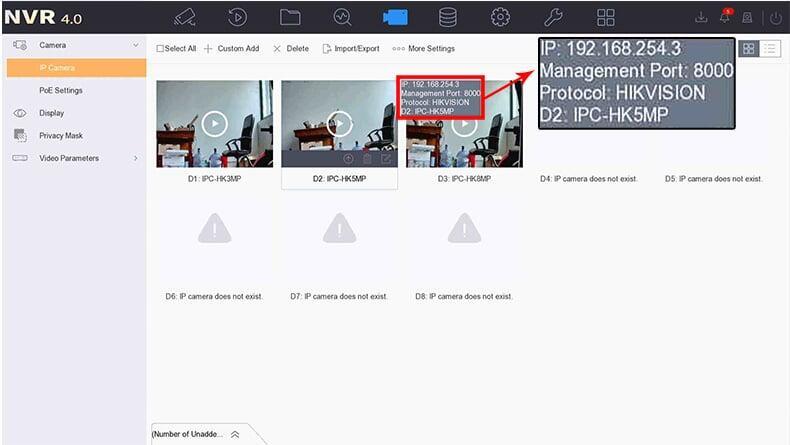

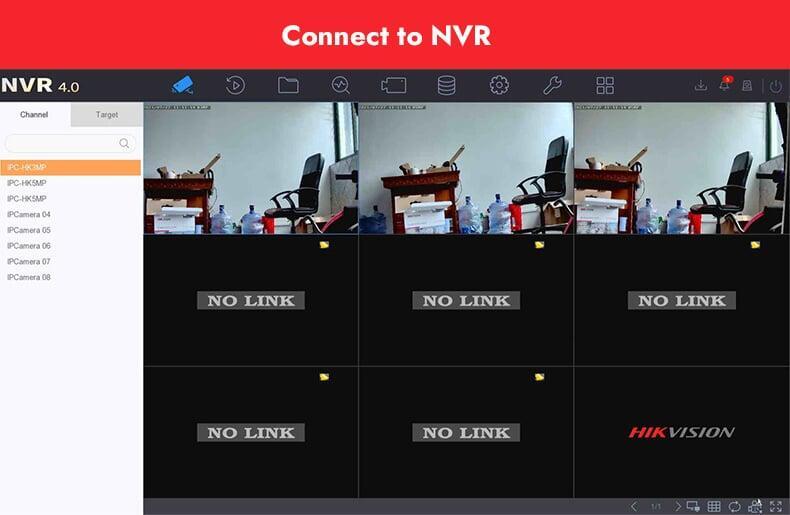

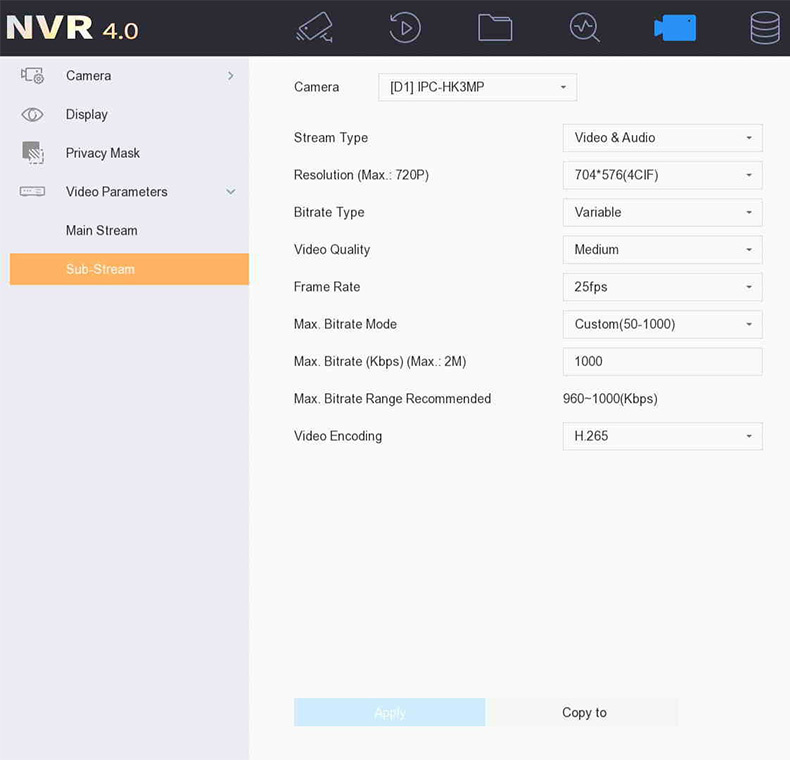

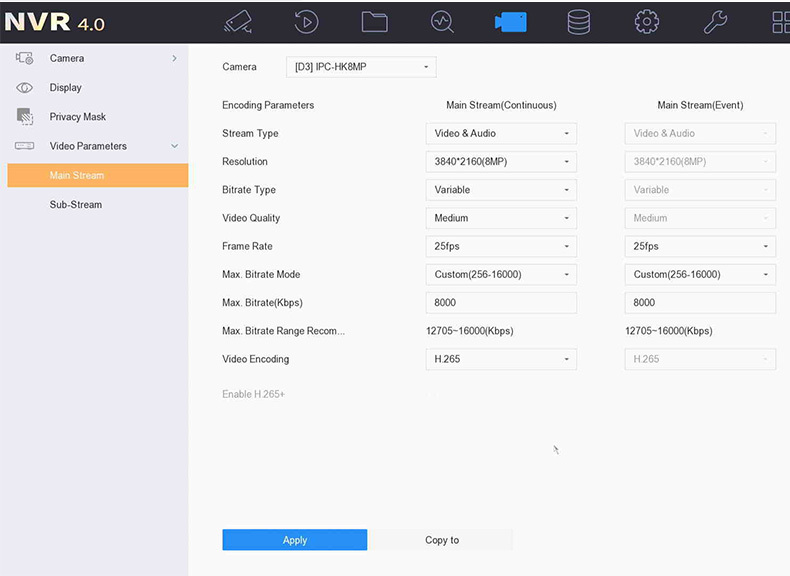

Connect to HIK NVR
Successfully establish connectivity with your HIK NVR, employ the HIK protocol for seamless operation, and enable H.265 recording to enhance video compression and storage capabilities for your surveillance system.
Specifications
Specifications
Product Model
- Product ModelZSD8PSH16F
Camera
- Image Sensor1/2.8" Progressive Scan CMOS Sensor
- Effective Pixels3840x2160

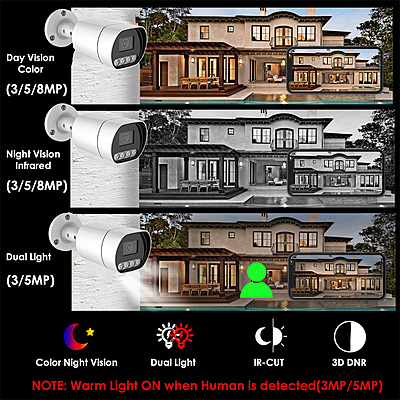

- ModeIR+WARM LED: IR ON when no human is detected, Warm Light ON when human is detected, Automatically removable infrared-cut or IR LED: Night Vision When IR ON

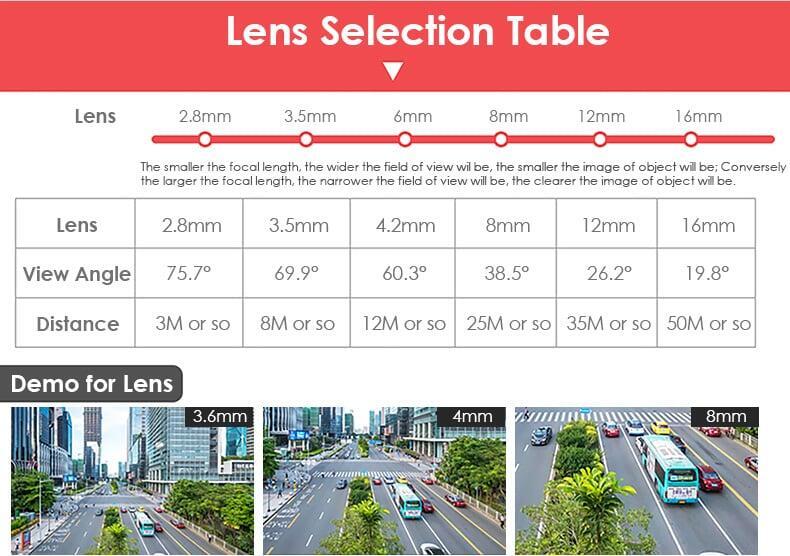

- Lens2.8mm/3.6mm/6mm/8mm Optional
- DNR3D Digital Noise Reduction
- WDRYes, 80dB
- Electric ShutterAdaptive, 1/2s-1/1,000s
Video & Audio Encoding
- Video EncodingH.264/AVC, H.265/HEVC
- Audio EncodingAAC/G.711U/G.711A
- Audio Sampling RateUp to 16K
- Bit RateCBR & VBR; 256kbps~8Mbps [Configurable]
- Frame Rate50Hz: 1-25fps; 60Hz: 1-30fps [Configurable]
- Max. Framerate2144P@15FPS, 1080P@20FPS
- Main Stream3840x2144, 3072x2048, 2592x1920, 2560x1440, 2304x1280, 1920x1080, 1280x720
- Sub Stream704x576, 640x480, 640x360, 352x288
Video Stream
- Concurrent Stream Count6x RTSP Streams
- Stream Types SupportedLive Streaming
- RTSP (Main Stream)rtsp://192.168.1.120:554/live/1_0
- RTSP (Sub Stream)rtsp://192.168.1.120:554/live/1_1
Protocols & Networking
- Networking ProtocolsIPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
- Streaming ProtocolsCGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
- ONVIF ProtocolCompatible
- HK/DH ProtocolCompatible
- Security FeaturesRTSP Authentication
Interface
- Network Interface1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Audio InterfaceBuilt-in Audio BY DEFAULT or 3.5mm TRS Audio Line-in Port
- Hardware ResetBuilt-in Hardware Reset Button In the Pigtail Cable
General
- Default CredentialsUser: admin; Password: 12345
- Default Static IP192.168.1.120
- Power SupplyDC12V 1A or PoE: IEEE802.3af
- Power Consumption≤5w
- Operating Temperature-30°C~60°C (-22°F~140°F)
- Operating Humidity≤95%
- Unit Dimension18.5cm x 7.7cm x 7cm[7.28in x 3.03in x 2.76in]
- Package Dimension19.5cm x 10.5cm x 10cm[7.68in x 4.13in x 3.94in]
- Net Weight397g [0.88lb, 14.00oz]
- Gross Weight480g [1.06lb, 16.93oz]
