    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.
    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm Lens, IP66 Weatherproof, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.

    4K 5X Optical Zoom Security Camera, Varifocal 8MP Outdoor Wireless Camera Bullet, 2.7mm~13.5mm, IP66, Dual Light, Human Detection, RTMP to YouTube/Facebook etc.

    Save 7%
    $12957
    $13957
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    LED
    IR+WARM LED
    IR LED
    Lens
    2.7-13.5mm
    Plug Type
    EU Plug
    US Plug
    AU Plug
    UK Plug

    Checkout Security with

    AMAZON US   AMAZON CA   AMAZON UK   AMAZON DE   AMAZON FR   AMAZON IT   AMAZON ES   AMAZON NL   AMAZON SE   AMAZON PL   AMAZON TR   AMAZON JP   AMAZON SA

    Overview

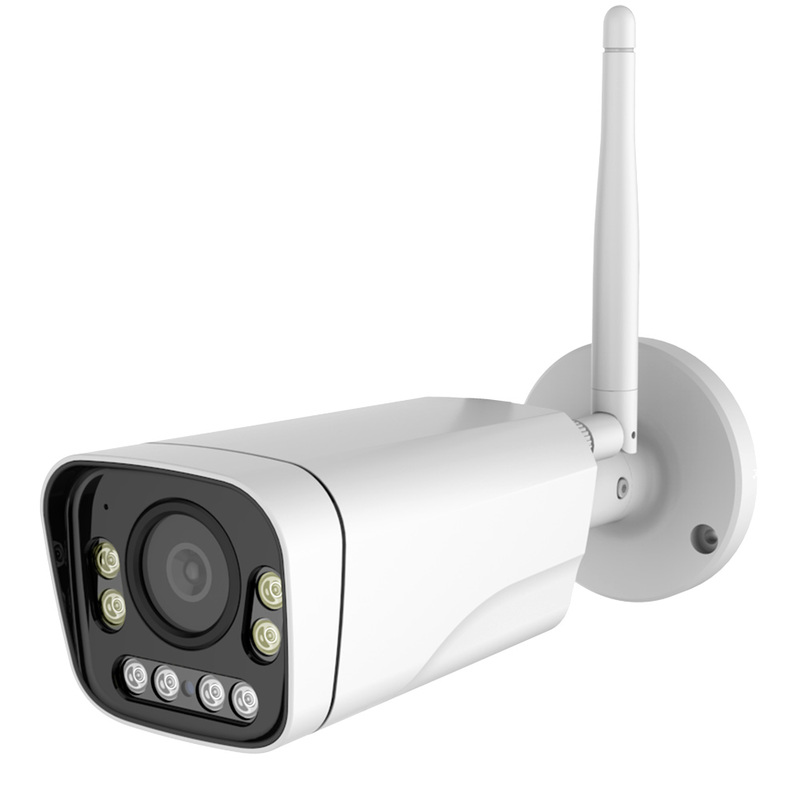

    EXVIST ZSD8PNH16A features a powerful, 1/2.8" 4K-resolution stacked CMOS image sensor that captures superior video and excellent details in resolution up to 8 megapixels. Thanks to the intelligent dual light, it delivers full colors at night when human detected and infrared light at night when no human detected which ensures more details captured when somebody is approaching. Including a motorized lens with focal length of 2.7-13.5mm and horizontal field of view of 101°, it's ideal for wide, open areas such as scenery, airports or sports stadiums. It offers built-in analytics for proactive surveillance and includes motion detection, human detection, line-crossing detection, intrusion detection. Furthermore, with RTMP protocols, it's also suitable for caring the bird in the nest, scenery broadcasting and other scenario.

    • Higher Resolution: Adopts 1/2.8" SONY STARVIS IMX progressive scan imaging sensor, it can easily get more detailed in the image and higher image quality in resolutions up to 8 megapixels (3840*2144). Featured with WDR, details can be captured even in challenging light conditions including low light and strong backlight.
    • Optical Zoom: With 2.7-13.5mm motorized lens, users can easily remote focus and zoom by accessing the network camera from the browsers like Chrome, Firefox, Safari, Edge etc and clicking the corresponding icons like zoom-, zoom+, focus-, focus+ on the right top side of web page. For sure, if you'd like to restore it to the default factory settings of lens, just click the icon "reset" and it will be auto restored.

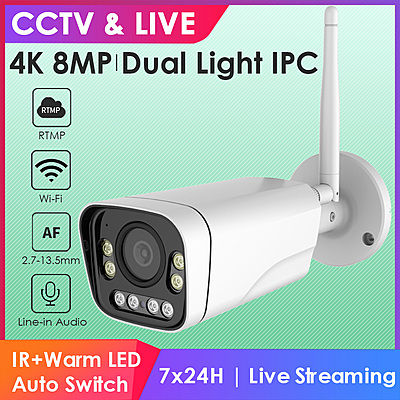

    • Dual Light: Equipped with two different light source instead of traditional infrared LEDs only. When no human detected in the image at night, infrared LEDs will be on. When human detected, warm LEDs will be on. You can also go to Configuration->Image Settings->Day/Night->Lighting Control and select different modes like Smart switching, Infrared light mode, White light mode, Turn off the lights.
    • Event Detection: Includes 1) human detection: when movement of person-shaped objects detected, it'll start recording or alarming; 2) line crossing detection: when anything or anyone crosses the line you drawn in the image, it'll start recording or alarming; 3) intrusion detection: when anything or anyone enters the customized area you set in the image, it'll start recording or alarming. 4) motion detection: whenever movement occurs or stops in the view, it'll alarm

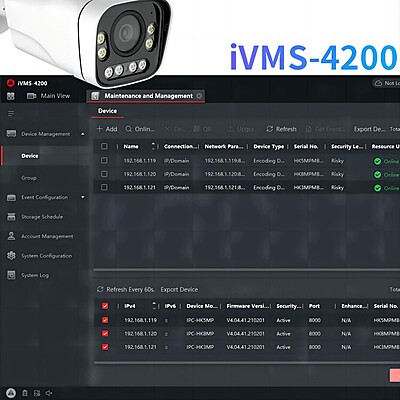

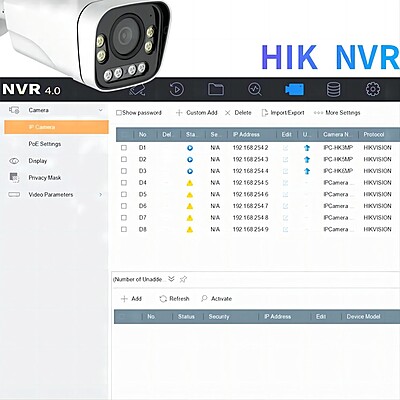

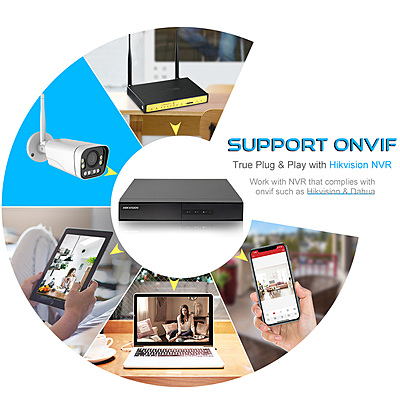

    • Hikvision Compatible: This outdoor home security camera can be working with third-party NVR like Hikvision Dahua etc. Not only it's compatible with their NVR, but also their CMS like iVMS-4200 and search tool. Given the upgrade of software, some functions might not be well compatible.
    • Live Broadcasting: Featuring RTMP and RTSP, it'll be suitable for traditional surveillance system as well as the live broadcasting like pushing live video to YouTube, Facebook, Wowza etc via RTMP protocol, or pulling video feed to VLC, OBS, vMix, xSplit etc via RTSP protocol and broadcasting everywhere.

    Specification

    Basics Default User: admin; Password: 12345; IP: 192.168.120(DHCP);
    Model ZSD8WNH16A(Dual Light) | ZSD8WSH16A (Smart IR)
    Sensor 1/2.8" Progressive Scan CMOS Sensor
    Mode IR ON when no human is detected, Warm Light ON when human is detected, Automatically removable infrared-cut filter
    Lens 2.7-13.5mm (Auto Focus)
    WDR 80dB
    Electric Shutter Adaptive, 1/2s-1/1,000s
    Video & Audio Encoding Video Encoding H.265/H.264 Video Encoding
    Audio Encoding AAC/G.711U/G.711A Audio Encoding; Audio Sampling up to 16K
    Bit Rate CBR & VBR; 256kbps~8Mbps [Adjustable]
    Frame Rate 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]
    Main Sream 3840*2160, 3072*2048, 2592*1944, 2592*1520, 2304*1296, 1920*1080, 1280*720
    Sub Stream 704*576, 640*360, 640*480, 352*288
    RTSP(Main Stream) rtsp://192.168.1.120:554/Iive/0
    RTSP(Sub Stream) rtsp://192.168.1.120:554/Iive/1
    Protocol Network Protocol IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
    Video Protocol CGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
    Wireless Protocol Available by Default
    Interfaces Network Interface 1ch RJ45 10M/100M Self Adaptive Ethernet Port
    Audio Interface Built-in Audio BY DEFAULT or 3.5mm Audio Line-in Port
    Others Working Environment Temparature:-30°C~60°C (-22°F~140°F); Humidity: ≤95% (Non-Condensing)
    Power Input Powered by DC12V 1A or Higher (Included by Default)
    Power Consumption ≤5W
    Unit Dimension 20cm x 10cm x 8cm[7.87in x 3.94in x 3.15in]
    Package Dimension 23cm x 13cm x 13cm[9.06in x 5.12in x 5.12in]
    Net Weight 709g [1.56lb, 25.01oz]
    Gross Weight 1050g [2.31lb, 37.04oz]
    Package Contents
    • 1x 4K 8.0MP Dual Light or IR 5X Auto Focus Wireless Waterproof Bullet Live Streaming IP Camera
    • 1x Easy-to-Install Bracket
    • 1x Matched Power Adapter DC12 2A
    • 1x Attached Accessories
    NOTE
    • Audio might not be so good when streaming live video to YouTube.

    Quick Start

    Connection Diagram

    Power on IP Camera and connect it to router via ethernet cable.

    • Tips: At the very beginning, it's strongly recommended to follow this instructions to connect the camera, especially for network segment issues.

    Download & Install

    Download IPCManager

    Go to Technical Support->Select IP Camera->Download IPCManager->Select corresponding version to download

    Install IPCManager

    Follow below steps to install IPCManager:

    • Right click the application and run as administrator;
    • Select the corresponding language from the drop-down list (English, Polish, Russian, Japanese, German, Simplified Chinese, Traditional Chinese are available for Windows. Only English for MAC version.)
    • Click Next-->Next-->Install

    Download ActiveX

    Go to Technical Support->Select IP Camera->Download IPCManager->Select corresponding version to download

    Install ActiveX

    Install ActiveX after downloading with administrator and restart your PC.

    Configure IP

    Configure IP via IPCManager

    • Run IPCManager (If you already installed it)
    • Enter username & password (admin & 12345 by default)
    • Select the encoder you would like to set
    • Click checkbox of DHCP-->Modification-->Close-->Refresh

    • NOTE: please ensure the IP camera and your PC are on the same network segment if it’s connected to the same router. That’s why it’s recommended to use DHCP to obtain IP address to make it for sure.

    Access Encoder

    Access Encoder from a Browser

    • Start a browser like IE, Chrome, Firefox (Chrome Recommended);
    • Enter the IP address you configured above via IPCManager;
    • Enter username (admin) and password (12345 by default);

    • Click “Login” and the Preview page opens in your browser

    • Tips: Generally it's recommended to access the IP Camera from Chrome.

    Adjust Focus

    Adjust Focus(If Available)

    • 1 means Zoom Out: long press until you think it ok.
    • 2 means Zoom In: long press until you think it ok.
    • 3 means Reset: reset to default focus if you wrongly zoom in/out.

    • Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

    Configure Audio

    Configure Parameters of Audio

    • Go to Configuration-->Video & Audio-->Audio-->Audio
    • Click checkbox to “Enable audio”; Audio codec format set as “AAC”;
    • Sampling rate set as “16000” or higher;
    • Input volume set as “39” or so(Reference Value: users can log into GUI and set sampling rate as 24000 or higher if better voice quality is required because the default sampling rate here is 8000.)

    • Tips: Sampling Rate at most 16000 for 8MP IP Camera.

    Configure Video

    Configure Parameters of Video

    • Go to Configuration-->Video & Audio-->Video-->Video
    • Bit rate set as 500(Reference Value: users can set higher bit rate to remove mosaic but it should be matched to your network bandwidth because of uplink bandwidth used.)
    • Key interval set as 10(Reference Value: users can set lower key interval to get better image quality.)

    • Tips: At the every beginning, it's strongly recommended for you to use the reference values to start streaming because much more uplink bandwidth will be consumpted. Or else it might affect the effect of pushing.

    Configure RTMP

    Configure PUSH URL of RTMP

    • Go to Configuration-->Network-->RTMP-->RTMP-->Enable(True)
    • Enter Push URL: copy Stream URL and Stream Key from YouTube Studio into column of Push URL below

    • Go back to YouTube Studio after setting RTMP PUSH URL to check whether it's on live or not.

    User Manual
