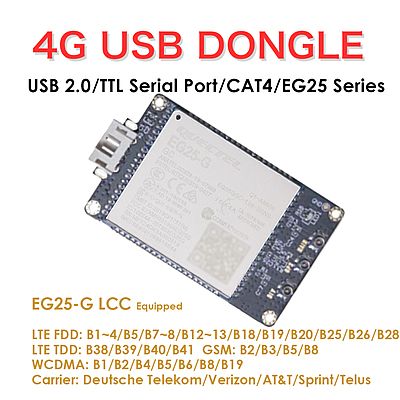

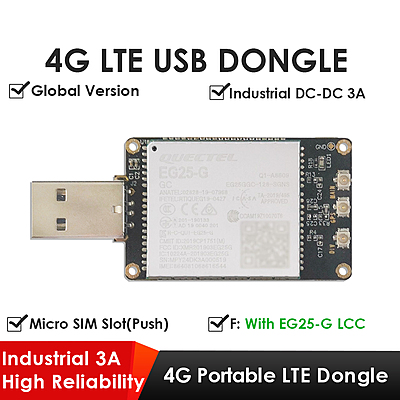

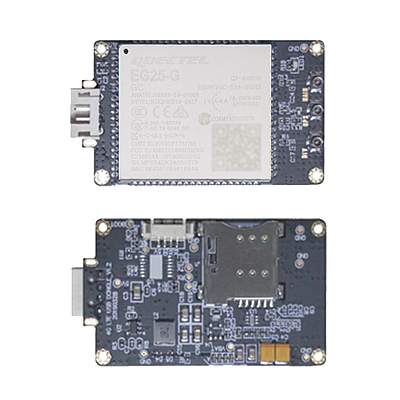

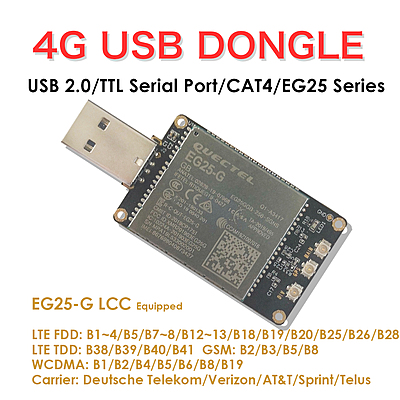

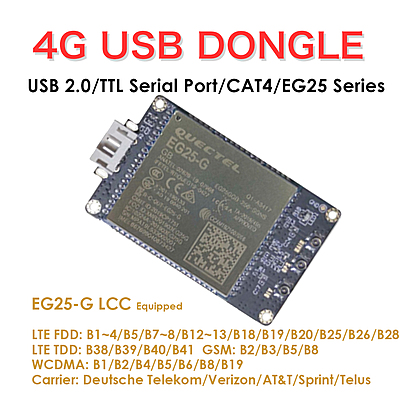

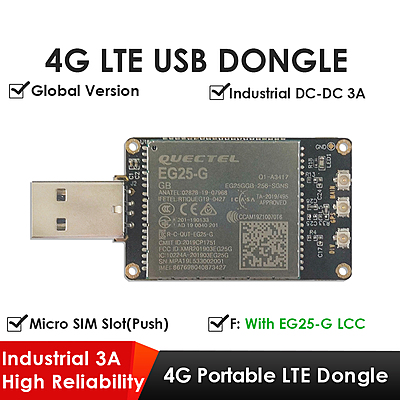

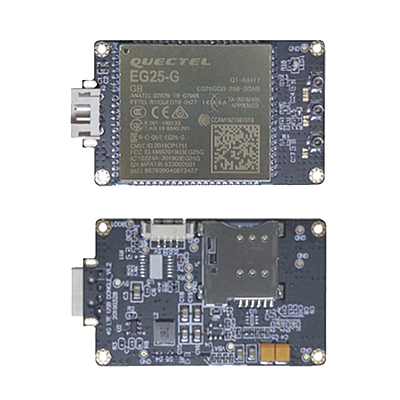

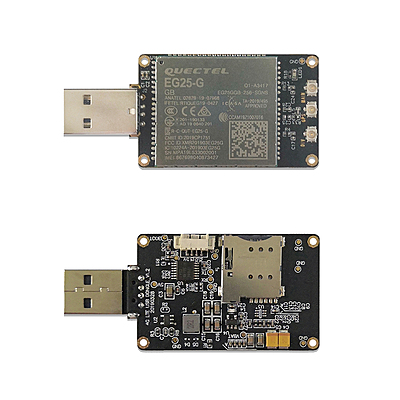

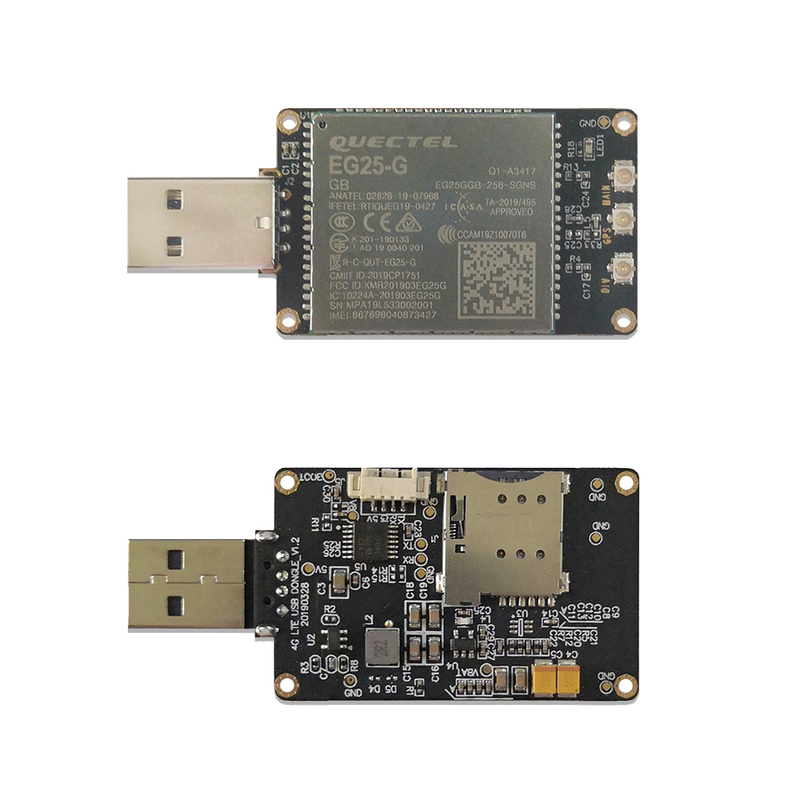

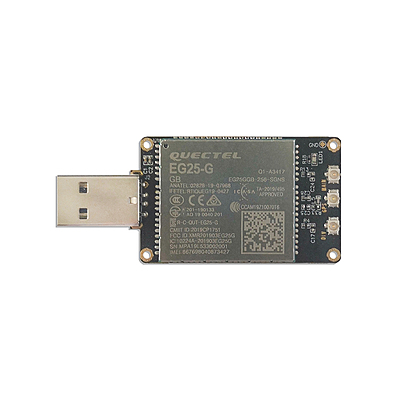

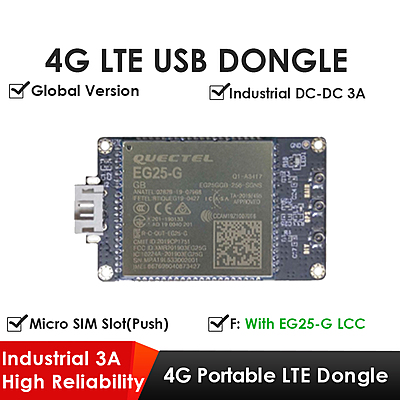

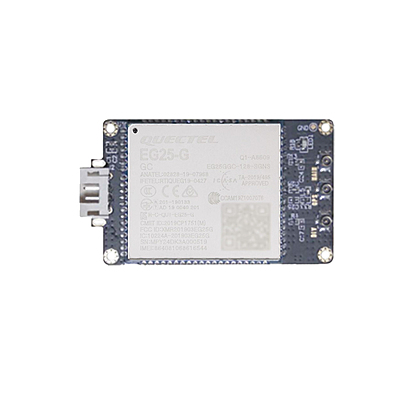

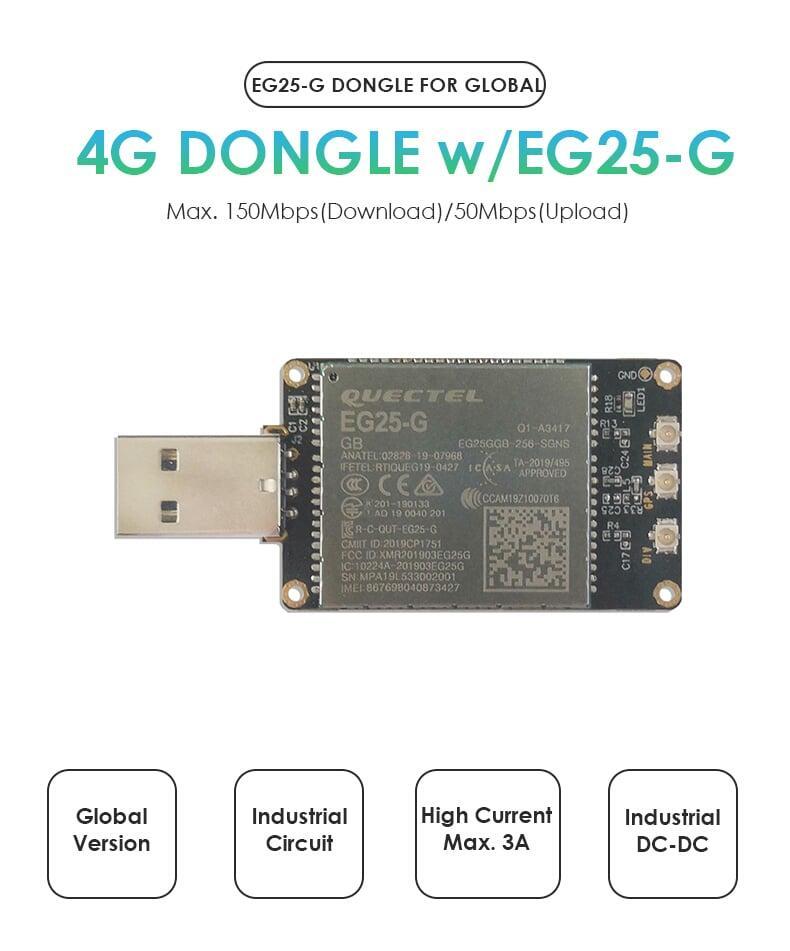

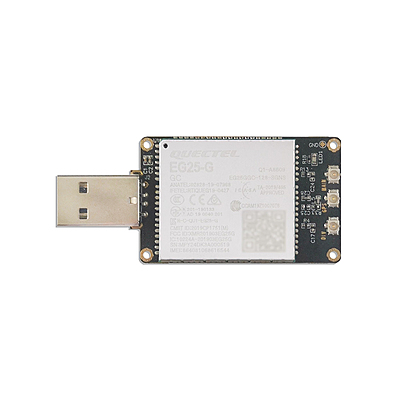

4G LTE USB Dongle with Quectel EG25-G LCC Modem, SIM Slot, GPS, USB-A or 4PIN PH2.0 for Global LTE Networks

Parameters of Dongle

• LTE Module

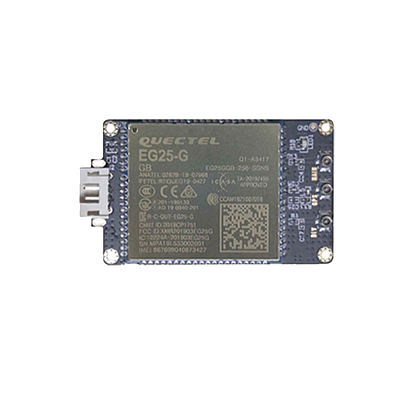

  Equipped with Quectel EG25-G LCC Cat 4 Module

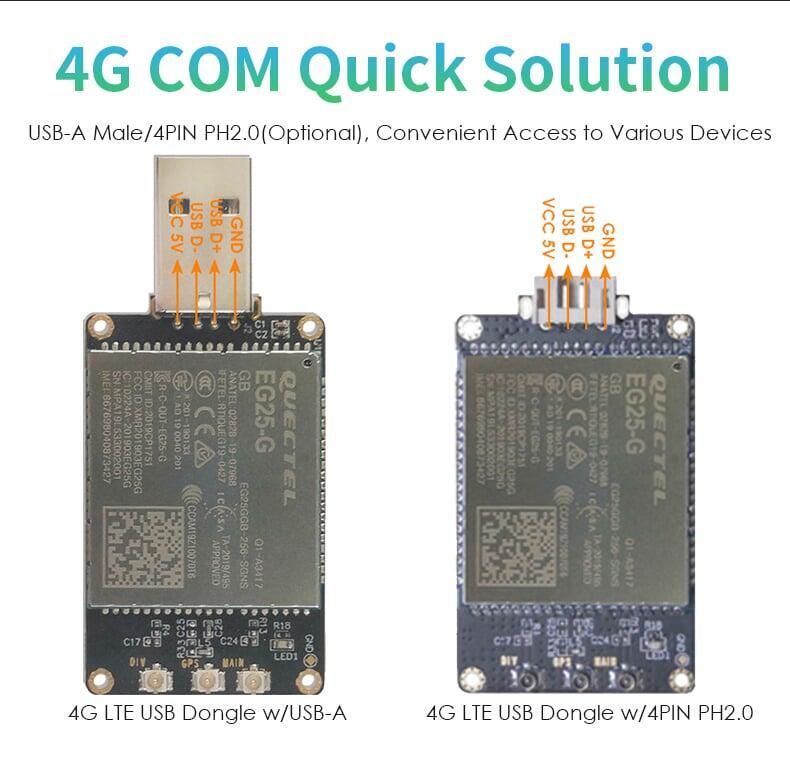

• Form Factor

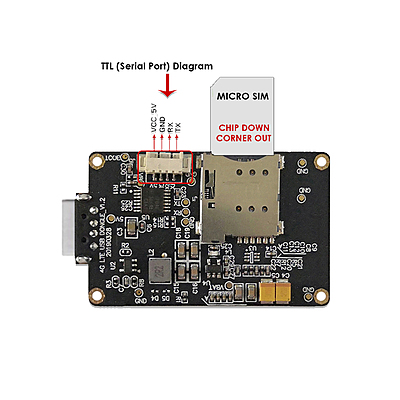

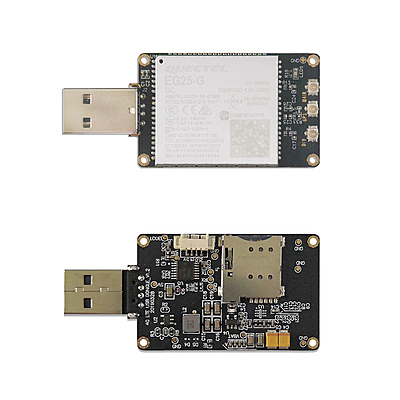

  USB-A(USB2.0) | 4PIN PH2.0
• Data Rates
  150 (DL)/ 50 (UL), Depends on the 4G module equipped
• OS Supported
  Windows/Linux/Android

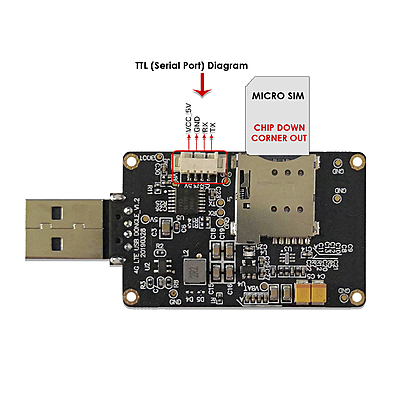

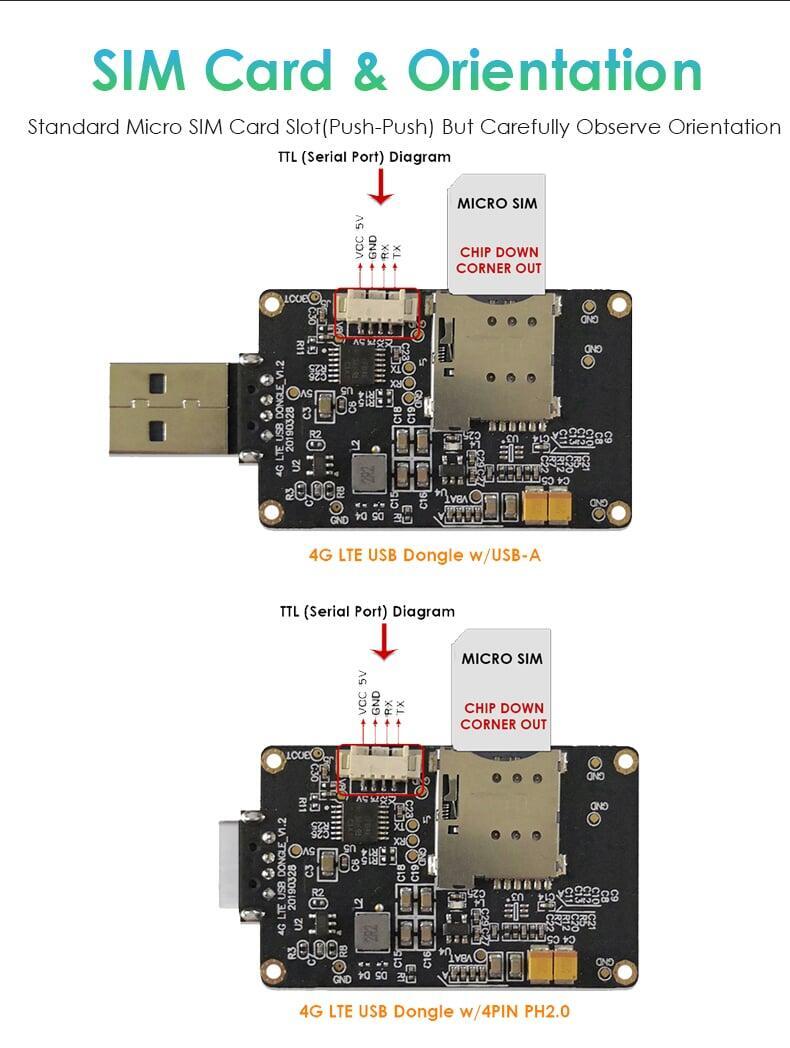

• SIM Slot
  Micro SIM Slot, Push Type

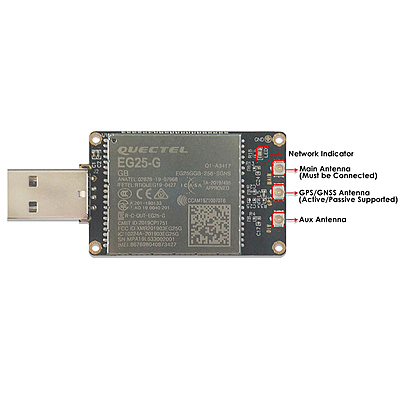

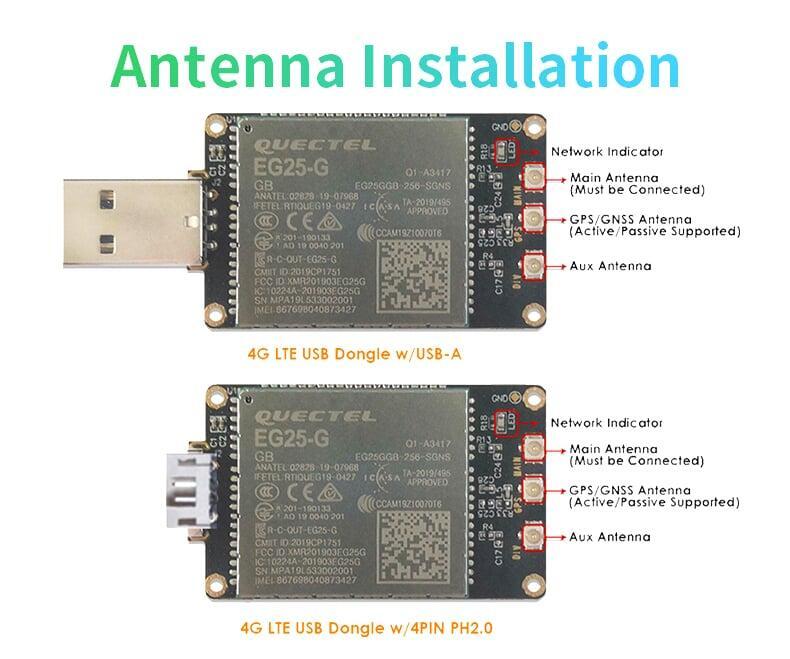

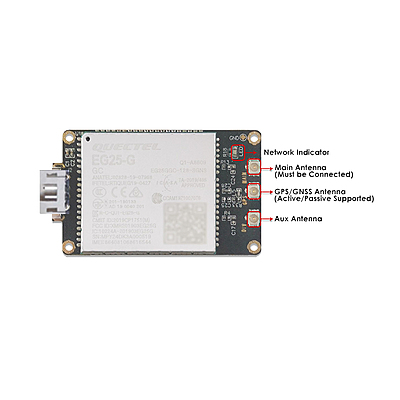

• Antennas

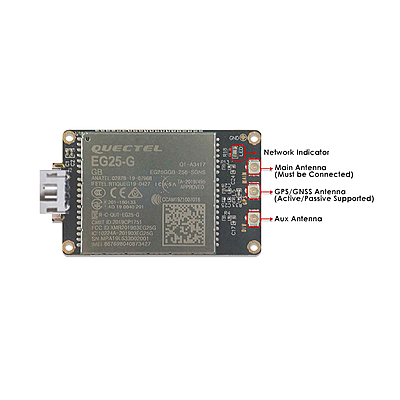

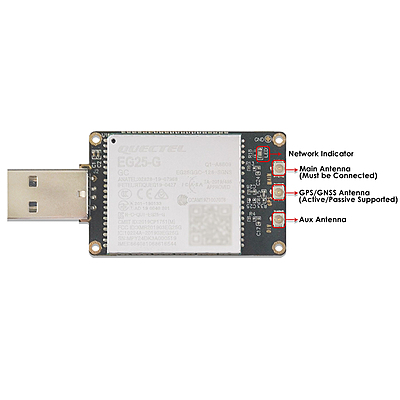

  IPEX Connector for Antennas
• Working Voltage
  3.6V (3.3V~4.2V Configurable for LTE Module)
• Operating Temp.
  -10°C~+60°C [14°F~140°F]
• Storage Temp.
  -40°C~+85°C [-40°F~185°F]

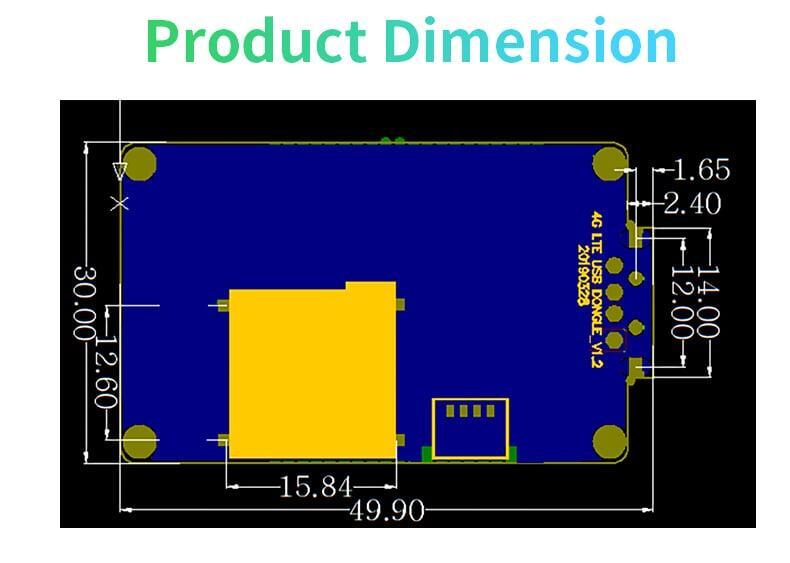

• Unit Dimension
  49*30*0.8mm[1.93*1.18*0.03in]
• Package Dimension
  12*65*1mm[4.72*2.56*0.04in]
• Net Weight
  13g[0.03lb, 0.46oz], FPC Antenna Excluded
• Gross Weight
  17g[0.04lb, 0.60oz]

LTE Cat 4 of EG25-G LCC

• 4G Module
  EG25-GGB | EG25-GGC
• Region/Operator
  Global
• Dimensions(mm)
  30.0 x 51.0 x 4.9

Temperature Ranges of EG25-G LCC

• Operating Temperature
  -35°C to +75°C
• Extended Temperature
  -40°C to +85°C

Frequency Bands of EG25-G LCC

• LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
• LTE-TDD
  B38/B39/B40/B41
• WCDMA
  B1/B2/B4/B5/B6/B8/B19
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)

Certifications of EG25-G LCC

• Carrier
  Europe: Deutsche Telekom; America: Verizon/AT&T/U.S. Cellular; Canada: Telus/Rogers*
• Regulatory
  Global: GCF; EU: CE; UK: UKCA; NA: PTCRB; America: FCC; CA: IC; Brazil: Anatel; MX: IFETEL; South Korea: KC; Taiwan(China): NCC; Japan: JATE/TELEC; Australia & New Zealand: RCM; South Africa: ICASA
• Others
  RoHS/WHQL

Data Transmission of EG25-G LCC

• LTE-FDD Data Rates (Mbps)
  150 (DL)/ 50 (UL)
• LTE-TDD Data Rates (Mbps)
  130 (DL)/30 (UL)
• DC-HSPA+ Data Rates (Mbps)
  42 (DL)/5.76 (UL)
• WCDMA Data Rates (kbps)
  384 (DL)/384 (UL)
• EDGE Data Rates (kbps)
  296 (DL)/236.8 (UL)
• GPRS Data Rates (kbps)
  107 (DL)/ 85.6 (UL)

Interfaces of EG25-G LCC

• (U)SIM
  x 1
• UART
  x 1
• USB2.0
  x 1
• Audio Digital(PCM)
  x 1
• LED_WWAN#
  x 1
• W_DISABLE#
  x 1
• PERST#
  x 1

Voice of EG25-G LCC

• Speech Codec Modes
  HR/FR/EFR/AMR/AMR-WB
• Echo Arithmetic
  Echo Cancellation/Noise Suppression
• VoLTE
  Digital Audio and VoLTE(Voice over LTE) (Optional)

Enhanced Features of EG25-G LCC

• DTMF
  ●
• DFOTA
  ●
• QMI/RmNet
  ●
• Audio Playback*/Audio Recording*
  Optional
• QuecLocator®
  ●
• QuecFile®
  ●
• (U)SIM Card Detection
  ●

Drivers of EG25-G LCC

• USB Serial Driver
  Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
• GNSS Driver
  Android 4.x–9.x
• RIL Driver
  Android 4.x–10.x
• NDIS
  Windows 7/8/8.1/10
• MBIM
  Windows 8/8.1/10, Linux 3.18–5.4
• GobiNet Driver
  Linux 2.6–5.4
• QMI_WWAN Driver
  Linux 3.4–5.4

Electrical Features of EG25-G LCC

• Supply Voltage Range
  3.0–3.6V, 3.3 V Typ.
• Power Consumption
  1.9 mA @ Sleep, Typ.; 23.4 mA @ Idle
