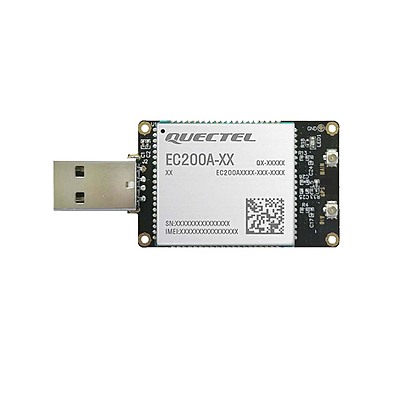

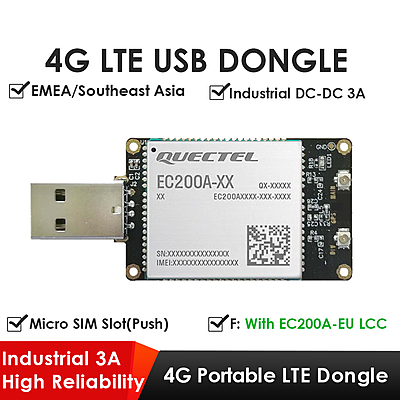

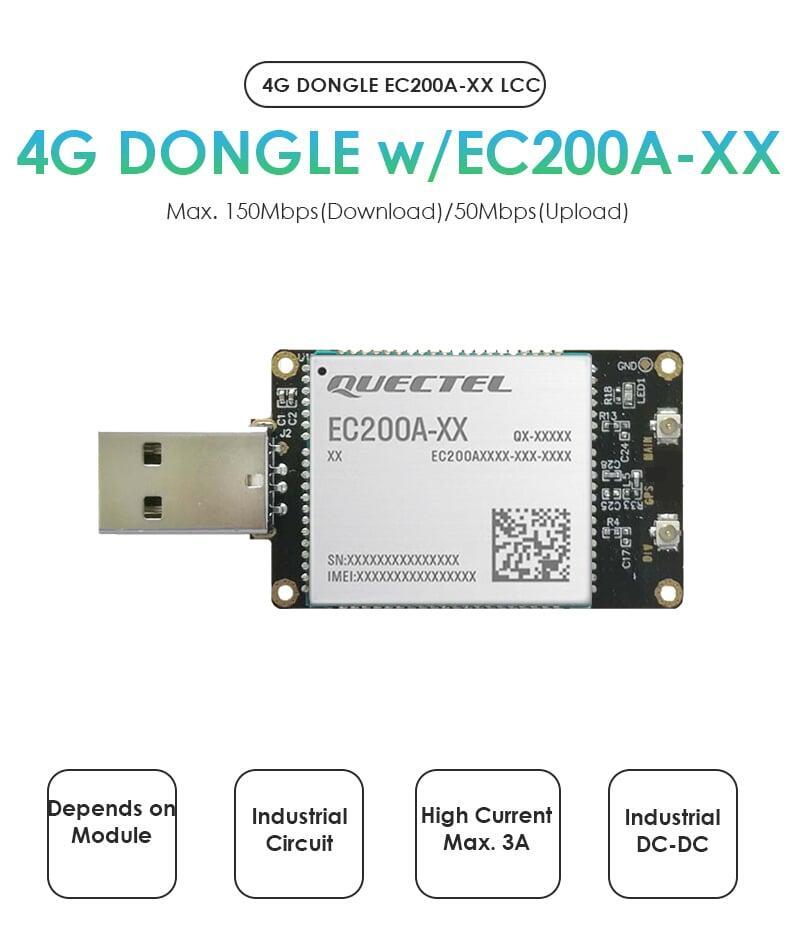

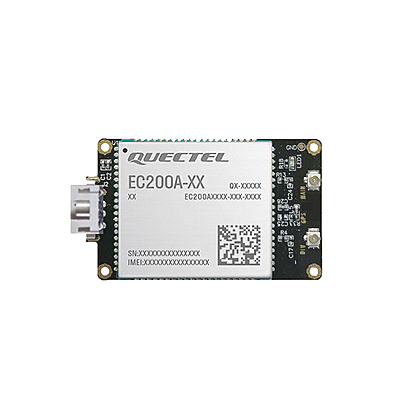

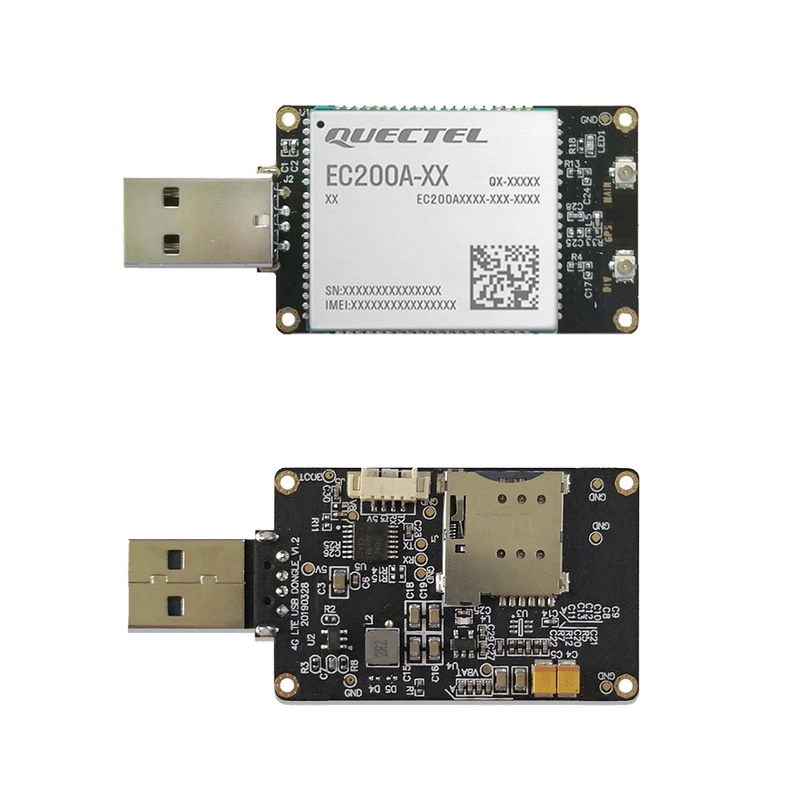

4G LTE USB Dongle with EC200A LCC Modem, SIM Slot, USB-A or 4PIN PH2.0 Connector for Windows/Linux/Android

Parameters of Dongle

• LTE Module
  Equipped with Quectel EC200A LCC Cat 4 Module
• Form Factor

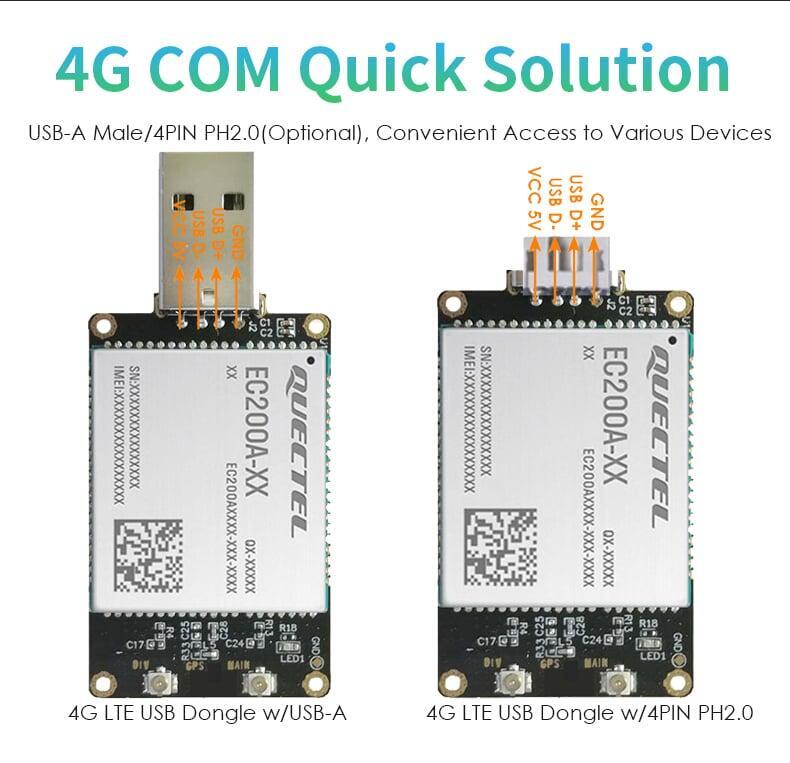

  USB-A (USB2.0) or 4PIN PH2.0
• Data Rates
  150 (DL)/ 50 (UL), Depends on the 4G module equipped
• OS Supported
  Windows/Linux/Android

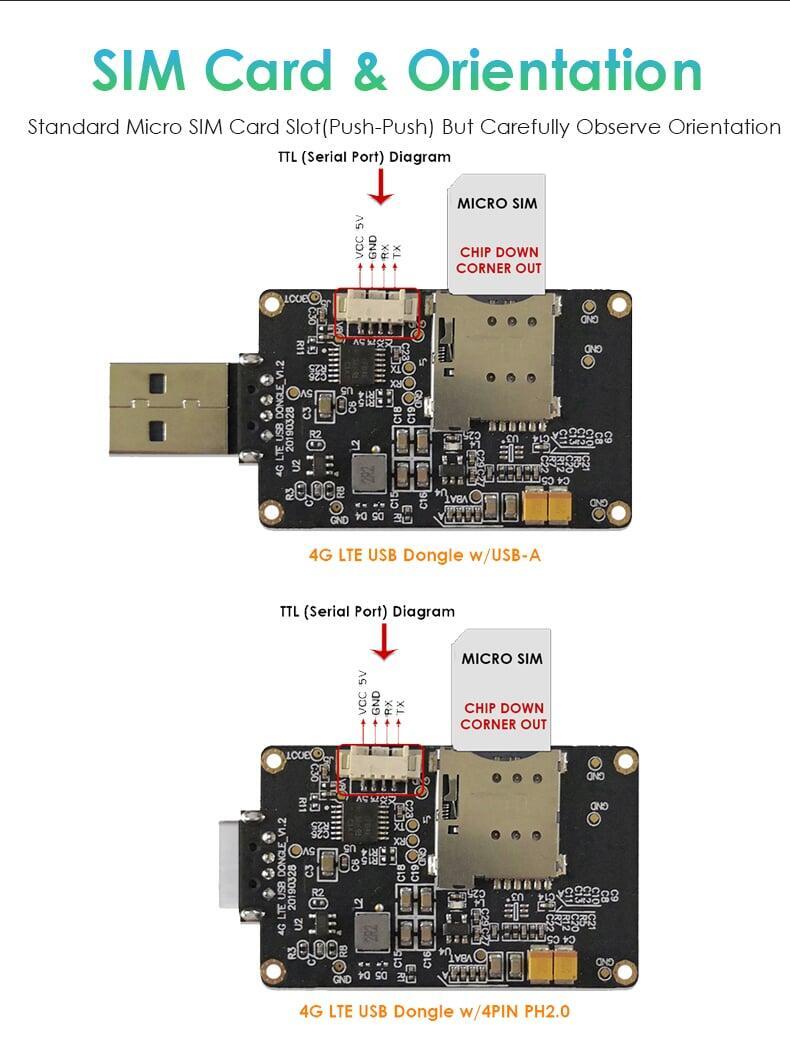

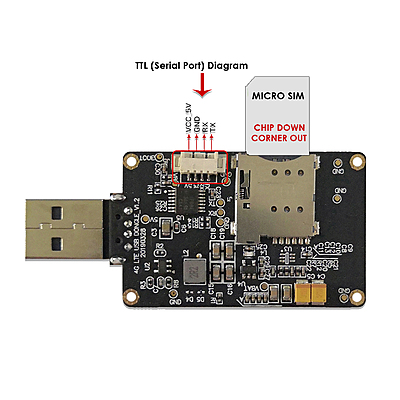

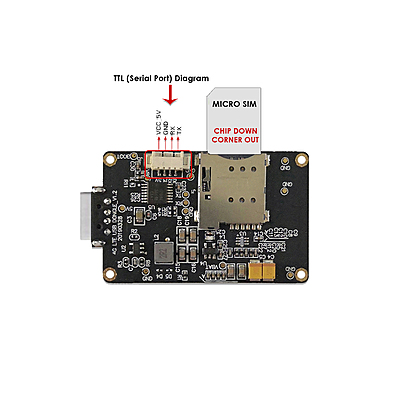

• SIM Slot

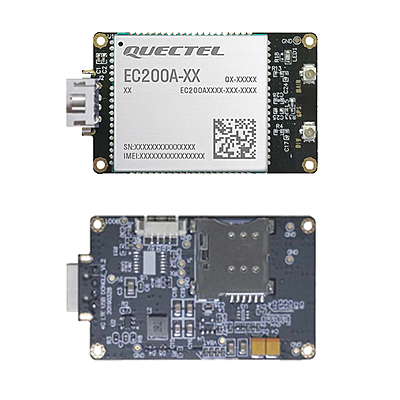

  Micro SIM Slot, Push Type

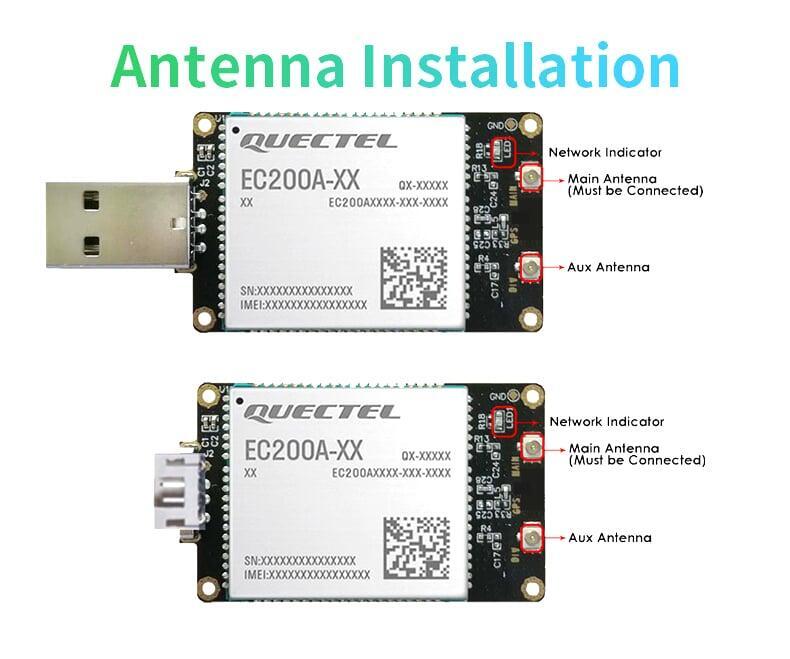

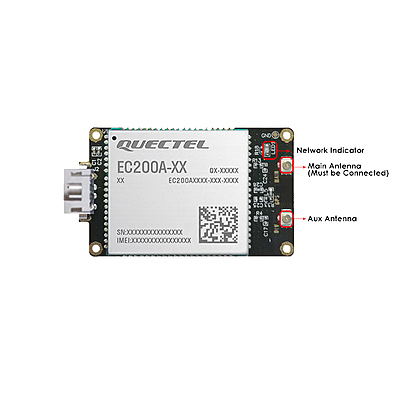

• Antennas

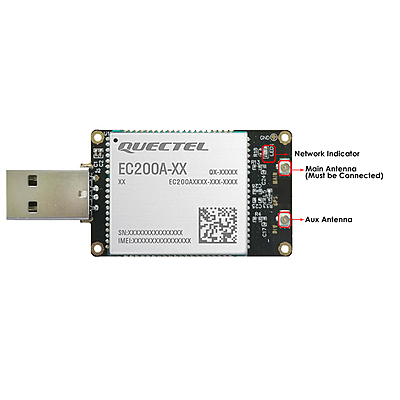

  IPEX Connector for Antennas
• Working Voltage
  3.6V (3.3V~4.2V Configurable for LTE Module)
• Operating Temp.
  -10°C~+60°C [14°F~140°F]
• Storage Temp.
  -40°C~+85°C [-40°F~185°F]

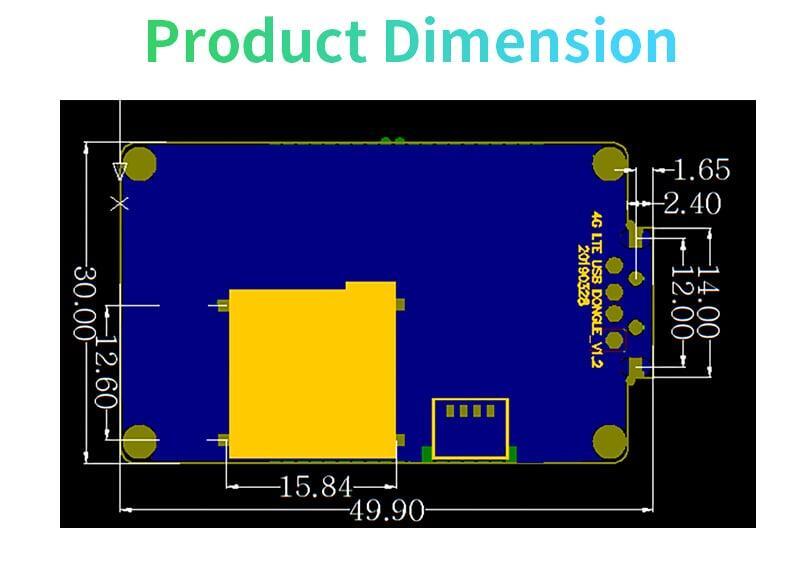

• Unit Dimension
  49*30*0.8mm[1.93*1.18*0.03in]
• Package Dimension
  12*65*1mm[4.72*2.56*0.04in]
• Net Weight
  13g[0.03lb, 0.46oz], FPC Antenna Excluded
• Gross Weight
  17g[0.04lb, 0.60oz]

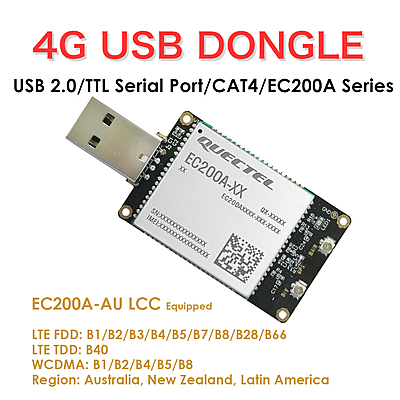

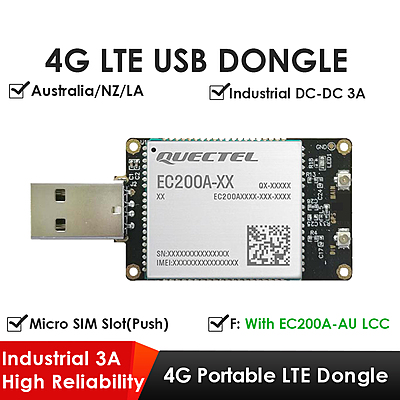

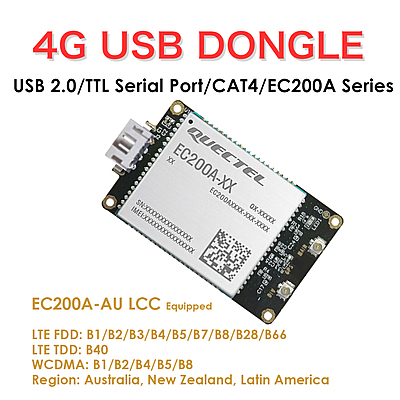

EC200A-AU LCC

• Region
  Australia/New Zealand/Latin America
• LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B28/B66
• LTE-TDD
  B40
• WCDMA
  B1/B2/B4/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  /
• Carrier
  /

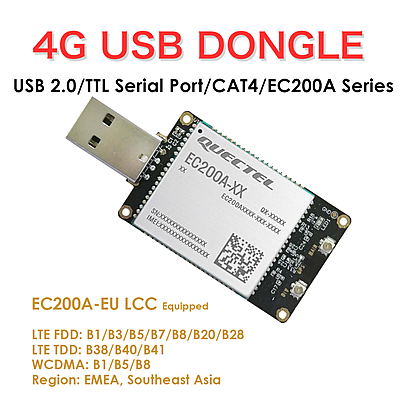

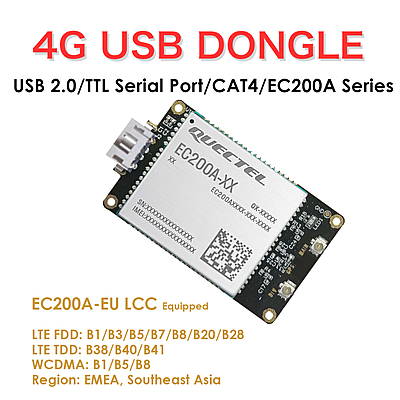

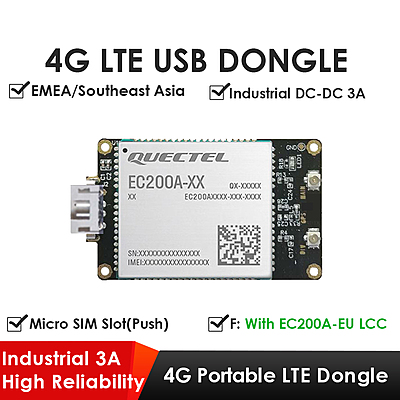

EC200A-EU LCC

• Region
  Europe/Asia-Pacific
• Europe/Asia-Pacific
  B1/B3/B5/B7/B8/B20/B28
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B5/B8
• GSM/EDGE
  B3
• GNSS
  /
• Carrier
  /

LTE CAT 4 of EC200A LCC

• Dimensions (mm)
  29.0 × 32.0 × 2.4 (EC200A);
• Weight (approx.) (g)
  4.3 (EC200A)

Temperature Ranges of EC200A LCC

• Operating temperature
  -35°C ~ +75°C
• Extended temperature
  -40°C ~ +85°C (EC200A);

Data transmission (Max.) of EC200A LCC

• LTE data rates (Mbps)
  LTE-FDD: 150 (DL)/50 (UL); LTE-TDD: 130 (DL)/30 (UL)
• DC-HSPA+ data rates (Mbps)
  21 (DL)/5.76 (UL)
• WCDMA data rates (Kbps)
  384 (DL)/384 (UL)
• EDGE data rates (Kbps)
  236.8 (DL)/236.8 (UL)
• GPRS data rates (Kbps)
  85.6 (DL)/85.6 (UL)
• SMS
  ●
• CSD
  ●
• Protocols
  TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HTTPS/FTPS/SSL/FILE/MQTT/MMS/SMTP/SMTPS

Interfaces of EC200A LCC

• (U)SIM
  ×1
• UART
  ×2 (EC200A); ×1 (EC200A Mini PCIe)
• USB
  ×1
• l2C
  ×1
• Audio digital (PCM)
  ×1
• SDIO
  ×2
• ADC
  ×2, 12bits(EC200A)
• Antenna
  ×1 Main, ×1 Rx-diversity (optional), ×1 GNSS (optional)

Enhanced features of EC200A LCC

• GNSS
  Optional
• Wi-Fi scan
  /
• BlueTooth
  /
• Digital audio
  ●
• VoLTE
  ●
• DTMF
  ●
• DFOTA
  ●
• Audio playback/Audio recording
  ●
• QuecFile
  ●
• USB serial driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7, Android 4.x~13.x
• GNSS driver
  Android 4.x~13.x
• RIL driver
  Android 4.x~13.x
• RNDIS driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7
• ECM driver
  Linux 2.6~6.7
• (U)SIM card detection
  ●
• Firmware update
  Via USB/DFOTA

Electrical features of EC200A LCC

• Supply voltage range
  3.4 V ~ 4.5 V, typ. 3.8 V (EC200A);
• Power consumption
  11 μA @Power off mode/1.1 mA @LTE sleep mode (PF=256), Typ/18 mA @Idle mode (EC200A);
• Certifications
  Regulatory Certifi cation: CCC/SRRC/NAL/CE/UKCA/RCM/KC/NCC/FCC/Anatal
