USB 2.0 with 4PIN PH1.25 Connector: Offers reliable connectivity for embedded applications.
Mini PCIe Slot for LTE Modules: Compatible with 4G LTE modules like Quectel EC25 for seamless LTE connectivity.
SIM Card Slot Included: Supports mobile network connections for IoT and M2M applications.
Compact and Robust Design: Perfect for industrial environments and long-term reliability.
Versatile Compatibility: Ideal for Raspberry Pi, IoT devices, and industrial routers.
Redeem RVFGV2MJF2XJ to save 10%!
$10.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

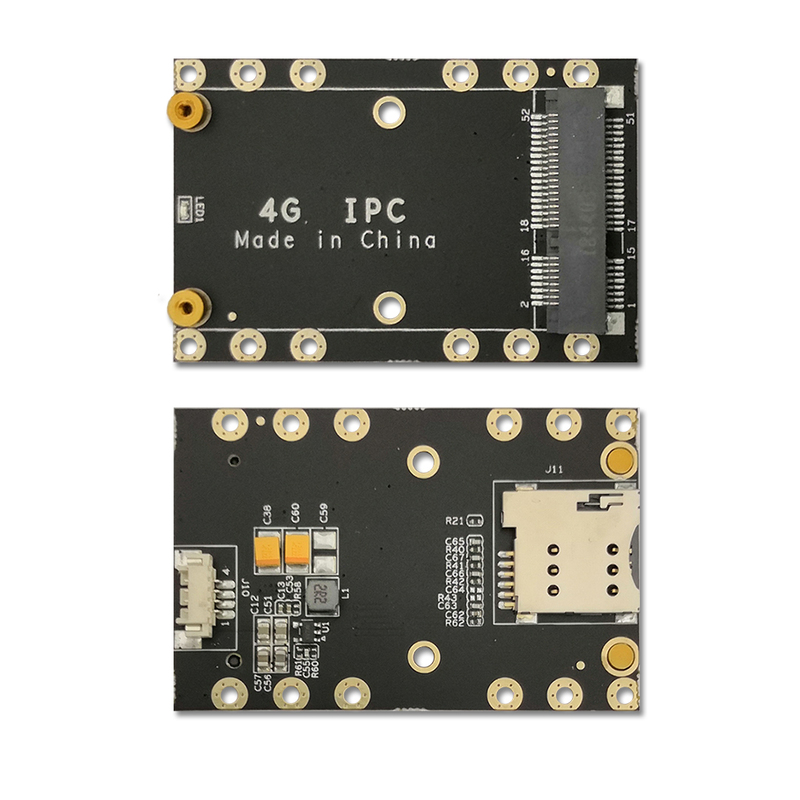

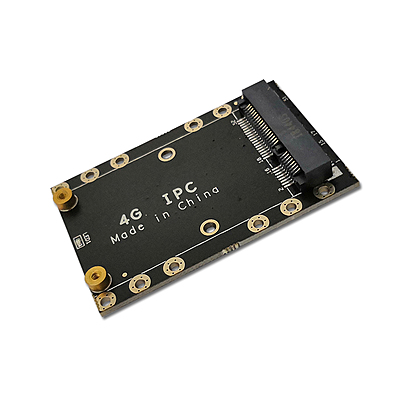

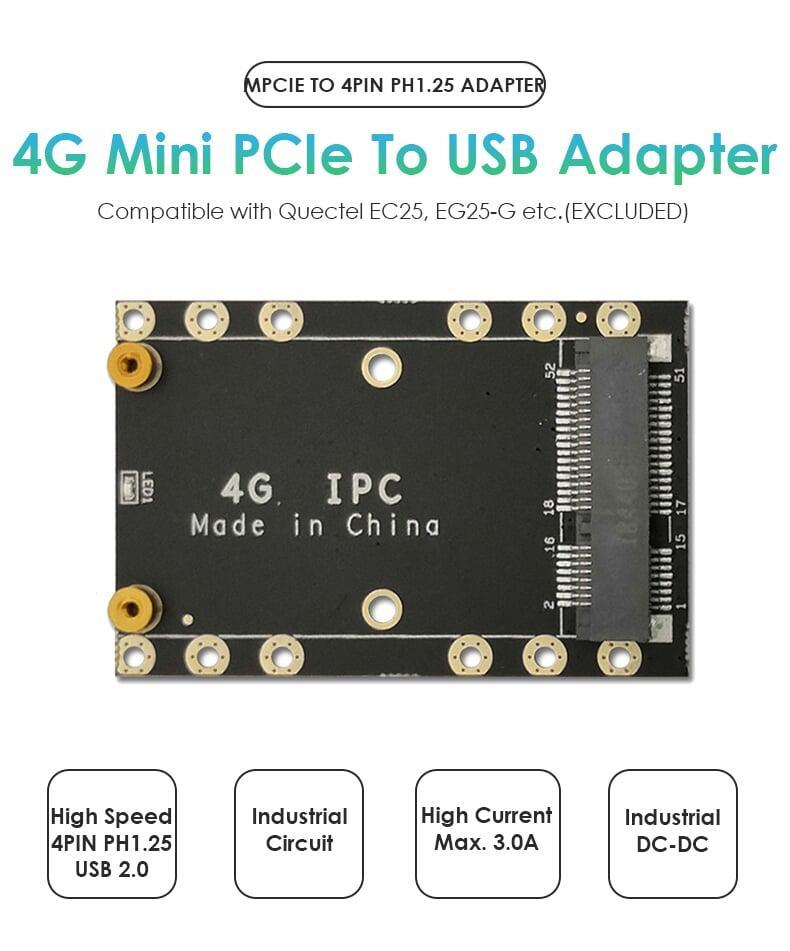

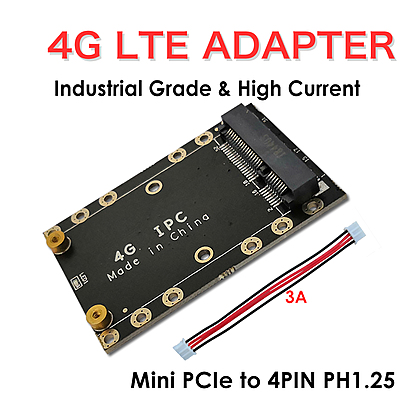

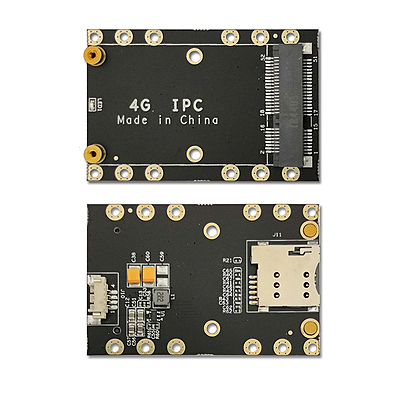

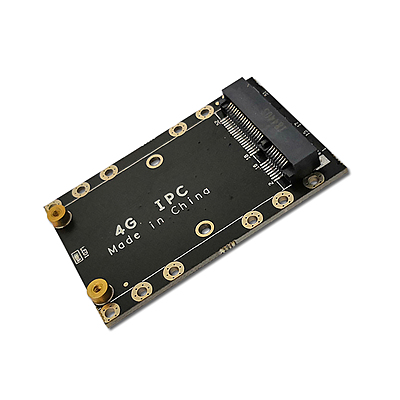

4G LTE Mini PCIe to 4PIN PH1.25 USB Adapter with SIM Slot – USB 2.0 Connector
Multiple OS Supported

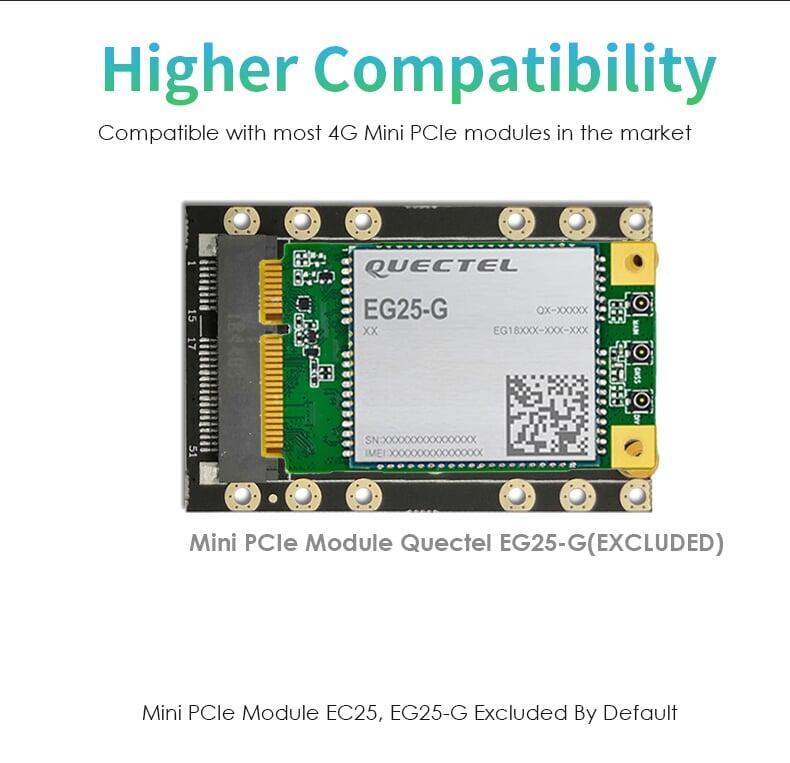

Higher Compatibility

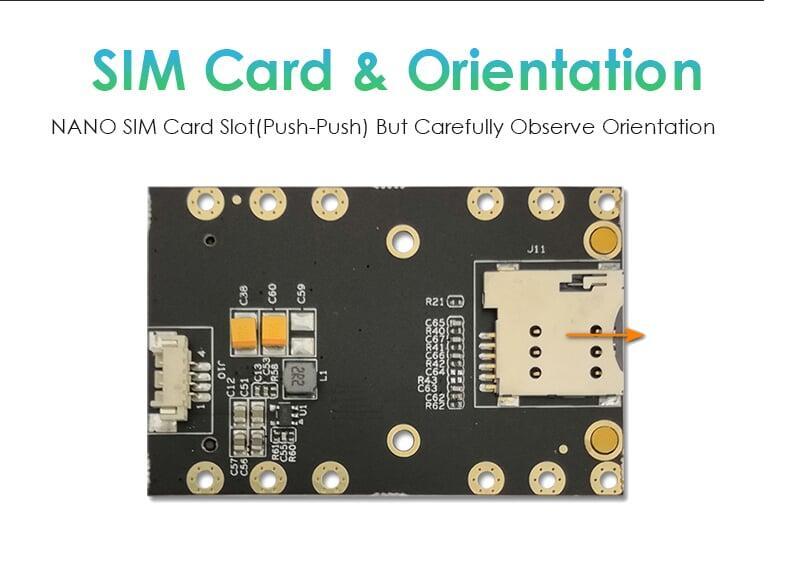

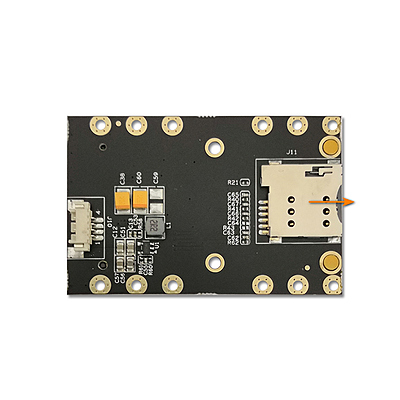

SIM Card & Orientation

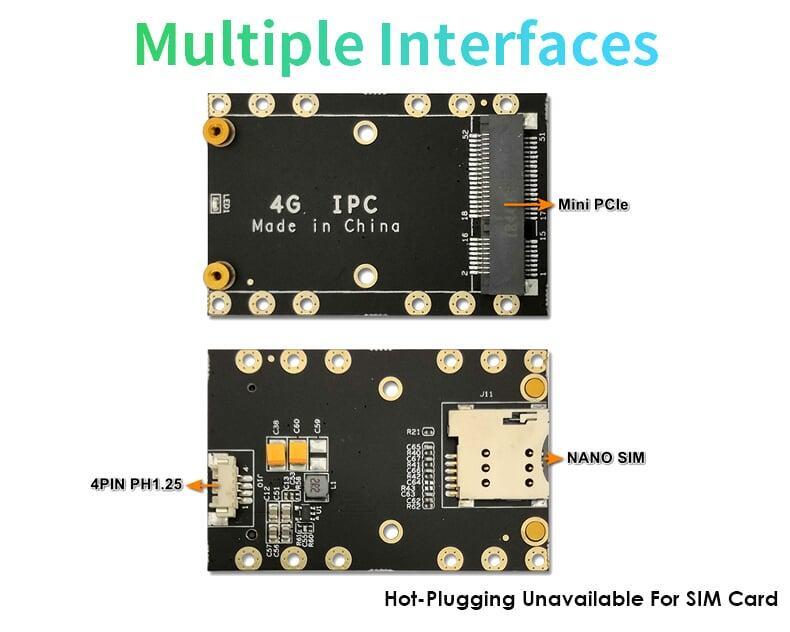

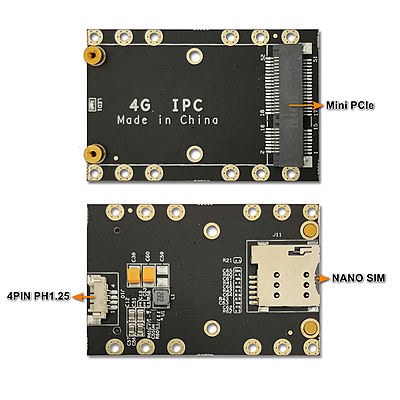

Multiple Interfaces
Rapid Deployment of IOT

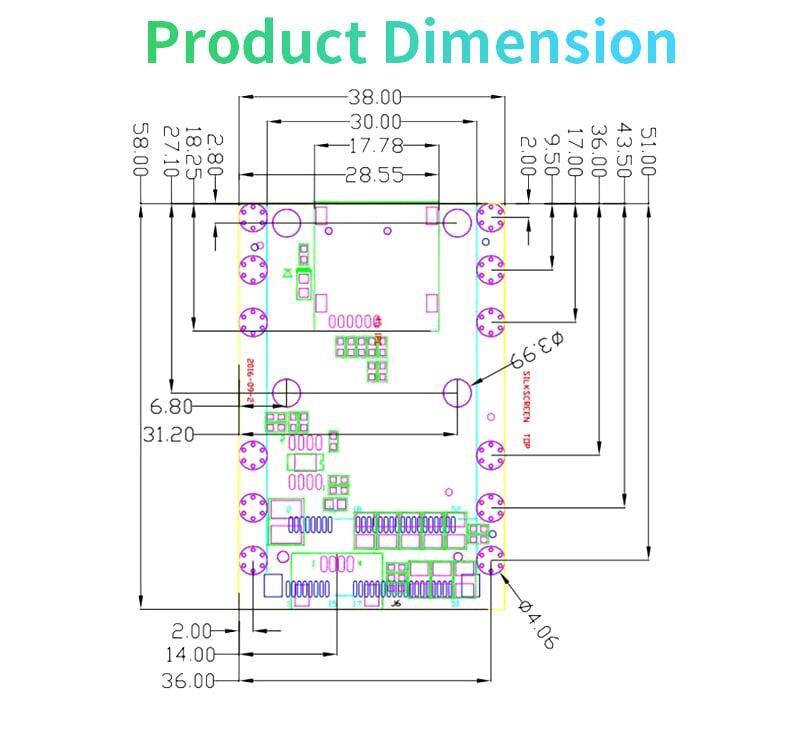

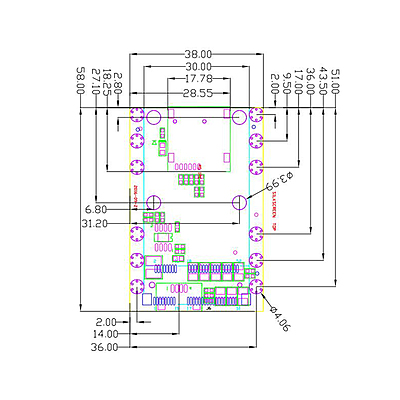

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 4G LTE Mini PCIe to 4PIN PH1.25 Adapter
- Part Number4GIPC
- LTE ModuleCompatible with 4G Mini PCIe Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module
- SIM SlotNANO SIM Slot, Push Type, Hot-Plugging Available
- Working Voltage3.6V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]
- Unit Dimension58x38x0.5mm[2.28x1.5x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
