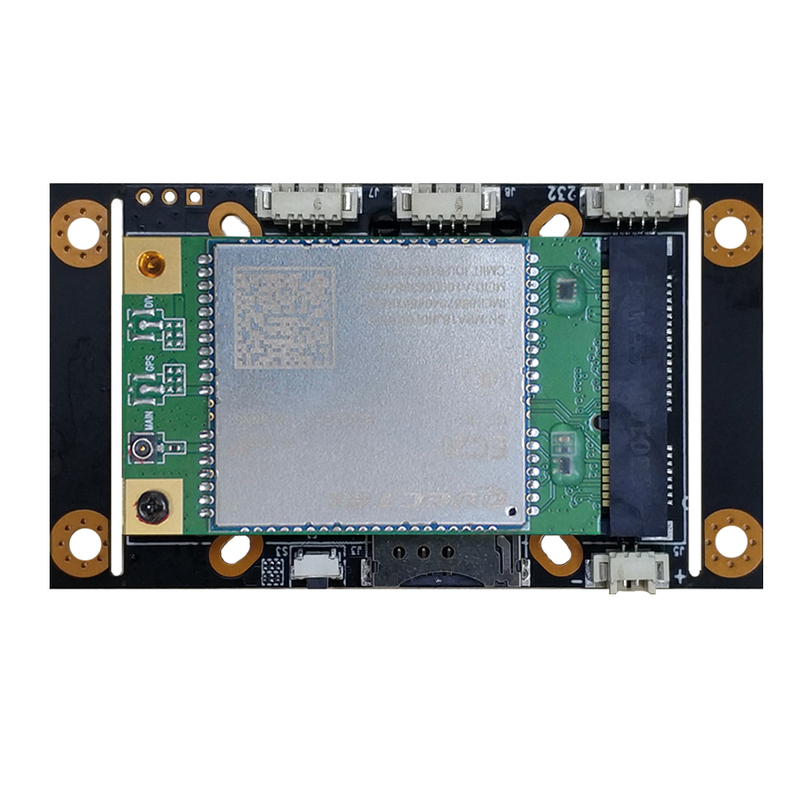

    4G LTE Industrial WiFi Wireless Router W/SIM Card Slot EG25-G Mini PCIe Modem LTE FDD Global Version VPN Data Pass-Through

    OEM/ODM Services Available
    Save 7% $125.57 USD $135.57 USD
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    Module
    EG25-G
    Serial Port
    TTL+RS232
    TTL+RS485
    Ethernet Port
    RJ45 Port
    JST (4PIN PH1.25)
    Antenna
    W/O GPS Antenna
    W/GPS Antenna

    Overview

    V518 adopts high performance 32-bit processor, which is able to process protocols and huge data with high speed. It can be well matched with multi 3G/4G industrial modules (3G: WCDMA/EVDO/TD-SCDMA, 4G: TD-LTE/FDD-LTE). It’s built-in with 100M ethernet interface, 300M WIFI wireless interface, comm port, which can be integrated with multi terminal devices. Basic settings like WEB configuration, device management and remote control are all supported.

    Applicable industries:

    • Electrical, oil, coal, finance, communication, public security, heat, industrial control, meteorological, water conversancy, transportation, municipal administration etc.

    Key Benefits

    • Auto Detection, Auto Reboot When Failed to Dial, Timing Reboot.
    • VPN Client and Server Mode.
    • Support VPDN Services by More Than 200 Global Carriers.
    • Multiple DDNS Dynamic Domain Service.
    • Site Control, Port Mapping, DMZ Host, Firewall etc.
    • MAC Black/White List.
    • Singly User Management(Access/Connection Authorization etc.).
    • Remote Cloud Management.
    • Software Watchdog Design to Ensure It will be Online for 7*24H.
    • Compatible with Most of 4G Module, Auto/Manual 2G/3G/4G.
    • Compatible with Multiple Card of IOT, Customized APN.
    • Smart Backup Between Dual Wireless Network.
    • Smart Backup between Wired and Wireless Network.
    • Attached Clout Management Platform(Developing).

    Specification

    SOC  MT7628
    Flash 1Gb/64Mb
    WIFI(2.4G)

    Standard: IEEE802.11bgn 300Mbps(2T2R)

    Transmission Power: 11n HT40 MCS7 15dBm/11b CCK 18dBm/11G OFDM 15dBm

    Receiving Sensitivity: -65dBm at 300Mbps/-73dBm at 54Mbps/-86dBm at 11Mbps

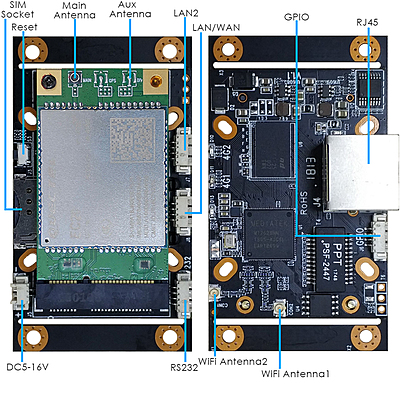

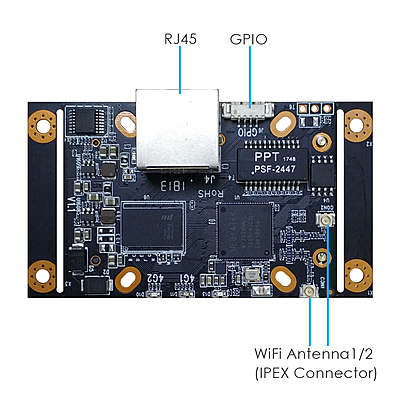

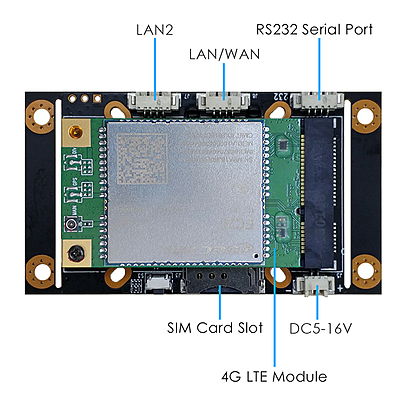

    Network Interface

    LAN/WAN Pin Interface x 1(10/100Mbps Adaptive), Ethernet Port Can Be Welded If Needed;

    LAN2 Pin Interface x 1(10/100Mbps Adaptive)

    COMM(RS232) Snap-in Interface (TTL 3.3V or RS232 5V), RS232 By Default
    Antenna  WIFI Omnidirectional IPEX Antennax 2, 4G Omnidirectional IPEX Antennax 1
    SIM Card Slot  Micro SIM slot, Gap Outwarded, Hot-Plugged Not Supported
    Button Reset Button(Press For More Than 5 Seconds to Reset)
    Indicator

    4G LED(Green): Steady Green When Connected, Quick Flash When Dialing, Slow Flash For Failed Connection;

    Signal LED(Red): Red When Signal is Bad;

    Signal LED(Green): Green When Signal Is Strong;

    Signal LEDx 2 Both Not Lit Means No Signal, No SIM Card, No 4G Module

    Power Supply DC Pin(with snap-in) 5~16V/2A, 12V Recommended
    Power Consumption Less Than 500mA When Powered by 12V(Full Load))
    Network Connection 3G/4G, Wire, Wireless, Bridge, Relay, WISP, Intelligent Backup Mode
    Software Features

    Multiple modes (4G/Wire Gateway/Wireless/Wireless Bridge/Wireless Hotspot/Wireless Relay);

    APN Auto Detection(more than 400 ISP supported) and APN customization;

    RS232 Pass-through(Data Control/Customized Registration Pack/Customized Keep-Alive Pack;

    RS232 Pass-through(Server and Client Simultaneously Work/Serial Port Data Statistics);

    VPN(L2TP Server and Client/PPTP Server and Client);

    Network Keep-Alive Mechanism(ICMP/DNS Detection);

    Auto Reboot(Timing or Reboot when free);

    DDNS(Oray or other ISP supported), UPNP, Access Control, Firewall, Port Mapping, DMZ;

    WOL Local Broadcast Discovery Protocol Interface (Used for Discovering Local Devices);

    HTTP Protocol Control Interface (Used for Controlling the Device).

    Developing Port

    Local Broadcast Discovery Protocol Interface(Used for Discovering Local Devices;

    HTTP Protocol Control Interface(Used for Controlling the Device);

    Telnet Command Control Interface;

    Remote Cloud HTTP Control Interface(Used for Integration with Cloud Platform Management);

    Please Contact Sales for Protocols in Detail.

    SDK  SDK for Farm, Can Develop Related Application Based On This SDK
    Device Management

    Network Time Synchronization, Synchroninzed with PC and Cellphone;

    Backup and Import Configuration;

    Online and Local Upgrade;

    Remote Management;

    Telnet (Terminal) Command, Serial Port (TTL) Command;

    LED Indicator On/Off, Local and Remote Log.

    Max. Users Wireless Connection: 60nos, Wired Connection: 100nos (Theoretically)
    Browsers Requirement IE9.0/Chrome 60.0.0/Firefox 55.0.0/ Safari:5.0.0 Later Version
    Working Temperature -20°C ~ +70°C (-20°F ~ +158°F)
    Storage Temperature -20°C ~ +85°C (-20°F ~ +185°F)
    Dimension 73.4mm*42mm*11.8mm (With Side Board and Position Hole)

    Operation Band

    LTE Cat 4 EC25-E EC25-EU EC25-EUX EC25-J
    Region/Operator EMEA/South Korea/Thailand/India EMEA/Thailand EMEA/Thailand Japan
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B7/B8/B20/B28A B1/B3/B8/B18/B19/B26
    LTE-TDD B38/B40/B41 B38/B40/B41 B38/B40/B41 B41
    WCDMA B1/B5/B8 B1/B8 B1/B8 B1/B6/B8/B19
    GSM/EDGE B3/B8  B3/B8  B3/B8  /
    GNSS GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier Global: Vodafone
    Europe: Deutsche Telekom/Telefónica
    South Korea: SKT/KT*/LGU+*
    Europe: Deutsche Telekom/
    British Telecom
    / Japan: NTT DOCOMO/SoftBank/KDDI
    Regulatory Global: GCF
    Europe: CE
    South Korea: KC
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Thailand: NBTC
    Russia: FAC
    South Africa: ICASA
    Global: GCF
    Europe: CE
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Global: GCF
    Europe: CE
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Japan: JATE/TELEC
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL)
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) /
    GPRS Data Rates (kbps) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) /
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 2 x 2 x 2 x 2
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    I2C x 1 x 1 x 1 x 1
    SDIO x 2 x 2 x 1 x 2
    SGMII x 1 x 1 x 1 x 1
    Bluetooth* x 1 x 1 / x 1
    ADC x 2 x 2 x 2 x 2
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator®
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    / Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 3.9 mA @ Sleep, Typ.
    30 mA @ Idle
    3.4 mA @ Sleep, Typ.
    23.3 mA @ Idle
    1.69 mA @ Sleep, Typ.
    18.51 mA @ Idle
    3.2 mA @ Sleep, Typ.
    31.5 mA @ Idle



    LTE Cat 4 EC25-A Mini PCIe EC25-V Mini PCIe EC25-AF Mini PCIe EC25-AFX Mini PCIe
    Region/Operator North America America Verizon North America North America
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B2/B4/B12 B4/B13 B2/B4/B5/B12/B13/B14/B66/ B2/B4/B5/B12/B13/B14/B66/B71
    LTE-TDD / / / /
    WCDMA B2/B4/B5 / B2/B4/B5 B2/B4/B5
    GSM/EDGE /  /  /  /
    GNSS GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier America: AT&T/T-Mobile
    Canada: Rogers/Telus
    America: Verizon America: Verizon/
    AT&T (FirstNet)/T-Mobile
    Canada: Rogers/Telus
    America: Verizon/
    AT&T (FirstNet)*
    Regulatory America: FCC
    North America: PTCRB
    Canada: IC
    Global: GCF
    America: FCC
    Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC
    Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) / / / /
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) / 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) / / / /
    GPRS Data Rates (kbps) / / / /
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    LED_WWAN# x 1 x 1 x 1 x 1
    W_DISABLE# x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    PERST# x 1 x 1 x 1 x 1
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator® *
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 3.6 mA @ Sleep, Typ.
    27 mA @ Idle
    3.4 mA @ Sleep, Typ.
    30 mA @ Idle
    2.2 mA @ Sleep, Typ.
    21.7 mA @ Idle
    1.67 mA @ Sleep, Typ.
    22 mA @ Idle



    LTE Cat 4 EC25-MX Mini PCIe EC25-AU Mini PCIe EC25-AUX Mini PCIe EG25-G Mini PCIe
    Region/Operator Mexico Latin America/Australia/New Zealand Latin America/Australia/New Zealand Global
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B2/B4/B5/B7/B28/B66 B1/B2①/B3/B4/B5/B7/B8/B28 B2/B4/B5/B12/B13/B14/B66/ B1/B2/B3/B4/B5/B7/B8/B12/B13/
    B18/B19/B20/B25/B26/B28
    LTE-TDD / B40 B40 B38/B39/B40/B41
    WCDMA B2/B4/B5 B1/B2/B5/B8 B1/B2/B4/B5/B8 B1/B2/B4/B5/B6/B8/B19
    GSM/EDGE / B2/B3/B5/B8 B2/B3/B5/B8 B2/B3/B5/B8
    GNSS / GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier / Australia: Telstra / Europe: Deutsche Telekom
    America: Verizon/AT&T/U.S. Cellular
    Canada: Telus/Rogers*
    Regulatory America: FCC
    North America: PTCRB
    Mexico: IFETEL
    Global: GCF
    America: FCC
    Taiwan (China): NCC
    Brazil: Anatel
    Australia/New Zealand: RCM
    Europe: CE
    America: FCC
    Taiwan (China): NCC
    Brazil: Anatel
    Australia/New Zealand: RCM
    Global: GCF
    Europe: CE
    UK: UKCA
    North America: PTCRB
    America: FCC
    Canada: IC
    Brazil: Anatel
    Mexico: IFETEL
    South Korea: KC
    Taiwan(China): NCC
    Japan: JATE/TELEC
    Australia & New Zealand: RCM
    South Africa: ICASA
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) / 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL)
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) / 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL)
    GPRS Data Rates (kbps) / 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL)
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    LED_WWAN# x 1 x 1 x 1 x 1
    W_DISABLE# x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    PERST# x 1 x 1 x 1 x 1
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator®
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver / Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM / Windows 8/8.1/10,
    Linux 3.18–5.4
    / Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 1.55 mA @ Sleep, Typ.
    20 mA @ Idle
    2.6 mA @ Sleep, Typ.
    22 mA @ Idle
    1.9 mA @ Sleep, Typ.
    23.4 mA @ Idle
    1.9 mA @ Sleep, Typ.
    23.4 mA @ Idle

    User Manual
