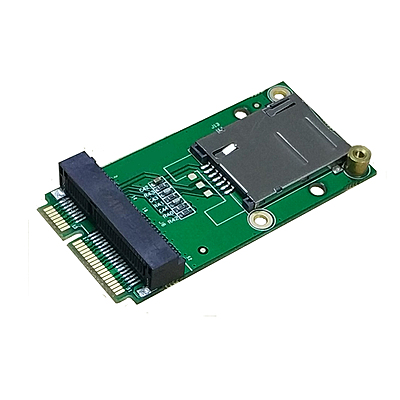

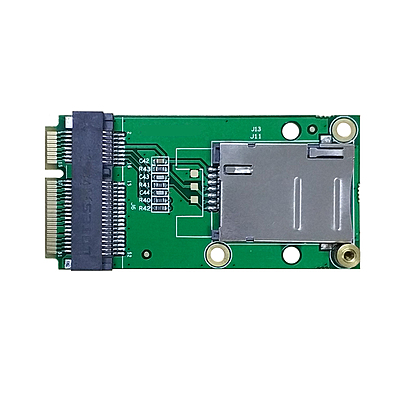

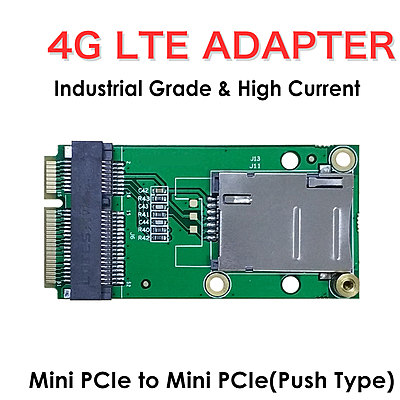

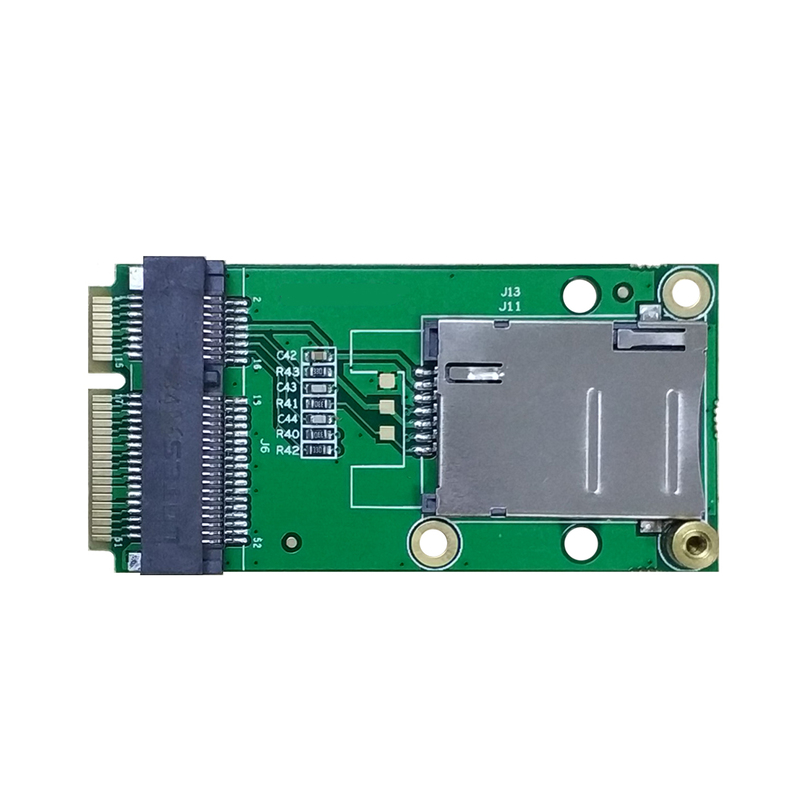

4G LTE Industrial Mini PCIe to Mini PCIe Adapter W/SIM Card Slot(Push-Push Type) for WWAN/LTE 3G/4G Module

Name: 4G LTE Industrial Mini PCIe to Mini PCIe Adapter W/SIM Card Slot(Push-Push Type) for WWAN/LTE 3G/4G Module
Brand: EXVIST
SKU: 030029200PP
Price: 10.57 USD
Availability: InStock
Rating: 0 (0 reviews)

Save 49% $10.57 USD $20.57 USD

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Buy in Amazon

AMAZON US AMAZON CA AMAZON UK AMAZON DE AMAZON FR AMAZON IT AMAZON ES AMAZON NL AMAZON SE AMAZON PL AMAZON TR AMAZON JP AMAZON SA

Overview

Advantages

This is Mini PCIe interface with all pins drawn out and built-in SIM socket, which is much more convenient for users to connect when industrial motherboards is without SIM card socket, this is what you want.
Two different SIM card socket, Push-Push type by default.

Specification

Basics

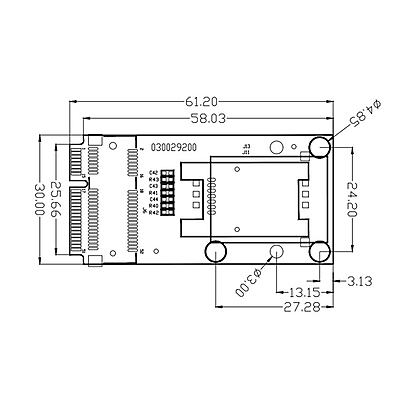

Dimension: 61.2mm(L)x24.2mm(W)
Mini PCIe to Mini PCIe Adapter
The design of Mini PCI-E is compliant with industrial criteria V1.3.
Applicable for half & full height module(WWAN/3G/4G/WiFi Module).
LED indicator will be always on when it it working.
Pure hardware design, no driver needed.

Package Contents

1x 4G LTE Industrial Mini PCIe to Mini PCIe Adapter(Packed in Antistatic Bag)
1x Matched Screw

Compatible Module

LTE Cat 4	EC25-E	EC25-EU	EC25-EUX	EC25-J
Region/Operator	EMEA/South Korea/Thailand/India	EMEA/Thailand	EMEA/Thailand	Japan
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B1/B3/B5/B7/B8/B20	B1/B3/B7/B8/B20/B28A	B1/B3/B7/B8/B20/B28A	B1/B3/B8/B18/B19/B26
LTE-TDD	B38/B40/B41	B38/B40/B41	B38/B40/B41	B41
WCDMA	B1/B5/B8	B1/B8	B1/B8	B1/B6/B8/B19
GSM/EDGE	B3/B8	B3/B8	B3/B8	/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	Global: Vodafone Europe: Deutsche Telekom/Telefónica South Korea: SKT/KT/LGU+	Europe: Deutsche Telekom/ British Telecom	/	Japan: NTT DOCOMO/SoftBank/KDDI
Regulatory	Global: GCF Europe: CE South Korea: KC Taiwan (China): NCC Australia/New Zealand: RCM Thailand: NBTC Russia: FAC South Africa: ICASA	Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM	Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM	Japan: JATE/TELEC
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	/
GPRS Data Rates (kbps)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	/
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 2	x 2	x 2	x 2
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
I2C	x 1	x 1	x 1	x 1
SDIO	x 2	x 2	x 1	x 2
SGMII	x 1	x 1	x 1	x 1
Bluetooth*	x 1	x 1	/	x 1
ADC	x 2	x 2	x 2	x 2
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	●	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	/	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	3.9 mA @ Sleep, Typ. 30 mA @ Idle	3.4 mA @ Sleep, Typ. 23.3 mA @ Idle	1.69 mA @ Sleep, Typ. 18.51 mA @ Idle	3.2 mA @ Sleep, Typ. 31.5 mA @ Idle

LTE Cat 4	EC25-A Mini PCIe	EC25-V Mini PCIe	EC25-AF Mini PCIe	EC25-AFX Mini PCIe
Region/Operator	North America	America Verizon	North America	North America
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B2/B4/B12	B4/B13	B2/B4/B5/B12/B13/B14/B66/	B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD	/	/	/	/
WCDMA	B2/B4/B5	/	B2/B4/B5	B2/B4/B5
GSM/EDGE	/	/	/	/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	America: AT&T/T-Mobile Canada: Rogers/Telus	America: Verizon	America: Verizon/ AT&T (FirstNet)/T-Mobile Canada: Rogers/Telus	America: Verizon/ AT&T (FirstNet)*
Regulatory	America: FCC North America: PTCRB Canada: IC	Global: GCF America: FCC	Global: GCF America: FCC North America: PTCRB Canada: IC	Global: GCF America: FCC North America: PTCRB Canada: IC
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	/	/	/	/
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	/	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	/	/	/	/
GPRS Data Rates (kbps)	/	/	/	/
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
LED_WWAN#	x 1	x 1	x 1	x 1
W_DISABLE#	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
PERST#	x 1	x 1	x 1	x 1
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	*	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	3.6 mA @ Sleep, Typ. 27 mA @ Idle	3.4 mA @ Sleep, Typ. 30 mA @ Idle	2.2 mA @ Sleep, Typ. 21.7 mA @ Idle	1.67 mA @ Sleep, Typ. 22 mA @ Idle

LTE Cat 4	EC25-MX Mini PCIe	EC25-AU Mini PCIe	EC25-AUX Mini PCIe	EG25-G Mini PCIe
Region/Operator	Mexico	Latin America/Australia/New Zealand	Latin America/Australia/New Zealand	Global
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B2/B4/B5/B7/B28/B66	B1/B2①/B3/B4/B5/B7/B8/B28	B2/B4/B5/B12/B13/B14/B66/	B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28
LTE-TDD	/	B40	B40	B38/B39/B40/B41
WCDMA	B2/B4/B5	B1/B2/B5/B8	B1/B2/B4/B5/B8	B1/B2/B4/B5/B6/B8/B19
GSM/EDGE	/	B2/B3/B5/B8	B2/B3/B5/B8	B2/B3/B5/B8
GNSS	/	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	/	Australia: Telstra	/	Europe: Deutsche Telekom America: Verizon/AT&T/U.S. Cellular Canada: Telus/Rogers*
Regulatory	America: FCC North America: PTCRB Mexico: IFETEL	Global: GCF America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM	Europe: CE America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM	Global: GCF Europe: CE UK: UKCA North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL South Korea: KC Taiwan(China): NCC Japan: JATE/TELEC Australia & New Zealand: RCM South Africa: ICASA
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	/	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	/	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)
GPRS Data Rates (kbps)	/	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
LED_WWAN#	x 1	x 1	x 1	x 1
W_DISABLE#	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
PERST#	x 1	x 1	x 1	x 1
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	●	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	/	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	/	Windows 8/8.1/10, Linux 3.18–5.4	/	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	1.55 mA @ Sleep, Typ. 20 mA @ Idle	2.6 mA @ Sleep, Typ. 22 mA @ Idle	1.9 mA @ Sleep, Typ. 23.4 mA @ Idle	1.9 mA @ Sleep, Typ. 23.4 mA @ Idle
