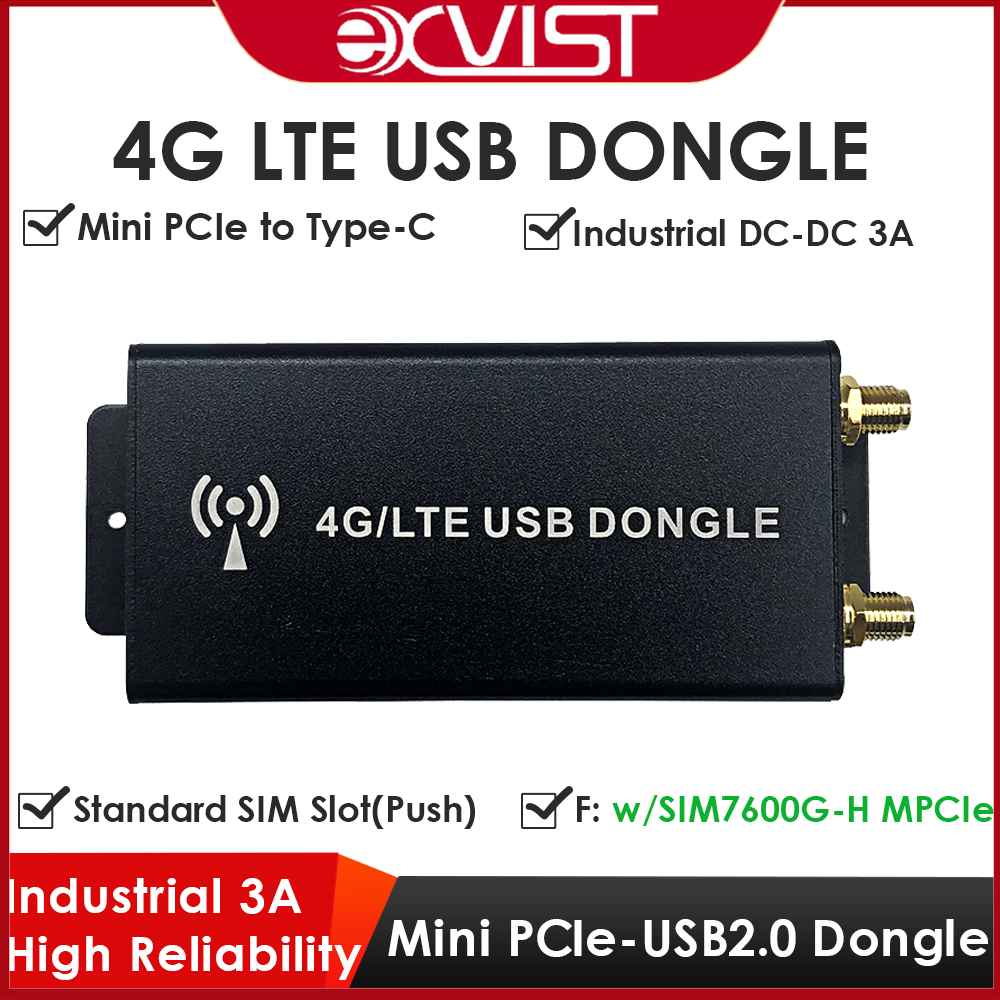

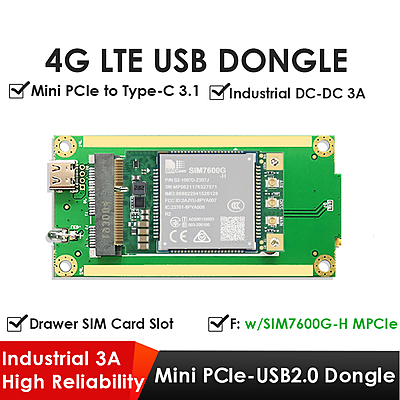

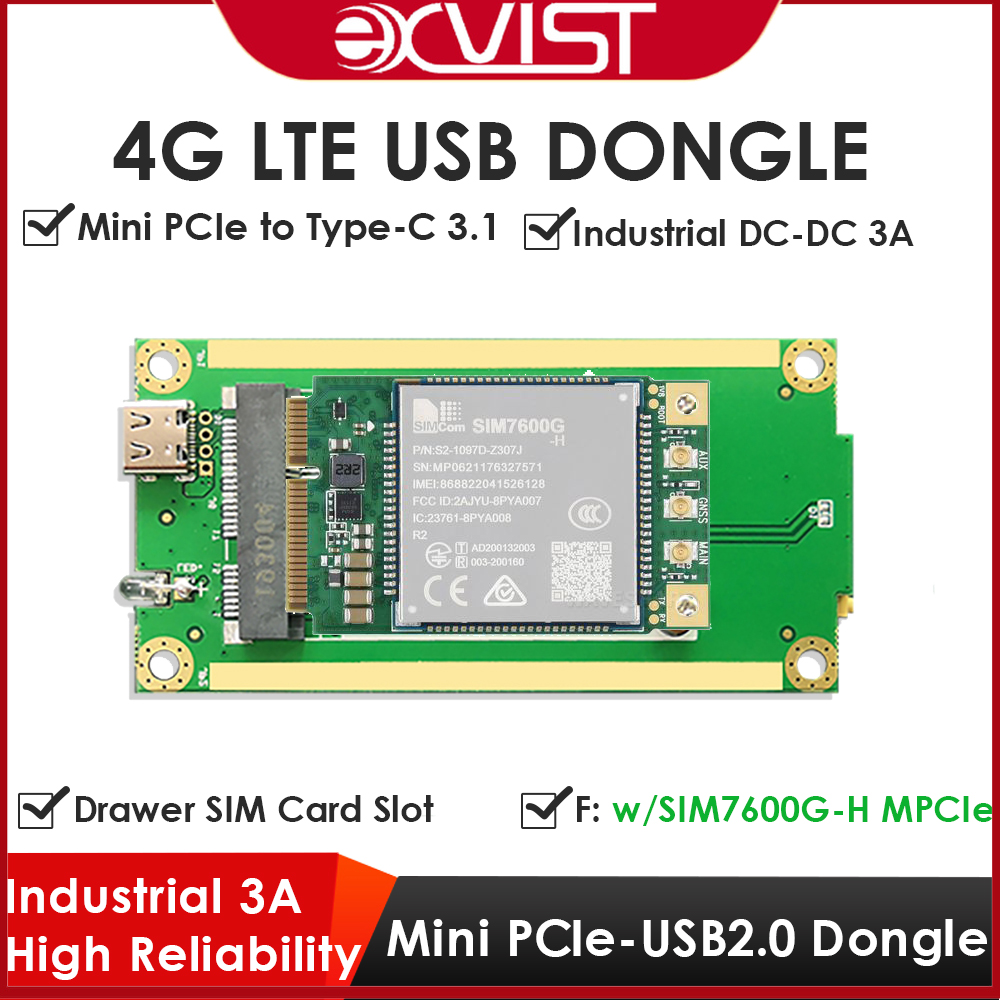

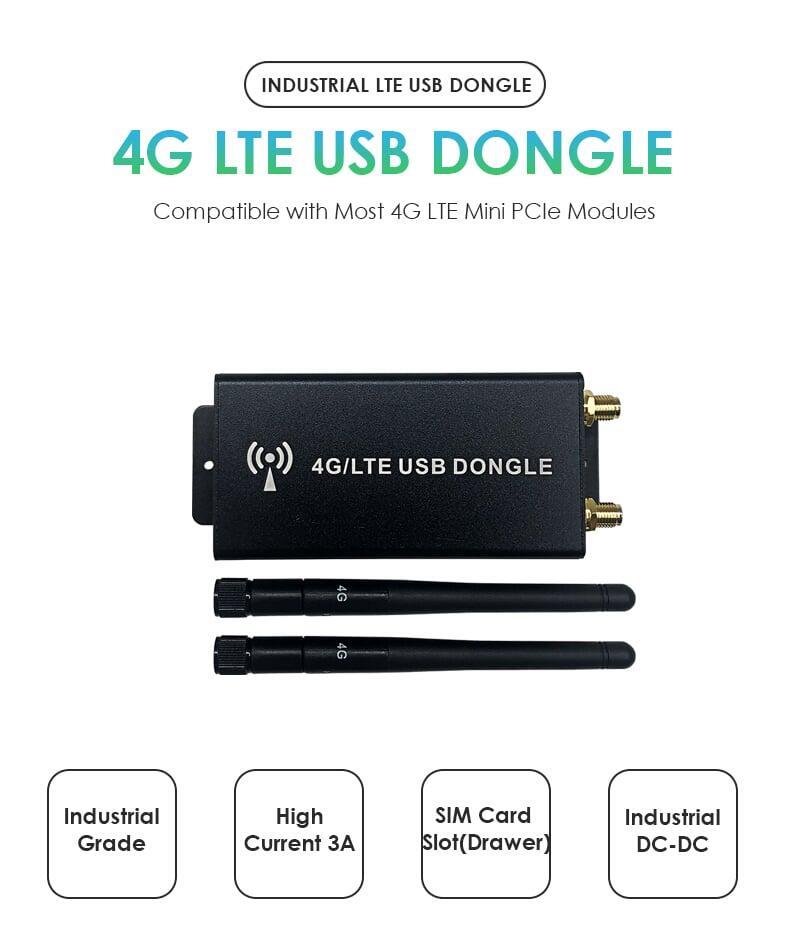

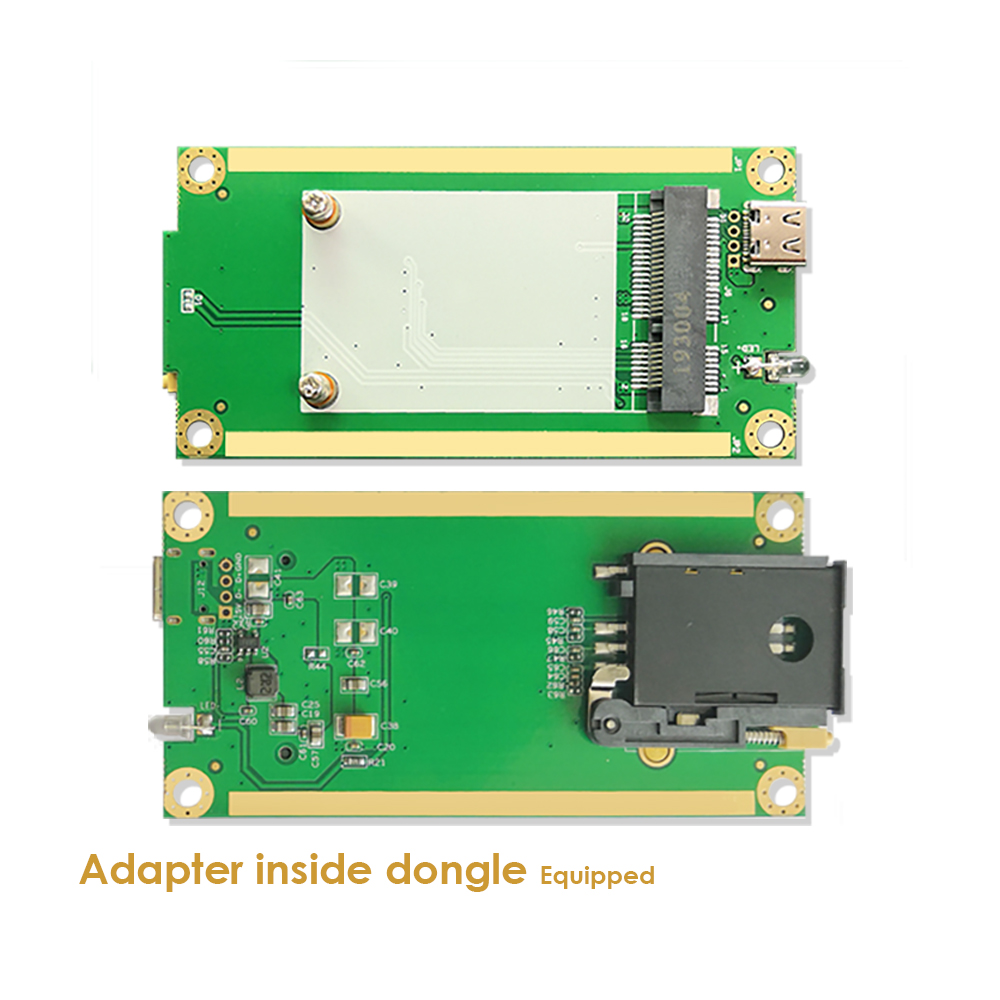

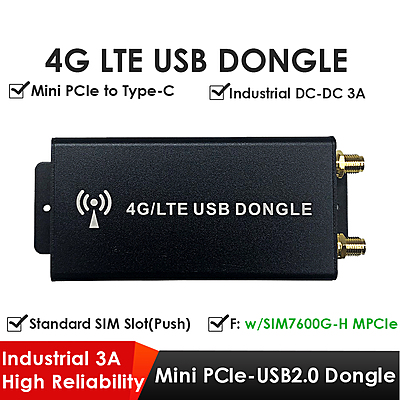

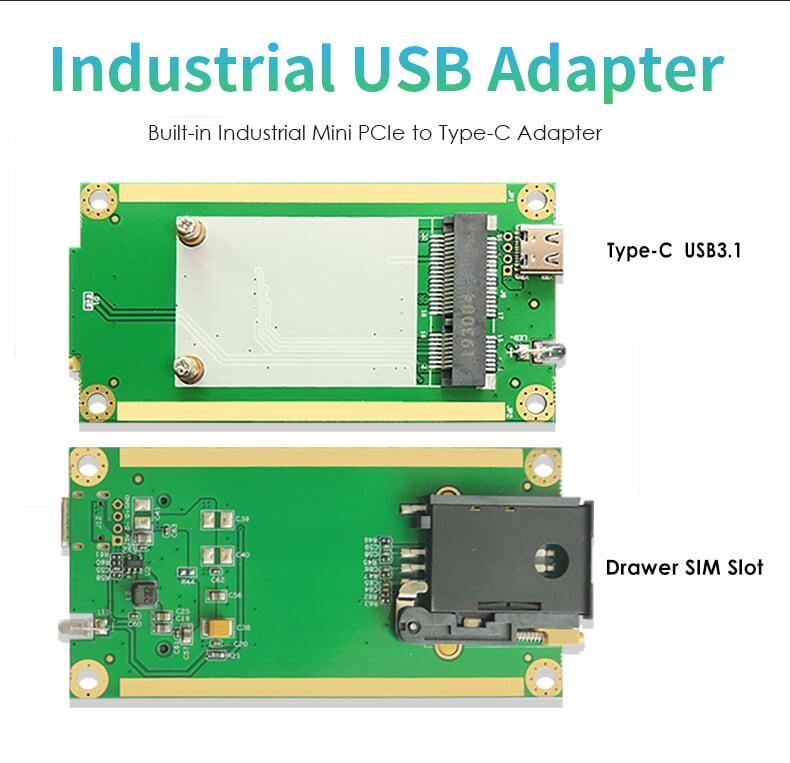

4G LTE Dongle with SIM7600G-H R2 Mini PCIe Module, Mini PCIe to USB Type-C Adapter, Drawer SIM Slot for Global IoT/M2M Deployments

Parameters of Dongle

• LTE Module
  with SIMCOM SIM7600G-H R2 Mini PCIe Module
• Data Rates
  150(DL)/50(UL), Depends on the 4G module you mount
• OS Supported
  Windows/Linux/Android

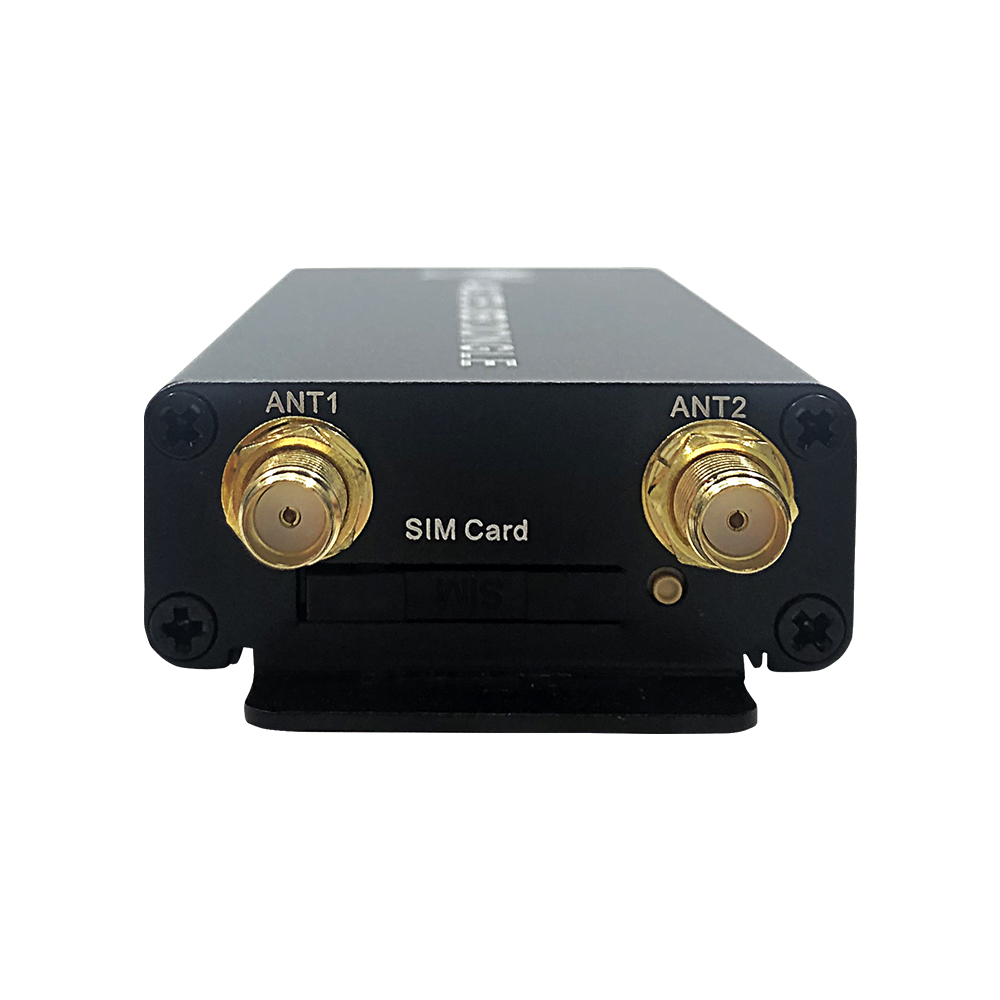

• SIM Slot
  Standard SIM Slot, Drawer Type

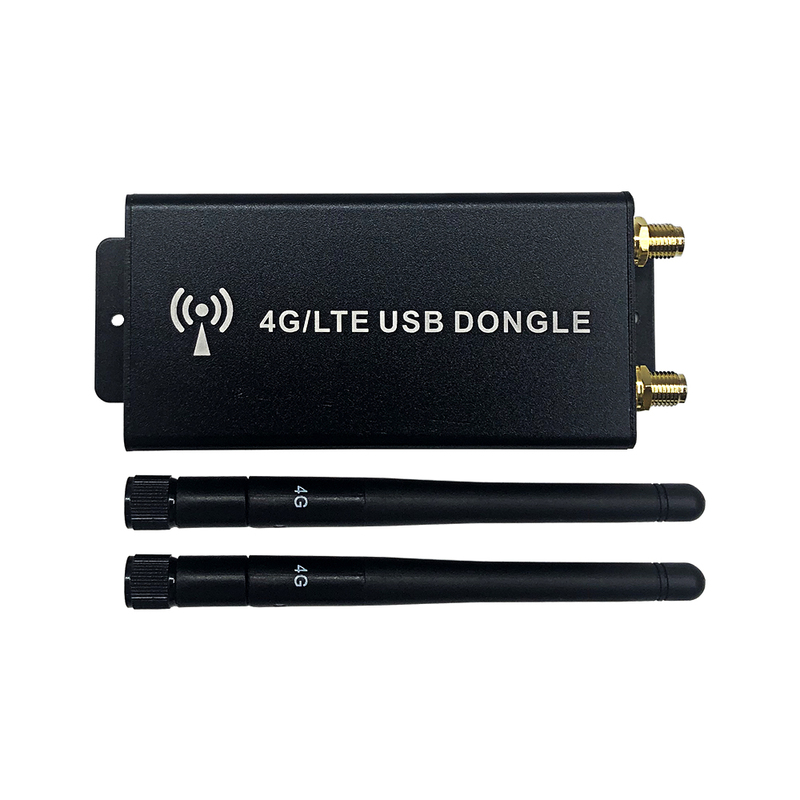

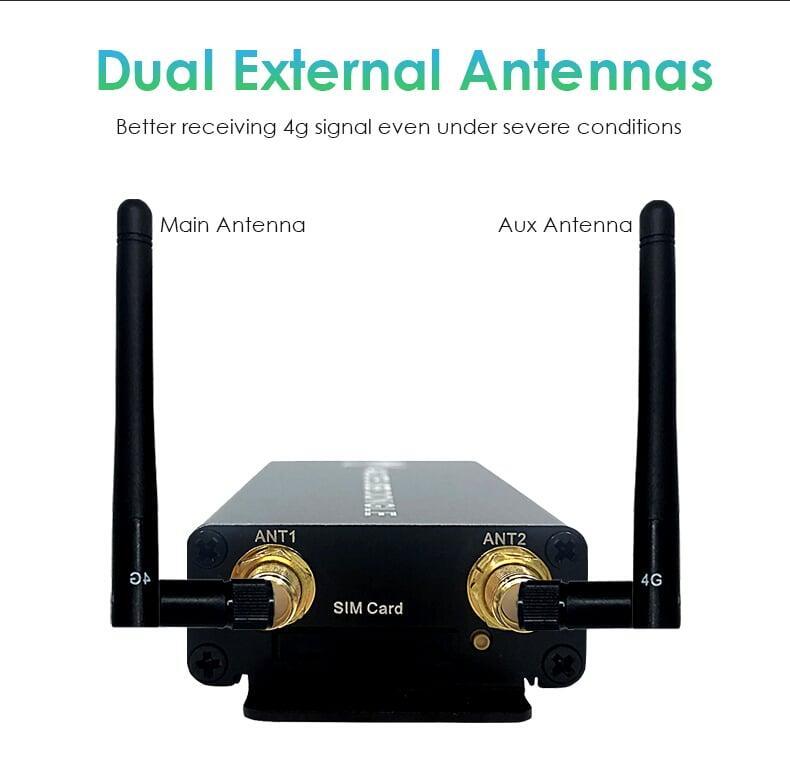

• Antennas
  Dual External 4G High Gain Antennas
• Working Voltage
  3.6V(3.3V~4.2V Configurable for LTE Module)
• Operating Temp.
  -10°C~+60°C [14°F~140°F]
• Storage Temp.
  -40°C~+85°C [-40°F~185°F]

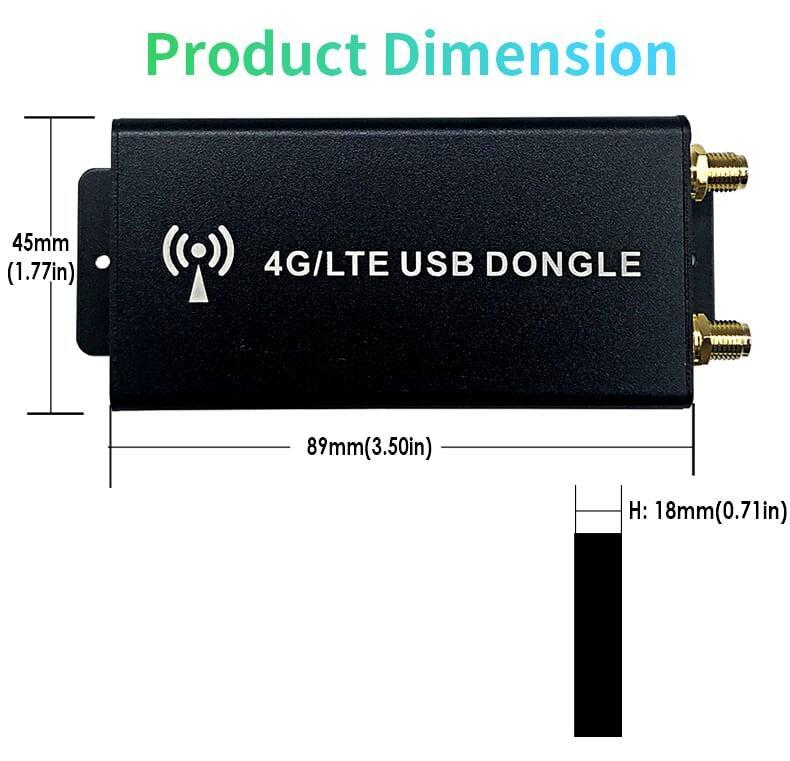

• Unit Dimension
  89*45*18mm[3.50*1.77*0.71in]
• Package Dimension
  140*90*25mm[5.51*3.54*0.98in]
• Net Weight
  83g[0.18lb, 2.93oz], Dual Antenna Excluded
• Gross Weight
  156g[0.34lb, 5.50oz]

LTE Cat 4 of SIM7600G-H R2

• Form Factor
  Mini PCIE
• Dimensions(mm)
  50.8*31*5.35
• LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
• LTE-TDD
  B34/B38/B39/B40/B41
• WCDMA
  B1/B2/B4/B5/B6/B8/B19
• GSM
  850/900/1800/1900MHz
• GNSS
  o
• Temperature
  -40℃ ~ +85℃

Electrical Features of SIM7600G-H R2

• Supply Voltage(V)
  3.0~ 3.3
• Power Consumption (mA)
  LTE: 2.3; WCDMA, DRX=9: 3.3; GSM,BS_PA_MFRMS=2: 2.8;

Data Transfer of SIM7600G-H R2

• LTE(Mbps)
  150(DL)/50(UL)
• HSPA+(Mbps)
  42(DL)/5.76(UL)
• WCDMA(Kbps)
  384(DL)/384(UL)
• GPRS/EDGE(Kbps)
  236.8(DL)/236.8(UL)

Software Features of SIM7600G-H R2

• Protocol
  TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
• TLS
  ●
• File System
  ●
• Audio Record/Play
  o
• TTS
  o
• DTMF
  o
• LBS
  ●
• FOTA
  ●
• Jamming Detection
  ●
• Android RIL
  Android 5.0/6.0/7.0/8.0/9.0
• USB Driver
  Microsoft Windows 7/8/10 Linux/Android
• WWAN (RNDIS)
  ●
• ECM
  ●
• MBIM
  Win8/Win10
• NDIS
  Linux/Windows 7/8/10
• Firmware Upgrade
  USB/FOTA

Interfaces of SIM7600G-H R2

• SIM Card
  1.8V/3.0V
• UART
  ●
• USB
  ●
• PCM
  o
• Analog Audio
  o
• Embedded SIM card socket
  o
• I2C
  ●
• Diversity Receiver
  ●

Certification of SIM7600G-H R2

• Regulatory
  CE-RED/FCC/IC/RCM/Telec/Jate/NCC/IMDA/ICASA/CCC/SRRC/Anatel/UKCA/PTCRB/GCF/RoHS/REACH
• Carrier
  AT&T/Verizon/T-mobile/US Celluar/DEUTSCHE TELEKOM/Orange
