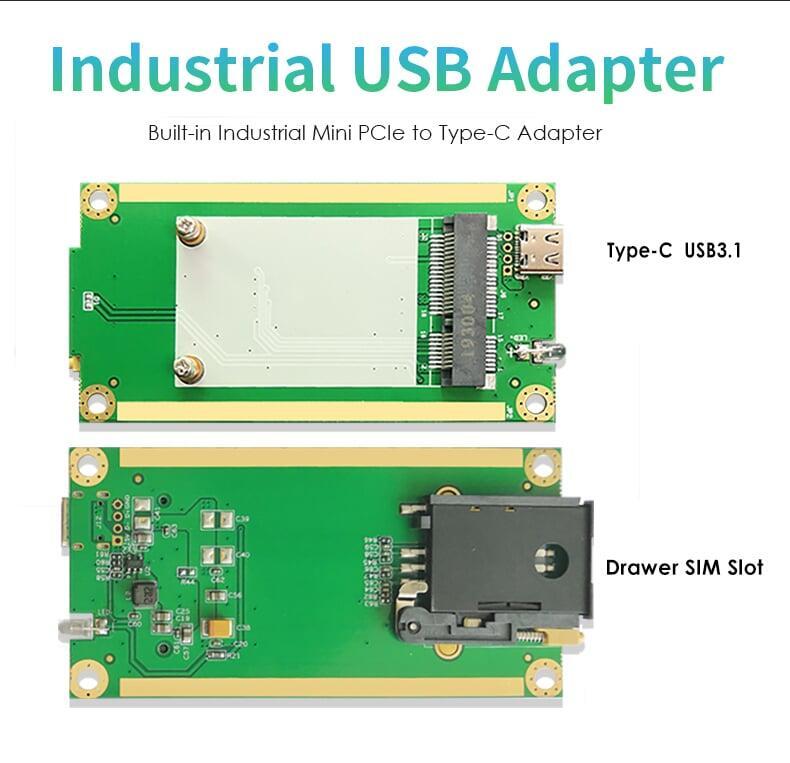

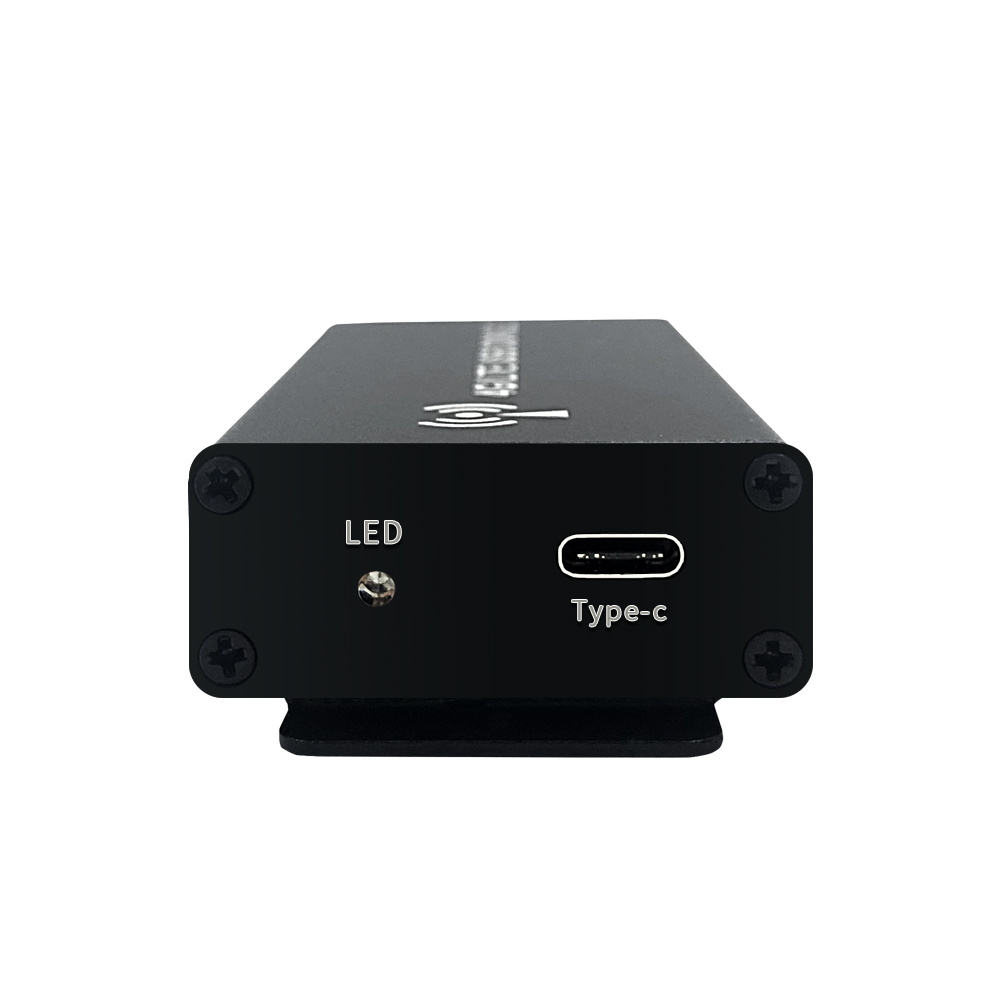

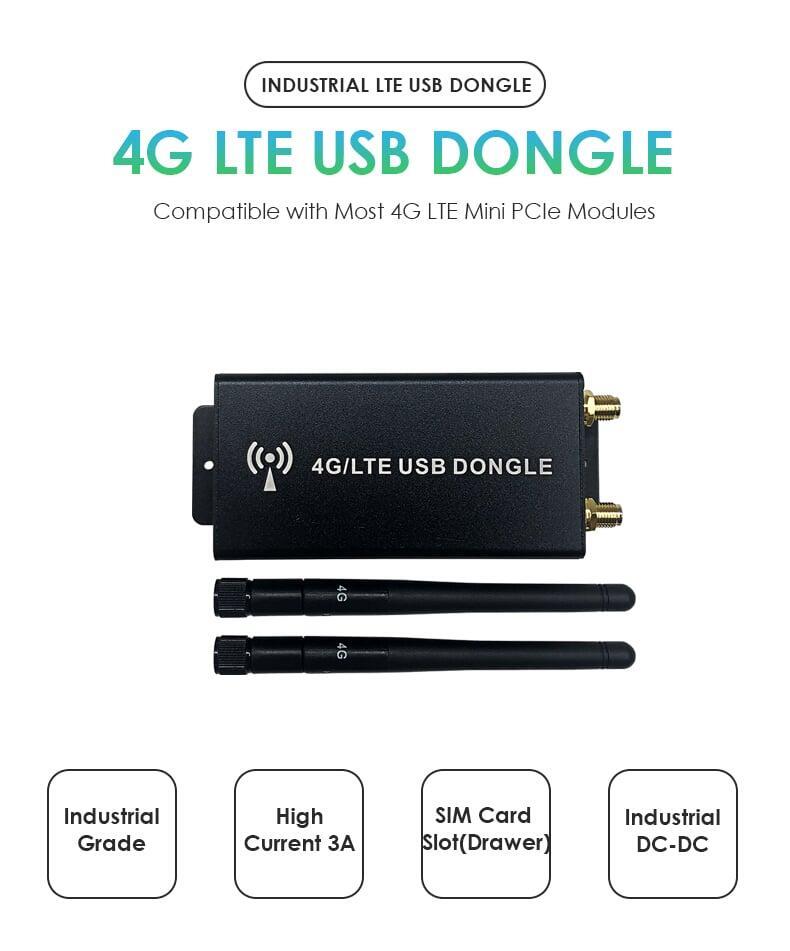

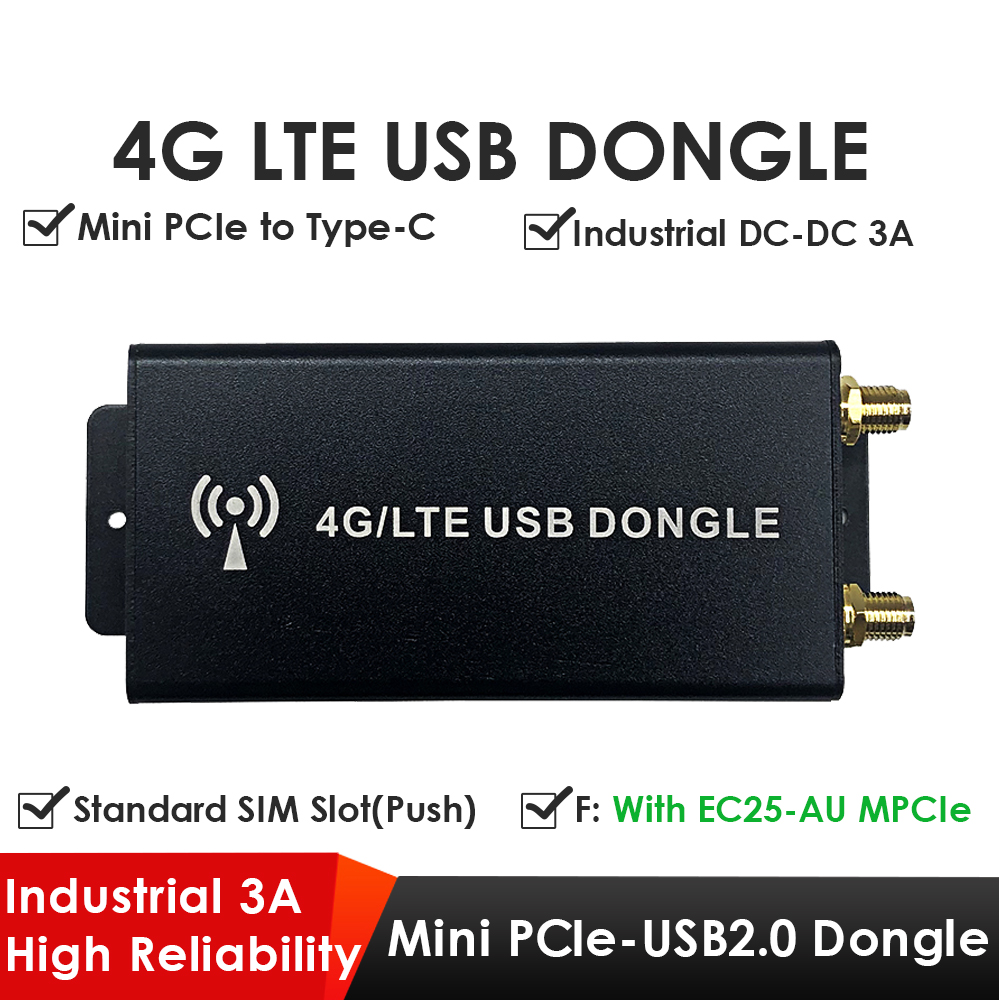

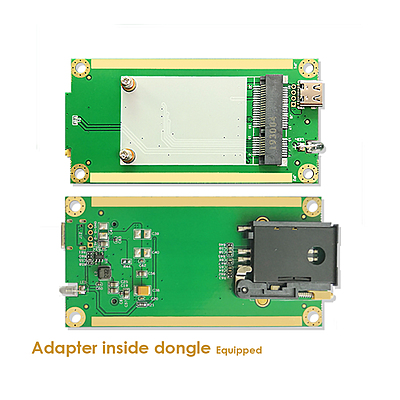

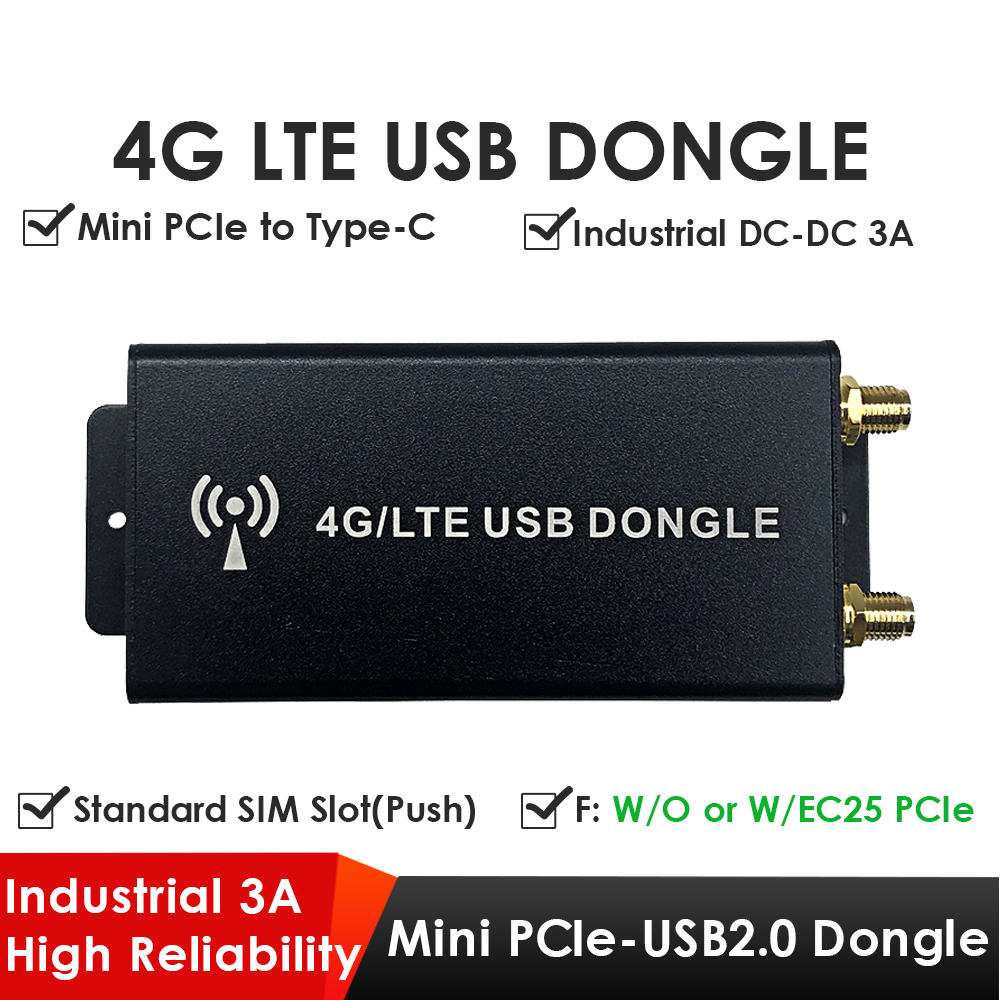

4G LTE Dongle with Quectel EC25 Mini PCIe Module, Mini PCIe to USB Type-C Adapter, Drawer SIM Slot for IoT/M2M

Parameters of Dongle

• LTE Module
  W/O Module or with Quectel EC25-XX Mini PCIe Module
• Data Rates
  150(DL)/50(UL), Depends on the 4G module you mount
• OS Supported
  Windows/Linux/Android

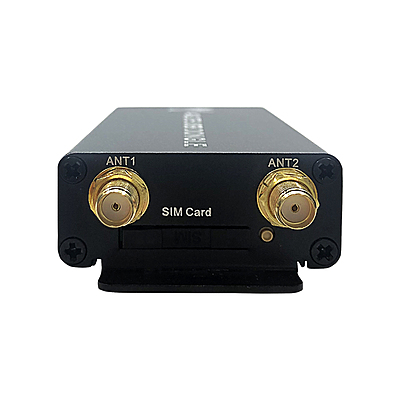

• SIM Slot
  Standard SIM Slot, Drawer Type

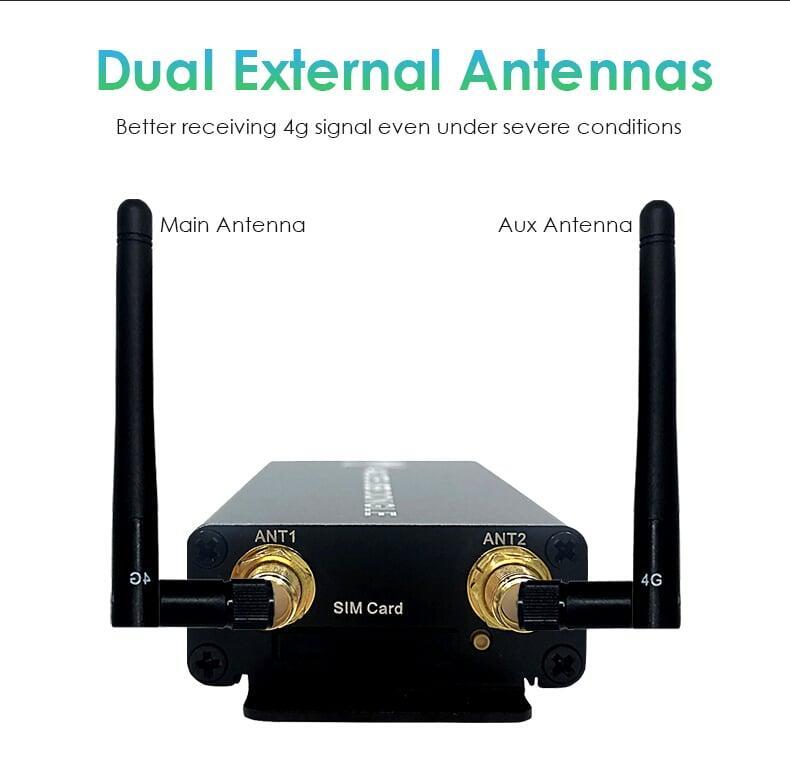

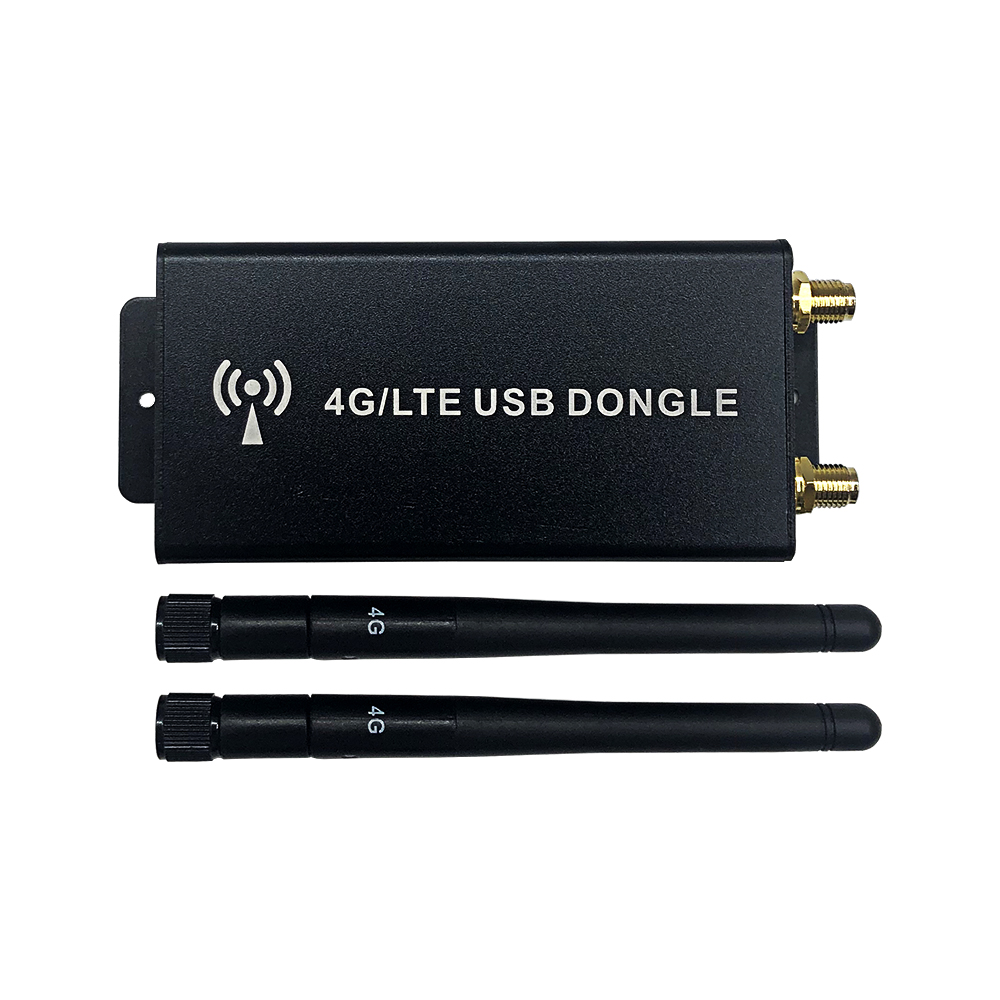

• Antennas
  Dual External 4G High Gain Antennas
• Working Voltage
  3.6V(3.3V~4.2V Configurable for LTE Module)
• Operating Temp.
  -10°C~+60°C [14°F~140°F]
• Storage Temp.
  -40°C~+85°C [-40°F~185°F]

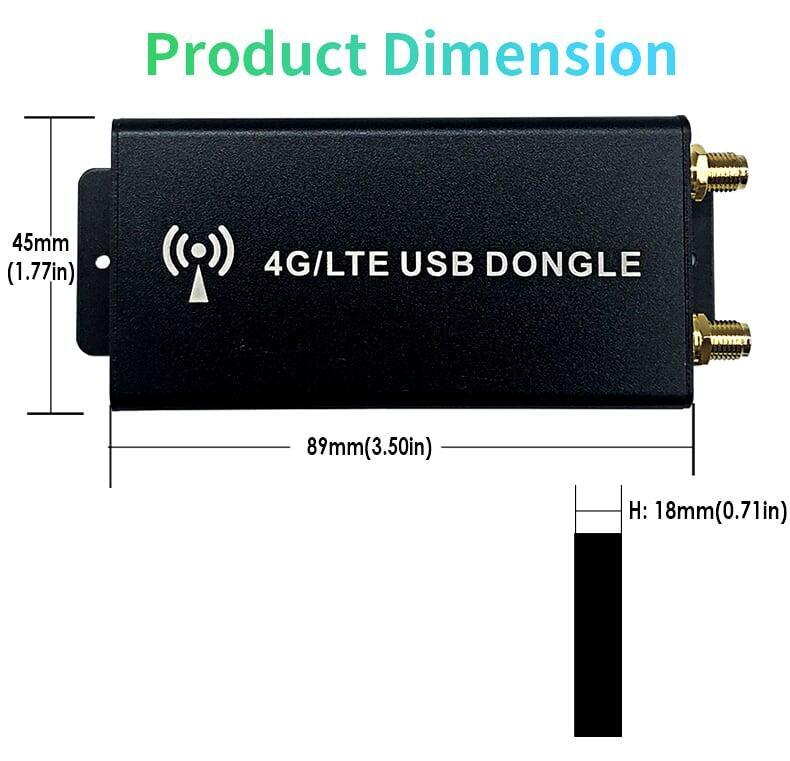

• Unit Dimension
  89*45*18mm[3.50*1.77*0.71in]
• Package Dimension
  140*90*25mm[5.51*3.54*0.98in]
• Net Weight
  83g[0.18lb, 2.93oz], Dual Antenna Excluded
• Gross Weight
  156g[0.34lb, 5.50oz]

EC25-A Mini PCIe

• Region
  North America
• LTE-FDD
  B2/B4/B12
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: AT&T/T-Mobile; Canada: Rogers/Telus

EC25-AF Mini PCIe

• Region
  North America
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon/AT&T(FirstNet)/T-Mobile; Canada: Rogers/Telus

EC25-AFX Mini PCIe

• Region
  North America
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/B71
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon/AT&T (FirstNet)*

EC25-AU Mini PCIe

• Region
  Latin America/Australia/New Zealand
• LTE-FDD
  B1/B2①/B3/B4/B5/B7/B8/B28
• LTE-TDD
  B40
• WCDMA
  B1/B2/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Australia: Telstra

EC25-AUX Mini PCIe

• Region
  Latin America/Australia/New Zealand
• LTE-FDD
  B2/B4/B5/B12/B13/B14/B66/
• LTE-TDD
  B40
• WCDMA
  B1/B2/B4/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  /

EC25-E Mini PCIe

• Region
  EMEA/South Korea/Thailand/India
• LTE-FDD
  B1/B3/B5/B7/B8/B20
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B5/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Global: Vodafone; Europe: Deutsche Telekom/Telefónica; South Korea: SKT/KT*/LGU+*

EC25-EU Mini PCIe

• Region
  EMEA/Thailand
• LTE-FDD
  B1/B3/B7/B8/B20/B28A
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Europe: Deutsche Telekom/British Telecom

EC25-EUX Mini PCIe

• Region
  EMEA/Thailand
• LTE-FDD
  B1/B3/B7/B8/B20/B28A
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B8
• GSM/EDGE
  B3/B8
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  /

EC25-J Mini PCIe

• Region
  Japan
• LTE-FDD
  B1/B3/B8/B18/B19/B26
• LTE-TDD
  B41
• WCDMA
  B1/B6/B8/B19
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  Japan: NTT DOCOMO/SoftBank/KDDI

EC25-MX Mini PCIe

• Region
  Mexico
• LTE-FDD
  B2/B4/B5/B7/B28/B66
• LTE-TDD
  /
• WCDMA
  B2/B4/B5
• GSM/EDGE
  /
• GNSS
  /
• Carrier
  /

EC25-V Mini PCIe

• Region
  America Verizon
• LTE-FDD
  B4/B13
• LTE-TDD
  /
• WCDMA
  /
• GSM/EDGE
  /
• GNSS
  GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
• Carrier
  America: Verizon
