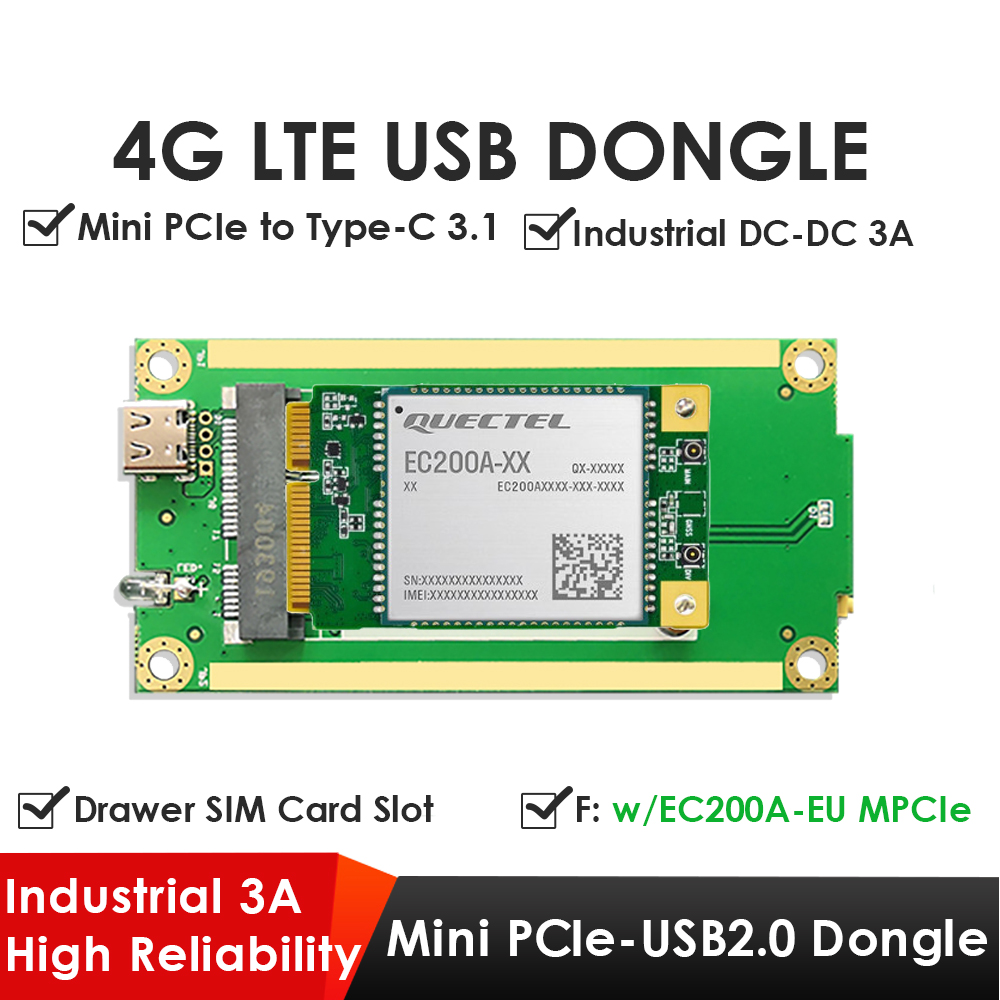

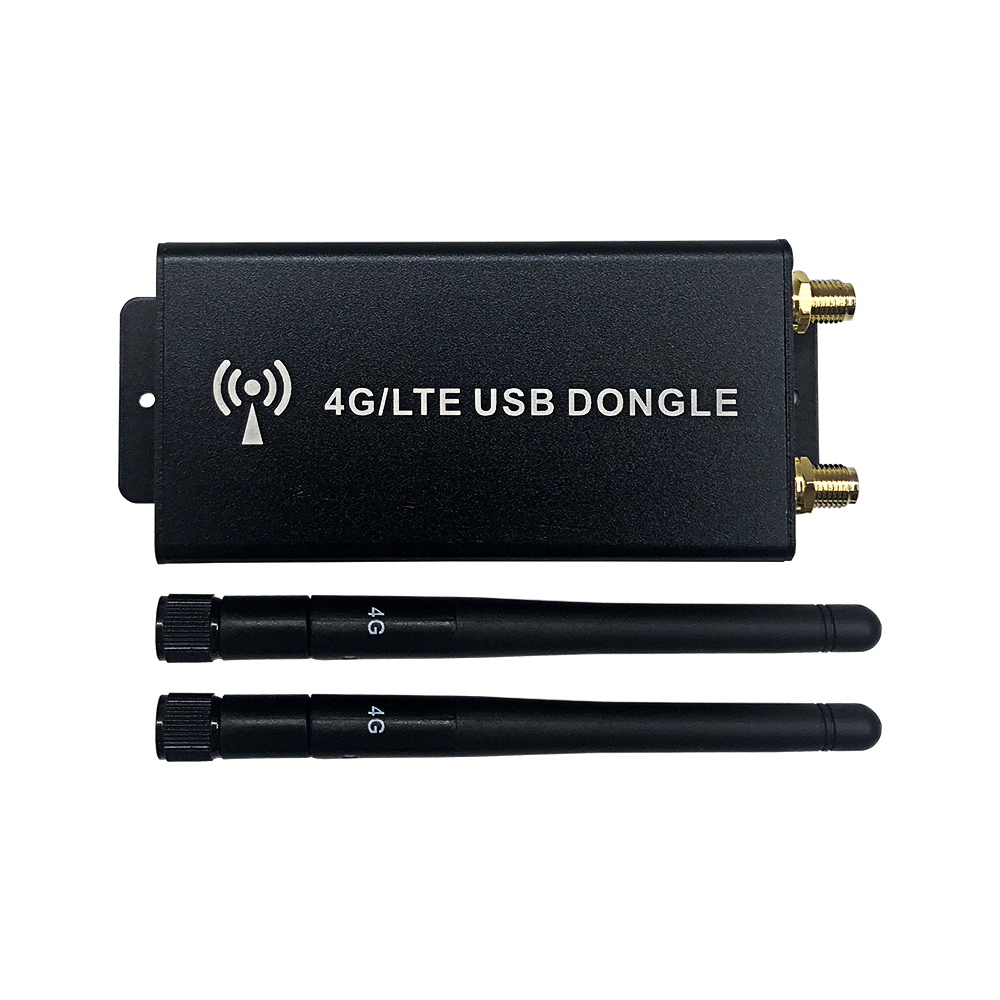

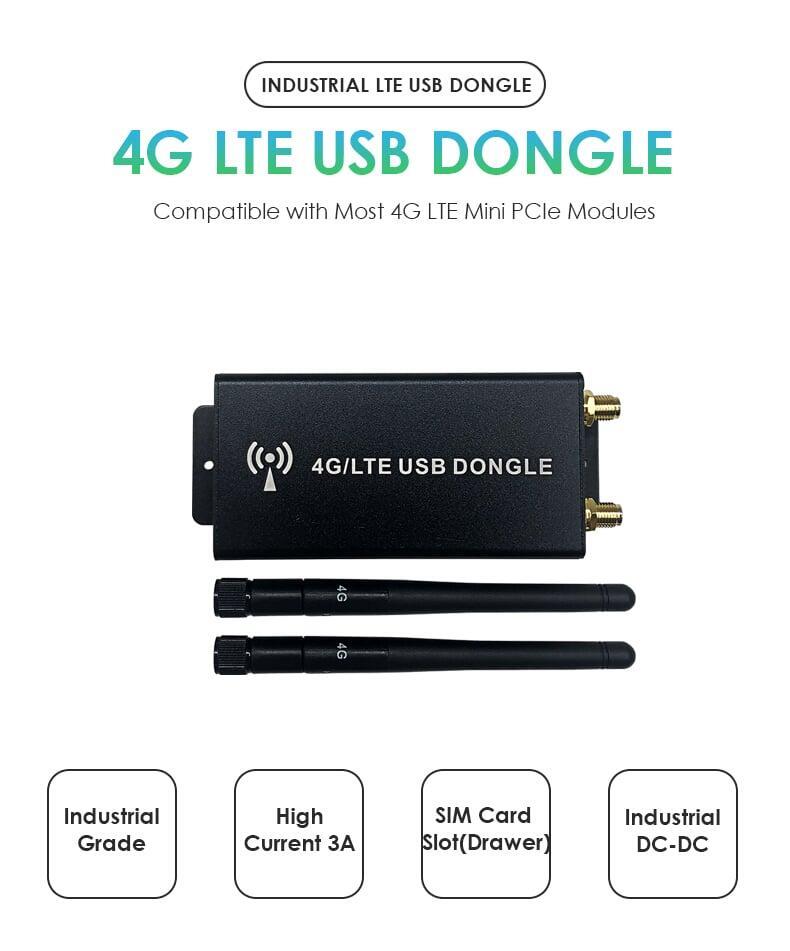

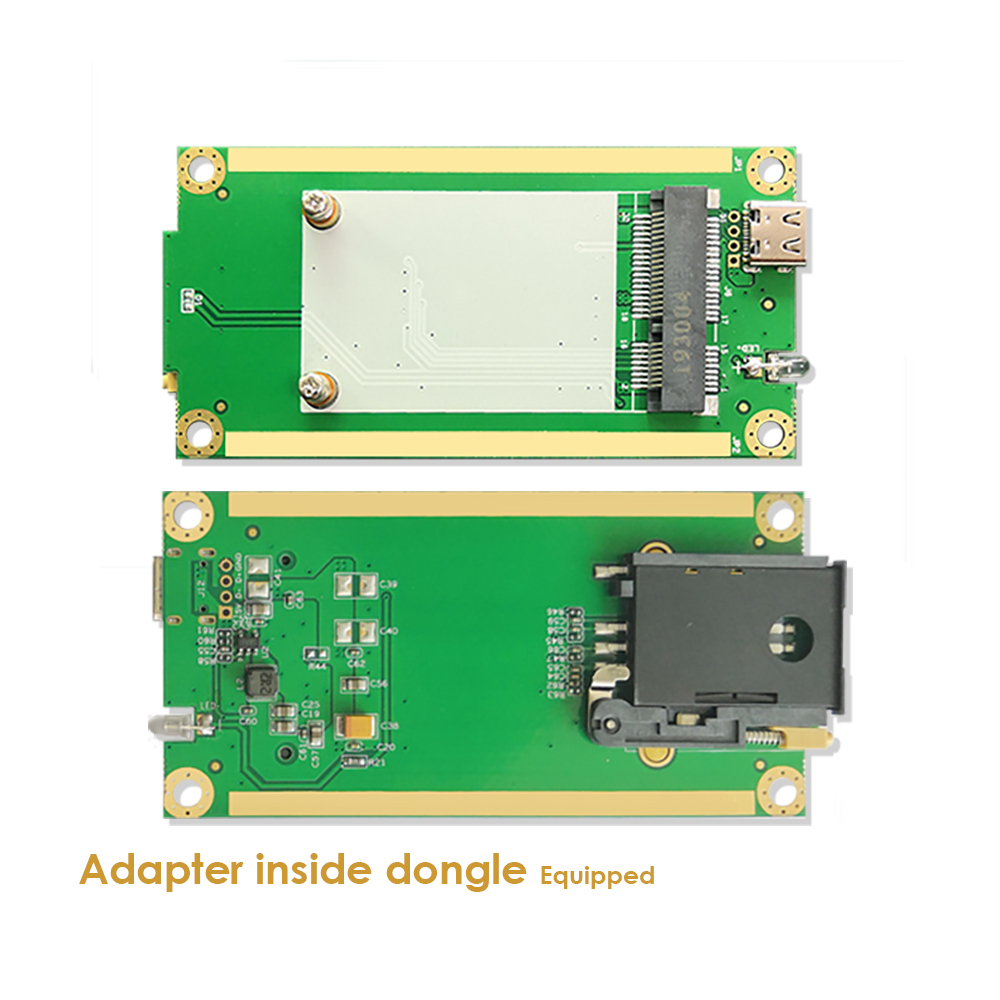

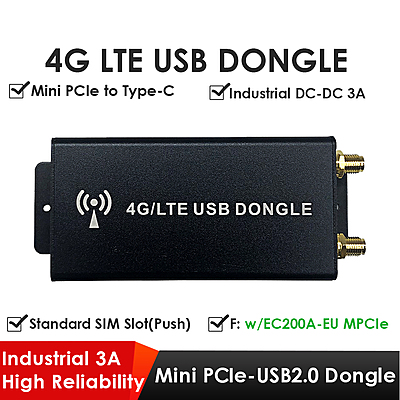

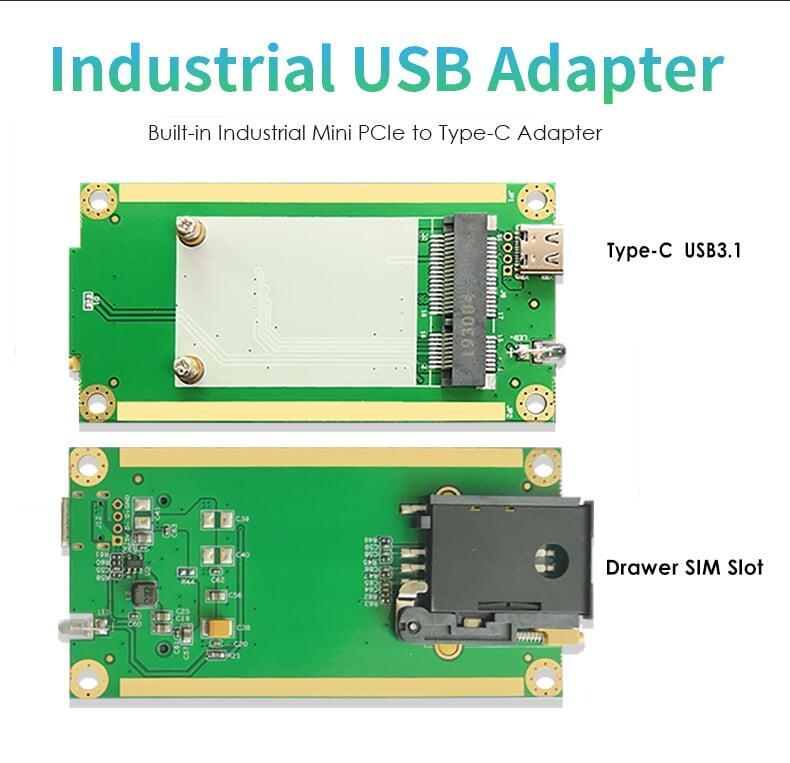

4G LTE Dongle with Quectel EC200A Mini PCIe Module, Mini PCIe to USB Type-C Adapter, Drawer SIM Slot for IoT/M2M Connectivity

Parameters of Dongle

• LTE Module
  with Quectel EC200A Mini PCIe Module
• Data Rates
  150(DL)/50(UL), Depends on the 4G module you mount
• OS Supported
  Windows/Linux/Android

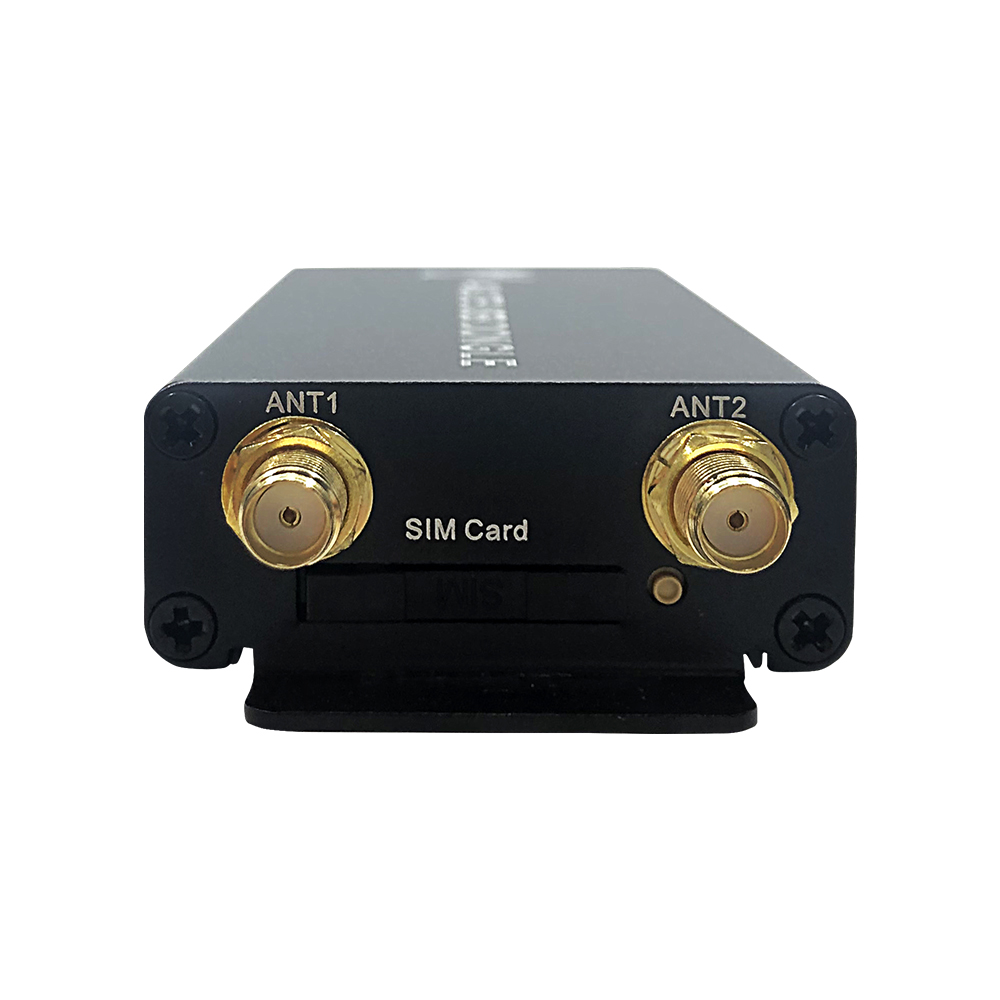

• SIM Slot
  Standard SIM Slot, Drawer Type

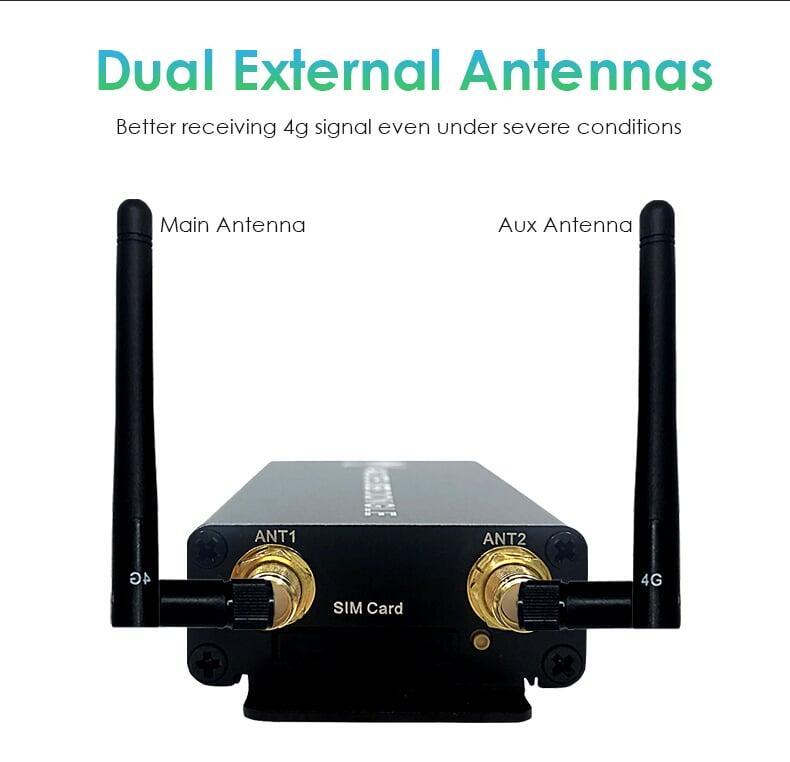

• Antennas
  Dual External 4G High Gain Antennas
• Working Voltage
  3.6V(3.3V~4.2V Configurable for LTE Module)
• Operating Temp.
  -10°C~+60°C [14°F~140°F]
• Storage Temp.
  -40°C~+85°C [-40°F~185°F]

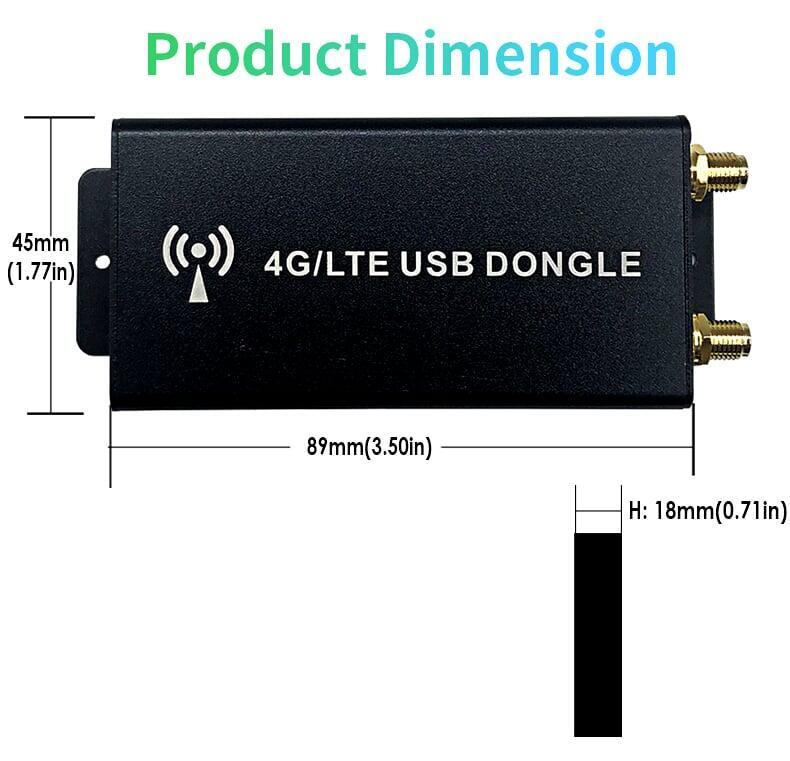

• Unit Dimension
  89*45*18mm[3.50*1.77*0.71in]
• Package Dimension
  140*90*25mm[5.51*3.54*0.98in]
• Net Weight
  83g[0.18lb, 2.93oz], Dual Antenna Excluded
• Gross Weight
  156g[0.34lb, 5.50oz]

EC200A-AU Mini PCIe

• Region
  Australia/New Zealand/Latin America
• LTE-FDD
  B1/B2/B3/B4/B5/B7/B8/B28/B66
• LTE-TDD
  B40
• WCDMA:
  B1/B2/B4/B5/B8
• GSM/EDGE
  B2/B3/B5/B8
• GNSS
  /
• Carrier
  /

EC200A-EU Mini PCIe

• Region
  Europe/Asia-Pacific
• LTE-FDD
  B1/B3/B5/B7/B8/B20/B28
• LTE-TDD
  B38/B40/B41
• WCDMA
  B1/B5/B8
• GSM/EDGE
  B3
• GNSS
  /
• Carrier
  /

LTE Cat 4 of EC200A Mini PCIe

• Dimensions (mm)
  30.0 × 51.0 × 4.9 (EC200A Mini PCIe);
• Weight (approx.) (g)
  9.7 (EC200A Mini PCIe);

Temperature Ranges of EC200A Mini PCIe

• Operating temperature
  -35°C ~ +75°C
• Extended temperature
  -40°C ~ +80°C (EC200A Mini PCIe)

Data transmission (Max. ) of EC200A Mini PCIe

• LTE data rates (Mbps)
  LTE-FDD: 150 (DL)/50 (UL); LTE-TDD: 130 (DL)/30 (UL)
• DC-HSPA+ data rates (Mbps)
  21 (DL)/5.76 (UL)
• WCDMA data rates (Kbps)
  384 (DL)/384 (UL)
• EDGE data rates (Kbps)
  236.8 (DL)/236.8 (UL)
• GPRS data rates (Kbps)
  85.6 (DL)/85.6 (UL)
• SMS
  ●
• CSD
  ●
• Protocols
  TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HTTPS/FTPS/SSL/FILE/MQTT/MMS/SMTP/SMTPS

Interfaces of EC200A Mini PCIe

• (U)SIM
  ×1
• UART
  ×1 (EC200A Mini PCIe)
• USB
  ×1
• l2C
  ×1
• Audio digital (PCM)
  ×1
• SDIO
  ×2
• ADC
  ×2, 12bits(EC200A)
• Antenna
  ×1 Main, ×1 Rx-diversity (optional), ×1 GNSS (optional)

Enhanced features of EC200A Mini PCIe

• GNSS
  Optional
• Wi-Fi scan
  /
• BlueTooth
  /
• Digital audio
  ●
• VoLTE
  ●
• DTMF
  ●
• DFOTA
  ●
• Audio playback/Audio recording
  ●
• QuecFile
  ●
• USB serial driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7, Android 4.x~13.x
• GNSS driver
  Android 4.x~13.x
• RIL driver
  Android 4.x~13.x
• RNDIS driver
  Windows 7/8/8.1/10/11, Linux 2.6~6.7
• ECM driver
  Linux 2.6~6.7
• (U)SIM card detection
  ●
• Firmware update
  Via USB/DFOTA

Electrical features of EC200A Mini PCIe

• Supply voltage range
  3.0 V ~ 3.6 V, typ. 3.3 V (EC200A Mini PCIe)
• Power consumption
  19 μA @Power off mode, Typ/27.6 mA @LTE sleep mode (EC200A Mini PCIe);
• Certifications
  Regulatory Certifi cation: CCC/SRRC/NAL/CE/UKCA/RCM/KC/NCC/FCC/Anatal
