- EG25-G Global Version – Covers worldwide LTE FDD/TDD bands
- Embedded Mini Router Board – Tailored for industrial integration
- Mini PCIe & SIM Card Slot – Cellular access in compact form
- VPN and Data Pass-Through – Secure and transparent communication
- Designed for IoT/M2M – Perfect for custom devices and controllers
- Wide OS Support – Compatible with Linux, Raspberry Pi, ARM platforms
Module
Serial+Ethernet Port
GPS Antenna
$125.57 - $132.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

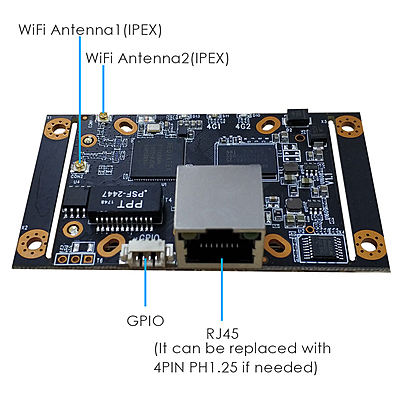

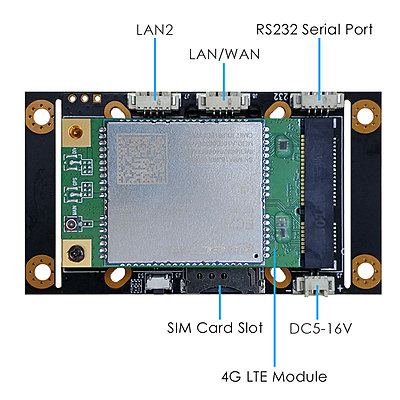

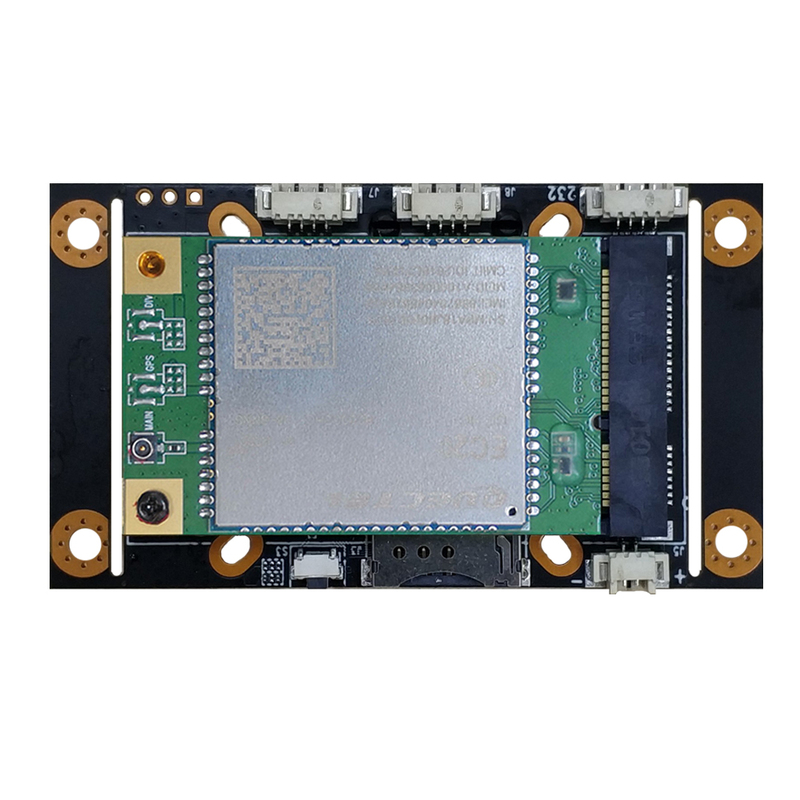

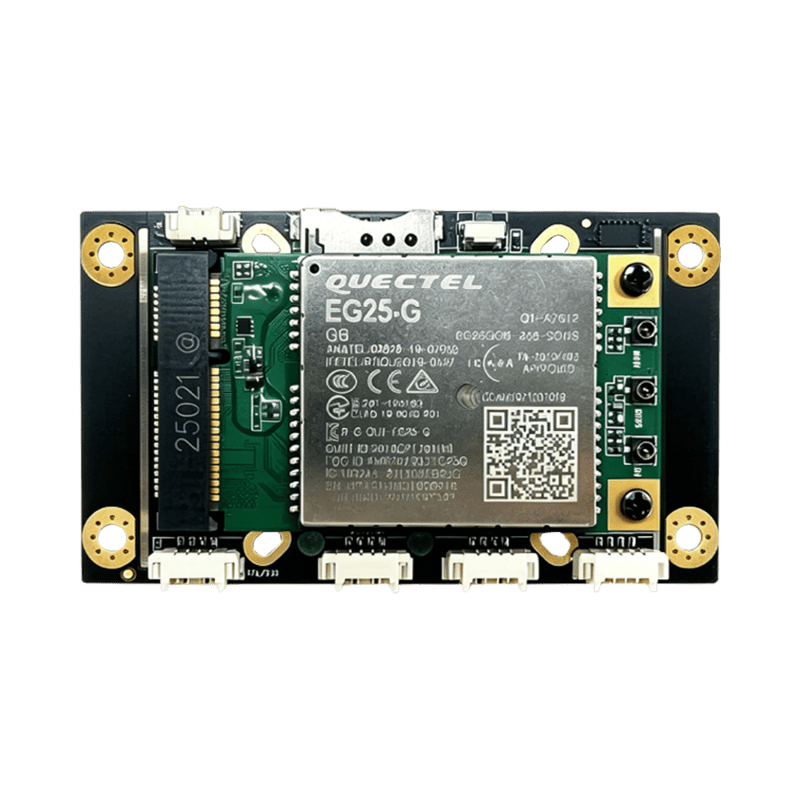

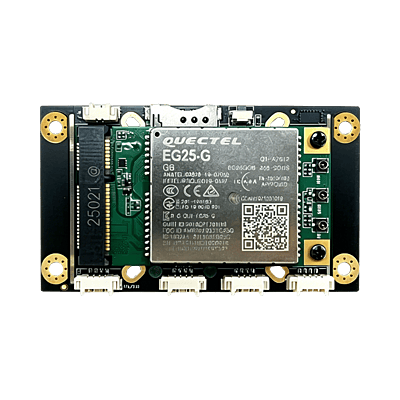

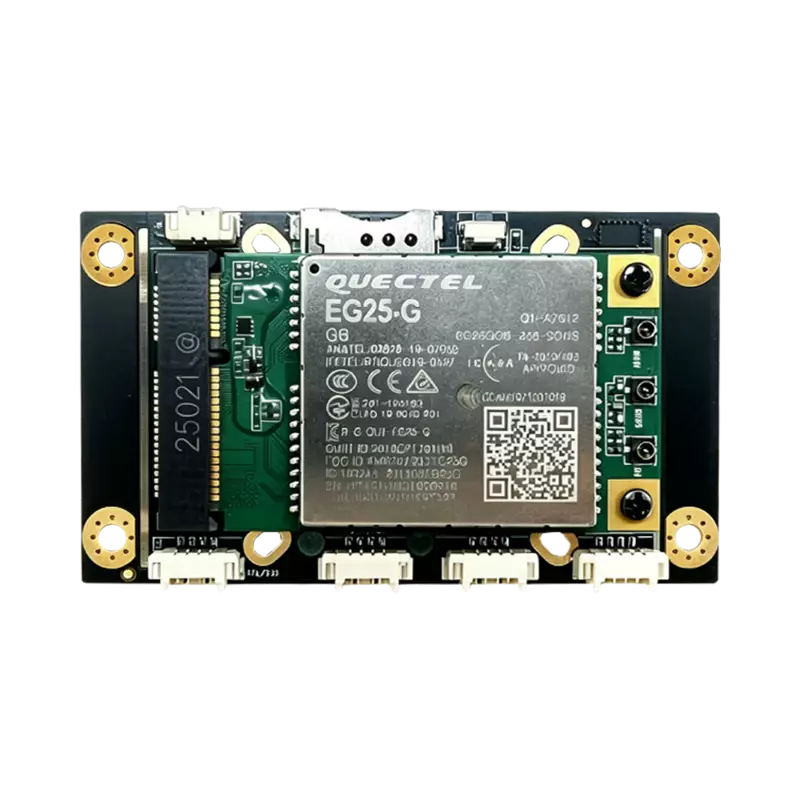

4G LTE Embedded Industrial Router Board with SIM Slot, EG25-G Mini PCIe Global Version

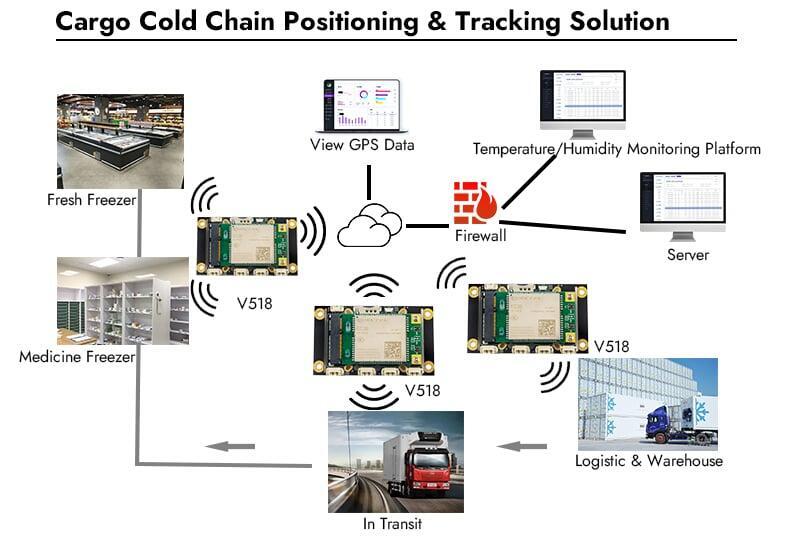

Cargo Cold Chain Positioning & Tracking Solution
Enables reliable cargo cold chain positioning and tracking, offering stable 4G connectivity and real-time data transmission for logistics monitoring and temperature-sensitive supply chains.

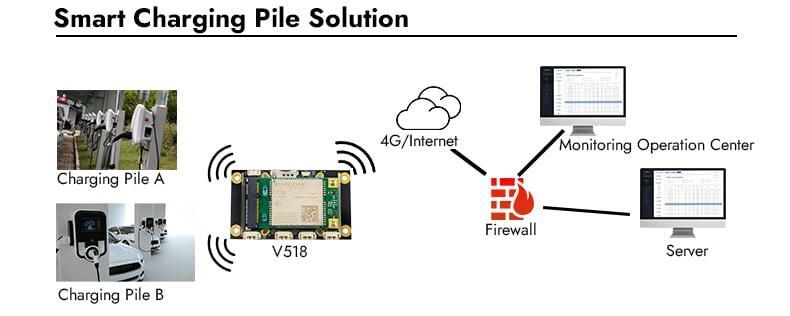

Smart Charging Pile Solution
Provides stable 4G connectivity for smart charging pile solutions, enabling real-time data communication, remote monitoring, and efficient EV charging station management in industrial and urban environments.

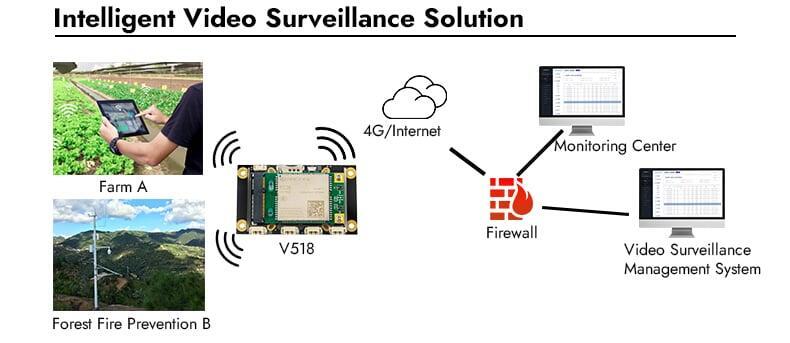

Intelligent Video Surveillance Solution
Delivers reliable 4G connectivity for intelligent video surveillance solutions, supporting real-time video transmission, remote access, and stable network performance in security and monitoring systems.

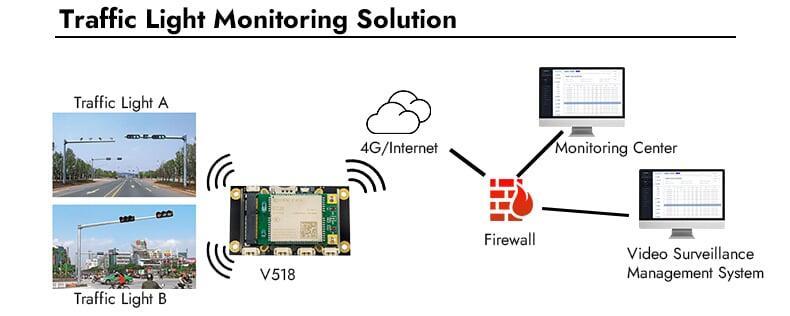

Traffic Light Monitoring Solution
Enables real-time traffic light monitoring with secure 4G connectivity, supporting remote control, data collection, and reliable network performance for intelligent traffic management systems.

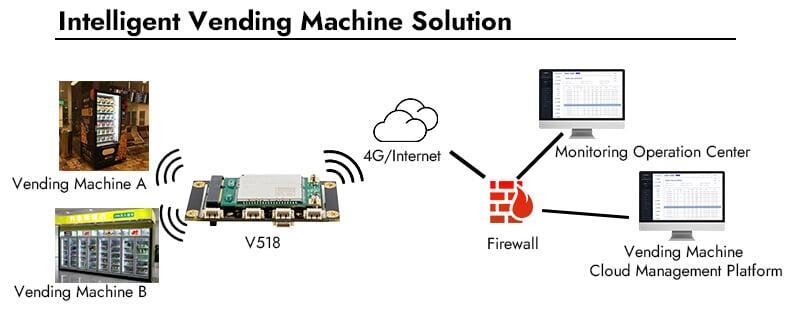

Intelligent Vending Machine Solution
Powers intelligent vending machine solutions with fast and stable 4G connectivity, enabling remote management, real-time inventory updates, and seamless payment integration for smart retail operations.

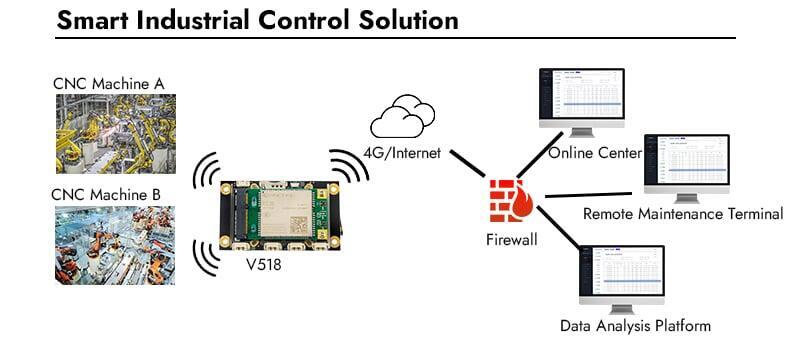

Smart Industrial Control Solution
Supports smart industrial control solutions with reliable 4G connectivity, enabling real-time data transmission, remote monitoring, and stable M2M communication for efficient industrial automation.
Specifications
Specifications
Product Series
- Product SeriesV518 Series
Hardware Platform
- CPU580MHz
- Memory64MB DDR2
- Flash8MB

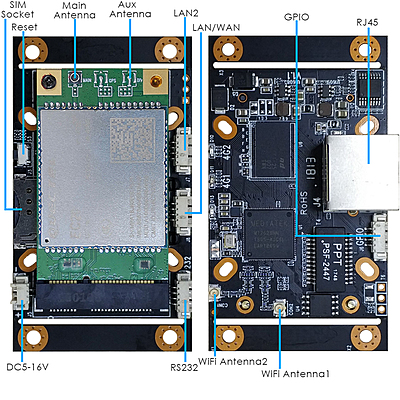

Interfaces
- WiFiIEEE 802.11b/g/n, 2.4G, 300Mbps, Support both AP and Client Mode

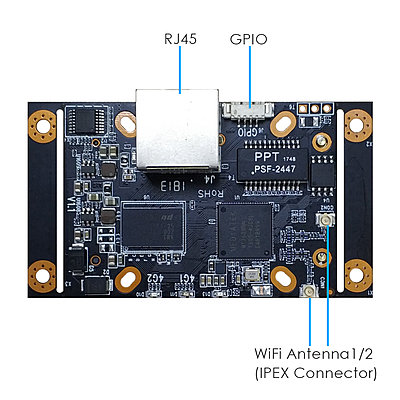

- Ethernet10/100Mbps×2, WAN/LAN
- Serial PortTTL+RS232 or RS485
- Power SupplyDC 7-16V
- DI/DO3DO
- GPS(optional)Cellular GNSS
- SIM/UIMMicro Sim(1 x SIM slot)
- Reset Buttonx 1
- WatchdogSelf-diagnostic, Automatic Recover from Failure
- AntennaWiFix2, 4Gx2, GPSx1(optional), 50 Ω IPEX
- IndicatorBlue: System×1; Green: 4G signal strong; Red: 4G signal poor
- Power Consumption (DC 12V)Less than 250mA@12V(Full Load)
- Dimensions(mm)58mm × 42mm × 11.8mm(without PCB panel), 73.4mm × 42mm × 11.8mm(2.89in x 1.65in x 0.59in)
- Expansion interfaceSupport
Ambient Temperature and Humidity

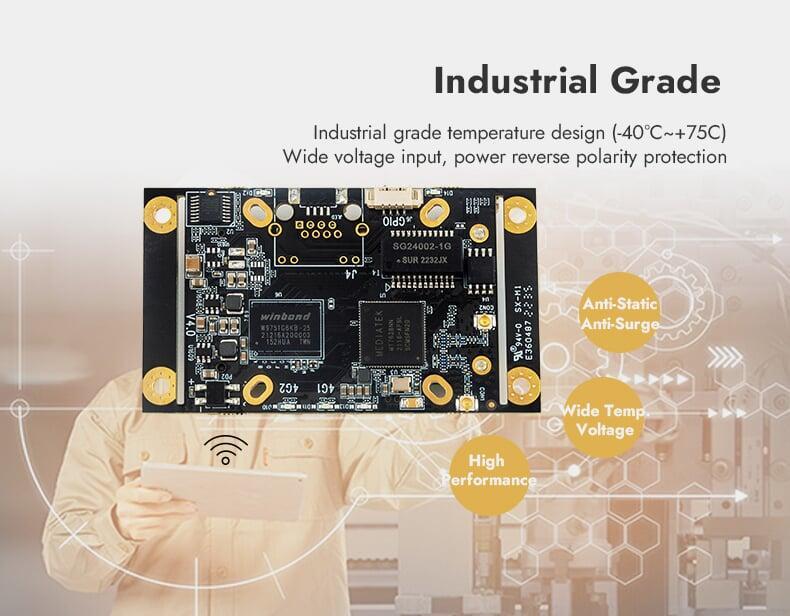

- Operating Temperature-30°C ~ +70°C (-22°F ~ +158°F)
- Storage Temperature-45°C ~ +85°C (-49°F ~ +185°F)
- Ambient Humidity5 ~ 95% (non-condensing)
Network Interface
- Operator AccessAPN, VPDN
- Access AuthenticationCHAP/PAP/MS-CHAP/MS-CHAP V2
- CellularGlobal 4G /5G; NR-Sub-6/mmWave, LTE, WCDMA(HSPA+), EDGE, GPRS
- LANARP, Ethernet
- WANStatic IP, DHCP, PPPoE
Protocol
- IPPing, Traceroute, DHCP Server/Relay/Client, DNS Relay, Dynamic DNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
- IP RoutingStatic Routing, RIP, OSPF, IGMP Proxy, BGP V4
Security
- FirewallNAT/ACL/DMZ/Port Mapping/MAC Binding; Filtering Multicast/Ping package, Access Control List (ACL)
- Data SecurityIPsec VPN, L2TP, PPTP, GRE, OPENVPN, DMVPN, CA
Reliability
- Auto-RecoverVarious Heartbeat Package, Automatic Recover from Failure
- Link Backup/Load BalancingFloating Route, WAN/WLAN Link Backup;Double-link load balancing
- WatchdogSelf-diagnostic, Automatic Recover from Failure
Serial Port/I2C/D
- Serial portMQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), GPS Client/Server, System debug
- I2CSet and query the status of various I2C sensors and LED screens by JSON commands
- DIORemote control via Web,TCP/UDP, SMS, MQTT and other protocols
GNSS(optional)
- NMEA ProtocolSupport NMEA protocol TCP/UDP reporting (packet header and reporting interval can be specified)
- NMEA ServerSupport TCP/UDP NMEA server function (allow other clients to actively connect the device to get location information, allow to specify the number of clients)
- LocationReport location information by JSON
Net Management
- ConfigurationConfigure via HTPP, HTTPS, Serial Port, Telnet, SSH
- Firmware UpgradeWEB, Serial Port, TFTP, FTP, SFTP server, Device Manager
- LogLocal sys log, remote lot, export log via Serial Port
- SMSSMS to Inquiry Status, Reboot
- SNMPSNMP v1/v2c/v3
- DiagnosticPing, Traceroute, Snifffer
