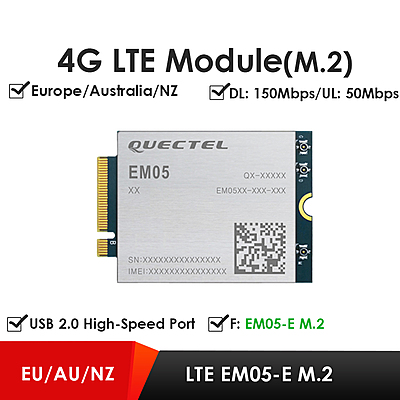

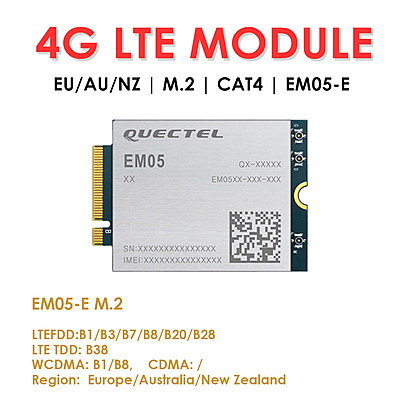

    4G LTE Module EM05 Series EM05-CE/EM05-E 4G LTE Wireless Industrial IOT/M2M-Optimized Cat 4 M.2(NGFF) Module LTE TDD

    Dynamic Stock. Please contact us first before batch order!
    Save 16%
    $5357
    $6357
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    Module
    EM05-CE
    EM05-E
    Package
    M.2

    Checkout Security with

    Overview

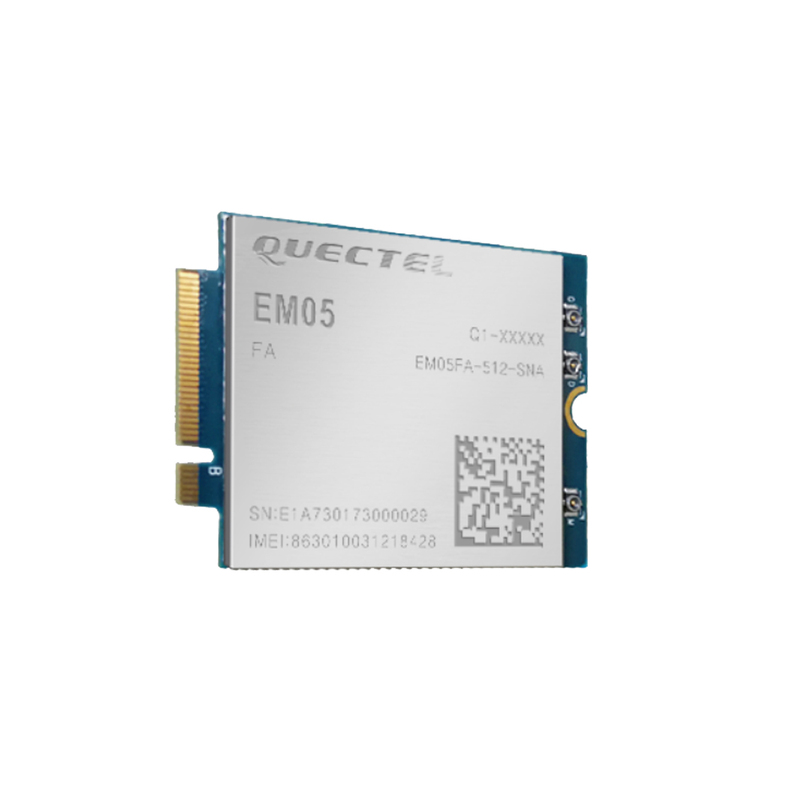

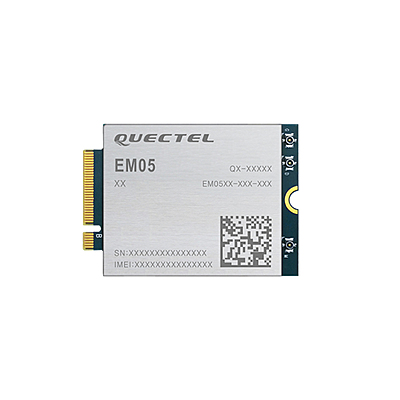

    Quectel EM05 is an LTE category 4 module adopting standard M.2 (NGFF) form factor. The space-saving M.2 form factor allows EM05 to be easily integrated into smaller and thinner devices. With a maximum data rate of 150Mbps downlink and 50Mbps uplink, it is optimized specially for M2M and IoT applications.

    EM05 contains three variants: EM05-CE, EM05-CML and EM05-E, which can provide data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA and CDMA networks.

    A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android, DFOTA, etc.) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

    Key Benefits
    • LTE Cat 4 module optimized for broadband IoT/M2M applications.
    • Worldwide LTE and UMTS/HSPA+ coverage.
    • Standard M.2 (NGFF) form factor ideal for manufacturers to easily integrate wireless connectivity into devices.
    • Feature refinements: support DFOTA and DTMF.
    • MIMO technology meets demands for data rate and link reliability in wireless communication systems.

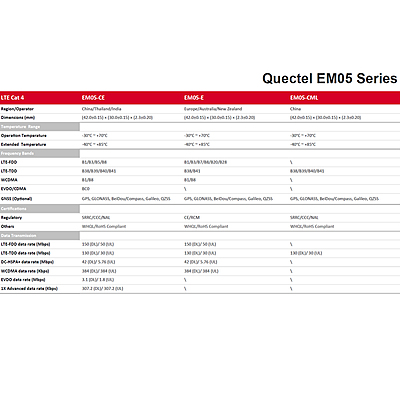

    Specification
    Basics

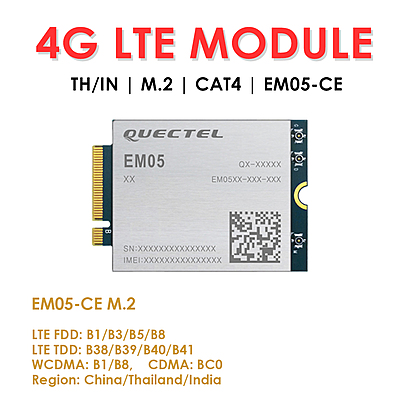

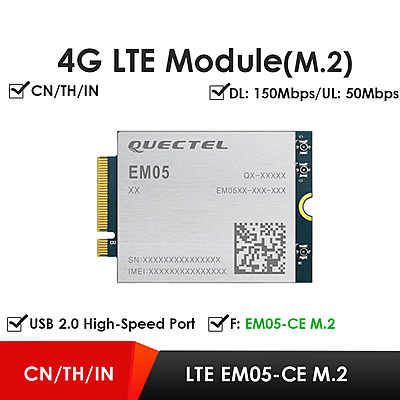

    • LTE Cat 4: EM05-CE M.2
    • Region/Operator: China/Thailand/India
    • Dimensions (mm): (42.0±0.15) × (30.0±0.15) × (2.3±0.20)mm
    Temperature Range
    • Operation Temperature: -30°C ~ +70°C
    • Extended Temperature: -40°C ~ +85°C
    Frequency Bands
    • LTE-FDD: B1/B3/B5/B8
    • LTE-TDD: B38/B39/B40/B41
    • WCDMA:B1/B8
    • EVDO/CDMA: BC0
    • GNSS(Optional): GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
    Certifications
    • Regulatory: SRRC/CCC/NAL
    • Others: WHQL/RoHS Compliant
    Data Transmission
    • LTE-FDD Data Rate (Mbps): 150 (DL)/ 50 (UL)
    • LTE-TDD Data Rate (Mbps): 130 (DL)/ 30 (UL)
    • DC-HSPA+ Data Rate (Mbps): 42 (DL)/ 5.76 (UL)
    • WCDMA Data Rate (Kbps): 384 (DL)/ 384 (UL)
    • EVDO data rate (Mbps): 3.1(DL)/ 1.8 (UL)
    • 1X Advanced data rate (Kbps): 307.2 (DL)/ 307.2 (UL)
    Interfaces
    • (U)SIM: x1
    • USB 2.0: x1
    • Control and Indication Signals: W_DISABLE1#, LED#, WOWWAN#, DPR*
    • Antenna Interfaces: Main, Rx-diversity, GNSS
    • Audio Digital (PCM&I2C) (Optional): x1
    Voice
    • Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB
    • Echo Arithmetic: Echo Cancellation/Noise Suppression
    Enhanced Features
    • DFOTA: •
    • QMI/RmNet: •
    • Audio Playback/Audio Recording*: Optional
    • QuecLocator®: •
    • QuecFile: •
    • SMS: •
    • (U)SIM Card Detection: •

    Drivers
    • USB Serial Driver: Windows7/8/8.1/10, Linux 2.6~5.4, Android 4.x/5.x/6.x/7.x/9.x
    • GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
    • RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
    • NDIS Driver: Windows7/8/8.1/10
    • MBIM Driver: Windows 8/8.1/10, Linux 3.18~5.4
    • GobiNet Driver: Linux 2.6~5.4
    • QMI_WWAN Driver: Linux 3.4~5.4
    Electrical Features
    • Supply Voltage Range: 3.135V~4.4V,3.3V Typ.
    • Power Consumption: 5.0μA @Power off; 3.3mA @LTE Sleep, PF=128; 3.0mA @LTE Sleep, PF=256; 20mA @Idle
