- 3MP Wireless Mini Cube Camera: Compact and flexible with WiFi connectivity
- H.265 Video Compression: Smooth, efficient streaming
- RTMP Streaming: Direct broadcast to YouTube, Facebook, Wowza
- 3.5mm Line-in Audio: Connect external microphones or audio sources
- ONVIF & Multicast Compatibility: Seamless integration into diverse network systems
Lens
Plug Type
$76.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

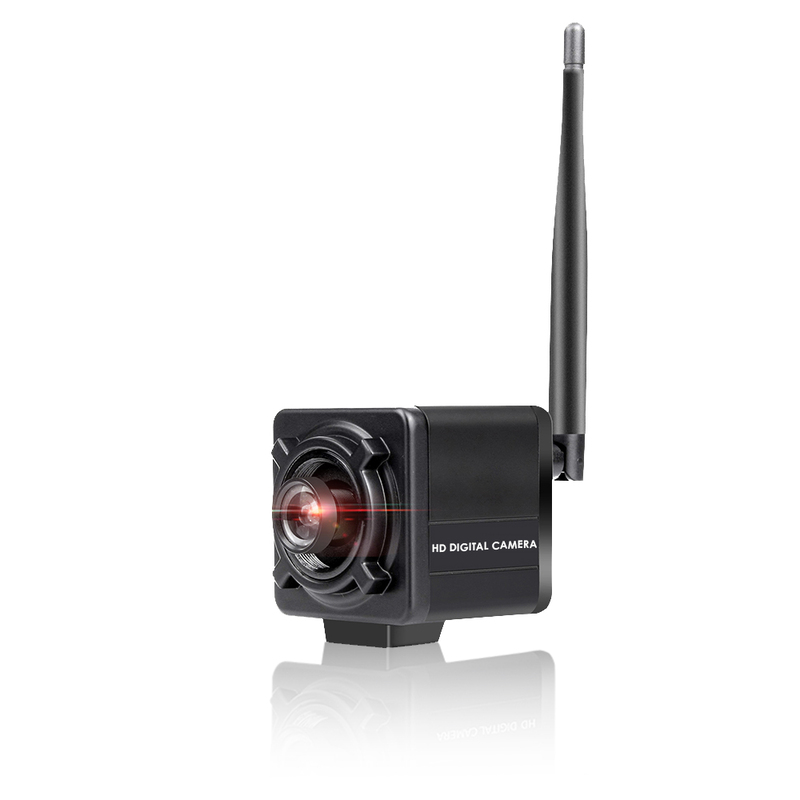

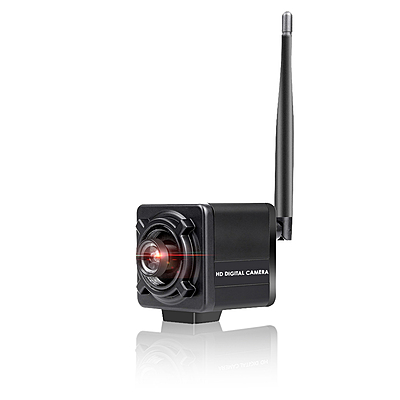

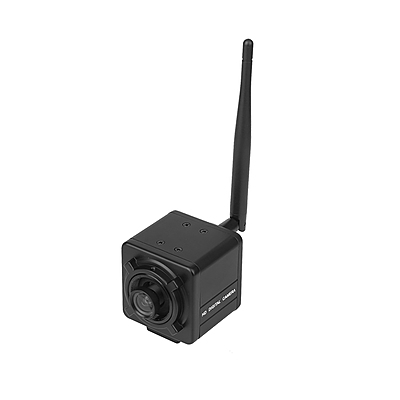

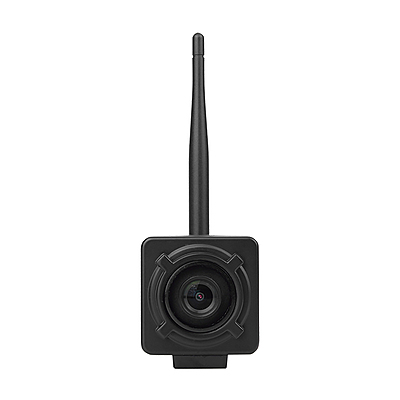

3MP Wireless Mini Cube Live Streaming IP Camera
RTMP IP Camera

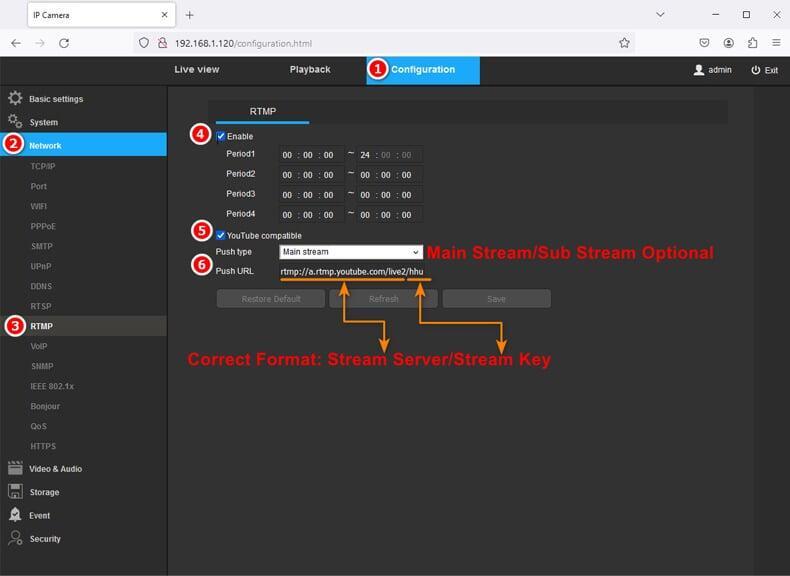

RTMP camera support pushing live video streams to platforms like YouTube and Facebook. To do this, you typically need to enable AAC audio encoding and paste the RTMP URL into the appropriate field (Main Stream or Sub Stream) in the camera settings.

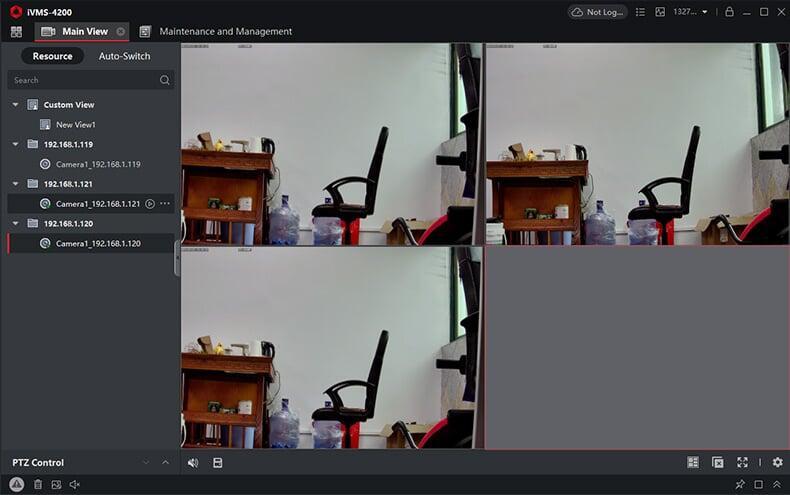

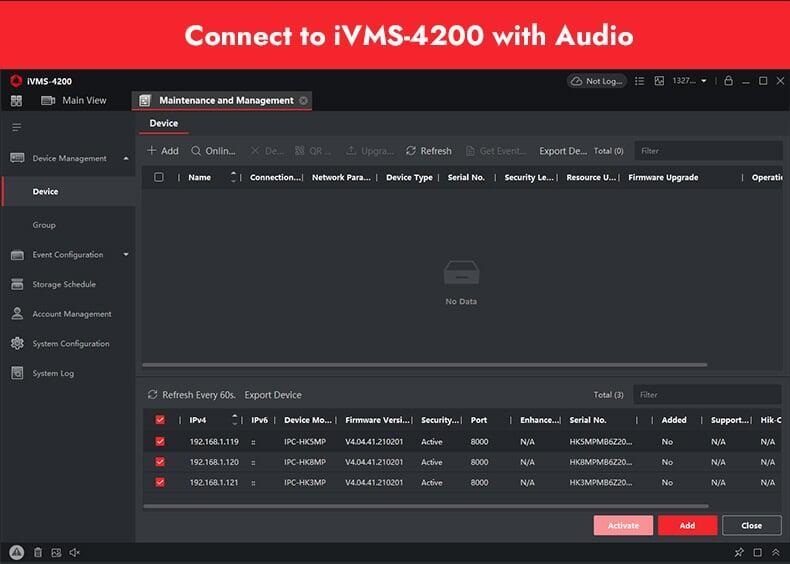

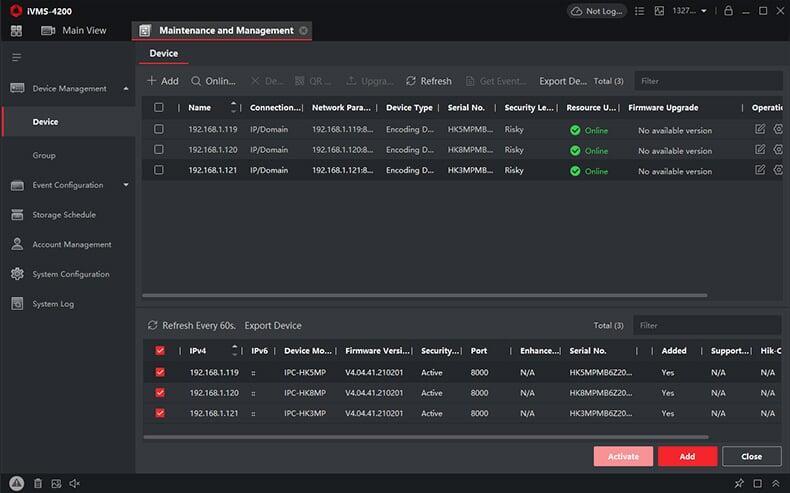

Connect to iVMS-4200
This video camera is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within iVMS-4200, offering a user-friendly experience for surveillance system operations.

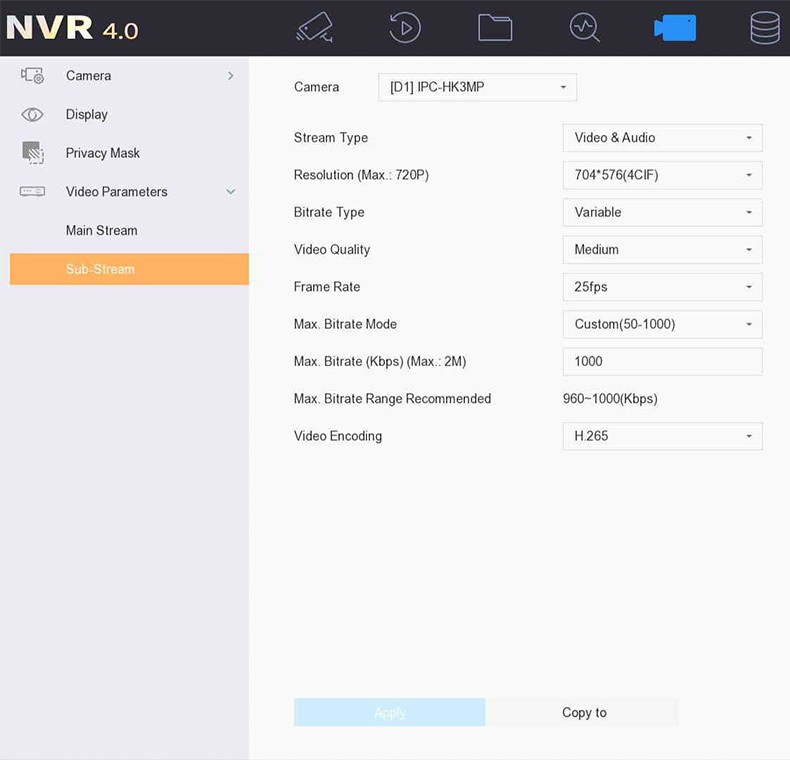

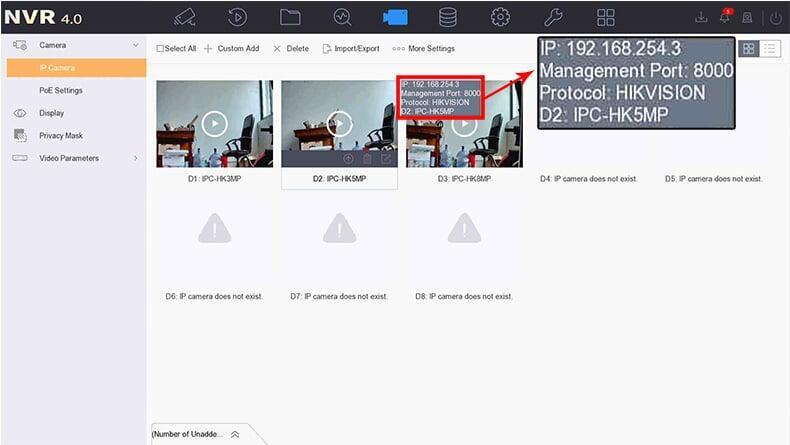

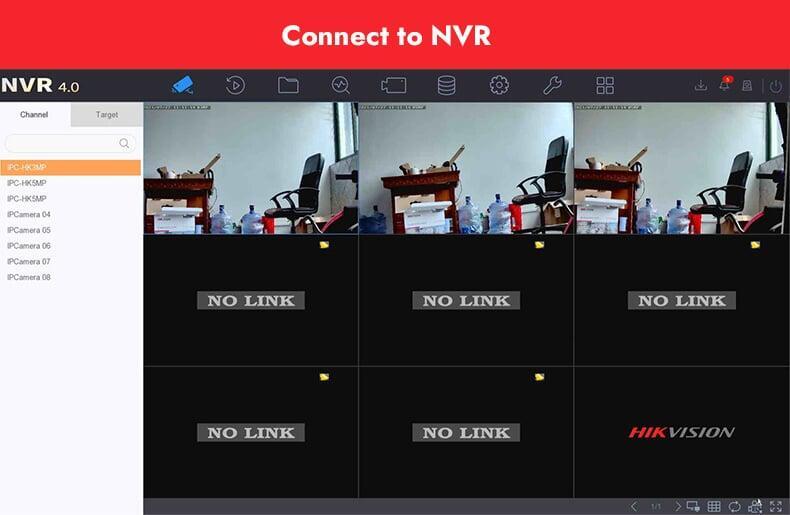

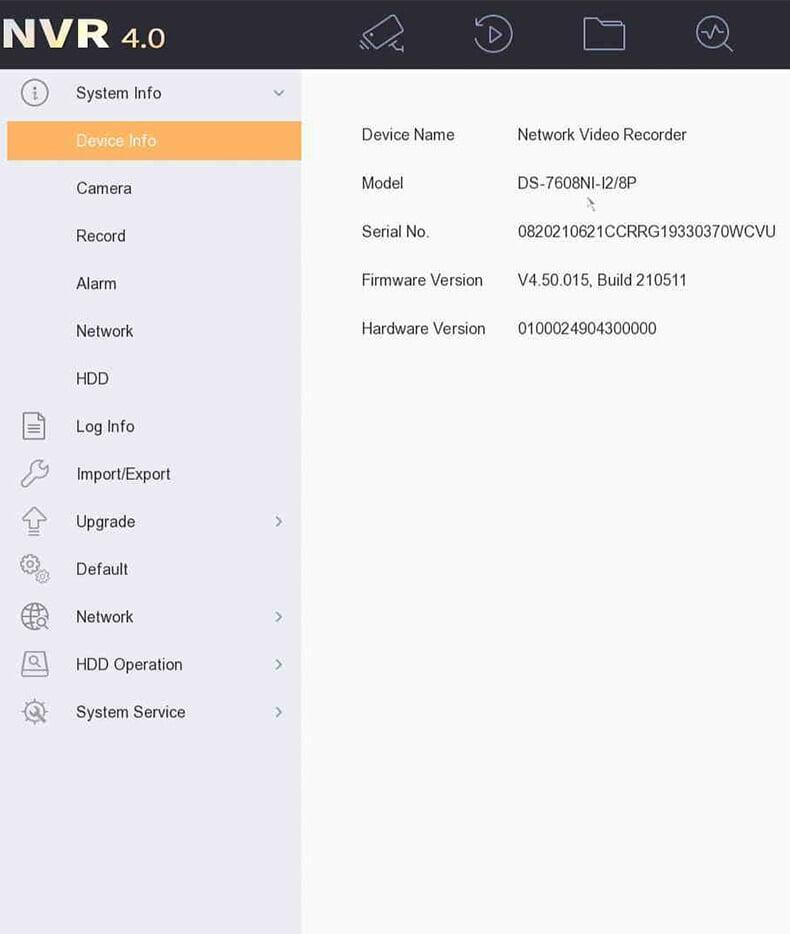

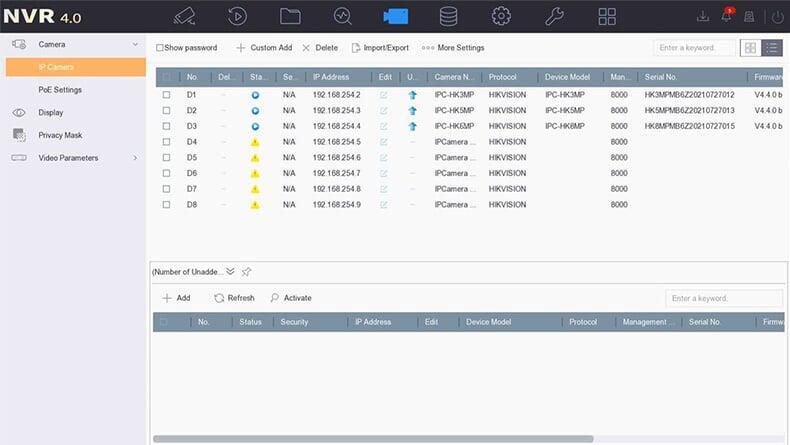

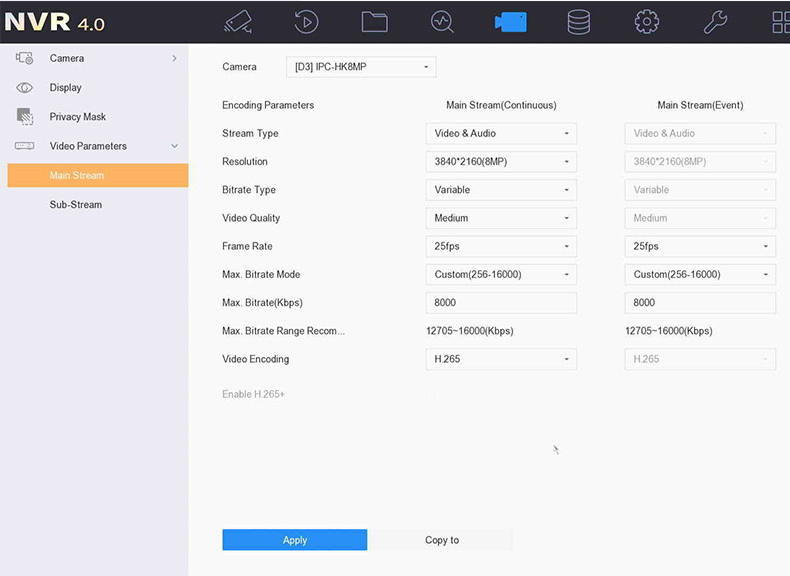

Connect to HIK NVR
Successfully establish connectivity with your HIK NVR, employ the HIK protocol for seamless operation, and enable H.265 recording to enhance video compression and storage capabilities for your surveillance system.
Specifications
Specifications
Product Model
- Product ModelWWJ3WSH16F
Camera
- Image Sensor1/2.8" Progressive Scan CMOS Sensor
- Effective Pixels2304x1296
- ModeN/A

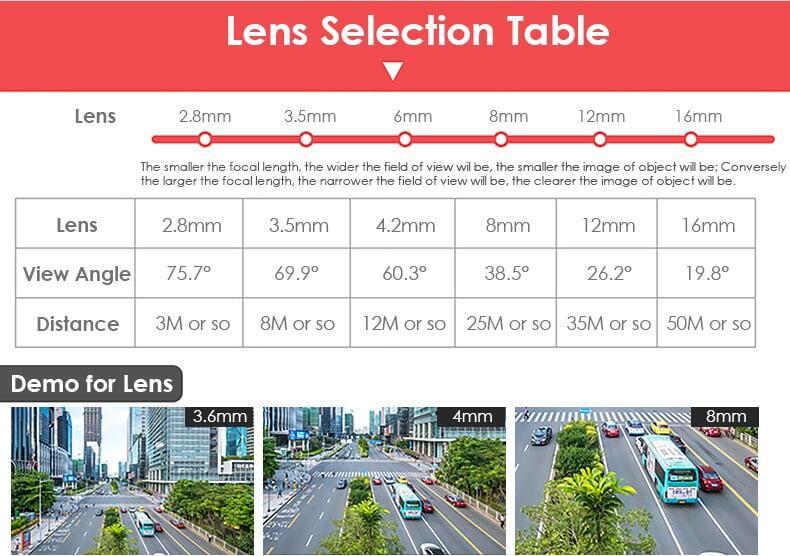

- Lens2.8mm/3.6mm/6mm Optional
- DNR3D Digital Noise Reduction
- WDRYes, 80dB
- Electric ShutterAdaptive, 1/2s-1/1,000s
Video & Audio Encoding
- Video EncodingH.264/AVC, H.265/HEVC
- Audio EncodingAAC/G.711U/G.711A
- Audio Sampling RateUp to 16K
- Bit RateCBR & VBR; 256kbps~8Mbps [Configurable]
- Frame Rate50Hz: 1-25fps; 60Hz: 1-30fps [Configurable]
- Max. Framerate1296P@30FPS
- Main Stream2304x1296, 1920x1080, 1280x960, 1280x720
- Sub Stream704x576, 640x480, 640x360, 352x288
Video Stream
- Concurrent Stream Count6x RTSP Streams
- Stream Types SupportedLive Streaming
- RTSP (Main Stream)rtsp://192.168.1.120:554/live/1_0
- RTSP (Sub Stream)rtsp://192.168.1.120:554/live/1_1
Protocols & Networking
- Networking ProtocolsIPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
- Streaming ProtocolsCGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
- ONVIF ProtocolCompatible
- HK/DH ProtocolCompatible
- Security FeaturesRTSP Authentication
Interface
- Network Interface1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Audio Interface3.5mm TRS Audio Line-in Port
- Hardware ResetBuilt-in Hardware Reset Button In the Pigtail Cable
General
- Default CredentialsUser: admin; Password: 12345
- Default Static IP192.168.1.120
- Power SupplyDC12 1A or Higher
- Power Consumption≤5w
- Operating Temperature-30°C~60°C (-22°F~140°F)
- Operating Humidity≤95%
- Unit Dimension70mm x 55mm x 55mm[2.76in x 2.17in x 2.17in]
- Package Dimension130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in]
- Net Weight150g [0.33lb, 5.29oz]
- Gross Weight270g [0.59lb, 9.52oz]
