Multi-Platform Push: Dual-address RTMP/RTMPS to 8+ platforms (YouTube/Twitch/Facebook) + SRT anti-packet-loss.
Enterprise NVR Sync: ONVIF Profile S + Hikvision private protocol (H.265 recording).

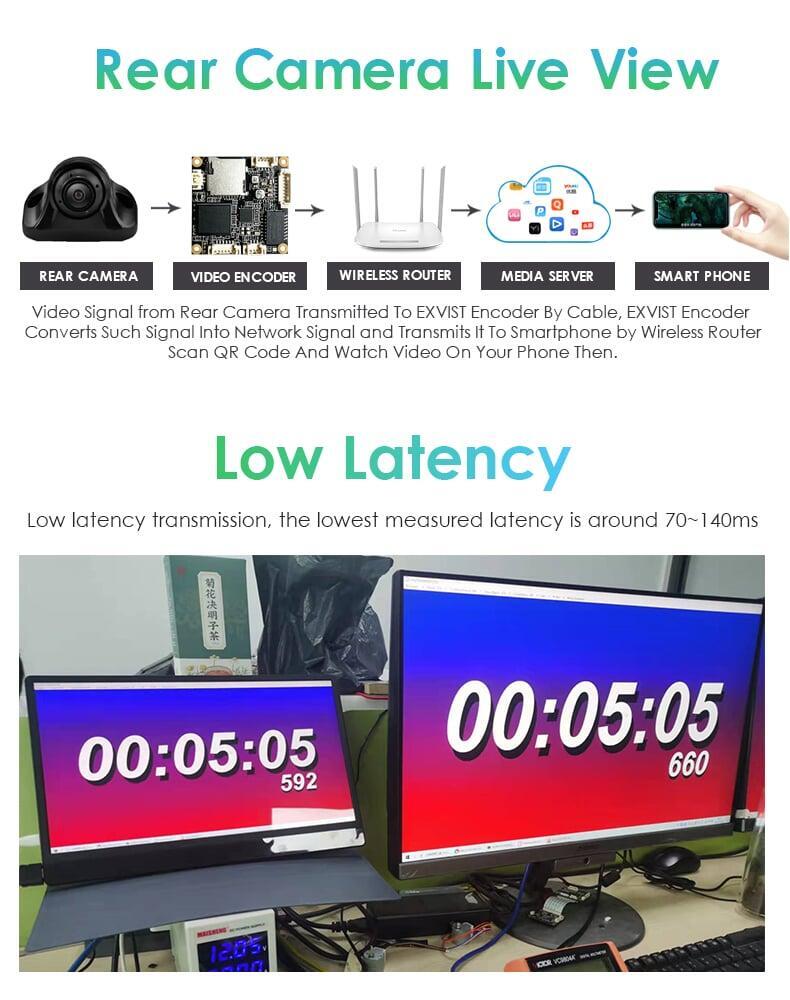

Broadcast-Grade Latency: 70–140ms end-to-end delay for live production (compatible with Wirecast/vMix).
Web UI Customization: Logo overlay (JPG 200×200), OSD text, AAC bitrate control—works on Chrome/Safari/Edge.
Industrial I/O: RS485 serial port for PTZ camera control + Ethernet port for HTTP/HTTPS/Multicast.
Dual-Stream Output: Main/substream adjustable bitrates + 6x RTSP pull streams.
Redeem NMP3U84DAXON to save 10%!
$146.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

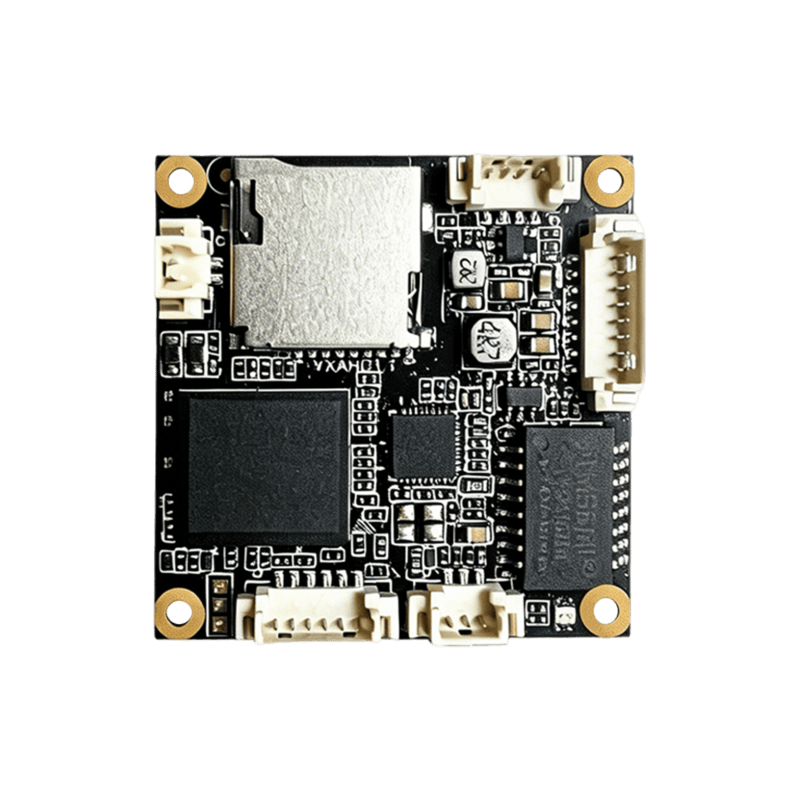

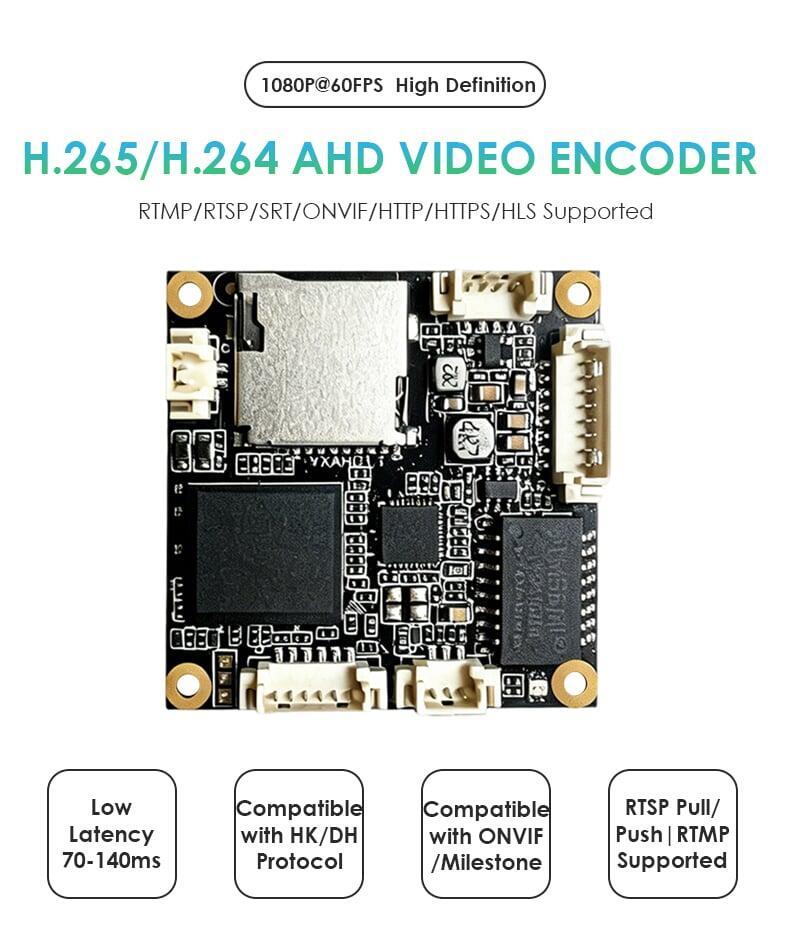

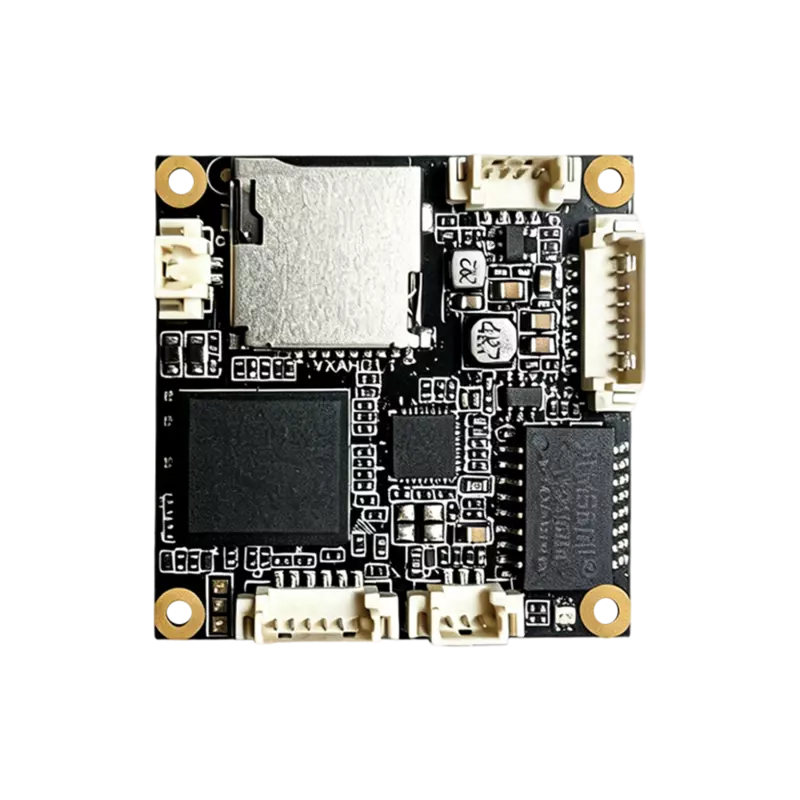

Low Latency 1080P60 AHD Encoder w/H.265 | RTMP/SRT/HLS Streaming | SD Card & Multi-NVR Sync
H.265 Preview
EXVIST's CVBS encoder specifically supports H.265 Preview, offering enhanced video compression capabilities for improved efficiency and quality in previewing content.

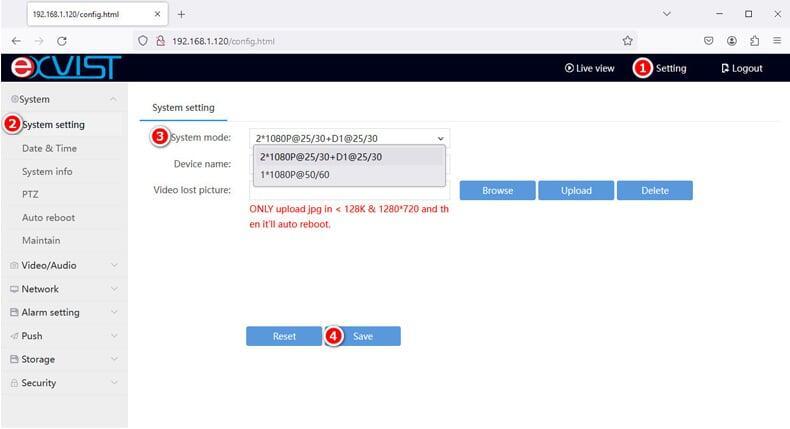

System Mode Switchable
You can achieve smooth video streaming at 50/60fps by adjusting the system mode of the encoder to optimize the frame rate for a higher quality viewing experience.

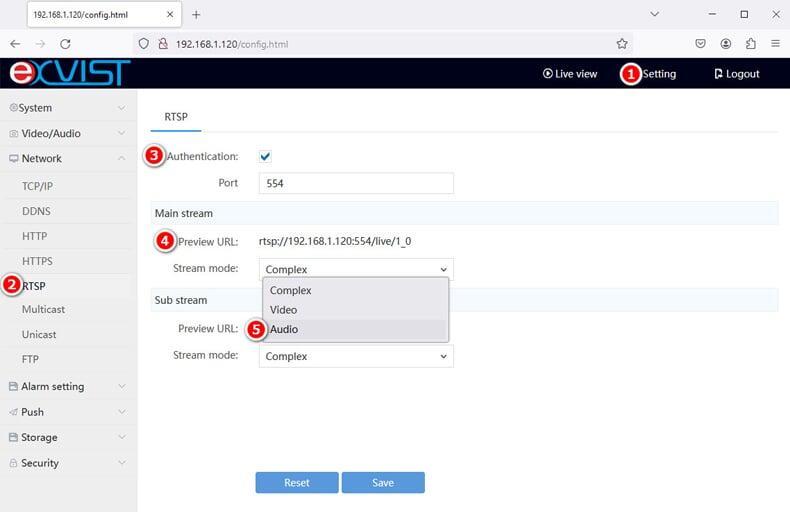

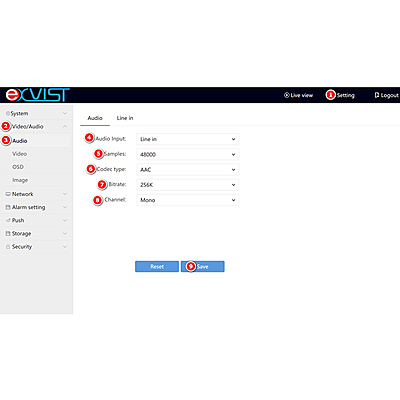

Audio Encoder
Transforming the device into an audio encoder is simple – just select the audio stream exclusively to focus on capturing and encoding audio content.

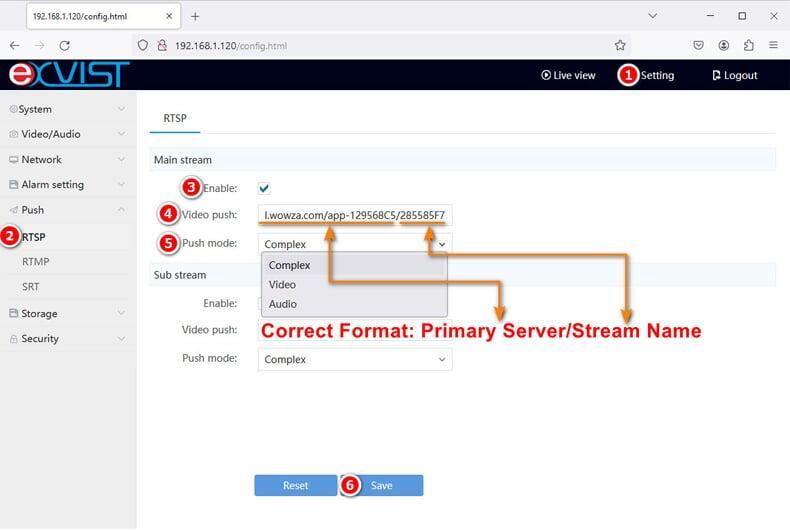

RTSP Push to Wowza Video
This encoder not only supports pulling RTSP streams to Wowza Streaming Engine but also allows for pushing RTSP streams to Wowza Video, providing versatile options for streaming video content.

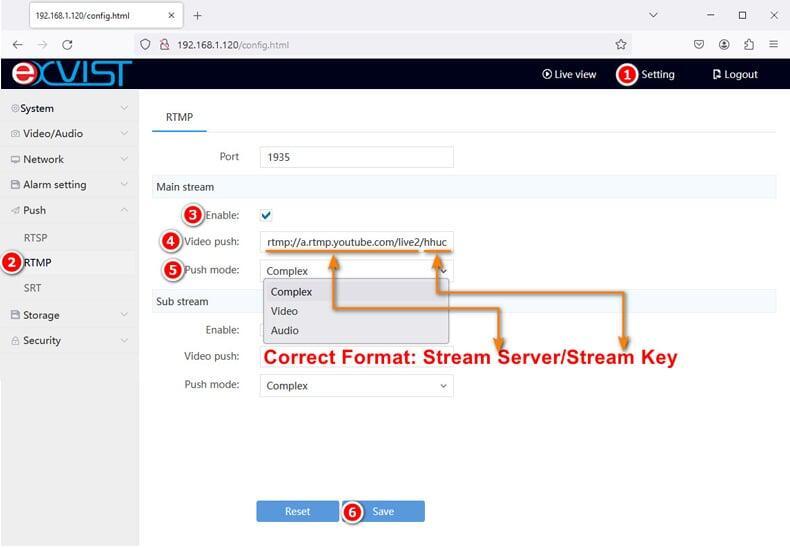

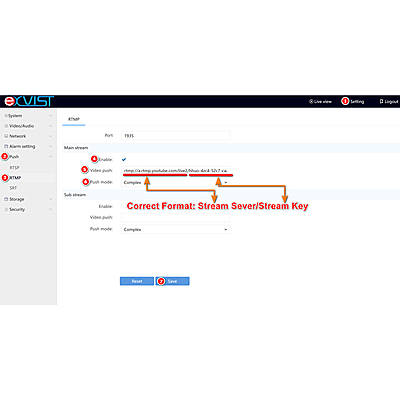

RTMP Push to YouTube etc
Effortlessly stream video to platforms like YouTube and Facebook by leveraging the standard RTMP protocol for seamless integration and broadcasting.

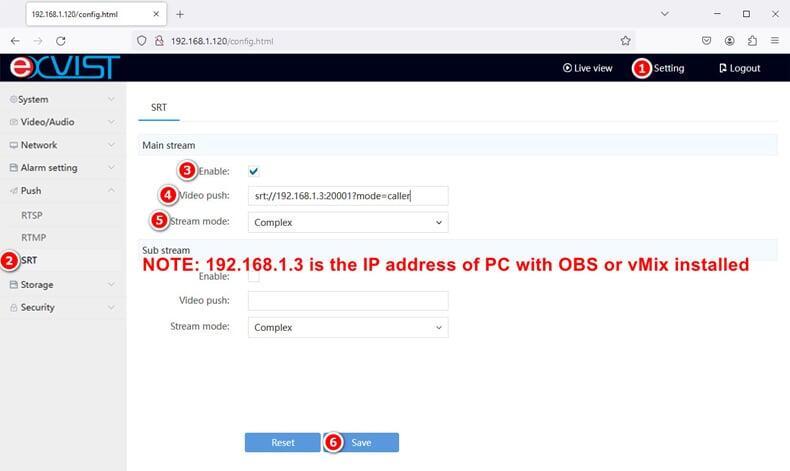

SRT Caller Mode
By following the steps to activate the caller mode within your local area network, you can easily enable the SRT protocol for seamless transmission.
Get Stream into OBS via SRT Caller Mode
Simply paste the correct format in the SRT URL column, and you'll be able to view the video feed in OBS.

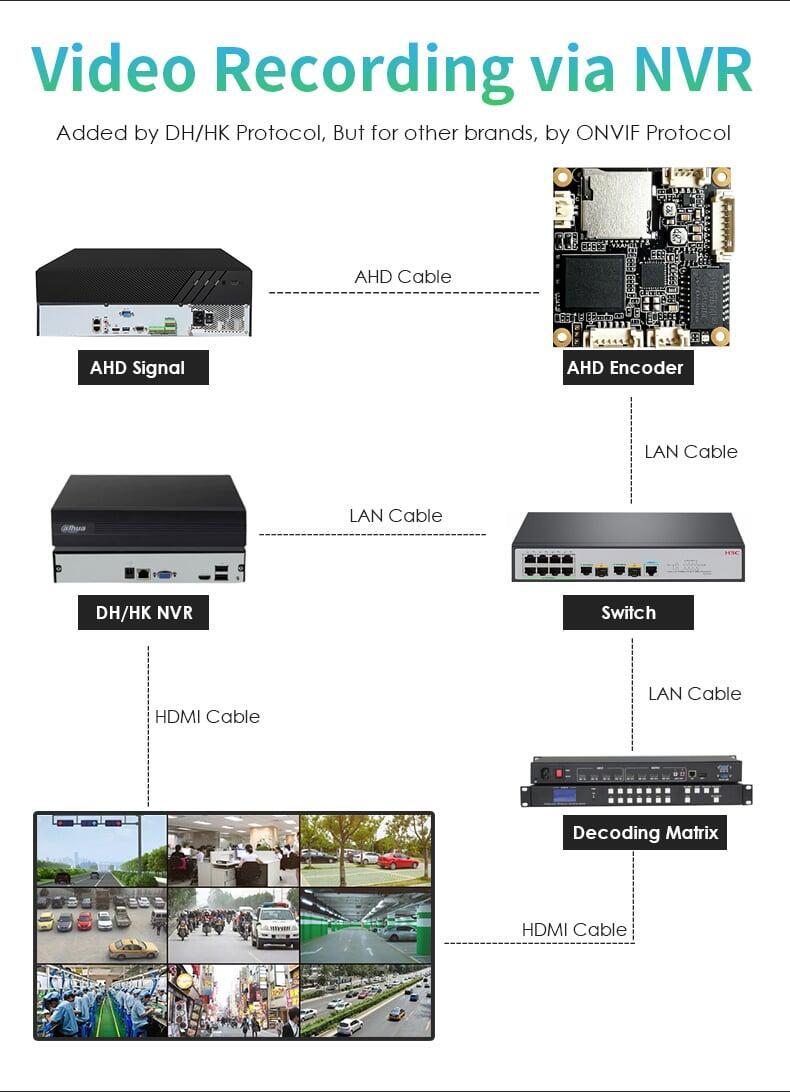

Connect to SmartPSS
This video encoder is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within SmartPSS, offering a user-friendly experience for surveillance system operations.
Connect to iVMS-4200.
Additionally, if you prefer not to use SmartPSS, this encoder is a suitable choice for iVMS-4200, offering compatibility with the HK protocol for optimal functionality within that software.
Compatible with ONVIF
Effortlessly access live video feed in the ONVIF Device Manager as this encoder is compatible with ONVIF standards.
Specifications
Specifications
Product Model
- Product ModelON-AHD-16EM(Max. 60FPS)
Video Input/Output
- Video Input InterfacesAHD
- Max. Input Resolution1080P@60FPS
- Supported Input Resolutions1920x1080 | 1280x720
- Unsupported Input Resolutions1366x768, 1080i
- Output InterfacesNetwork Streaming(RTSP/ RTMP/ RTSP Push/ TS/ HLS/ SRT)/ Local Storage(Micro SD Card)/ FTP
- Loopout ResolutionN/A
- Max. Loopout ResolutionN/A
Audio Input/Output
- Audio Input InterfacesPH1.25 Terminal
- Audio Sampling Rate8kHZ(NVR)/16kHz/32kHz/44.1kHz/48kHZ
- Audio Input Volume0~100, Adjustable for 3.5mm TRS Line-IN ONLY
- Audio Output InterfacesPH1.25 Terminal/Network Audio Stream
- Audio Output Volume0~100, Adjustable for Intercom ONLY
Alarm Input/Output
- Alarm Input InterfacesPH1.25 Terminal
- Alarm I/O LevelHigh Level/Low Level Configurable
- Motion DetectionConfigurable/ Detection Area/ Sensitivity/ Output Option(IO/ Record/ FTP/ Snap)
- Person DetectionConfigurable/ Detection Area/ Sensitivity/ Output Option(IO/ Record/ FTP/ Snap)
- RS485PTZ Control/ Pelco-D/Pelco-P
Video Encoding
- Supported Video StandardsH.264/AVC, H.265/HEVC
- Video Encoding Channels1
- Main Stream1920x1080/ 1280x720
- Sub Stream1280x720/ 704x576/ 640x480/ 640x360/ 352x288/ 320x240
- Max. Encoding Resolution1080P@60FPS
- Bitrate Control ModeConstant Bitrate(CBR)/Variable Bitrate(VBR)
- FramerateUp to 25/30fps or 50/60fps, Determined by System Mode
- GOP5–200 frames (Min Key Interval: 5)
- Bitrate64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
- OSD OverlayDate&Time, Text, Picture(JPG, PNG)
Audio Encoding
- Supported Audio CodecsAAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
- Audio Encoding Channels1
- Audio Bitrate Range32K/64K/128K/256K
- Audio Channels SupportedStereo/Mono
Video Stream
- Concurrent Stream Count6x RTSP Streams
- Stream Latency70~140ms(PC-TO-Encoder+Decoder HDMI Output)
- Stream Types SupportedLive Streaming, Multicast Streaming
- TS (Main Stream)http://192.168.1.120:80/ts/1_0
- TS (Sub Stream)http://192.168.1.120:80/ts/1_1
- HLS (Main Stream)http://192.168.1.120/hls/1_0.m3u8
- HLS (Sub Stream)http://192.168.1.120/hls/1_1.m3u8
- RTSP (Main Stream)rtsp://192.168.1.120:554/live/1_0
- RTSP (Sub Stream)rtsp://192.168.1.120:554/live/1_1
- UDPudp://@224.1.2.3:10000
Protocols & Networking
- Networking ProtocolsTCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
- Streaming ProtocolsRTSP Pull, RTSP Push, RTMP, RTMPS, SRT, HLS, TS, UDP
- PTZ ProtocolPelco-D/Pelco-P
- ONVIF ProtocolCompatible
- HK/DH ProtocolCompatible
- Security FeaturesRTSP Authentication, ONVIF Authentication
Interface

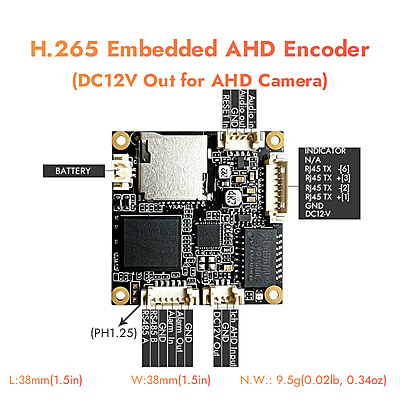

- Physical Input Interfaces1x AHD Input/ 1x 3.5mm TRS Line-In(PH1.25)/ 1x Alarm In(PH1.25)/ 1x DC12V In (PH1.25)
- Physical Output Interfaces1x Network Port Terminal(4PIN PH1.25)/ 1x 3.5mm TRS Line-Out(PH1.25)/ 1x Alarm Out(PH1.25)/ 1x DC12V Out(PH1.25)
- Network Interface1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Local Recording1ch Built-in Micro SD slot for Local Recording, Max. 128GB
- Reset/RecordN/A
- Screen TypeN/A
General
- Default CredentialsUser: admin; Password: 12345
- Default Static IP192.168.1.120
- Power SupplyDC12V 1A or Higher
- Power Consumption≤3W
- Operating Temperature-10°C~+55°C[14°F~131°F]
- Operating Humidity≤95%(Non-Condensing)
- CertificationsCE, FCC, RoHS
- Unit Dimension38mm x 38mm x 8mm[1.5in x 1.5in x 0.31in]
- Package Dimension172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
- Net Weight9.5g[0.02lb/ 0.34oz]
- Gross Weight100g[0.22lb, 3.53oz]
