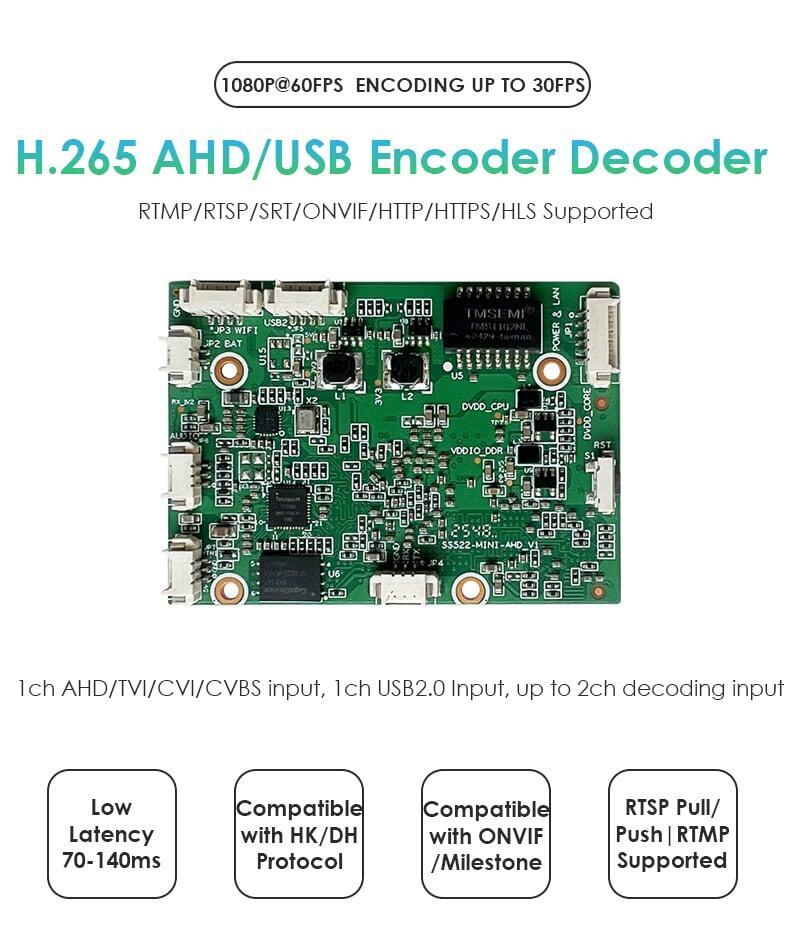

H.265 1080P Mini Hybrid Encoder & Decoder AHD/USB + Dual IP Stream Decoding w/SD Slot, RTMP & Live Stream

Product Model

• Product Model
  ON-UAH-52EM(Max. 30FPS)

Video Input/Output

• Video Input Interfaces

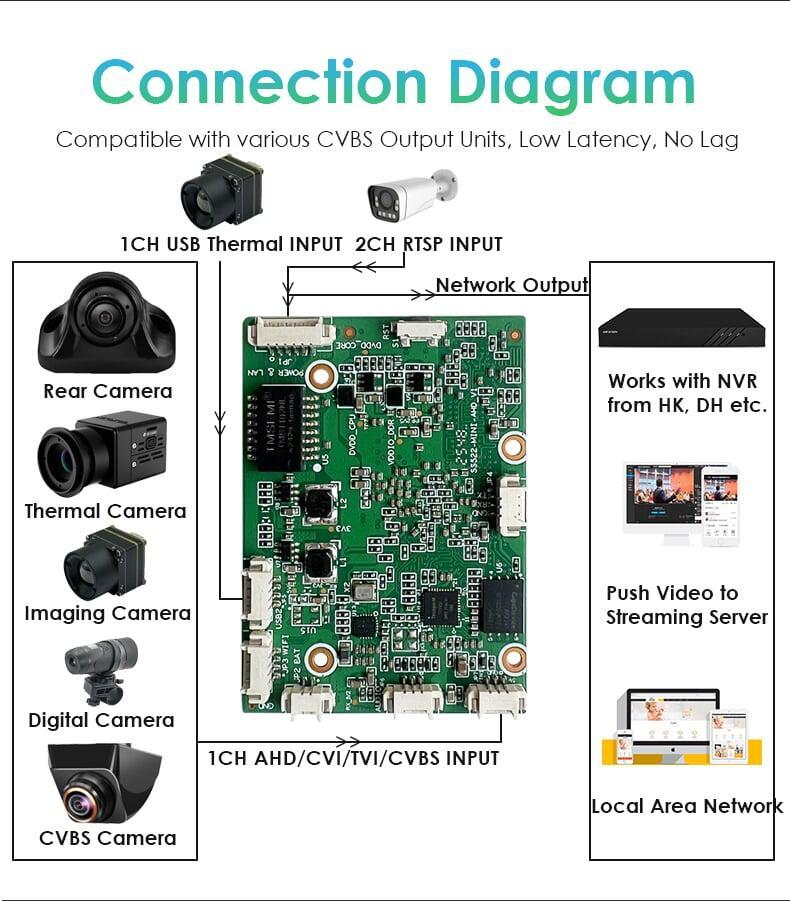

  3PIN PH1.25 AHD/CVI/TVI/CVBS Input | Network Stream Input | 4PIN PH1.25 USB2.0 Input
• Max. Input Resolution
  1080P@60FPS
• Supported Input Resolutions
  1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
• Unsupported Input Resolutions
  1366x768, 1080i
• Output Interfaces
  Network Streaming(RTSP/RTMP/RTSP Push/TS/HLS/SRT) | Local Storage(SD Card Slot)
• Output Mode
  Configurable, 1ch/2ch/3ch/4ch Image Fusion Output
• Loopout Resolution
  N/A
• Max. Loopout Resolution
  N/A

Network Stream Input

• Supported Protocols
  RTSP(H.264/H.265), RTMP, TS, HLS, SQ(Private Protocol for Encoder, Decoder, IP Cameras from EXVIST)
• Max Concurrent Streams
  2ch 1080P@60FPS Decoding Input
• Compatible Devices
  EXVIST Encoders/IPC, Hikvision IPC, AXIS IPC P3365, Dahua IPC, RaySharp NVRs and IPC, TVT IPC, UNV IPC, Reolink IPC, TP-LINK IPC like the C520WS, and other ONVIF-compliant Devices.
• Compatibility Note
  While compatible with most ONVIF-conformant devices, successful decoding of RTSP streams from different brands isn't guaranteed. In case of failure, further debugging and integration may be needed.

USB Input

• USB Camera Support
  Max. 1ch USB2.O Camera Input
• USB Camera Compatibility
  Compatible with USB2.0 (4PIN PH1.25) Thermal Imaging Camera
• USB Storage Support
  N/A
• MP4 File Format
  N/A
• Video Resolution
  N/A

Audio Input/Output

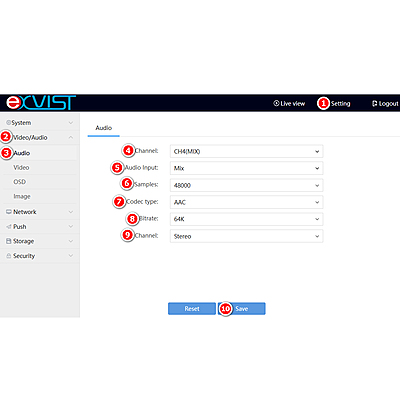

• Audio Input Interfaces
  USB Embedded or 3.5mm TRRS Line-I/O or Network Stream Embedded
• Audio Sampling Rate
  8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
• Audio Input Volume
  0~100, Adjustable for 3.5mm TRRS Line-I/O ONLY
• Audio Output Interfaces
  Network Audio Stream | 3.5mm TRRS Line-I/O
• Audio Output Volume
  0~100, Adjustable for 3.5mm TRRS Line-I/O ONLY

Video Encoding

• Supported Video Standards
  H.264/AVC, H.265/HEVC
• Video Encoding Channels
  2
• Main Stream
  1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
• Sub Stream
  720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
• Max. Encoding Resolution
  1080P@30FPS
• Bitrate Control Mode
  Constant Bitrate(CBR)/Variable Bitrate(VBR)
• Framerate
  Up to 25/30FPS ONLY
• GOP
  5–200 frames (Min Key Interval: 5)
• Bitrate
  64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
• OSD Overlay
  Date&Time, Text, Picture(JPG, PNG)

Audio Encoding

• Supported Audio Codecs
  AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
• Audio Encoding Channels
  2
• Audio Bitrate Range
  32K/64K/128K/256K
• Audio Channels Supported
  Stereo/Mono

Video Stream

• Concurrent Stream Count
  6x RTSP Streams

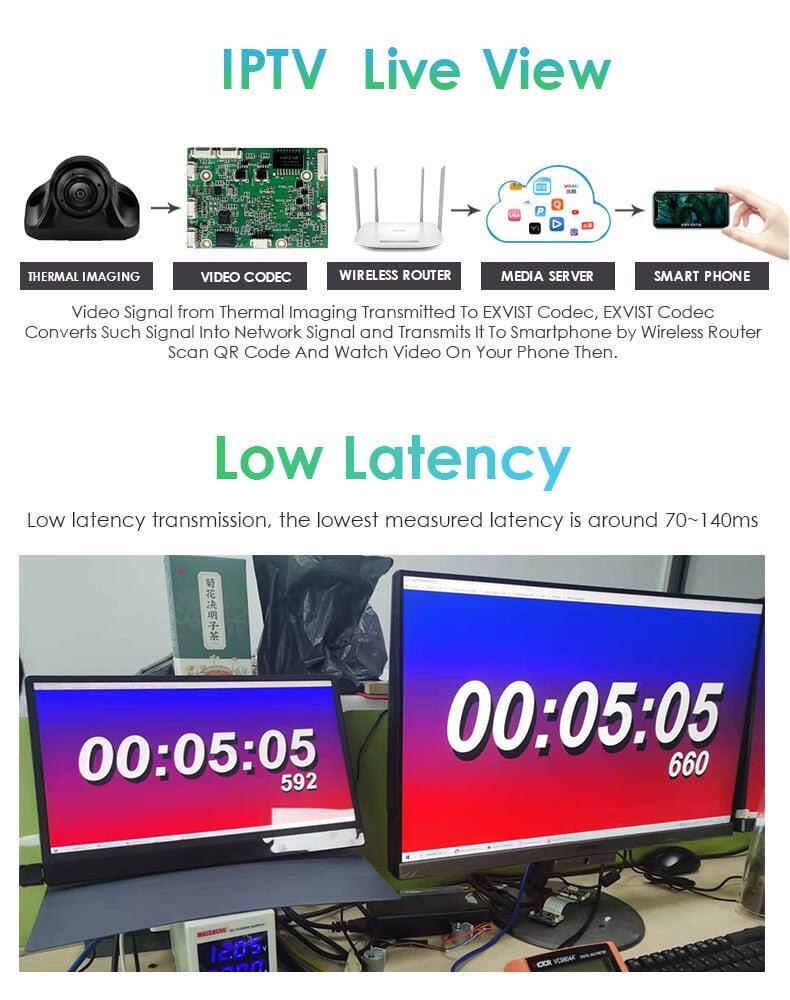

• Stream Latency
  70~140ms(PC-To-Encoder+Decoder HDMI Output)
• Stream Types Supported
  Live Streaming, Multicast Streaming
• TS (Main Stream)
  http://192.168.1.120:80/ts/1_0
• TS (Sub Stream)
  http://192.168.1.120:80/ts/1_1
• HLS (Main Stream)
  http://192.168.1.120/hls/1_0.m3u8
• HLS (Sub Stream)
  http://192.168.1.120/hls/1_1.m3u8
• RTSP (Main Stream)
  rtsp://192.168.1.120:554/live/1_0
• RTSP (Sub Stream)
  rtsp://192.168.1.120:554/live/1_1
• UDP
  udp://@224.1.2.3:10000

Protocols & Networking

• Networking Protocols
  TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
• Streaming Protocols

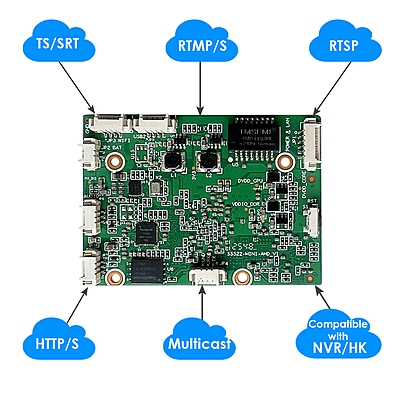

  RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP
• ONVIF Protocol
  Compatible

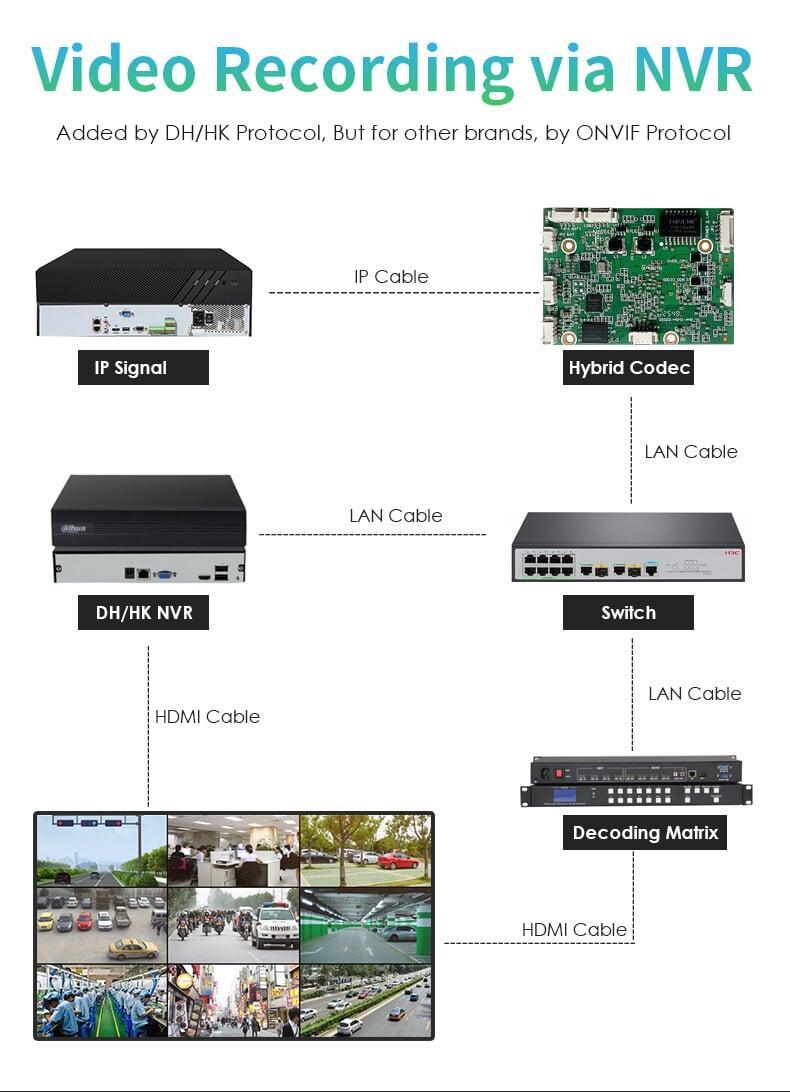

• HK/DH Protocol
  Compatible
• Security Features
  RTSP Authentication, ONVIF Authentication

Interface

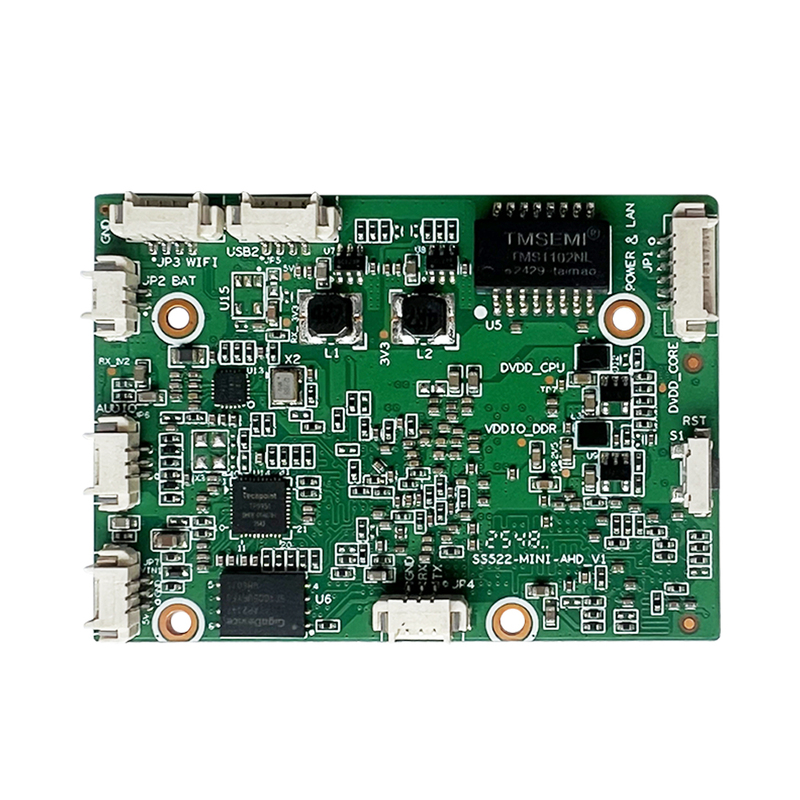

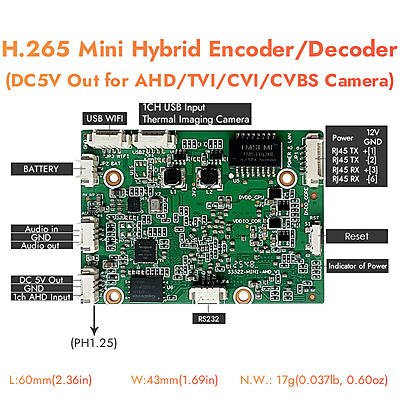

• Physical Input Interfaces
  1x AHD/TVI/CVI/CVBS (3PIN PH1.25) | 1x USB (4PIN PH1.25) | 1x 3.5mm TRRS Line-I/O(ONLY ONE)
• Physical Output Interfaces
  1x 3.5mm TRRS Line-I/O(ONLY ONE) | 1x Network Port(10/100M 6PIN PH1.25)
• Network Interface
  1ch RJ45 10M/100M Self Adaptive Ethernet Port
• USB Port
  1ch USB2.0 for Thermal Imaging Camera
• Reset/Record
  1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
• Screen Type
  N/A

General

• Default Credentials
  User: admin; Password: 12345
• Default Static IP
  192.168.1.120
• Power Supply
  DC12 1A or Higher
• Power Consumption
  ≤3w
• Operating Temperature
  -10°C~+55°C[14°F~131°F]
• Operating Humidity
  ≤95%
• Unit Dimension
  60mm x 43mm x 25mm[2.36in x 1.69in x 0.98in]
• Package Dimension
  172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
• Net Weight
  17g[0.037lb | 0.60oz]
• Gross Weight
  100g[0.22lb | 3.53oz]
