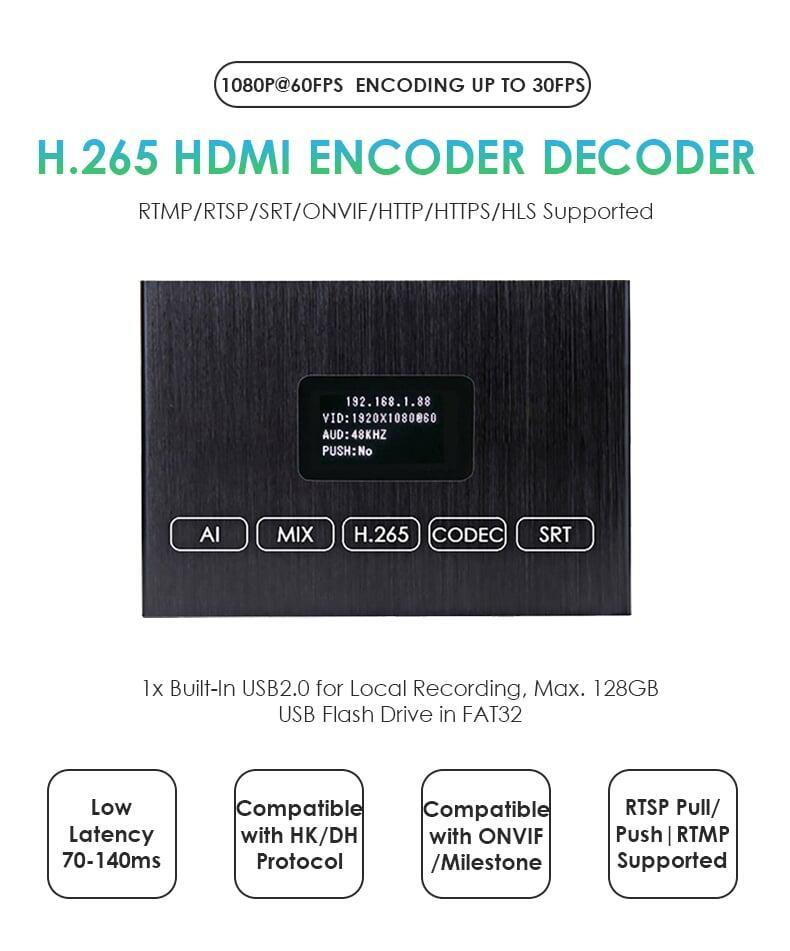

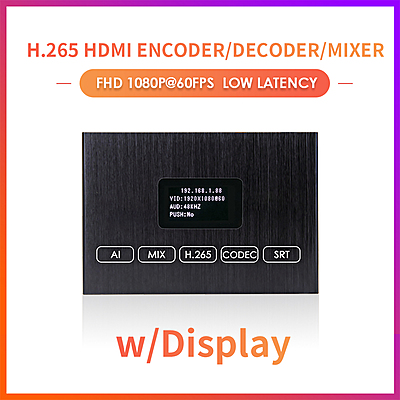

H.265 1080P HDMI Encoder/Decoder (Codec) w/Built-in OLED Screen & Loopout | 3ch RTSP, USB2.0 Rec, ONVIF/Hikvision

Product Model

• Product Model
  ON-MIX-30D(Max. 30FPS)

Video Input/Output

• Video Input Interfaces
  HDMI1.4 Input, Network Stream Input, USB2.0 Input
• Max. Input Resolution
  1080P@60FPS
• Supported Input Resolutions
  3840x2160, 1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768, 800x600
• Unsupported Input Resolutions
  1366x768, 1080i
• Output Interfaces
  Network Streaming(RTSP, RTMP, RTSP Push, TS, HLS, SRT), Local Storage(USB2.0), HDMI Loopout
• Output Mode

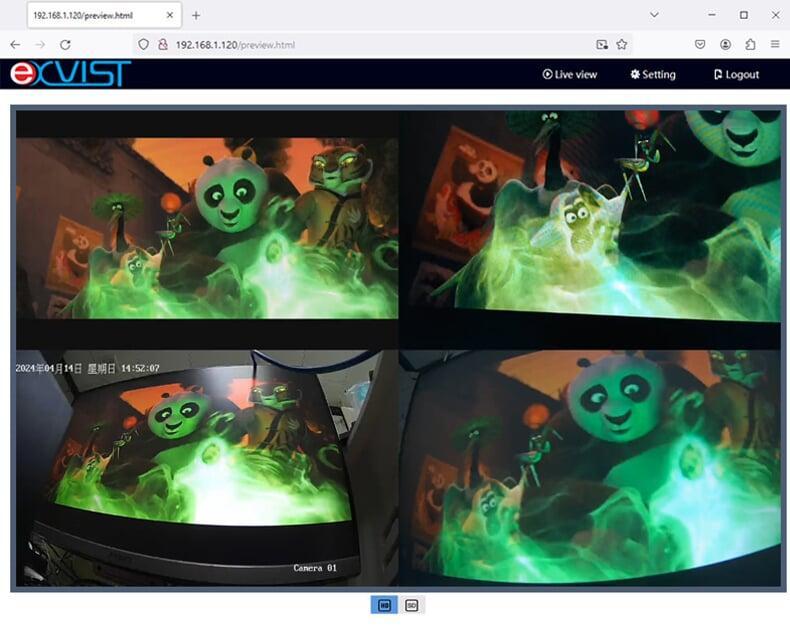

  Configurable, 1ch/2ch/3ch/4ch Image Fusion Output
• Loopout Resolution
  Same as Input Resolution
• Max. Loopout Resolution
  1080P@60FPS

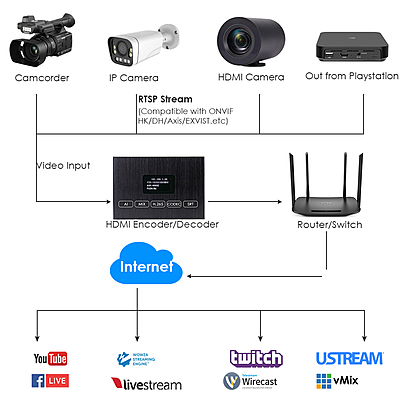

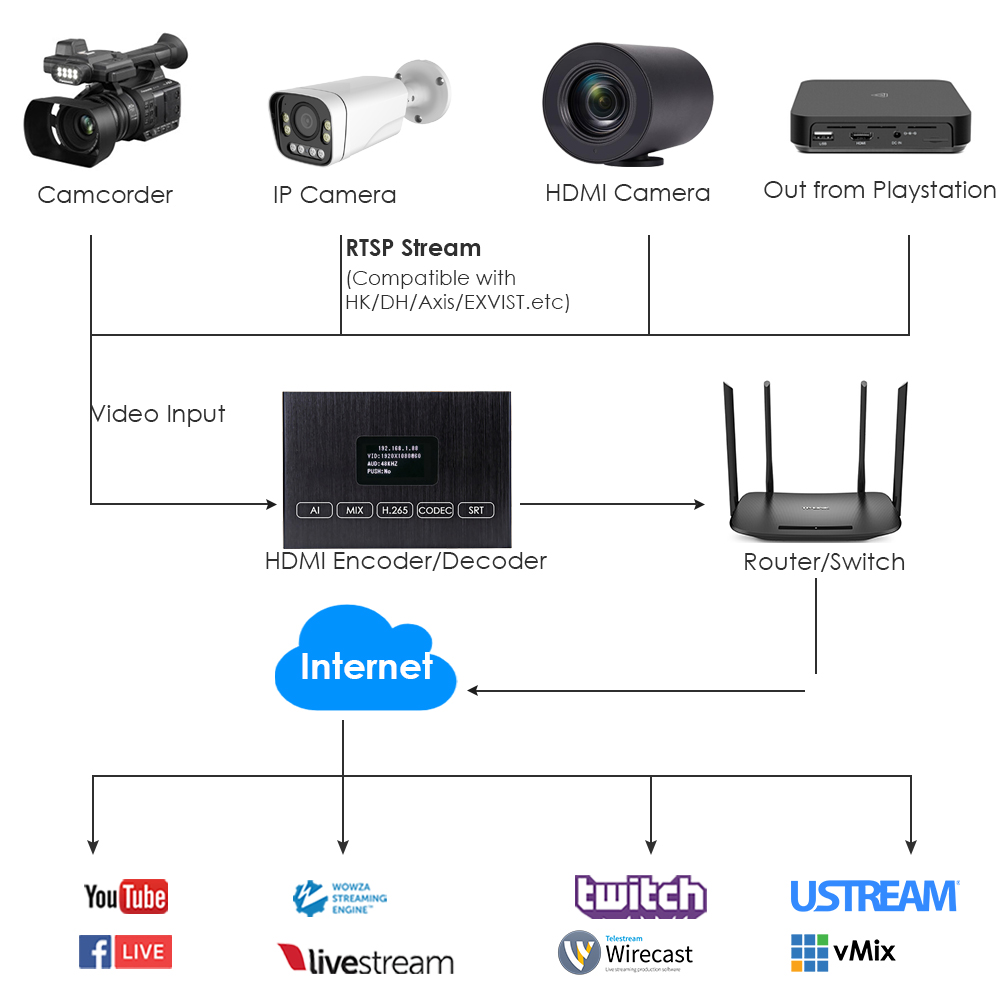

Network Stream Input

• Supported Protocols

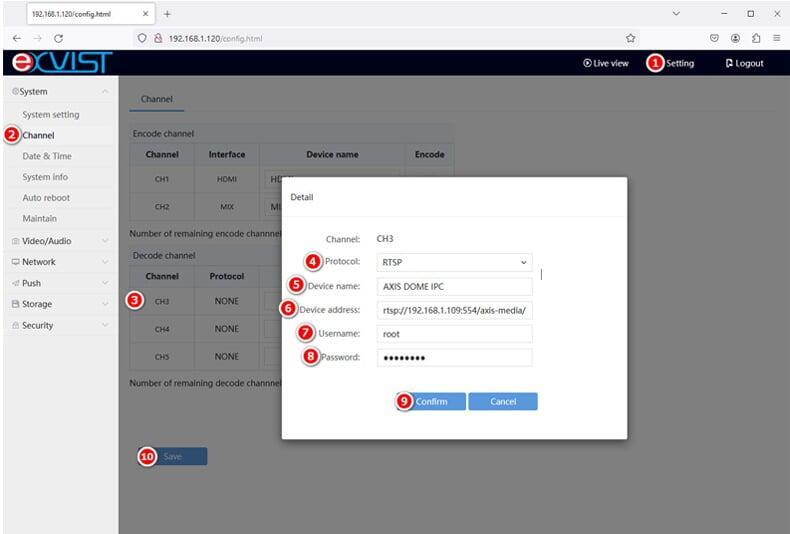

  RTSP(H.264/H.265), RTMP, TS, HLS, SQ(Private Protocol for Encoder, Decoder, IP Cameras from EXVIST)
• Max Concurrent Streams
  1ch 4K@30FPS Decoding Input or 3ch 1080P@60FPS Decoding Input
• Compatible Devices
  EXVIST Encoders/IPC, Hikvision IPC, AXIS IPC P3365, Dahua IPC, RaySharp NVRs and IPC, TVT IPC, UNV IPC, Reolink IPC, TP-LINK IPC like the C520WS, and other ONVIF-compliant Devices.
• Compatibility Note
  While compatible with most ONVIF-conformant devices, successful decoding of RTSP streams from different brands isn't guaranteed. In case of failure, further debugging and integration may be needed.

USB Input

• USB Camera Support
  N/A
• USB Camera Compatibility
  N/A
• USB Storage Support
  Max. 1ch USB2.0 Input
• MP4 File Format
  File System: FAT32; File Size: less than 4G; Video Encoding: H.264, H.265; Audio Encoding: AAC;
• Video Resolution
  USB2.0: Max 1080P@30FPS

Audio Input/Output

• Audio Input Interfaces
  HDMI Embedded or 3.5mm TRS Line-In or USB Input
• Audio Sampling Rate
  8kHz(NVR)/16kHz/32kHz/44.1kHz/48kHz
• Audio Input Volume
  0~100, Adjustable for 3.5mm TRS Line-IN ONLY
• Audio Output Interfaces
  Network Audio Stream, Local Audio Output(HDMI), 3.5mm TRS Line-Out
• Audio Output Volume
  0~100, Adjustable for 3.5mm TRS Line-OUT ONLY

Video Encoding

• Supported Video Standards
  H.264/AVC, H.265/HEVC
• Video Encoding Channels
  3
• Main Stream
  1920x1080, 1600x1200, 1600x900, 1440*1050, 1440x900, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1280x600, 1024x768
• Sub Stream
  720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 352x288, 320x240
• Max. Encoding Resolution
  720P@30FPS
• Bitrate Control Mode
  Constant Bitrate(CBR)/Variable Bitrate(VBR)
• Framerate
  Up to 25/30FPS ONLY
• GOP
  5–200 frames (Min Key Interval: 5)
• Bitrate
  64-12000Kbps[Initial Recommended Bitrate: 500 Kbps]
• OSD Overlay
  Date&Time, Text, Picture(JPG, PNG)

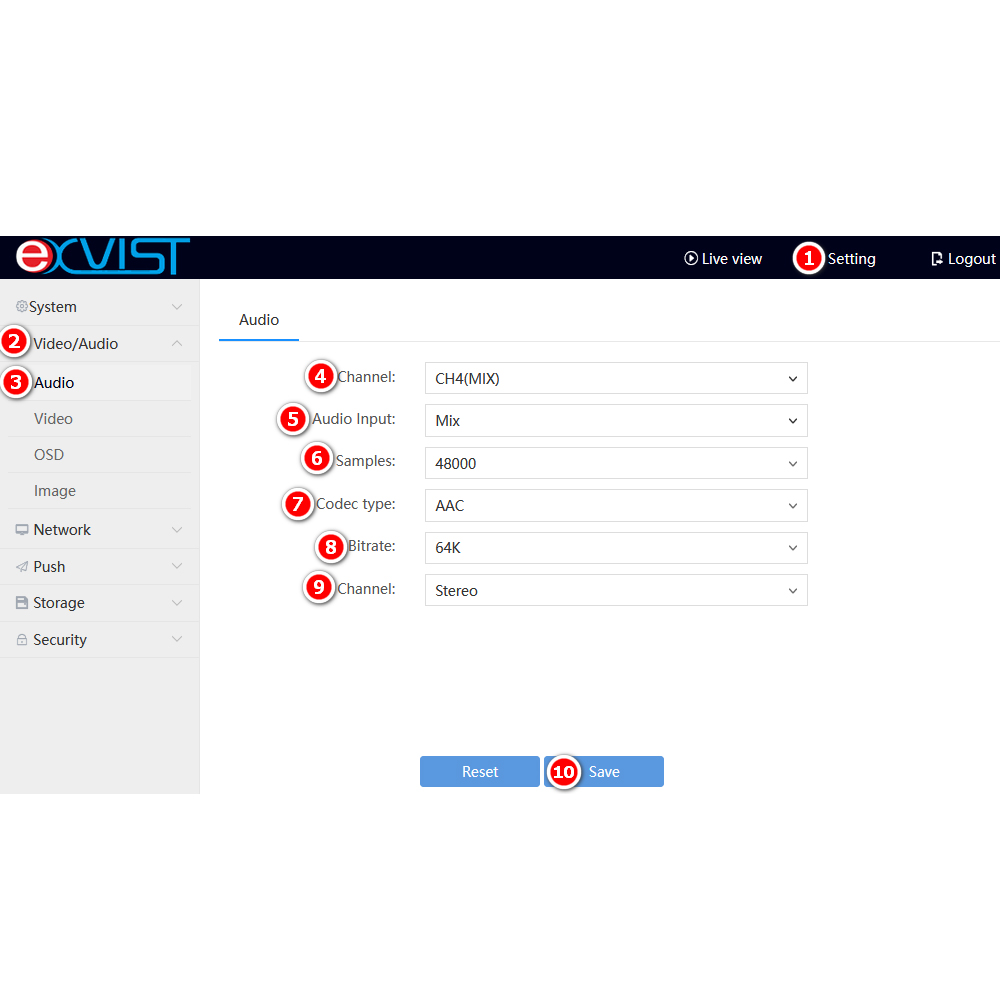

Audio Encoding

• Supported Audio Codecs
  AAC(Mandatory for YouTube), G.711A, G.711U(NVR Systems)
• Audio Encoding Channels
  3
• Audio Bitrate Range
  32K/64K/128K/256K
• Audio Channels Supported
  Stereo/Mono

Video Stream

• Concurrent Stream Count
  6x RTSP Streams
• Stream Latency

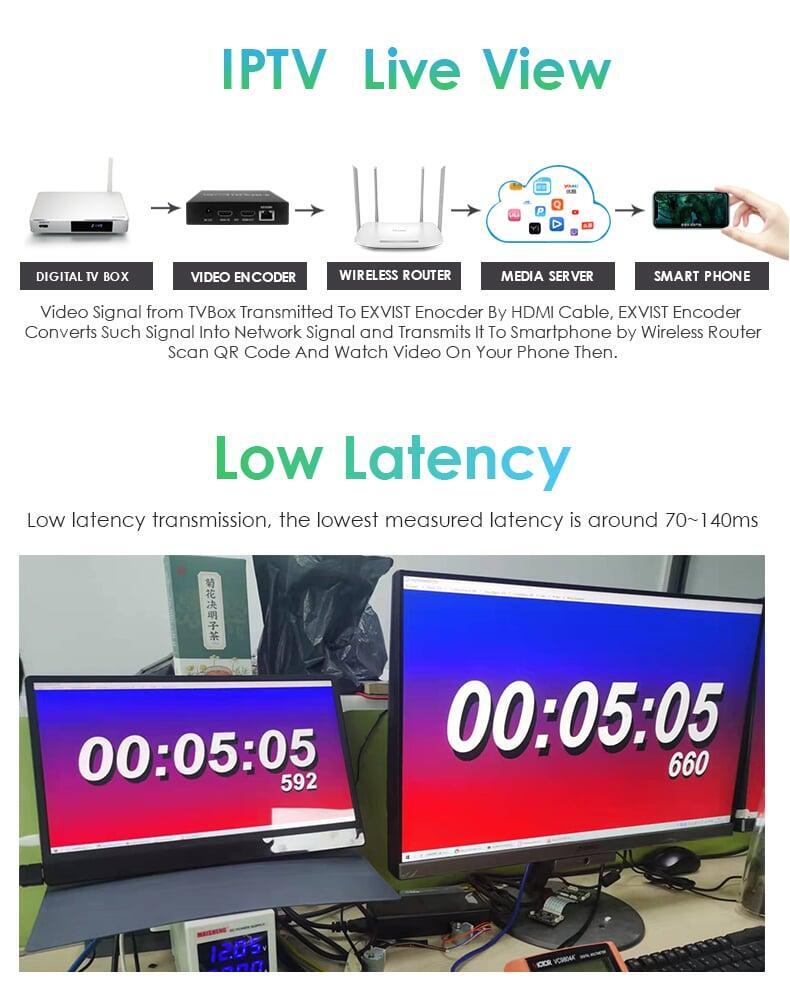

  70~140ms(PC-To-Encoder+Decoder HDMI Output)
• Stream Types Supported
  Live Streaming, Multicast Streaming
• TS (Main Stream)
  http://192.168.1.120:80/ts/1_0
• TS (Sub Stream)
  http://192.168.1.120:80/ts/1_1
• HLS (Main Stream)
  http://192.168.1.120/hls/1_0.m3u8
• HLS (Sub Stream)
  http://192.168.1.120/hls/1_1.m3u8

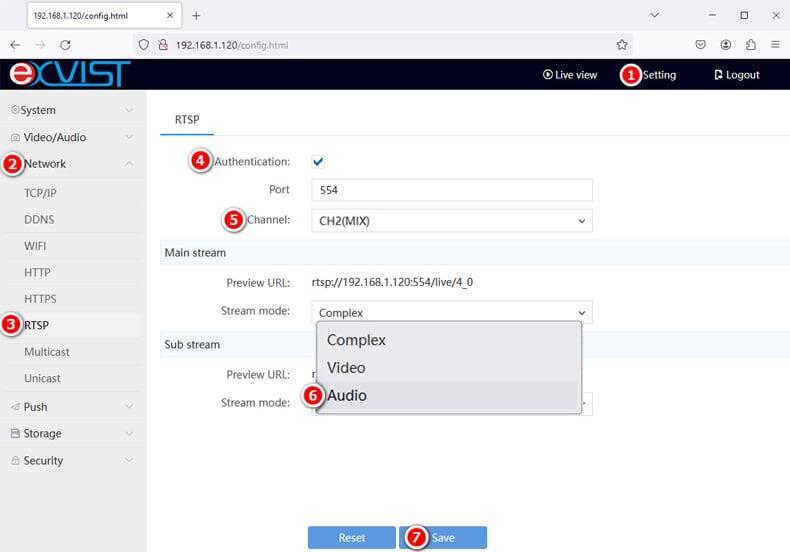

• RTSP (Main Stream)
  rtsp://192.168.1.120:554/live/1_0
• RTSP (Sub Stream)
  rtsp://192.168.1.120:554/live/1_1

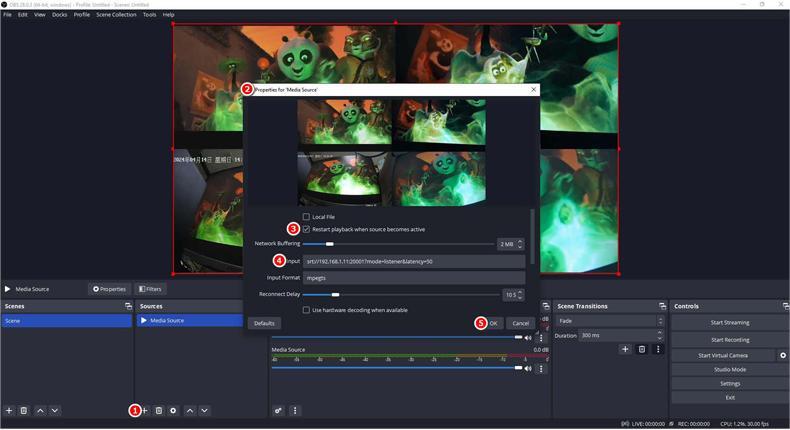

• UDP
  udp://@224.1.2.3:10000

Protocols & Networking

• Networking Protocols
  TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP
• Streaming Protocols

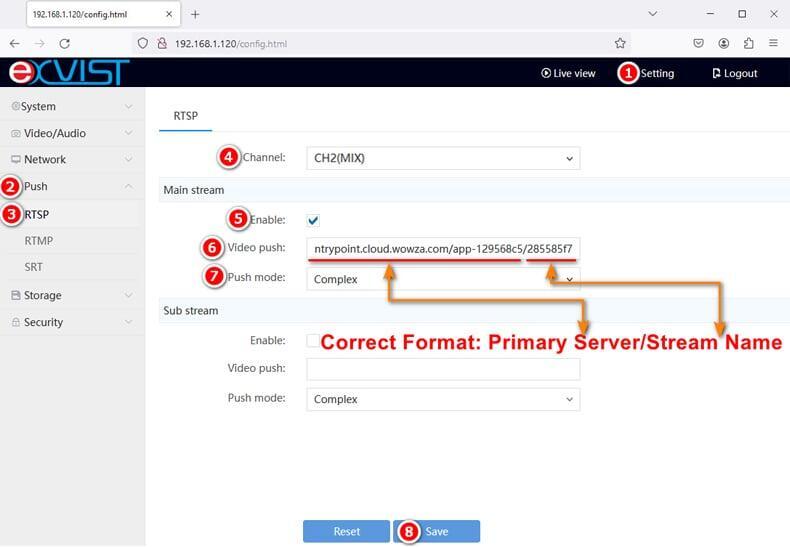

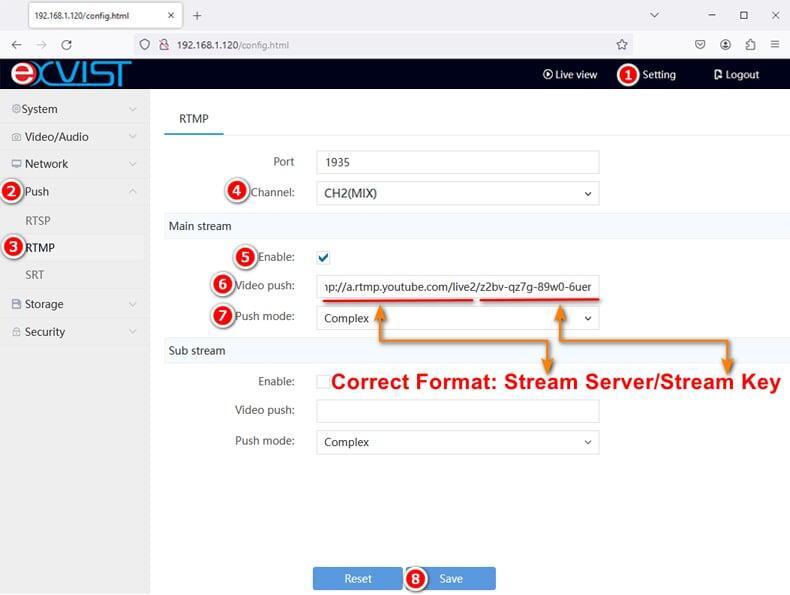

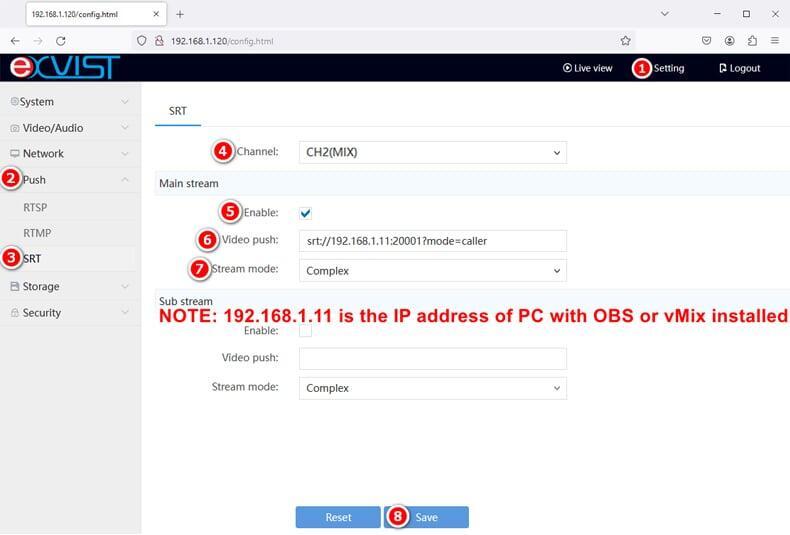

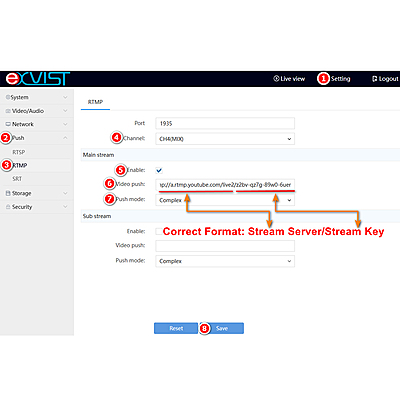

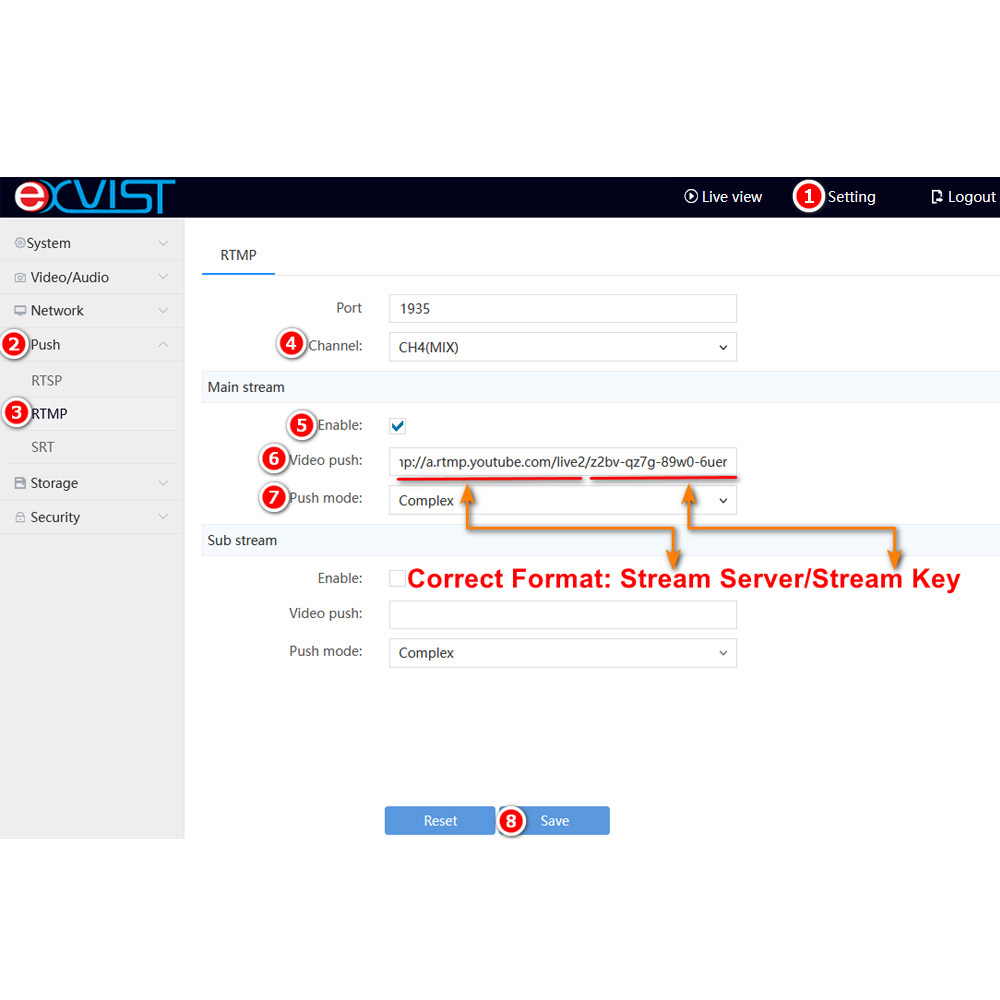

  RTSP Pull(H.264/H.265), RTSP Push(H.264/H.265), RTMP(H.264 ONLY), RTMPS, SRT, HLS, TS, UDP

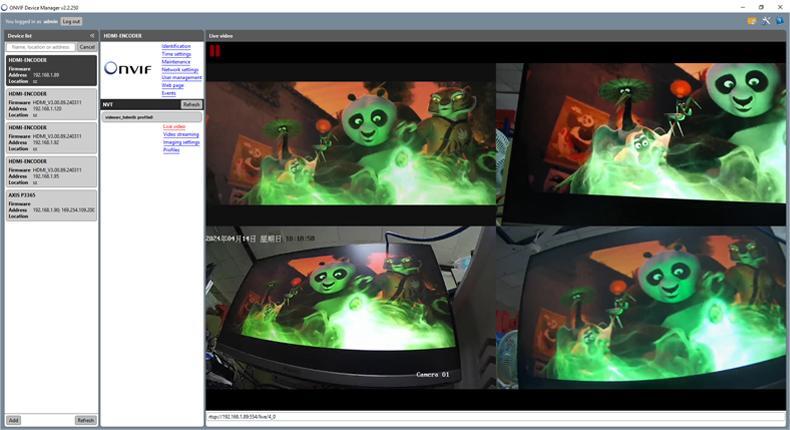

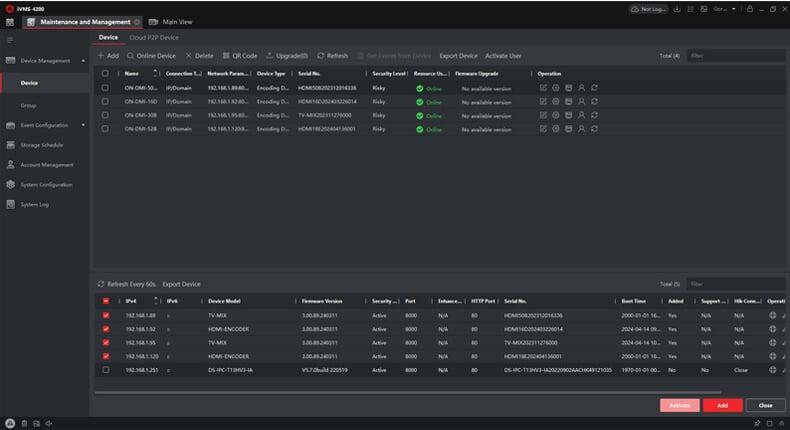

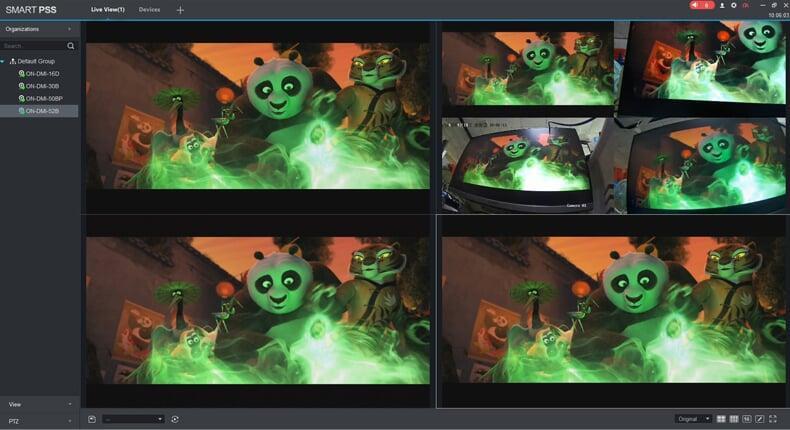

• ONVIF Protocol
  Compatible

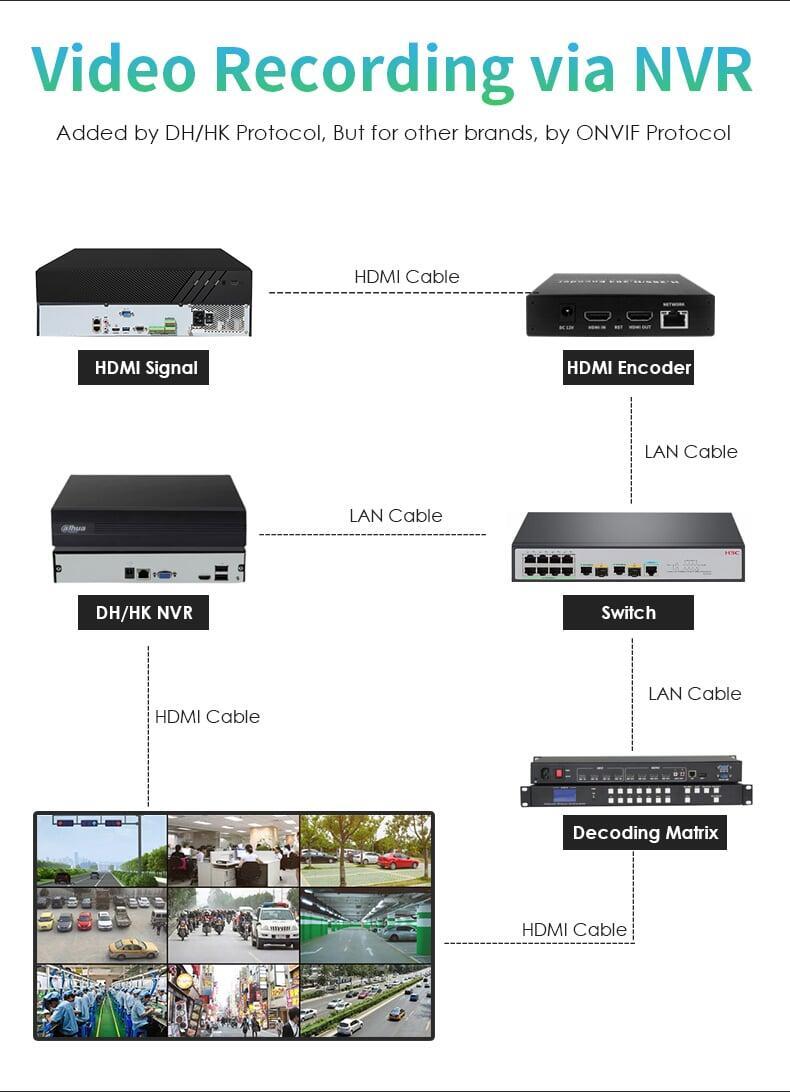

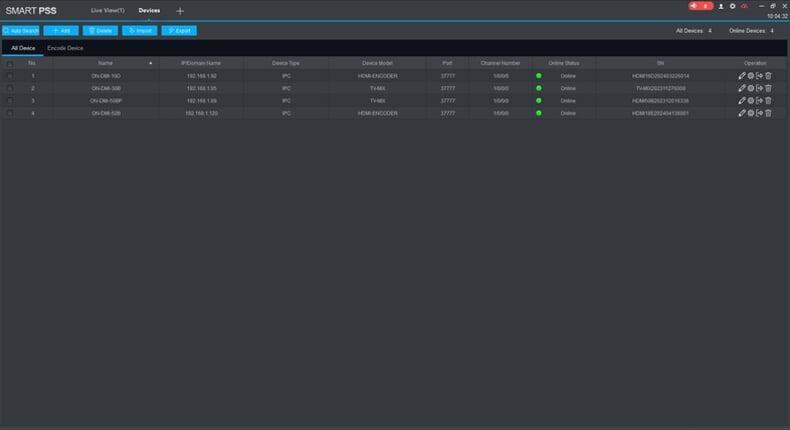

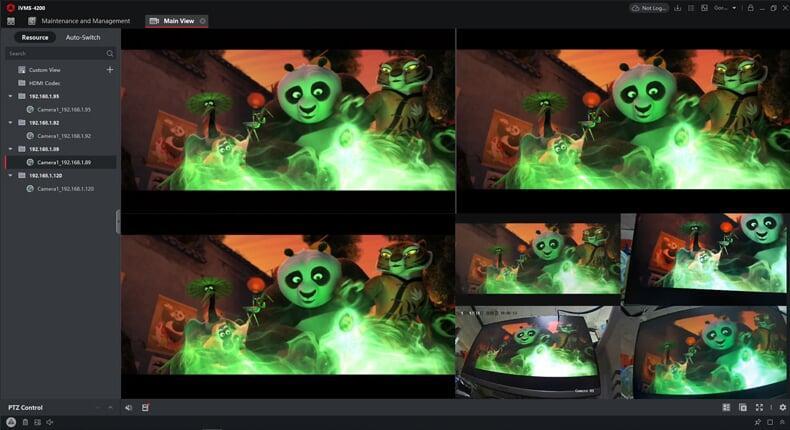

• HK/DH Protocol
  Compatible
• Security Features
  RTSP Authentication, ONVIF Authentication

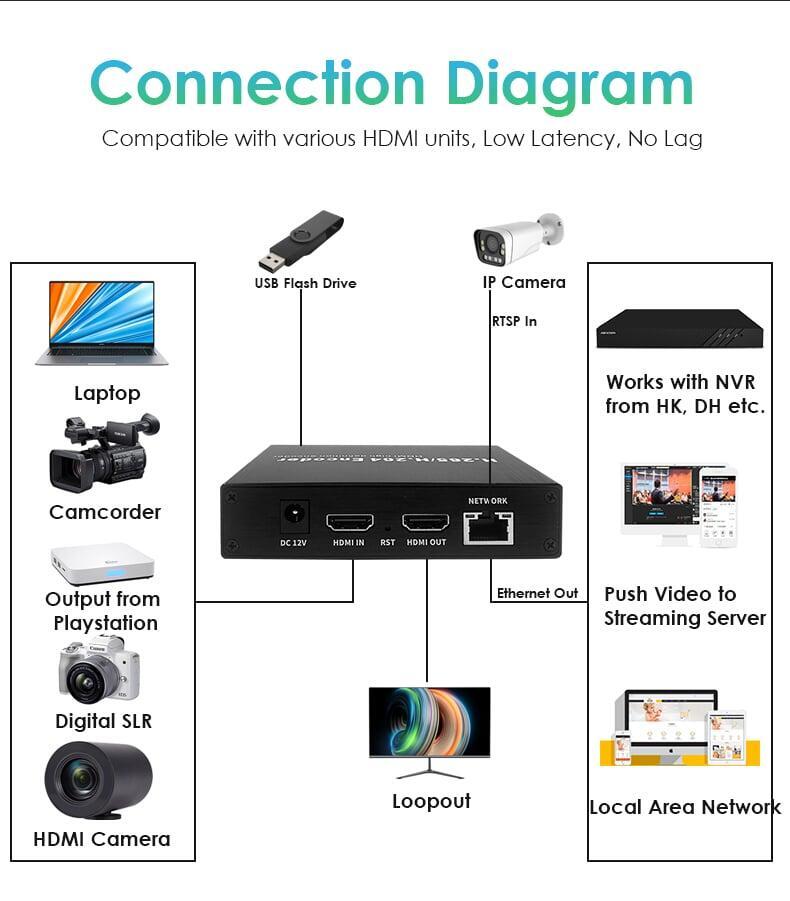

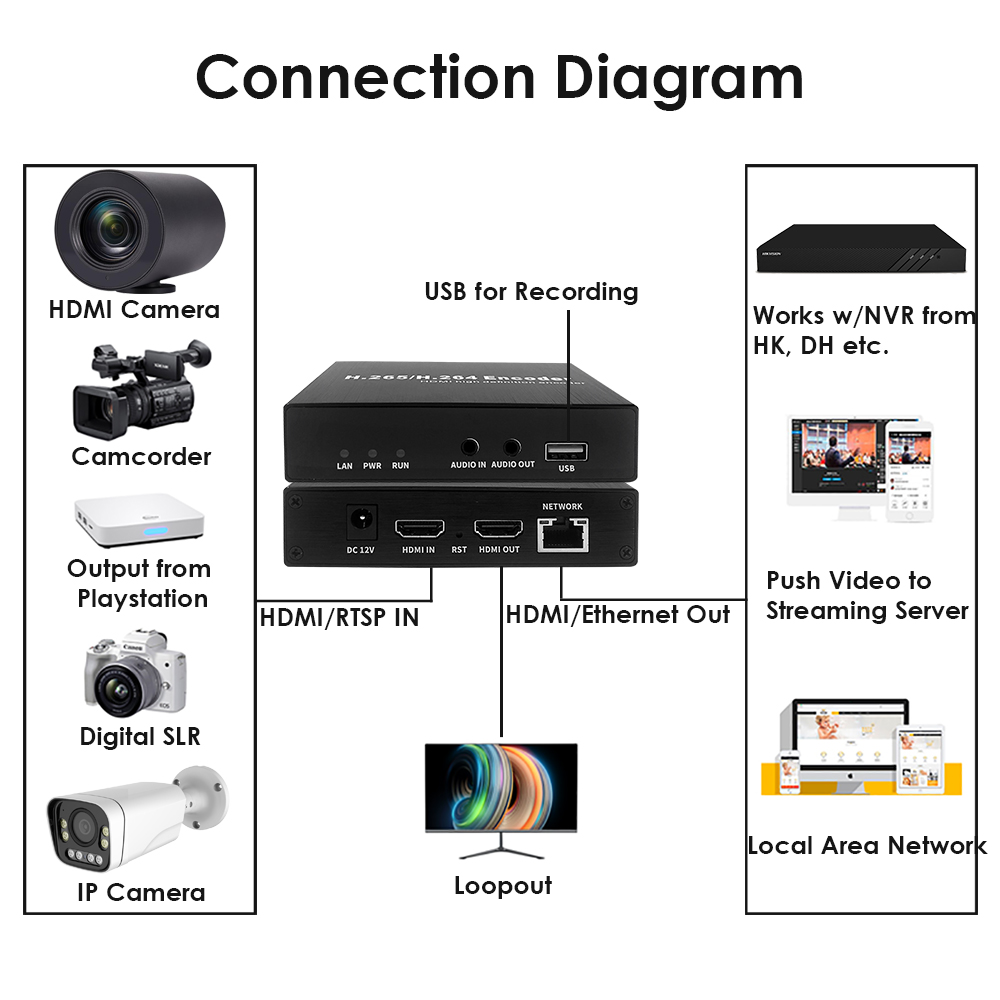

Interface

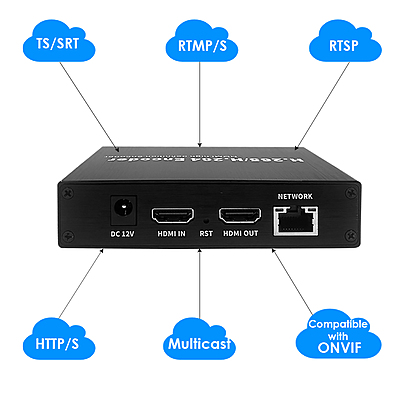

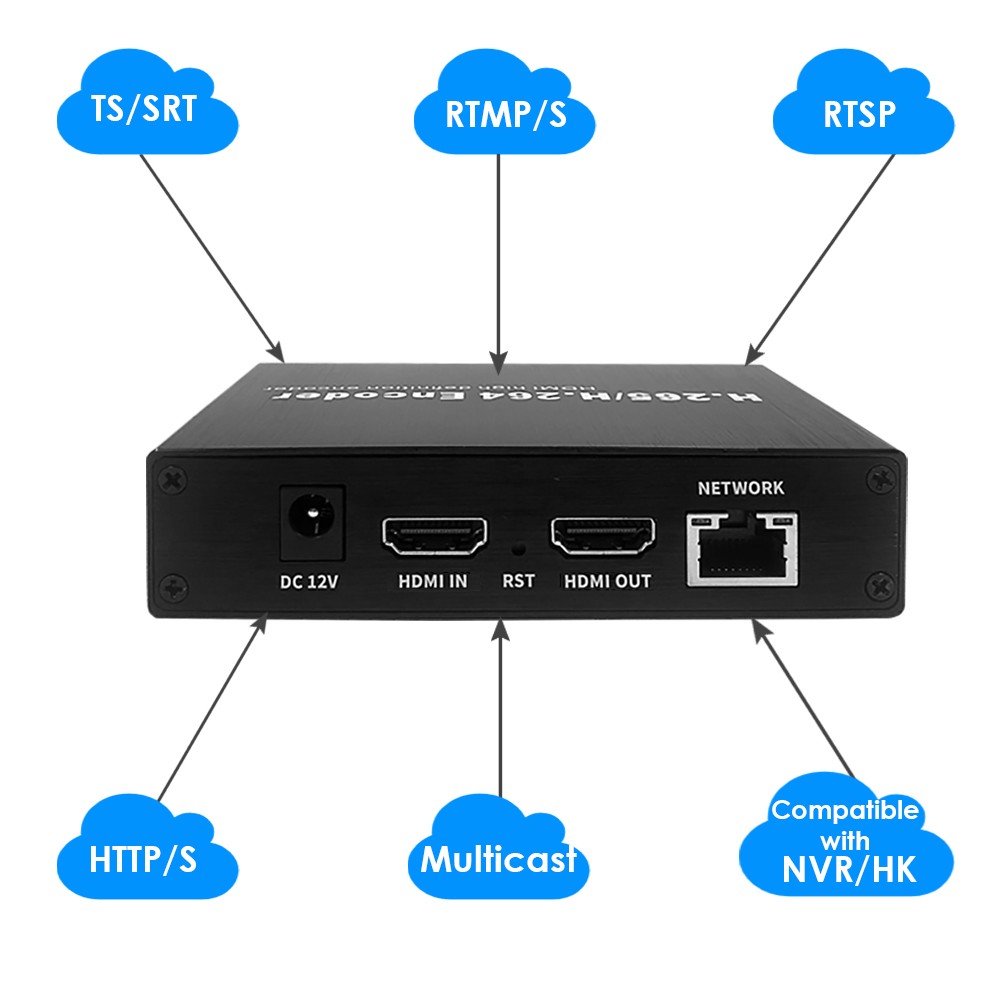

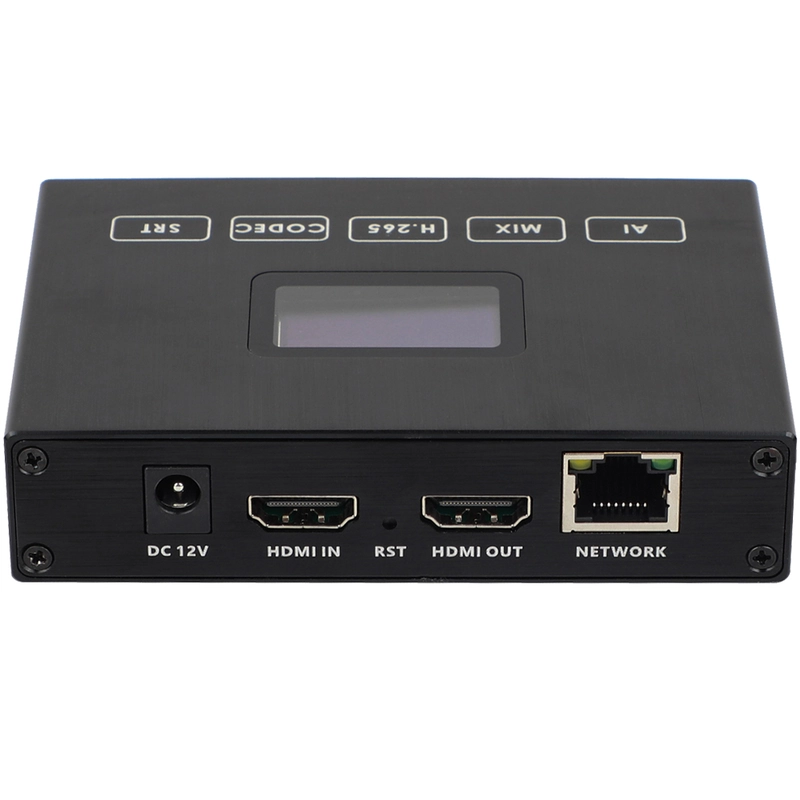

• Physical Input Interfaces
  1x HDMI1.4, 1x 3.5mm TRS Line-In
• Physical Output Interfaces
  1x HDMI1.4, 1x 3.5mm TRS Line-Out, 1x Network Port(10/100M)
• Network Interface
  1ch RJ45 10M/100M Self Adaptive Ethernet Port
• USB Port
  1ch USB2.0 for Local Recording/Playback, Max. 128GB
• Reset/Record
  1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)

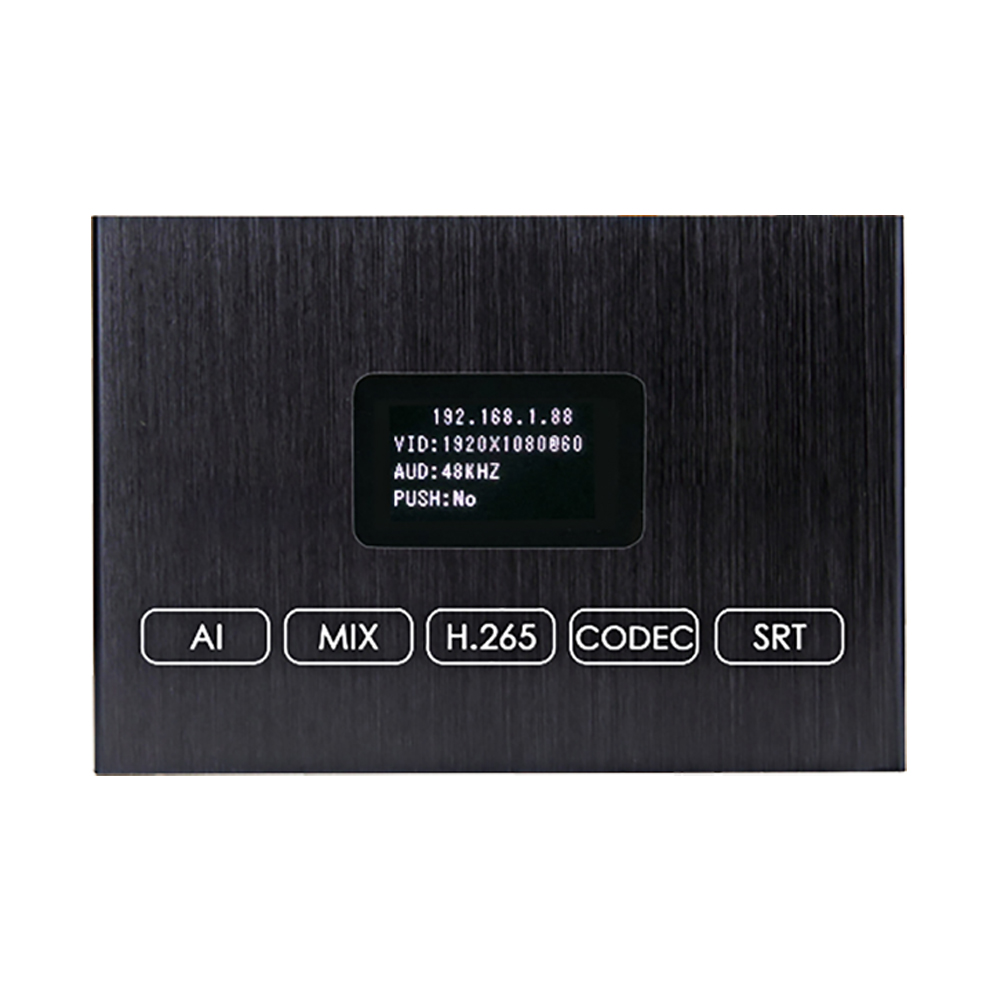

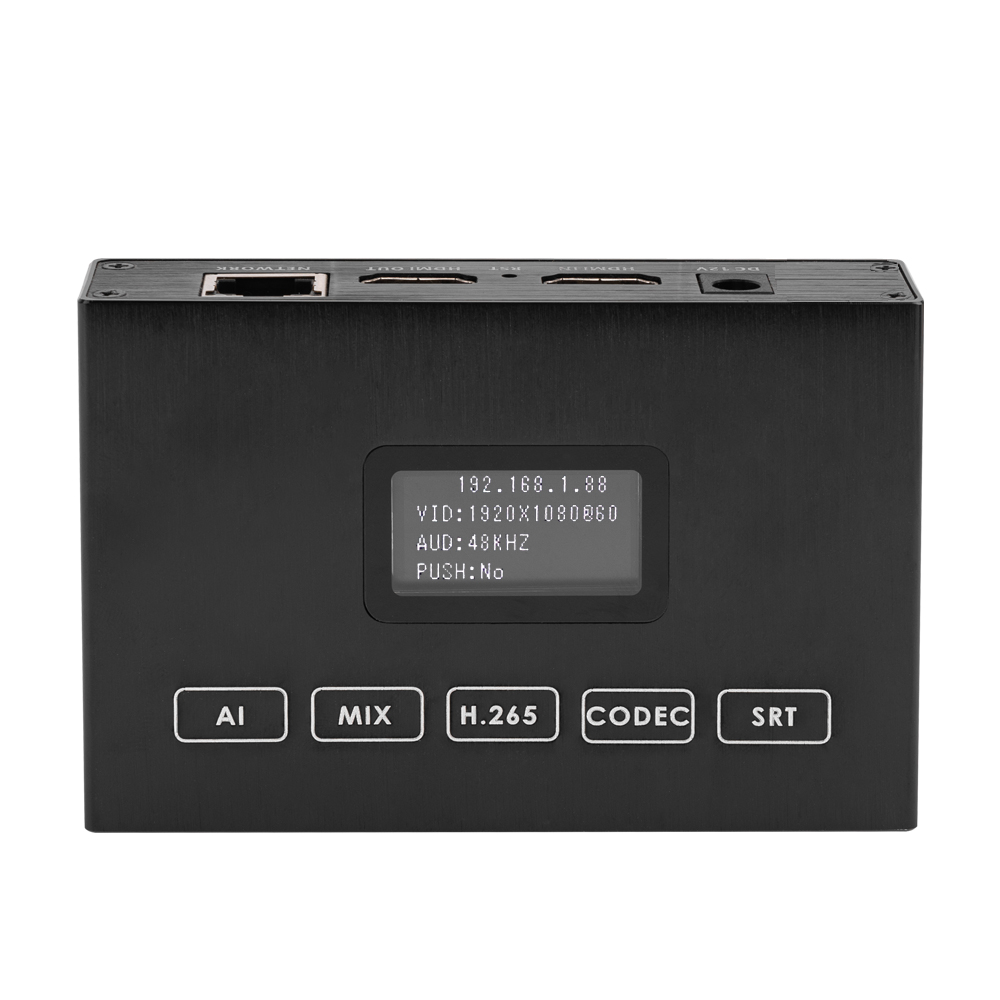

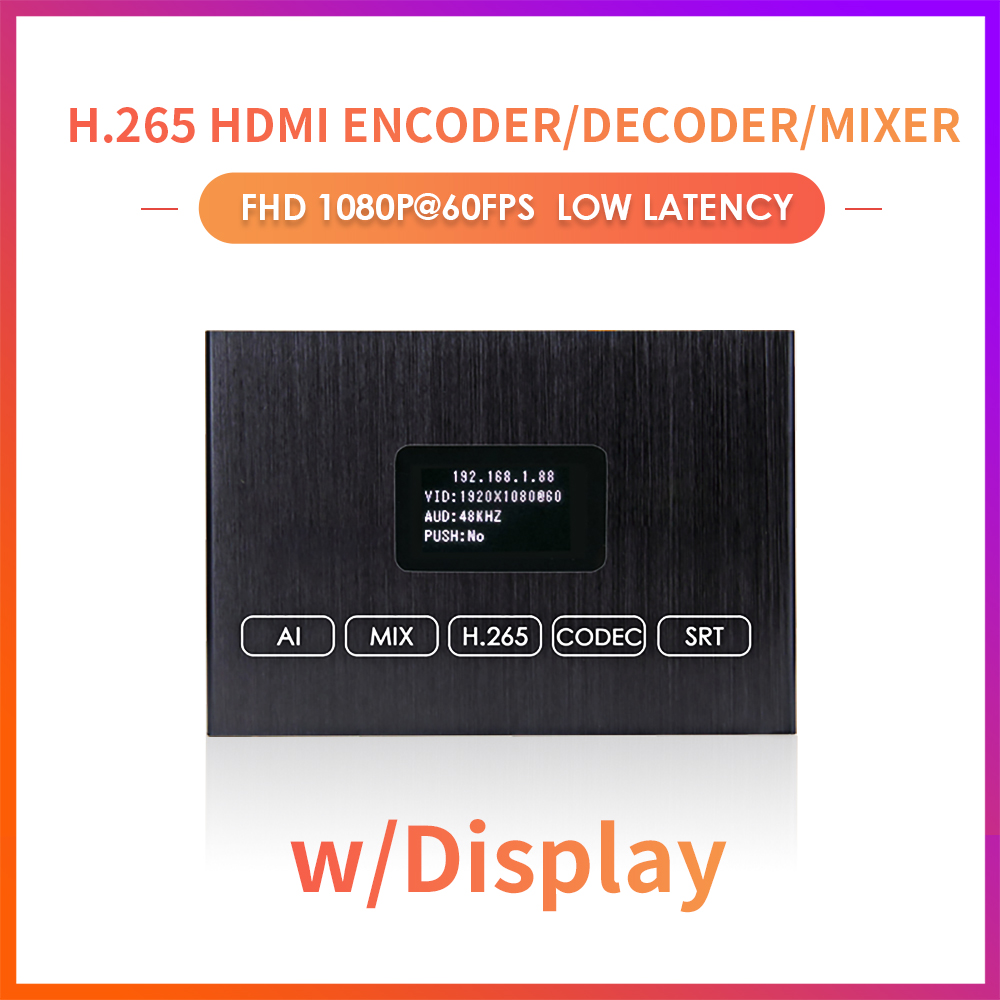

• Screen Type
  OLED 128 x 64 Dot-Matrix Screen

General

• Default Credentials
  User: admin; Password: 12345
• Default Static IP
  192.168.1.120
• Power Supply
  DC12 1A or Higher
• Power Consumption
  ≤3w
• Operating Temperature
  -10°C~+55°C[14°F~131°F]
• Operating Humidity
  ≤95%
• Unit Dimension
  109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
• Package Dimension
  172mm x 150mm x 41mm[6.77in x 5.91in x 0.09in]
• Net Weight
  156g[0.34lb, 5.5oz]
• Gross Weight
  378g[0.83lb, 13.33oz]
