    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP
    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP

    4G/3G LTE Industrial Router Wireless 2.4HZ 300M W/Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module SIM Card Slot Wide Voltage DC7V-35V VPN PPTP L2TP

    Dynamic Stock. Please contact us first before batch order!
    Save 6%
    $15157
    $16157
    Buy 1 get 10% OFF
    Buy 1 get 10% OFF
    Shop more
    Free worldwide shipping
    Free returns
    Carbon neutral
    Secure payments
    Module
    EC25-A
    EC25-AF
    EC25-AFX
    EC25-AU
    EC25-AUGC
    EC25-AUX
    EC25-E
    EC25-EU
    EC25-EC
    EC25-EUX
    EC25-J
    EC25-MX
    EC25-V
    Antenna
    W/O GPS Antenna
    W/GPS Antenna

    Checkout Security with

    Overview

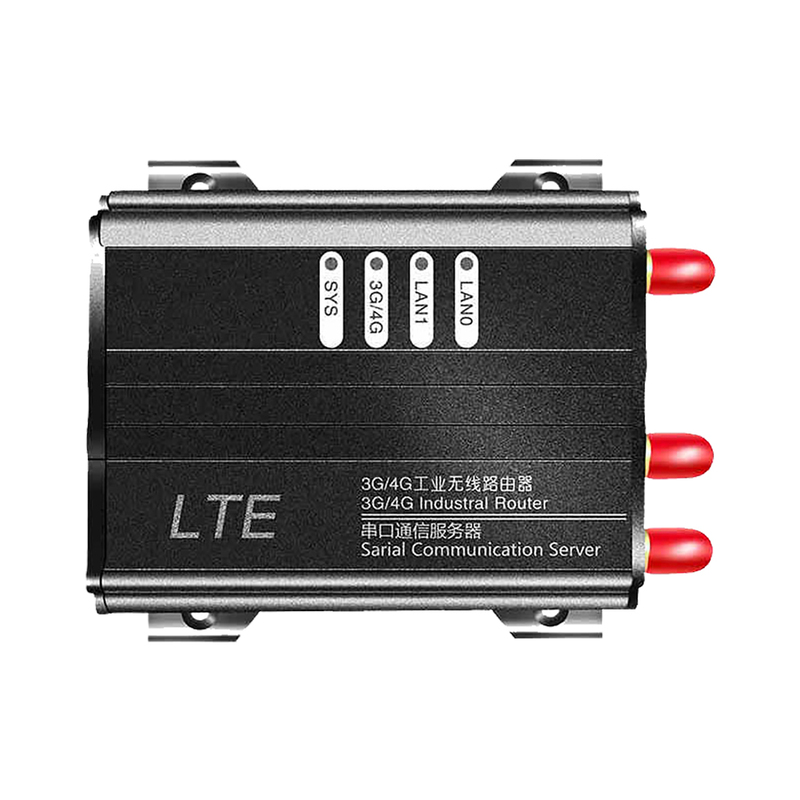

    V519-industrial 3G/4G router-adopts high performance 32-bit processor, high speed process protocol and large data, equipped with multiply 3G/4G industrial modules(WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE), provides 10/100M adaptive ethernet port, WiFi wireless port, serial port, integrated with multiply terminal devices,easy to do configuration via WEB and remote control.

    Applicable industries:

    • Electrical, oil, coal, finance, communication, public security, heat, industrial control, meteorological, water conversancy, transportation, municipal administration etc.

    Specification

    Parameters of WiFi
    Basics Max. Transmission Rate: 300Mbps.
    Working Band: 2.4GHz.
    Wireless Mode(Option): 11b/g/n/, 11bg mixed , 11bam mixed (Def).
    Wireless Mode(Option): 11a/n on1y 11an mixed(Def).
    SSID Broadcast Switch Supported.
    Quantity of Users 30x WiFi Users Connected Simultaneously Supported.
    200x Users via Ethernet Cable Connected Simultaneously Supported.
    Safety Parameters Support WPA(Individual)/WPA2(Individual)/WPA-Mixed(Individual).
    Support TKIP/AES/Auto Encryption Algorithm.
    Transmission Distance Outdoor Without Barriers Up to 200 Meters.
    Parameters of System
    GPU Industrial High Performance Embedded MIPS CPU, main frequency 580Mhz.
    MMU With MMU memory management unit built-in CPU, it can prevent system abnormality caused by memory spilling.
    FLASH 128 Mbits, have enough memory to store program and data.
    DDR2 1024 Mbits, have enough cache to improve arithmetic speed of system.
    Parameters of Interfaces

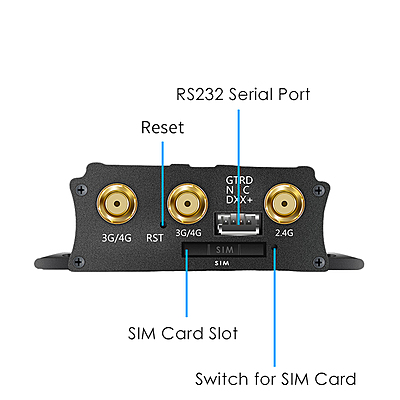

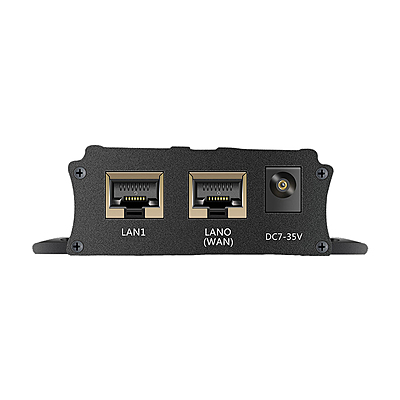

    WAN  1x 10/100M adaptive WAN port, isolation built-in, auto flip supported (Auto, MDI, MDIX), PPOE supported.
    Serial Port  RS232
    Indicators 4x Indicators.
    Antenna Port 3x Antenna Ports, Standard SMA Antenna Port.
    USIM Slot 1x SIM Slot
    Power Port Standard DC connector.
    Parameters of Power
    Input Voltage Wide voltage designed, DC7-35V, adapter can power it on directly and it has buit-in power reverse and over-voltage/current protection.
    Adapter DC12V 1.5A
    Communication Current <300mA
    Standby Current <150mA
    Other Parameters
    Case Adopt metal case, anti-radiation/interference, safe isolation between case and system, lightningproof, applicable for serious conditions.
    Outline Dimension 82mm*82mm*24mm(3.2in*3.2in*0.9in)
    Package Dimension 250mm*170mm*75mm(9.8in*6.7in*2.9in)
    Weight 394g(0.87lb, 13.9oz)
    Operation Temperature -40°C~+85°C(-40°F~+185°F)
    Storage Temperature -50°C~+95°C(-58°F~+203°F)
    Humidity 95% (Non-Condensing)
    Typical Application(WiFi Covered Application)
    Finance  Center monitoring, mobile stock transaction and info inquiry;
    Communication Power environment monitoring, electric circuit information inquiry;
    Traffic GPRS, SMS, GPS vehicle monitoring and dispatch, banknote transport monitoring, school bus monitorning;
    Power Power system realtime dynamic monitoring and auto compensation;
    Heat Heating system real-time monitoring and maintenance;
    Police

    Vehicles of police station, 911 and traffic police monitoring and dispatch

    Security mobile data inquiry like(ID verification, wanted, child lost information etc.)

    Mobile traffic communication data inquiry like licence plate etc.;

    Work Site Mobile work management, other outdoor staff mobile data inquiry;
    Weather Data collection & transmission
    Charge Charging station monitoring & management, data transmission;
    Water Resource  Quantity of water monitoring and transmission;
    Life Real-time gas data colection and automatic control, water station real-time monitoring and maintenance;
    Scenic Area WiFi covered, wireless network ads pushing and devices management;
    Hotel WiFi covered, wireless network ads pushing and device management;
    Package Contents

    1x 4G Industrial Wireless Router

    1x 4G Antenna

    2x WiFi Antenna

    1x Power Adapter

    1x GPS Antenna(Optional)

    Operation Band

    LTE Cat 4 EC25-E EC25-EU EC25-EUX EC25-J
    Region/Operator EMEA/South Korea/Thailand/India EMEA/Thailand EMEA/Thailand Japan
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B7/B8/B20/B28A B1/B3/B8/B18/B19/B26
    LTE-TDD B38/B40/B41 B38/B40/B41 B38/B40/B41 B41
    WCDMA B1/B5/B8 B1/B8 B1/B8 B1/B6/B8/B19
    GSM/EDGE B3/B8  B3/B8  B3/B8  /
    GNSS GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier Global: Vodafone
    Europe: Deutsche Telekom/Telefónica
    South Korea: SKT/KT*/LGU+*
    Europe: Deutsche Telekom/
    British Telecom
    / Japan: NTT DOCOMO/SoftBank/KDDI
    Regulatory Global: GCF
    Europe: CE
    South Korea: KC
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Thailand: NBTC
    Russia: FAC
    South Africa: ICASA
    Global: GCF
    Europe: CE
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Global: GCF
    Europe: CE
    Taiwan (China): NCC
    Australia/New Zealand: RCM
    Japan: JATE/TELEC
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL)
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) /
    GPRS Data Rates (kbps) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) /
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 2 x 2 x 2 x 2
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    I2C x 1 x 1 x 1 x 1
    SDIO x 2 x 2 x 1 x 2
    SGMII x 1 x 1 x 1 x 1
    Bluetooth* x 1 x 1 / x 1
    ADC x 2 x 2 x 2 x 2
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator®
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    / Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 3.9 mA @ Sleep, Typ.
    30 mA @ Idle
    3.4 mA @ Sleep, Typ.
    23.3 mA @ Idle
    1.69 mA @ Sleep, Typ.
    18.51 mA @ Idle
    3.2 mA @ Sleep, Typ.
    31.5 mA @ Idle



    LTE Cat 4 EC25-A Mini PCIe EC25-V Mini PCIe EC25-AF Mini PCIe EC25-AFX Mini PCIe
    Region/Operator North America America Verizon North America North America
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B2/B4/B12 B4/B13 B2/B4/B5/B12/B13/B14/B66/ B2/B4/B5/B12/B13/B14/B66/B71
    LTE-TDD / / / /
    WCDMA B2/B4/B5 / B2/B4/B5 B2/B4/B5
    GSM/EDGE /  /  /  /
    GNSS GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier America: AT&T/T-Mobile
    Canada: Rogers/Telus
    America: Verizon America: Verizon/
    AT&T (FirstNet)/T-Mobile
    Canada: Rogers/Telus
    America: Verizon/
    AT&T (FirstNet)*
    Regulatory America: FCC
    North America: PTCRB
    Canada: IC
    Global: GCF
    America: FCC
    Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC
    Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) / / / /
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) / 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) / / / /
    GPRS Data Rates (kbps) / / / /
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    LED_WWAN# x 1 x 1 x 1 x 1
    W_DISABLE# x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    PERST# x 1 x 1 x 1 x 1
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator® *
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 3.6 mA @ Sleep, Typ.
    27 mA @ Idle
    3.4 mA @ Sleep, Typ.
    30 mA @ Idle
    2.2 mA @ Sleep, Typ.
    21.7 mA @ Idle
    1.67 mA @ Sleep, Typ.
    22 mA @ Idle



    LTE Cat 4 EC25-MX Mini PCIe EC25-AU Mini PCIe EC25-AUX Mini PCIe EG25-G Mini PCIe
    Region/Operator Mexico Latin America/Australia/New Zealand Latin America/Australia/New Zealand Global
    Dimensions(mm) 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9 30.0 x 51.0 x 4.9
    Temperature Ranges
    Operating Temperature -35°C to +75°C  -35°C to +75°C  -35°C to +75°C  -35°C to +75°C
    Extended Temperature  -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
    Frequency Bands
    LTE-FDD B2/B4/B5/B7/B28/B66 B1/B2①/B3/B4/B5/B7/B8/B28 B2/B4/B5/B12/B13/B14/B66/ B1/B2/B3/B4/B5/B7/B8/B12/B13/
    B18/B19/B20/B25/B26/B28
    LTE-TDD / B40 B40 B38/B39/B40/B41
    WCDMA B2/B4/B5 B1/B2/B5/B8 B1/B2/B4/B5/B8 B1/B2/B4/B5/B6/B8/B19
    GSM/EDGE / B2/B3/B5/B8 B2/B3/B5/B8 B2/B3/B5/B8
    GNSS / GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    GPS/GLONASS/BeiDou (Compass)/
    Galileo/QZSS (Optional)
    Certifications
    Carrier / Australia: Telstra / Europe: Deutsche Telekom
    America: Verizon/AT&T/U.S. Cellular
    Canada: Telus/Rogers*
    Regulatory America: FCC
    North America: PTCRB
    Mexico: IFETEL
    Global: GCF
    America: FCC
    Taiwan (China): NCC
    Brazil: Anatel
    Australia/New Zealand: RCM
    Europe: CE
    America: FCC
    Taiwan (China): NCC
    Brazil: Anatel
    Australia/New Zealand: RCM
    Global: GCF
    Europe: CE
    UK: UKCA
    North America: PTCRB
    America: FCC
    Canada: IC
    Brazil: Anatel
    Mexico: IFETEL
    South Korea: KC
    Taiwan(China): NCC
    Japan: JATE/TELEC
    Australia & New Zealand: RCM
    South Africa: ICASA
    Others RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    Data Transmission
    LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL) 150 (DL)/ 50 (UL)
    LTE-TDD Data Rates (Mbps) / 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL) 130 (DL)/ 30 (UL)
    DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL) 42 (DL)/ 5.76 (UL)
    WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL) 384 (DL)/ 384 (UL)
    EDGE Data Rates (kbps) / 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL) 296 (DL)/ 236.8 (UL)
    GPRS Data Rates (kbps) / 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL) 107 (DL)/ 85.6 (UL)
    Interfaces
    (U)SIM x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    USB2.0 x 1 x 1 x 1 x 1
    Audio Digital(PCM) x 1 x 1 x 1 x 1
    LED_WWAN# x 1 x 1 x 1 x 1
    W_DISABLE# x 1 x 1 x 1 x 1
    UART x 1 x 1 x 1 x 1
    PERST# x 1 x 1 x 1 x 1
    Voice
    Speech Codec Modes HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB HR/FR/EFR/AMR/AMR-WB
    Echo Arithmetic Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression Echo Cancellation/Noise Suppression
    VoLTE Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Digital Audio and VoLTE
    (Voice over LTE) (Optional)
    Enhanced Features
    DTMF
    DFOTA
    QMI/RmNet
    Audio Playback*/Audio Recording* Optional Optional Optional Optional
    QuecLocator®
    QuecFile®
    (U)SIM Card Detection
    Drivers
    USB Serial Driver Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    Windows 7/8/8.1/10,
    Linux 2.6–5.4,
    Android 4.x–9.x
    GNSS Driver / Android 4.x–9.x Android 4.x–9.x Android 4.x–9.x
    RIL Driver Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x Android 4.x–10.x
    NDIS Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10 Windows 7/8/8.1/10
    MBIM / Windows 8/8.1/10,
    Linux 3.18–5.4
    / Windows 8/8.1/10,
    Linux 3.18–5.4
    GobiNet Driver Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4 Linux 2.6–5.4
    QMI_WWAN Driver Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4 Linux 3.4–5.4
    Electrical Features
    Supply Voltage Range 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ. 3.0–3.6V, 3.3 V Typ.
    Power Consumption 1.55 mA @ Sleep, Typ.
    20 mA @ Idle
    2.6 mA @ Sleep, Typ.
    22 mA @ Idle
    1.9 mA @ Sleep, Typ.
    23.4 mA @ Idle
    1.9 mA @ Sleep, Typ.
    23.4 mA @ Idle

    User Manual
