4PIN PH2.0 USB 2.0 Connector: Offers flexible integration with host devices.
SIM Card Slot Included: Provides cellular data access for LTE modules.
Mini PCIe Card Interface: Supports popular WWAN modules like Quectel EC25/EC20.
Compact and Industrial-Grade: Built for reliable long-term operation.
Versatile Application: Suitable for Raspberry Pi, embedded PCs, routers, and CCTV.
Redeem RVFGV2MJF2XJ to save 10%!
$10.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

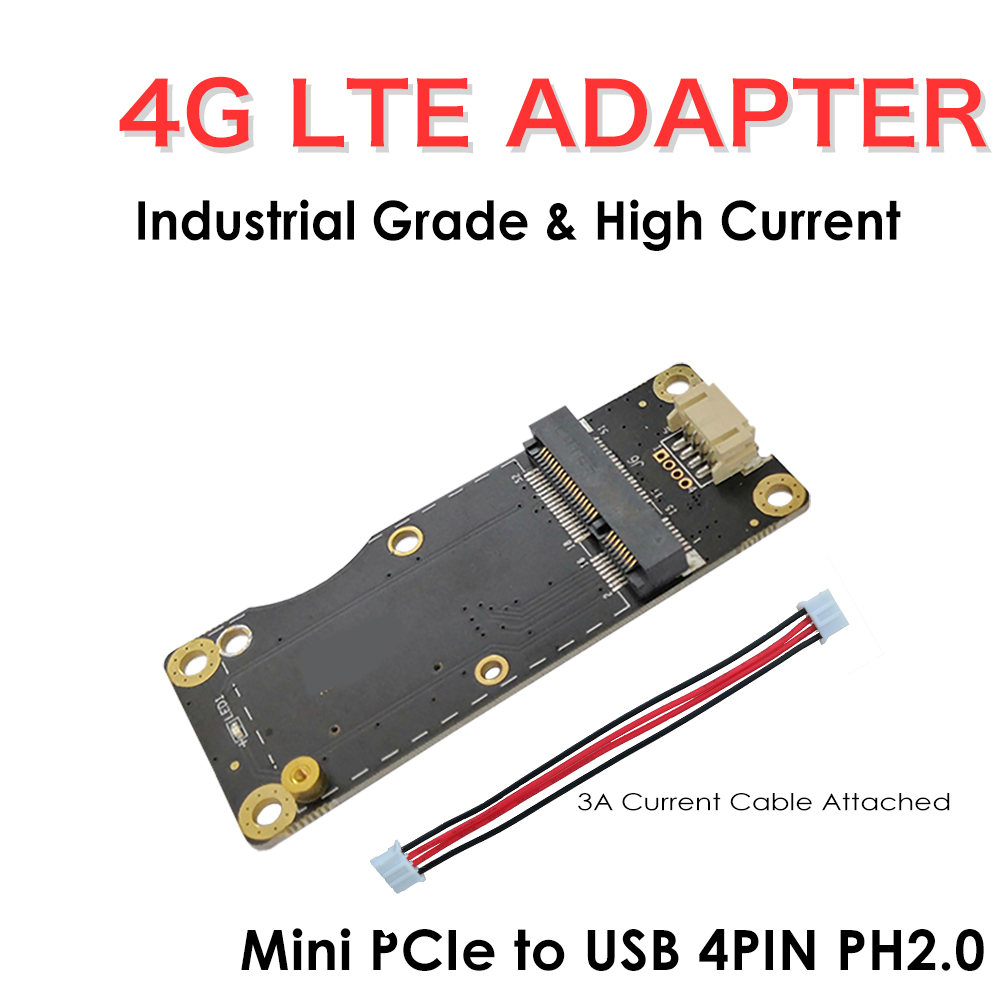

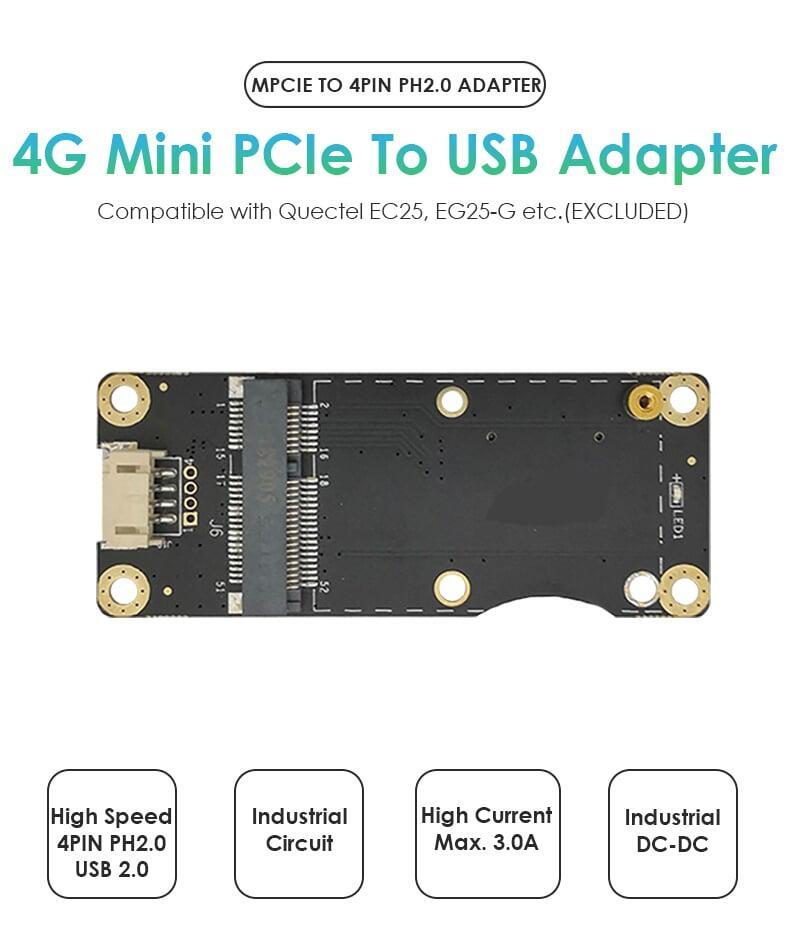

4G LTE Mini PCIe to USB Adapter with SIM Slot – 4PIN PH2.0 USB 2.0 Connector
Multiple OS Supported

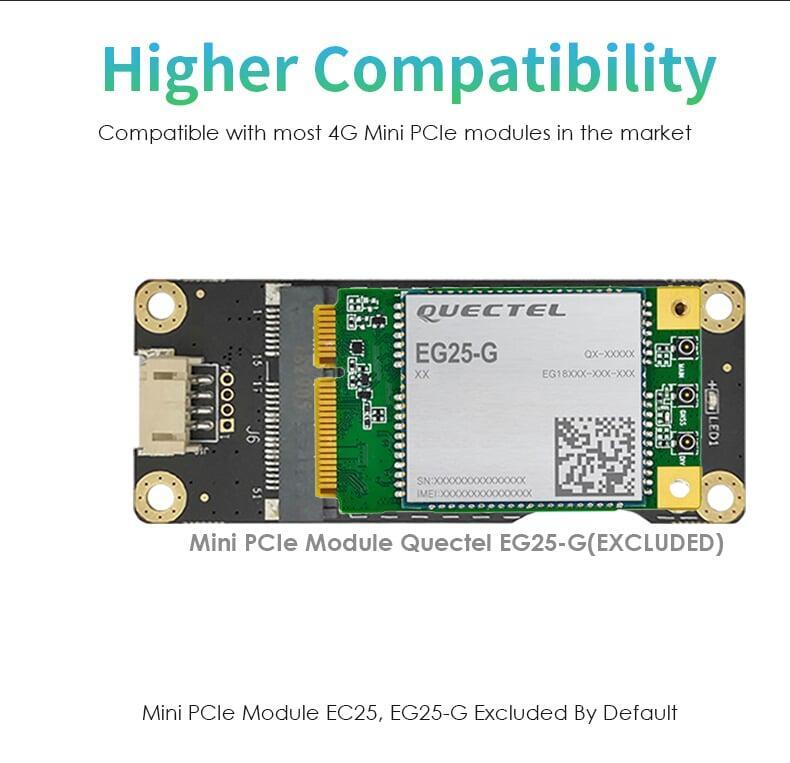

Higher Compatibility

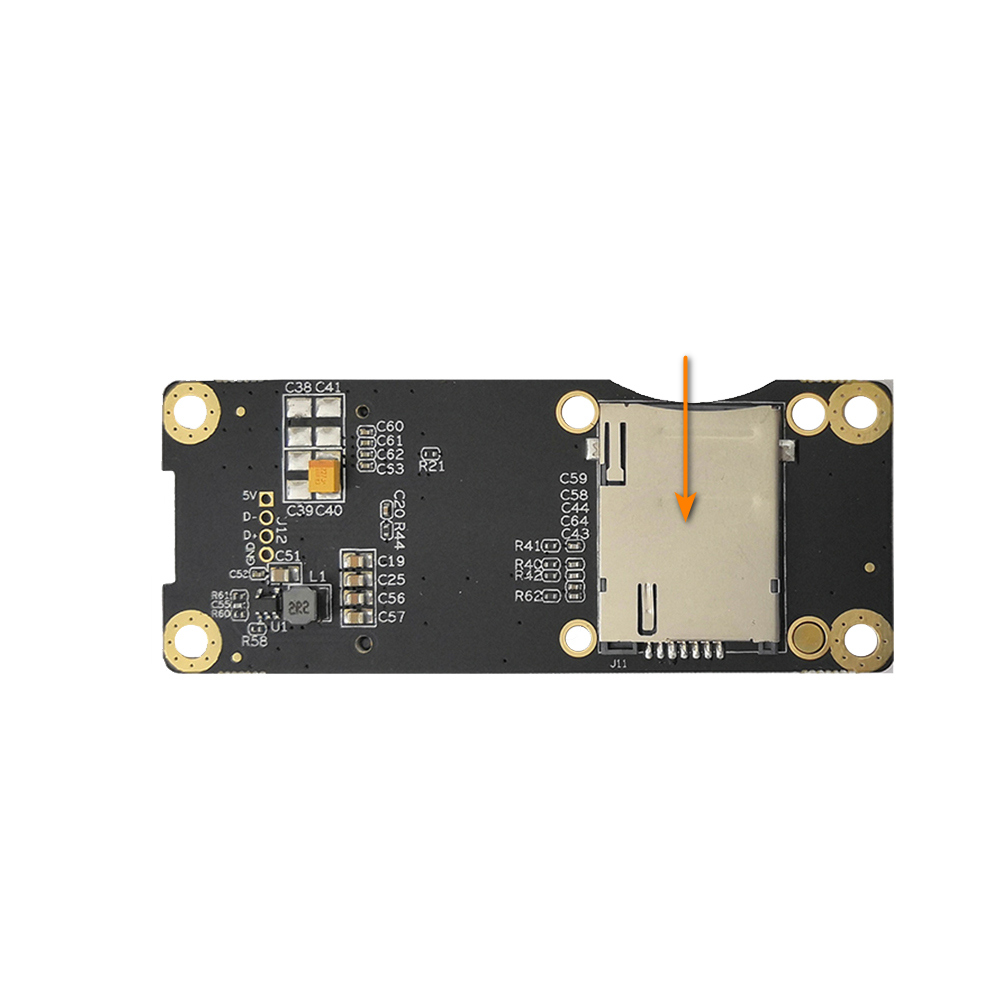

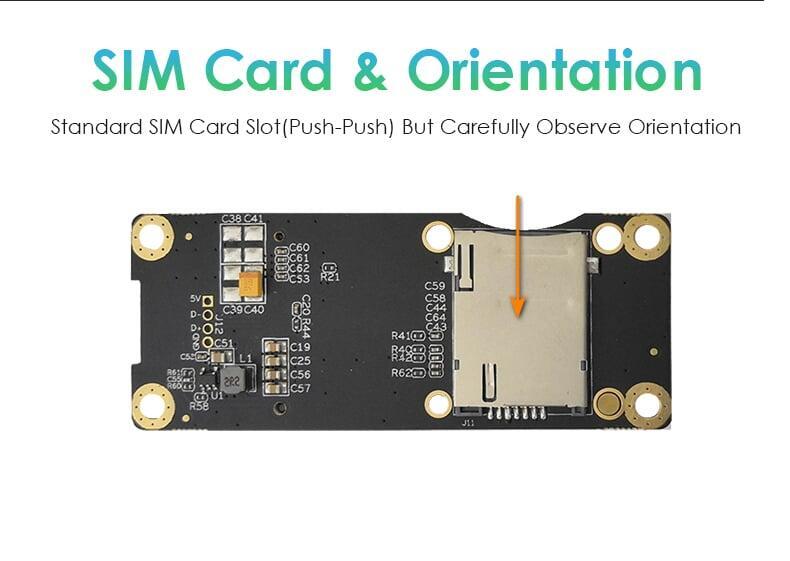

SIM Card & Orientation

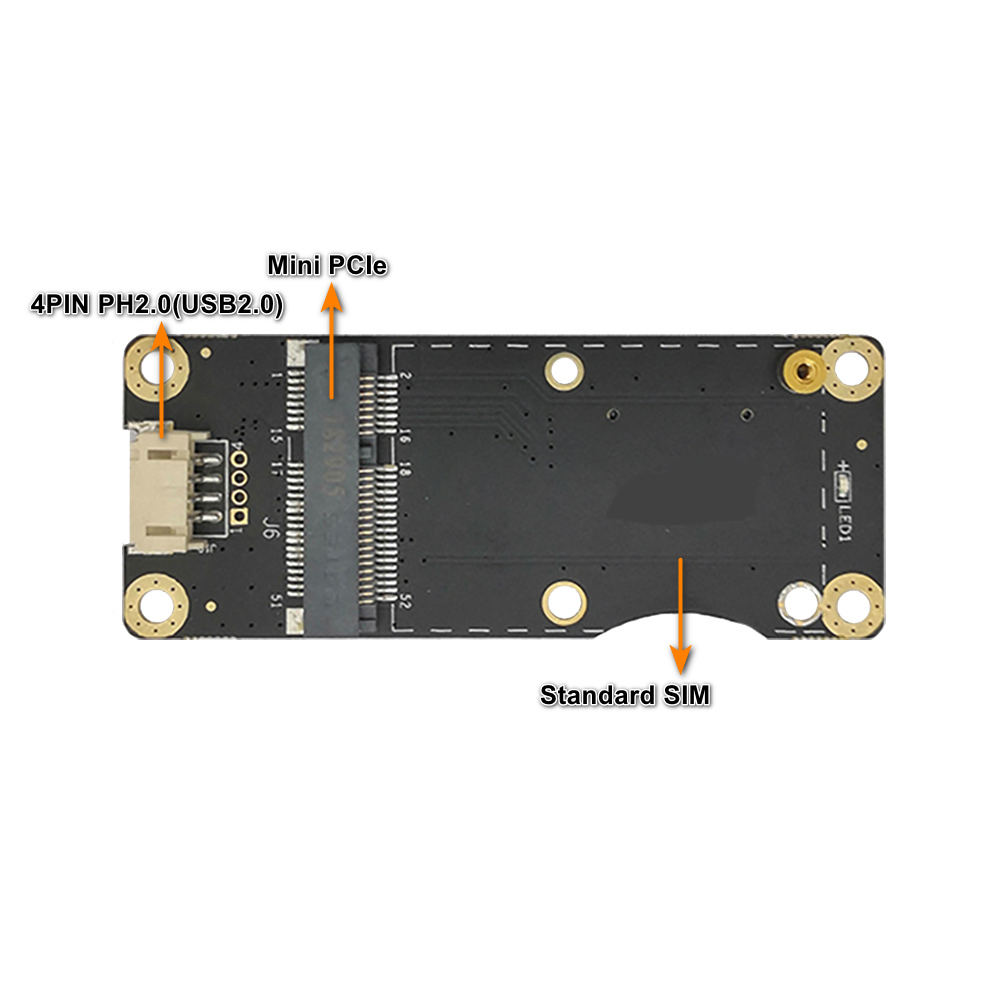

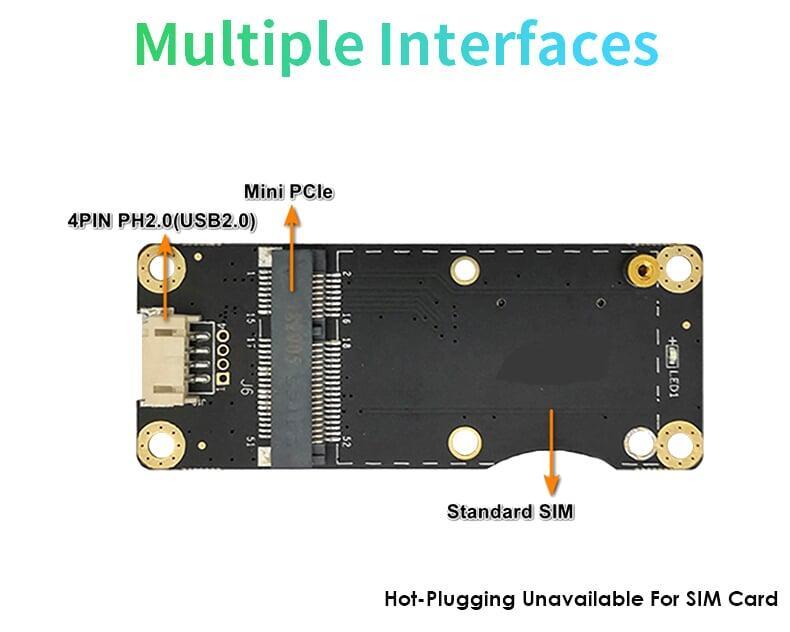

Multiple Interfaces
Rapid Deployment of IOT

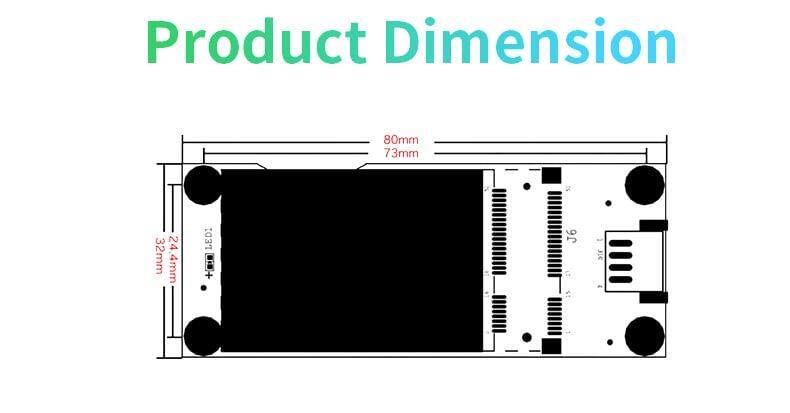

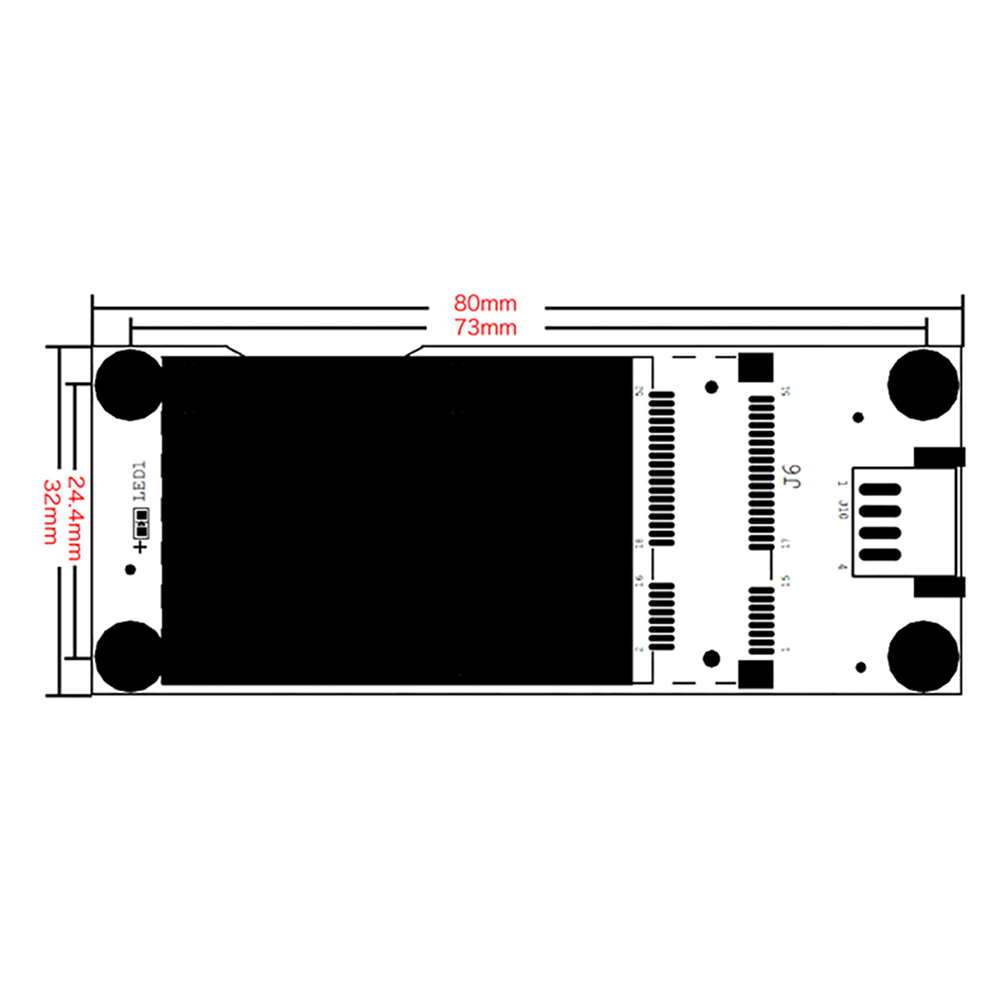

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 4G LTE Mini PCIe to 4PIN PH2.0 Adapter
- Part NumberP2U52V024PIN
- LTE ModuleCompatible with 4G Mini PCIe Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module
- SIM SlotStandard SIM Slot, Push Type, Hot-Plugging Unavailable
- Working Voltage3.6V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]
- Unit Dimension80x32x0.5mm[3.15x1.26x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
