Mini PCIe to USB 2.0 Adapter: Enables USB interfacing for 4G LTE cards.
Integrated SIM Card Slot: Standard SIM slot supports global LTE network access.
Industrial Build Quality: Stable performance in embedded and remote systems.
Compatible with Quectel Modules: Supports EC25, EC20, and similar Mini PCIe LTE cards.
Ideal for M2M/IoT Applications: Works with Raspberry Pi, routers, and surveillance systems.
Redeem RVFGV2MJF2XJ to save 10%!
$10.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

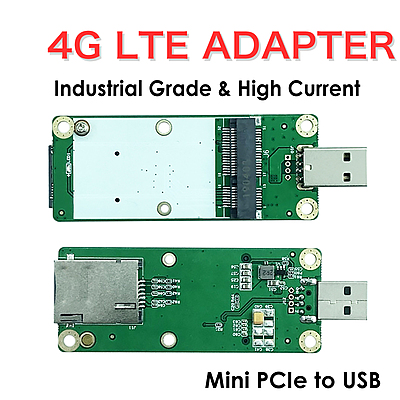

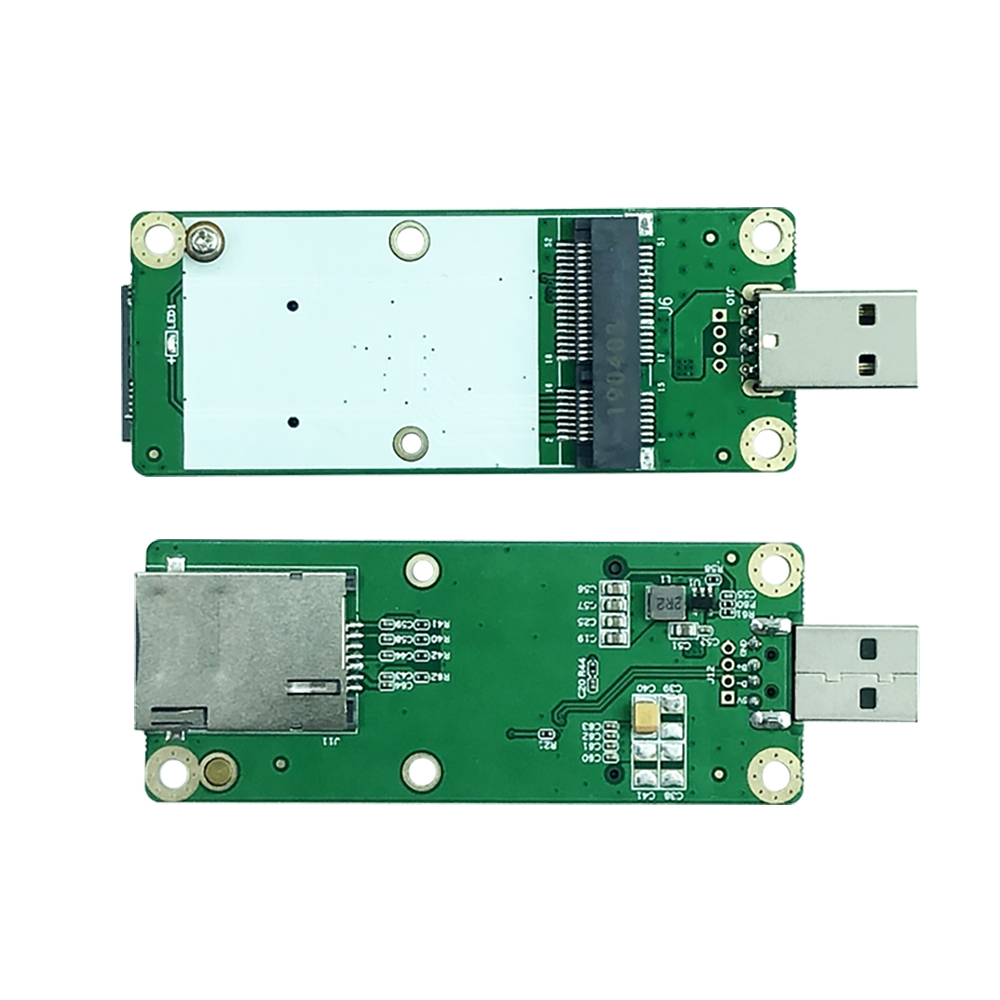

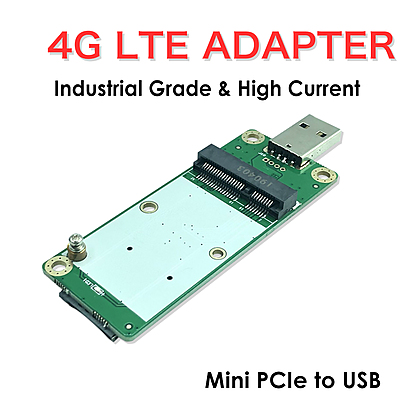

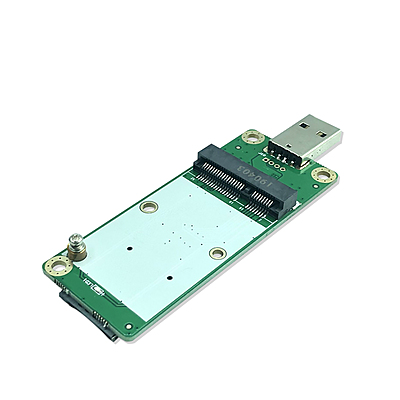

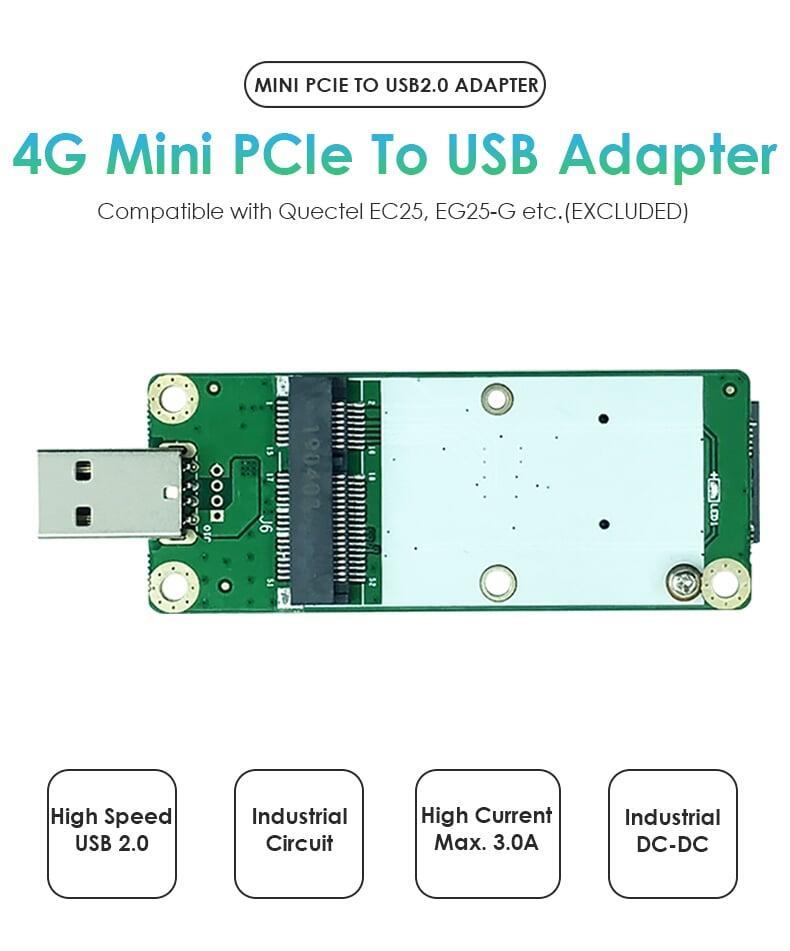

Mini PCIe to USB Adapter with SIM Slot
Multiple OS Supported

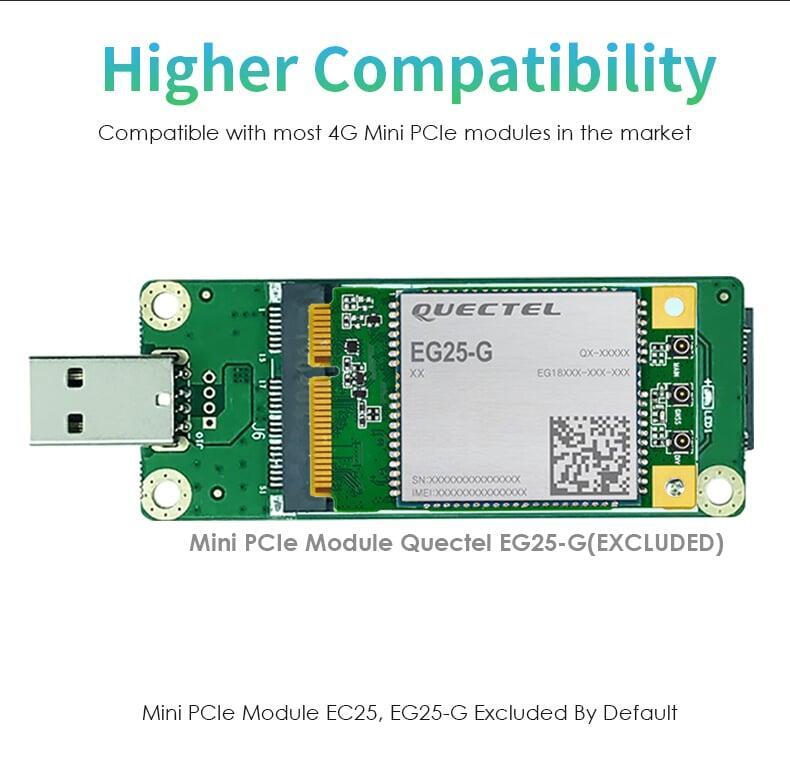

Higher Compatibility

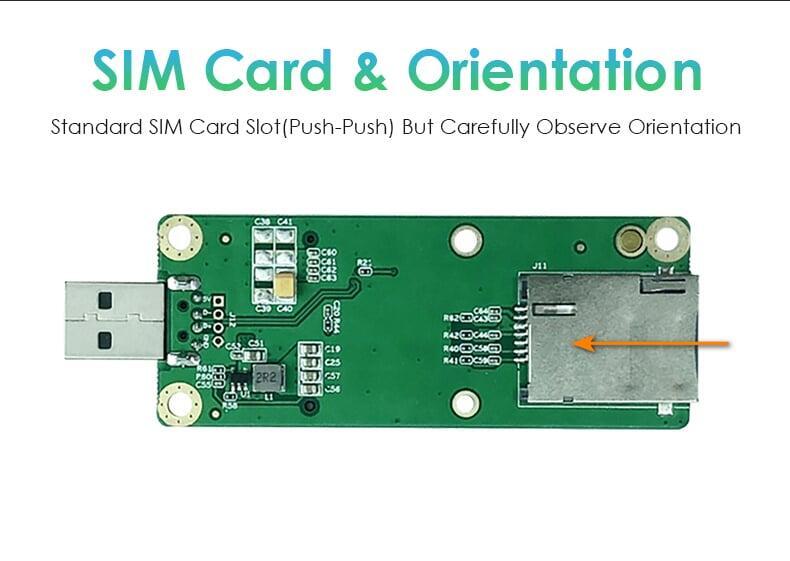

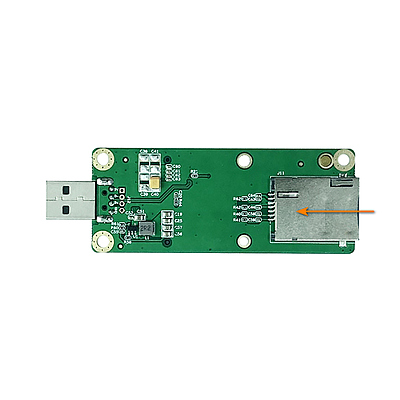

SIM Card & Orientation

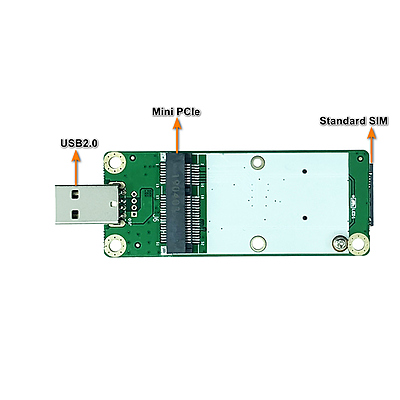

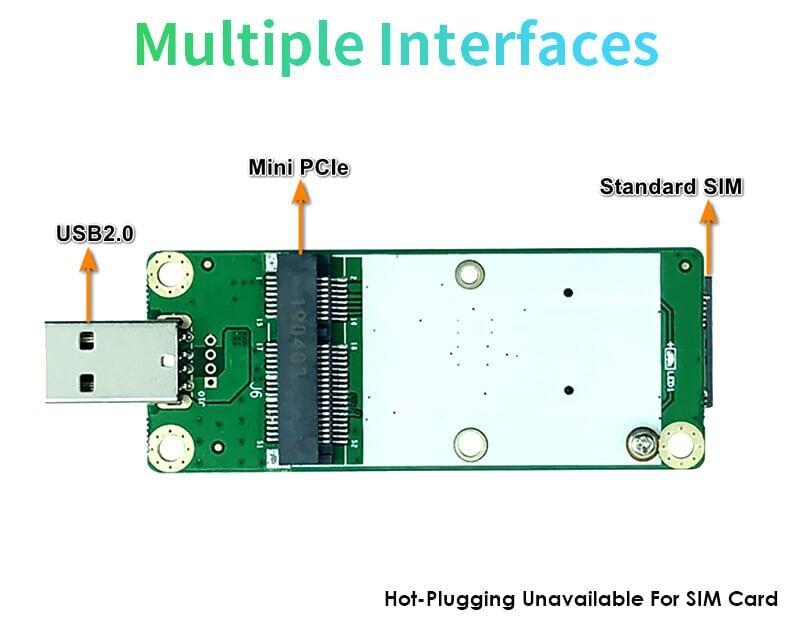

Multiple Interfaces
Rapid Deployment of IOT

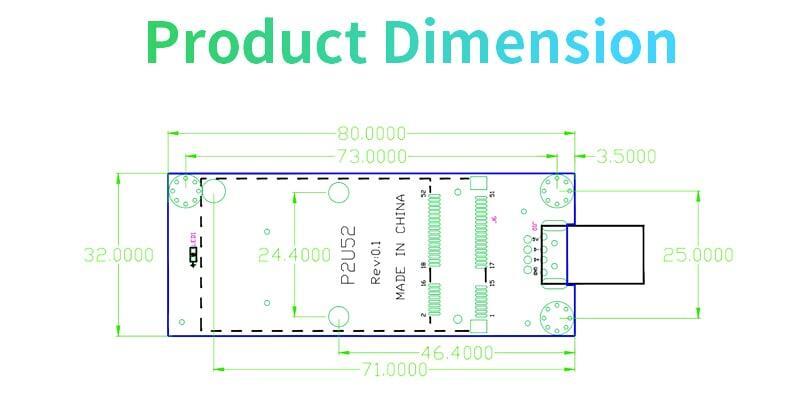

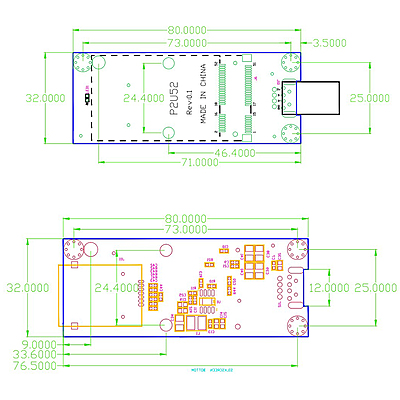

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 4G LTE Mini PCIe to USB2.0 Adapter
- Part NumberP2U52V01USB
- LTE ModuleCompatible with 4G Mini PCIe Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module
- SIM SlotStandard SIM Slot, Push Type, Hot-Plugging Unavailable
- Working Voltage3.6V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]
- Unit Dimension80x32x0.5mm[3.15x1.26x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
