USB 2.0 via 4PIN PH2.54 Connector: Ensures compatibility with a variety of industrial devices.
Mini PCIe Slot for LTE Modules: Compatible with modules like Quectel EC25 for fast LTE connectivity.
SIM Card Slot: Direct support for mobile network connectivity in embedded applications.
Versatile USB 2.0 Interface: Ideal for IoT, M2M, Raspberry Pi, and CCTV camera setups.
Industrial-Grade Durability: Built for long-term, reliable performance in harsh environments.
Redeem RVFGV2MJF2XJ to save 10%!
$11.57
Product Details
Specifications
Ratings & Reviews
Product Details
Product Details

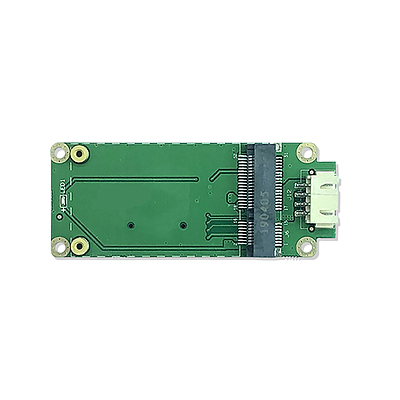

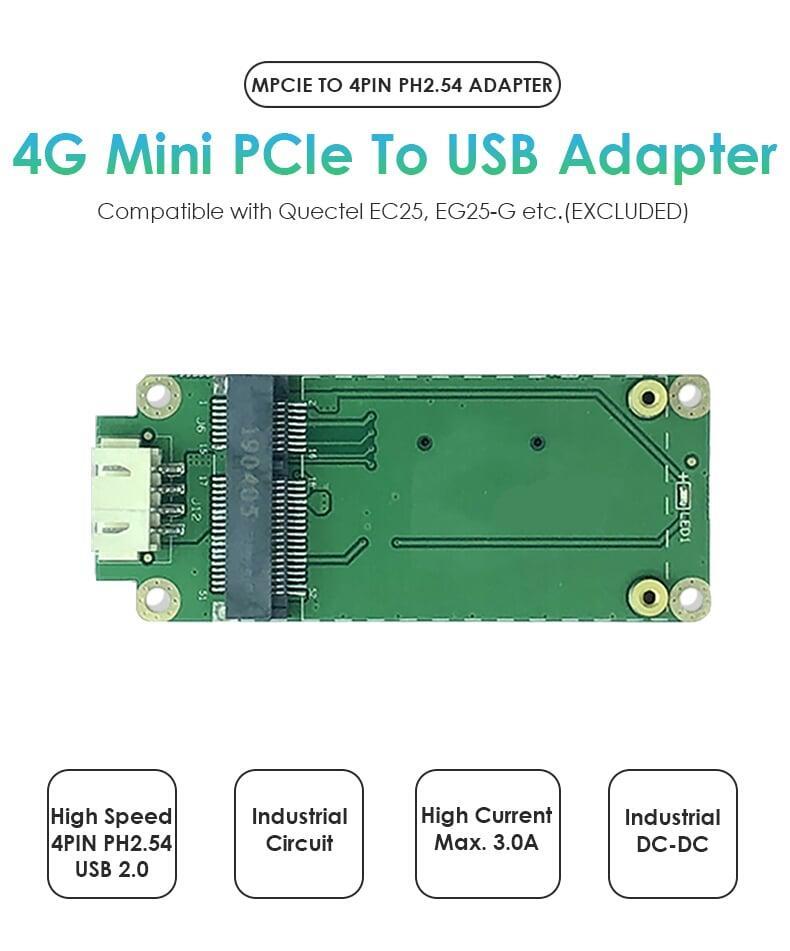

4G LTE Industrial Mini PCIe to 4PIN PH2.54 USB Adapter with SIM Slot – USB 2.0 Connector
Multiple OS Supported

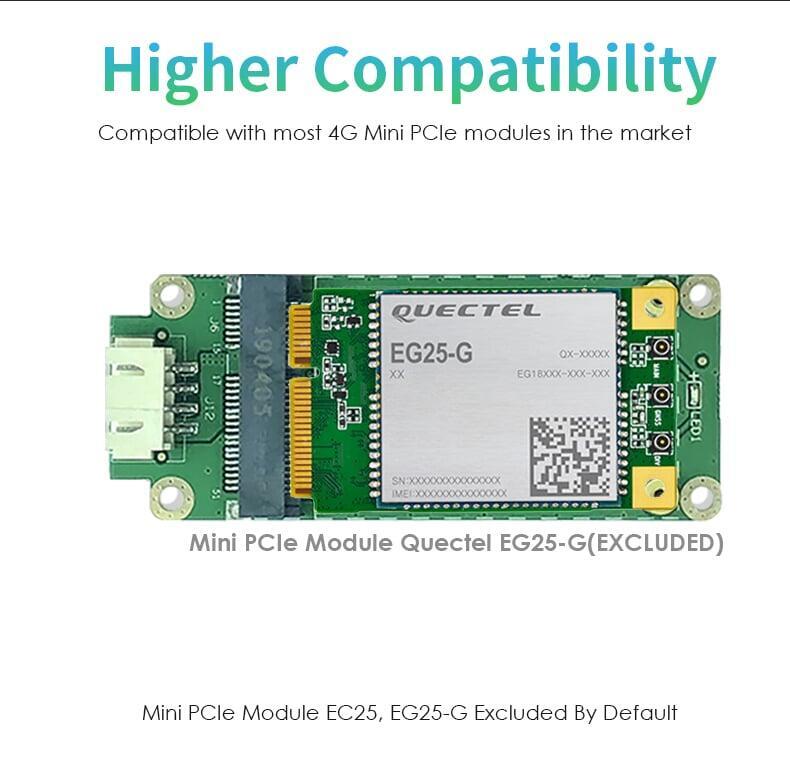

Higher Compatibility

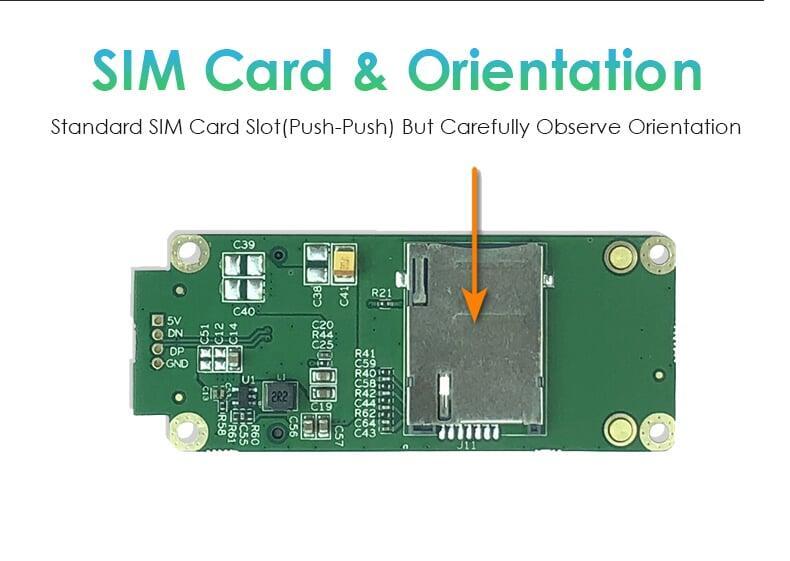

SIM Card & Orientation

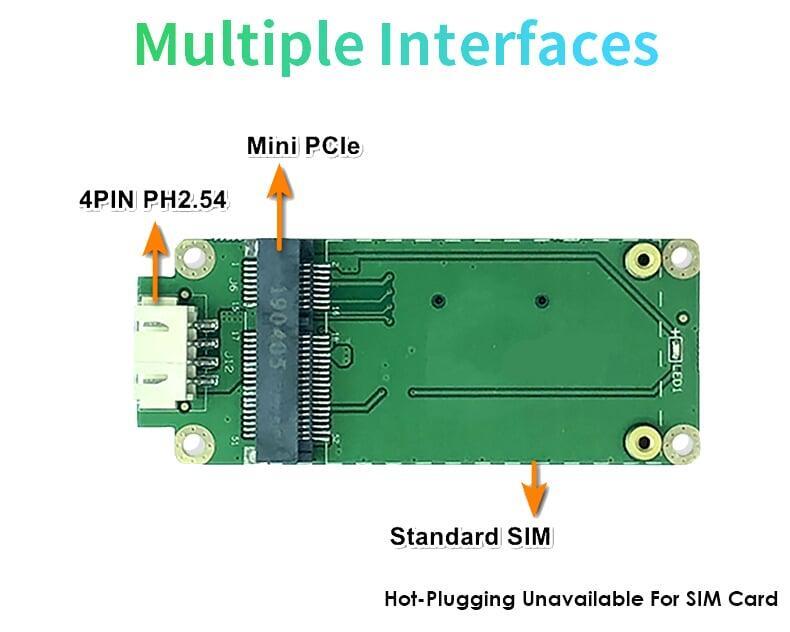

Multiple Interfaces
Rapid Deployment of IOT

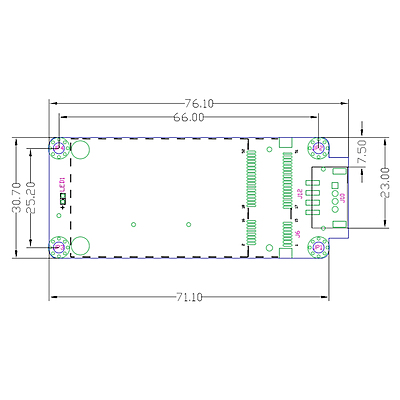

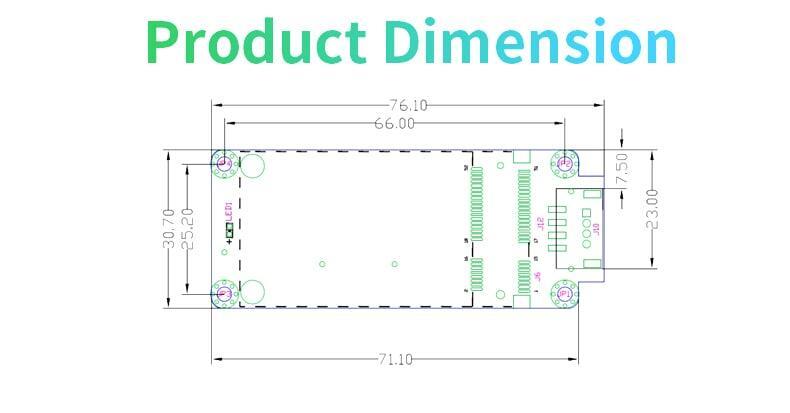

Product Dimension
Specifications
Specifications
Parameters of Adapter
- Part NameIndustrial 4G LTE Mini PCIe to 4PIN PH2.54 Adapter
- Part NumberP2U52V034P254
- LTE ModuleCompatible with 4G Mini PCIe Module from Quectel/MEIG/SIMCOM etc.(Excluded By Default)
- WiFi ModuleNOT Compatible
- Input5V USB
- USB ProtocolUSB2.0
- OS SupportedWindows/Linux/Android, Depends on 4G Mini PCIe Module
- SIM SlotStandard SIM Slot, Push Type, Hot-Plugging Unavailable
- Working Voltage3.6V (3.3V~4.2V Configurable for LTE Module)
- Operating Temp.-20°C~+60°C [-4°F~140°F]
- Storage Temp.-40°C~+85°C [-40°F~185°F]
- Unit Dimension80x32x0.5mm[3.15x1.26x0.02in]
- Package Dimension120*65*1mm[4.72*2.56*0.04in]
- Net Weight11g[0.02lb, 0.39oz]
- Gross Weight13g[0.03lb, 0.46oz]
